24W 2400Lm LED Panel Remote Control (Intensity-CCT) 40,000H [HO-PL-24W-RC]

24W 2400Lm LED Panel Remote Control (Intensity-CCT) 40,000H [HO-PL-24W-RC]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Osram Led
  • SkuHO-PL-24W-RC
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
£27.00
£41.00 £27.00 -34%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-34.15%(HO-PL-24W-RC_padreImg_ho_pl_24w_rc_0.jpeg)
Cold/Natural/Warm
Available
Free shipping
£27.00
£41.00 £27.00 -34%

Accessories

  • (GH-90963602_padreImg_gh_90963602_0.jpeg) (GH-90963602_padreImg_gh_90963602_1.jpeg)

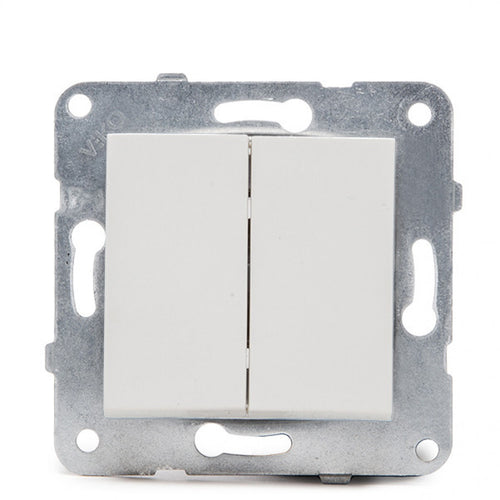

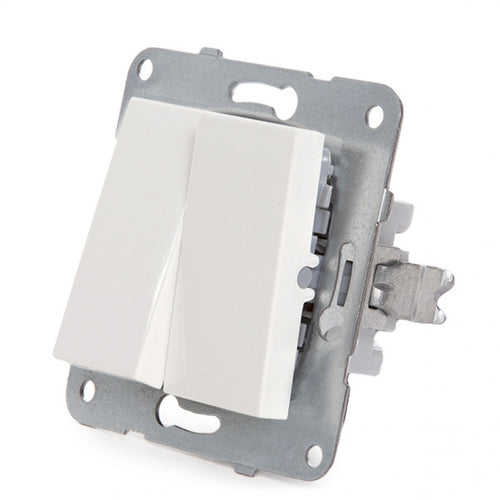

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    Offer
    PANASONIC

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £4.00
    £7.00 £4.00 -42%
    Offer
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

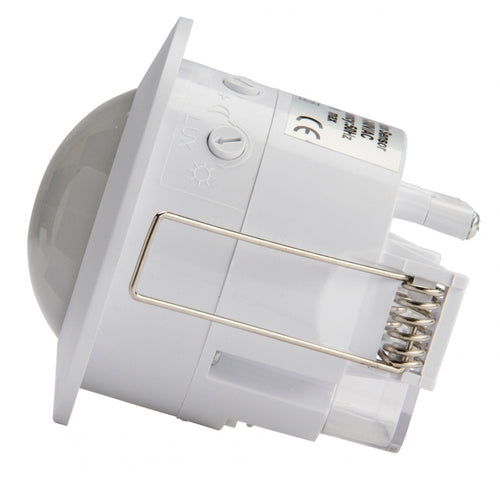

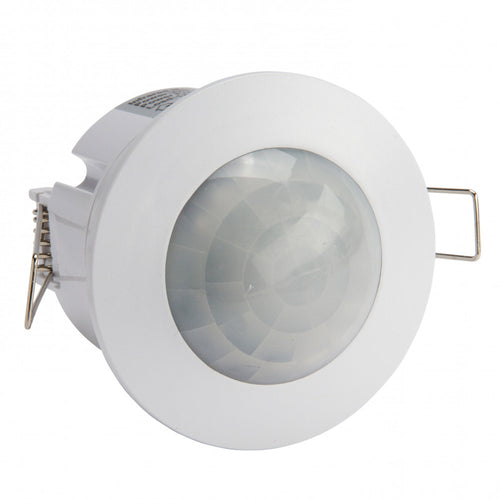

    Motion Sensor Recessed 360º ►1200/300W

    Offer
    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    £12.00
    £14.00 £12.00 -14%
    Offer
  • (SB-BS039_padreImg_sb_bs039_0.jpeg) (SB-BS039_padreImg_sb_bs039_1.jpeg)

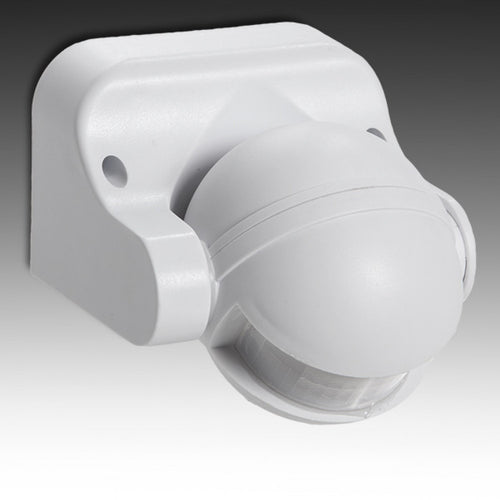

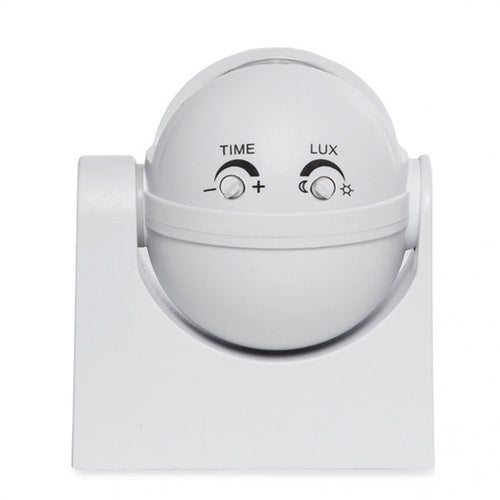

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    Offer
    GreenIce

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    £9.00
    £16.00 £9.00 -43%
    Offer
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

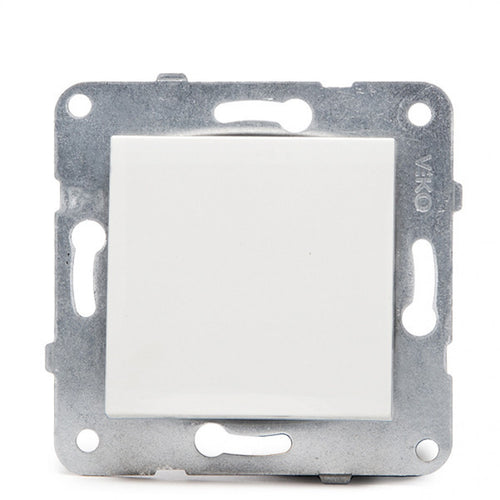

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £5.00
    £5.00 £5.00 %
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

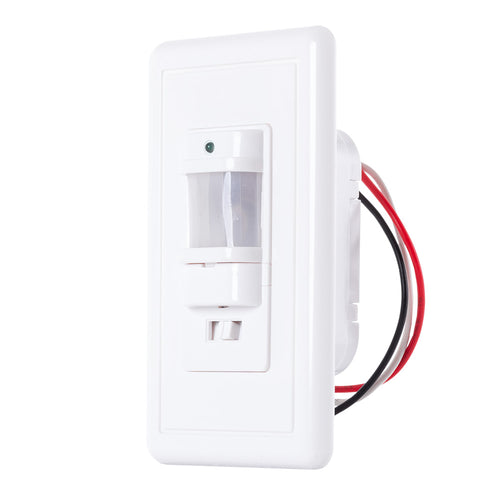

    Motion Sensor Recessed 160º ►600W/200W

    Offer
    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    £5.00
    £14.00 £5.00 -64%
    Offer
  • (GH-90963604_padreImg_gh_90963604_0.jpeg) (GH-90963604_padreImg_gh_90963604_1.jpeg)

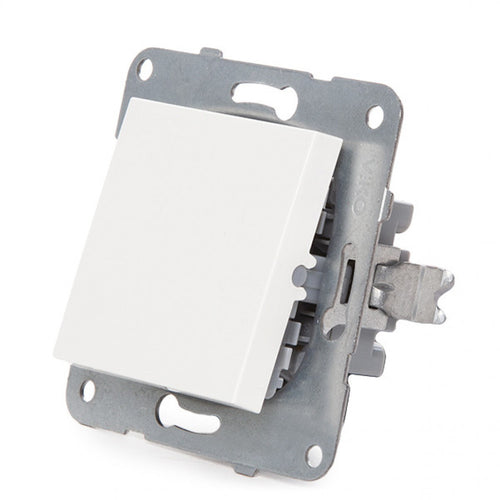

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £6.00
    £6.00 £6.00 %

Technical file

Product code
HO-PL-24W-RC
Light temperature
Cold/Natural/Warm
Power (W)
24.0
Luminosity (LM)
2400
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
240
Measures (mm)
Ø300x17
Roof cut (mm)
Ø275
High
17.0
Diameter
300
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC

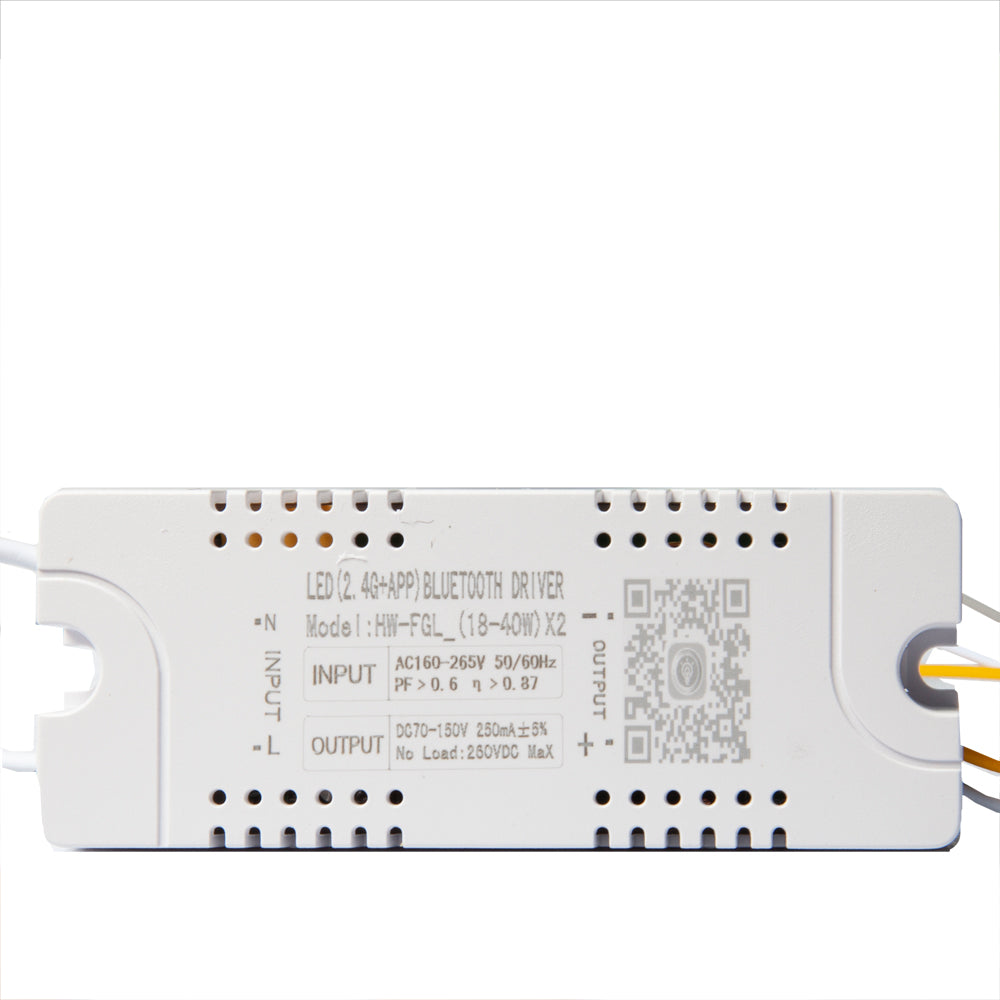

Driver output
DC180-210V
Estimated life (H)
40000
Dimable
Yeah
Equivalence (W)
160
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
24.0
Weight (gr)
390
Flicker
0.92
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
INDEX R9
8
Minimum cri range
92
Maximum cri range
22
Chromaticity x
0.323
Chromaticity y
0.353
Additional information
Detailed instructions in the "Documents" tab
Minimum CCT range
3000
Maximum cri range
6000
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
HO-PL-24W-RC
Light temperature
Cold/Natural/Warm
Power (W)
24.0
Luminosity (LM)
2400
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
240
Measures (mm)
Ø300x17
Roof cut (mm)
Ø275
High
17.0
Diameter
300
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC180-210V
Estimated life (H)
40000
Dimable
Yeah
Equivalence (W)
160
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
24.0
Weight (gr)
390
Flicker
0.92
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
INDEX R9
8
Minimum cri range
92
Maximum cri range
22
Chromaticity x
0.323
Chromaticity y
0.353
Additional information
Detailed instructions in the "Documents" tab
Minimum CCT range
3000
Maximum cri range
6000
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

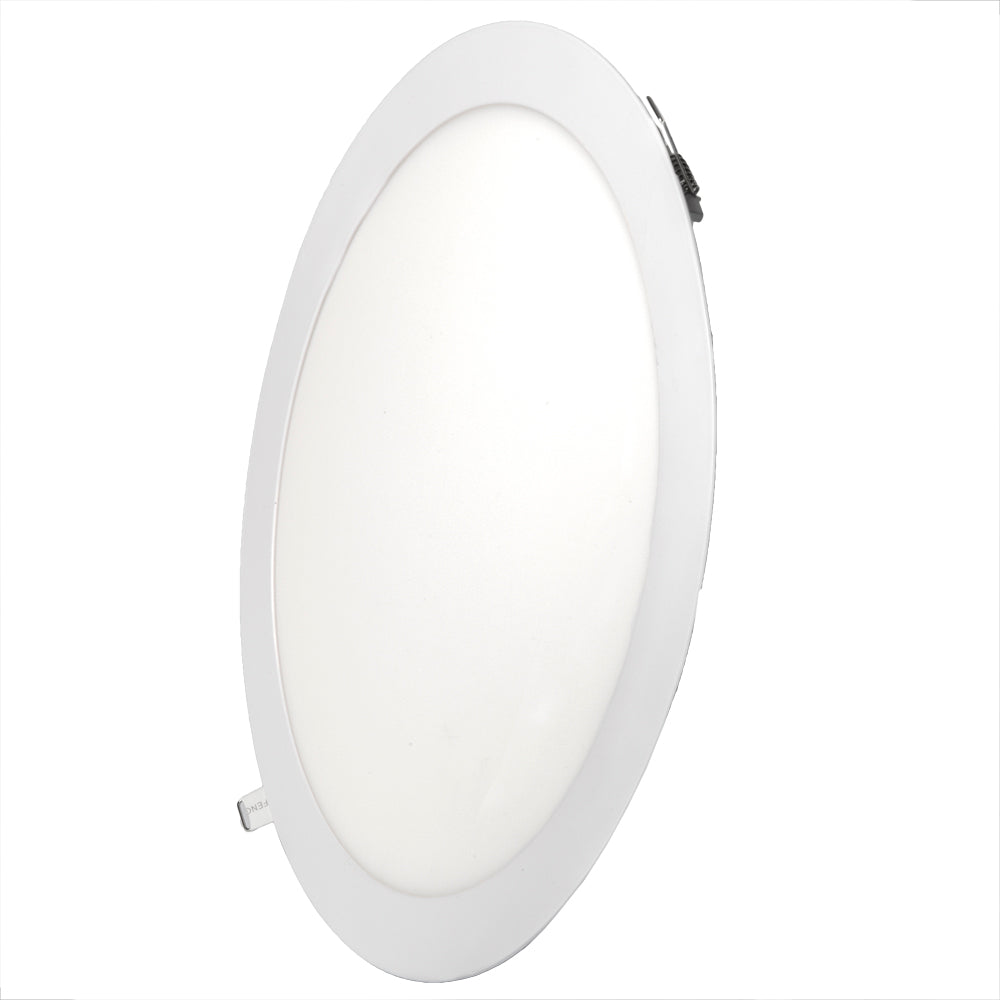

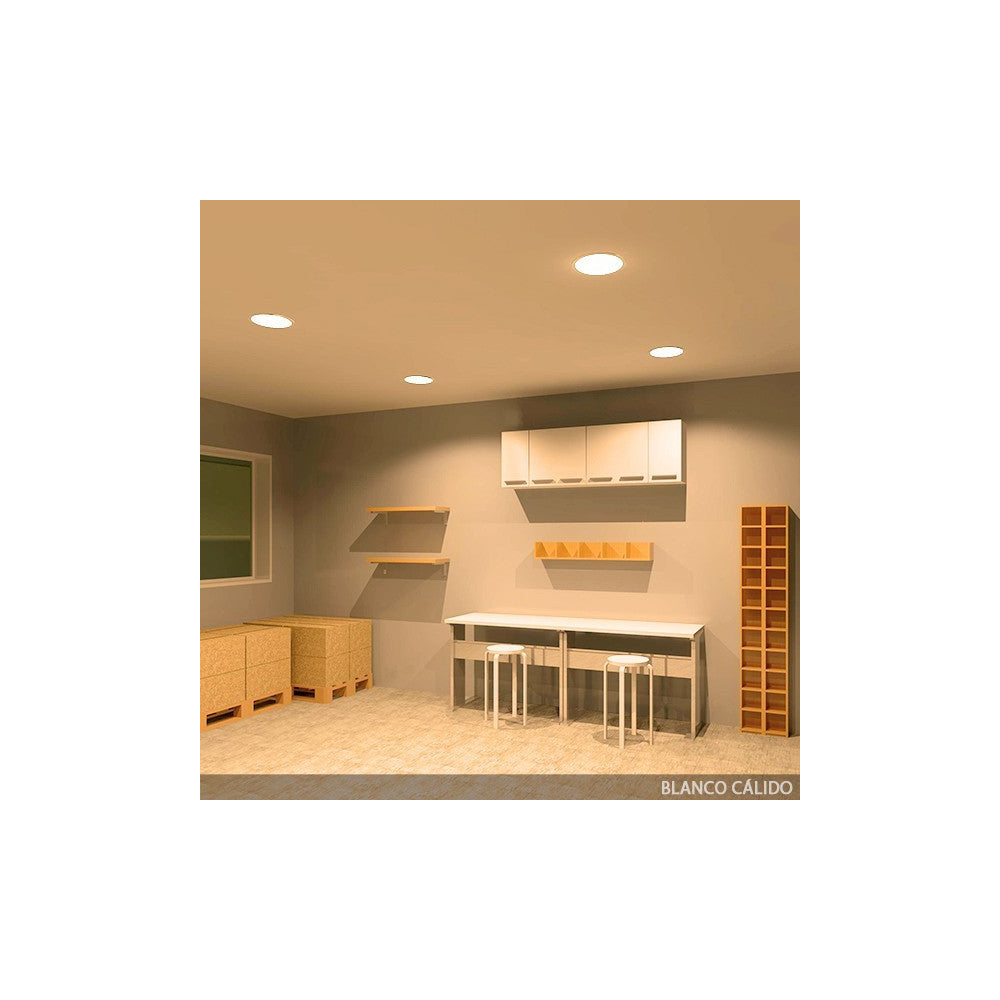

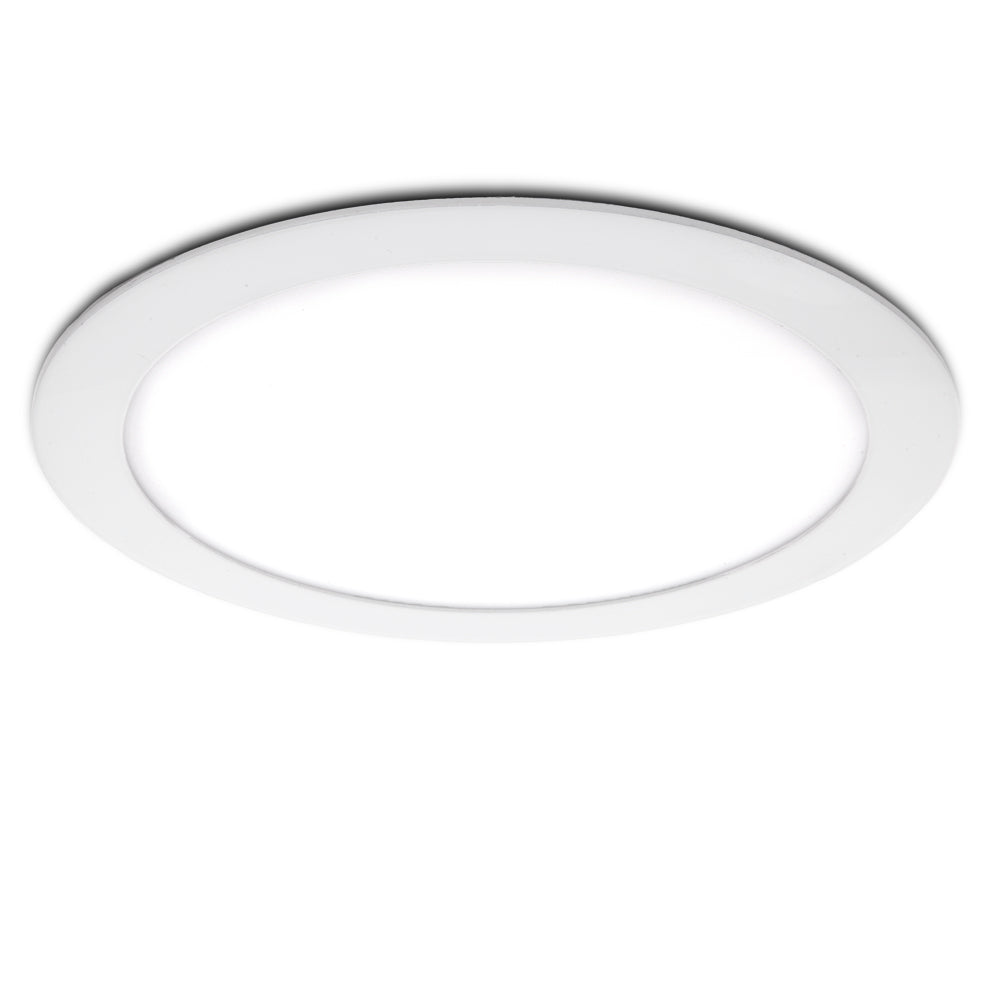

The 300mm LED plate has an elegant finish and a white lacquered aluminum frame. With immediate start-up, no noise and no flickering, this LED plate is perfect for places where you want to maximize the illuminated space, projecting light evenly and without glare. You can change its color temperature and regulate the light intensity using its Radiofrequency controller.

It offers solutions for offices, factories, supermarkets, shops and for residential use due to its design and finish elegant represents an efficient alternative for the most demanding designers. It can be installed directly to outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (100 Lm/W) consuming 24W through SMD3014 type LEDs and managing to provide a luminous flux of 2400Lm uniformly distributed through an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 130W incandescent bulb, its consumption represents a value of 24kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

The plate has a degree of protection IP25 (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

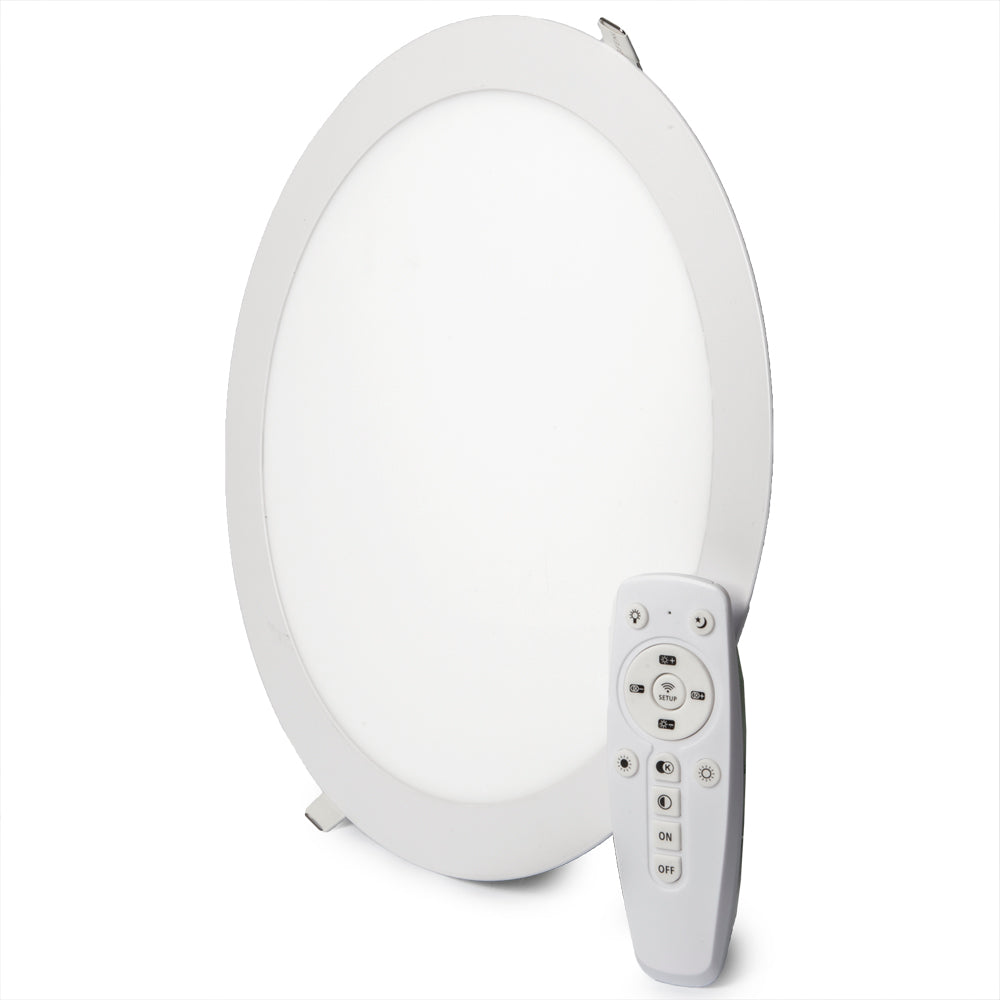

Remote control for intensity control and color temperature included.
