36W LED Luminaire Sensor Total Off 3240Lm 6000ºK Linear Surface 120Cm 40,000H [WR-RSPT-120-0W36W-CW]

36W LED Luminaire Sensor Total Off 3240Lm 6000ºK Linear Surface 120Cm 40,000H [WR-RSPT-120-0W36W-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuWR-RSPT-120-0W36W-CW
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
£16.00
£18.00 £16.00 -11%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-11.11%(WR-RSPT-120-0W36W-CW_padreImg_wr_rspt_120_0w36w_cw_0.jpeg)
Cool White
Available
Free shipping
£16.00
£18.00 £16.00 -11%

Accessories

  • (H1-C210M_padreImg_h1_c210m_0.jpeg) (H1-C210M_padreImg_h1_c210m_1.jpeg)

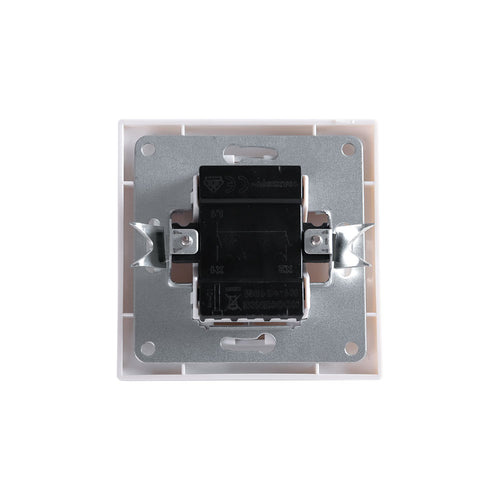

    Switch Double 10A 250V Recessed Terminales Screw White- Con Frame y mecanismo

    GreenIce

    Switch Double 10A 250V Recessed Terminales Screw White- Con Frame y mecanismo

    £2.00
    £2.00 £2.00 %

Technical file

Product code
WR-RSPT-120-0W36W-CW
Luminous efficacy (LM/W)
90
Light temperature
Cold White
Kelvin º
6000
Power (W)
36.0
Luminosity (LM)
3240
Measures (mm)
1200x75x25
High
25.0
Long
1200.0
Broad
75.0
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
IK Protection Index
IK07
Strain
160-265VAC
Estimated life (H)
40000
Equivalence (W)
215
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
36.0
Weight (gr)
950
Flicker
0.96
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
18
Minimum cri range
93
Maximum cri range
5
Chromaticity x
0.307
Chromaticity y
0.329
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
WR-RSPT-120-0W36W-CW
Luminous efficacy (LM/W)
90
Light temperature
Cold White
Kelvin º
6000
Power (W)
36.0
Luminosity (LM)
3240
Measures (mm)
1200x75x25
High
25.0
Long
1200.0
Broad
75.0
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
IK Protection Index
IK07
Strain
160-265VAC
Estimated life (H)
40000
Equivalence (W)
215
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
36.0
Weight (gr)
950
Flicker
0.96
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
18
Minimum cri range
93
Maximum cri range
5
Chromaticity x
0.307
Chromaticity y
0.329
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The Surface Linear LED Luminaire with Microwave Proximity Sensor, integrates a proximity sensor that provides new functionalities. When an object approaches this LED luminaire (distance of 5 meters), it lights up in its entirety. As soon as the object leaves the action radius of the LED luminaire, after 30 seconds, the luminaire turns off completely.Clean and architectural design where the latest LED technology is adapted to the simplicity of the lamp in a linear way that offers a diffused and soft light. Provides general and widely diffused lighting.

Precautions:

  • Do not place any object metal in front of the sensor as it may alter its operation.
  • Do not place on metal surfaces.
  • Ensure a distance of at least 5 meters between luminaire and luminaire as interference between them may occur. these.

Documents

Installation_manual
