Technical file
Product code
JW-DL-OR-10W-W
Light temperature
NW
Kelvin º
4000
Power (W)
10.0
Luminosity (LM)
900
Luminous efficacy (LM/W)
90
LED efficacy
110
Type of LEDs
Bridgelux Led
Number of LEDs
1
Measures (mm)
190x92
Roof cut (mm)
75
Long
92.0
Diameter
190
CRI
90
UGR
<15
Power factor (PF)
0.99
Construction
Alu/PC
Opening Angle (º)
36
Facility
IP20
Strain
220-240VAC
Estimated life (H)
50000
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-40+50
Lighting cycles
100000
Energy consumption (kWh/1000h)
10.0
Weight (gr)
800
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Single CCT
4000
Minimum cri range
89
Maximum cri range
95
Driver
Lifud
Description
General Characteristics
• Luminaire Type: Recessed Adjustable LED Downlight
• Wattage: 10 W
• Luminous Flux: 900 lumens (90 lm/W)
• Luminous Efficacy: 90 lm/W
• Color Temperature: 4000 K (Natural White)
• Color Rendering Index (CRI): > 90
• More realistic and accurate colors, ideal for environments where color fidelity is important (shops, galleries, homes, etc.).
• Adjustable: Yes — allows directing the light beam.

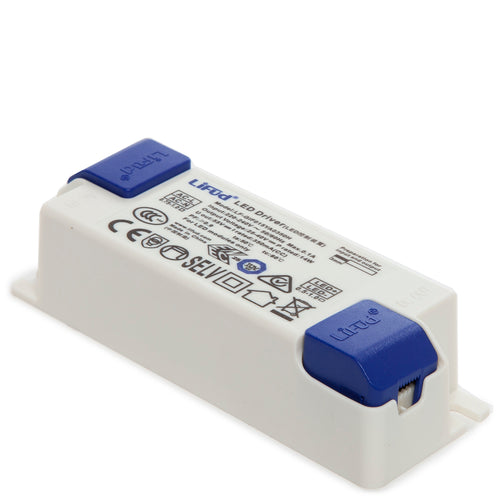

• Driver: High-quality and reliable Lifud brand.
• Lifespan: Approximately 50,000 hours.
• Power Factor: ≥ 0.9
• Input Voltage: 220–240 V AC / 50–60 Hz
• Beam Angle: 24–60° (depending on the exact model). • Instant On: Yes
• Dimmable: Optional, depending on the driver version.
Materials and Design
• Body: High heat dissipation aluminum.
• Frame Color: White.
• Finish: Durable electrostatic paint.
• Diffuser: Clear or frosted optics, depending on the model.
Dimensions and Mounting
• Installation Type: Recessed in suspended ceilings or plasterboard.
• Cutout Diameter: Approx. Ø85–95 mm (depending on the version).
• Recessed Depth: ~60 mm.
• Tilt: ±30° approx.
Usage Conditions
• Use: Indoor (IP20 / IP40).
• Operating Temperature: -20°C to +40°C.
• Typical Applications:
• General or accent lighting in homes, shops, offices, hotels, and museums.
• Certifications and Warranty
• Certifications: CE, RoHS, ENEC (depending on the model).
• Warranty: 3–5 years (depending on the manufacturer).
