Conector "L" para Luminaria Lineal SE-SOF147E

Conector "L" para Luminaria Lineal SE-SOF147E

See questions and answers

For additional amounts the delivery period is 90 days As of the order date
  • Brand:GreenIce  / Lifud Driver
  • SkuSE-SOF147E-E01
  • AA 2021
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 75 º Opening
Documents
£38.00
£38.00 £38.00 %
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 75 º Opening
Documents
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(SE-SOF147E-E01_padreImg_se_sof147e_e01_0.png)
CCT
Available
Free shipping
£38.00
£38.00 £38.00 %

Technical file

Product code
SE-SOF147E-E01
Light temperature
CCT
Power (W)
8.0
Luminosity (LM)
800
Luminous efficacy (LM/W)
100
LED efficacy
120
Type of LEDs
SMD2835 Lumileds

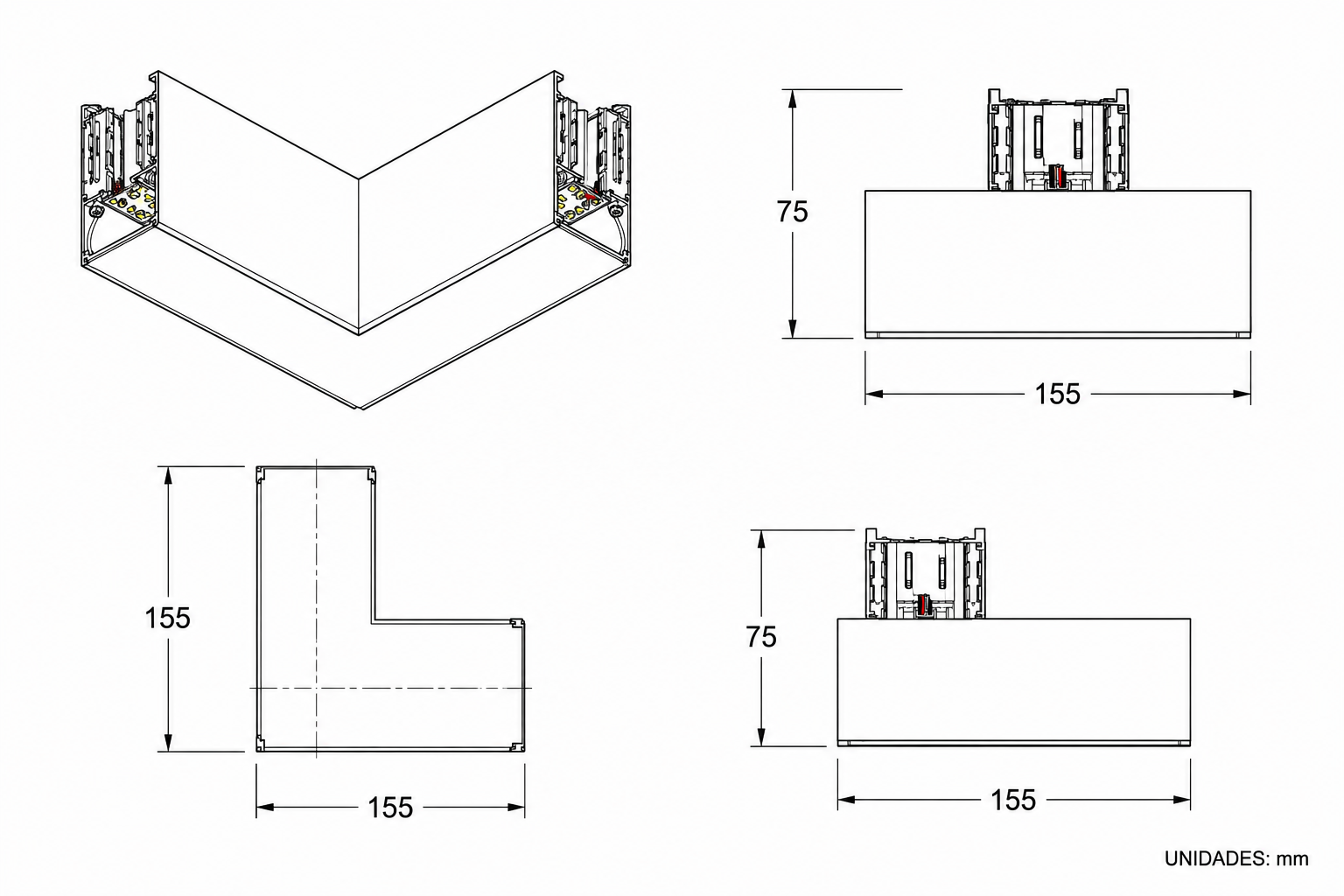

Measures (mm)
155x75x155
High
75.0
Long
155.0
Broad
155.0
CRI
90
UGR
◄19
Power factor (PF)
0.99
Construction
Alu/PS
Opening Angle (º)
75
Facility
IP20
Strain
200-240VAC
Estimated life (H)
50000
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
8.0
Weight (gr)
1000
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Minimum cri range
90
Maximum cri range
95
Minimum CCT range
3000
Maximum cri range
6000
Driver
Lifud
Número unidades caja exterior
20.0

Characteristics

Product code
SE-SOF147E-E01
Light temperature
CCT
Power (W)
8.0
Luminosity (LM)
800
Luminous efficacy (LM/W)
100
LED efficacy
120
Type of LEDs
SMD2835 Lumileds
Measures (mm)
155x75x155
High
75.0
Long
155.0
Broad
155.0
CRI
90
UGR
◄19
Power factor (PF)
0.99
Construction
Alu/PS
Opening Angle (º)
75
Facility
IP20
Strain
200-240VAC
Estimated life (H)
50000
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
8.0
Weight (gr)
1000
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Minimum cri range
90
Maximum cri range
95
Minimum CCT range
3000
Maximum cri range
6000
Driver
Lifud
Número unidades caja exterior
20.0

Description

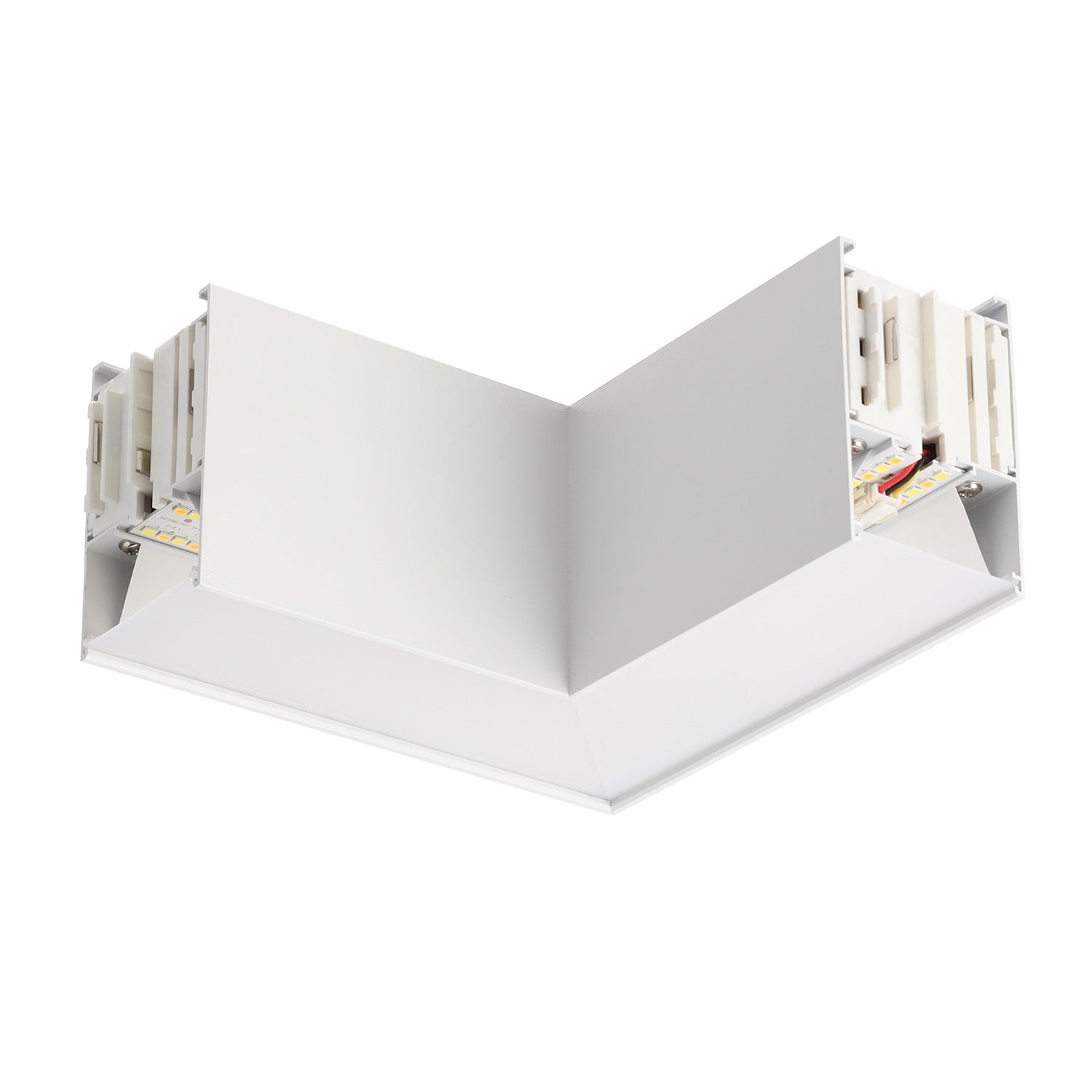

932 The “L” Connector for LED linear luminaires is the perfect accessory for creating 90° angled connections, allowing for corner lighting designs without compromising light continuity or aesthetics. It is specifically designed for 8W, 100 lm/W LED linear luminaires with selectable CCT and a LIFUD Flicker Free driver. This connector facilitates a modular, clean, and professional installation by eliminating visible wiring and ensuring a reliable electrical and mechanical connection between luminaires. Key Features • L-shaped (90°) connector for joining two linear luminaires • Compatible with 8W – 100 lm/W LED linear luminaires • Suitable for systems with selectable CCT • Compatible with LIFUD Flicker Free driver • Quick, secure connection with no visible cables • Enables corner lighting configurations or changes in direction • Discreet design for a professional and aesthetically pleasing finish
