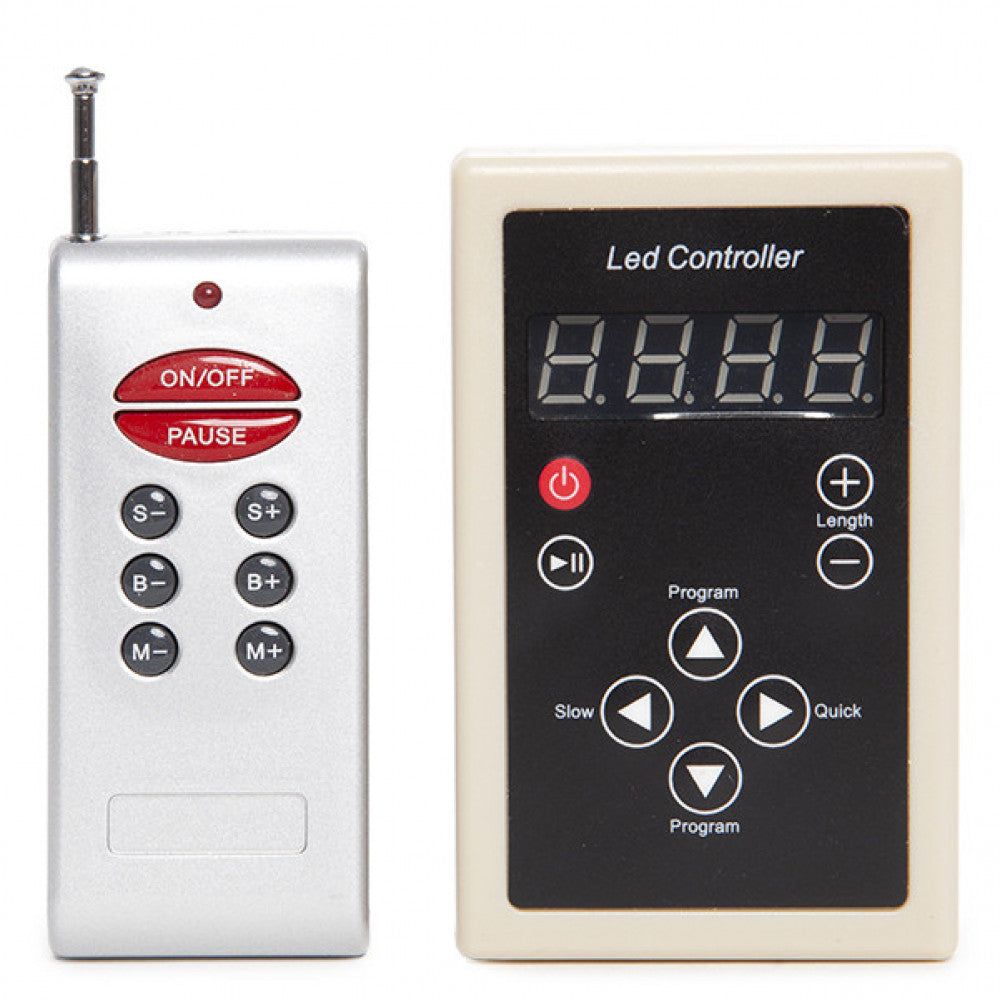

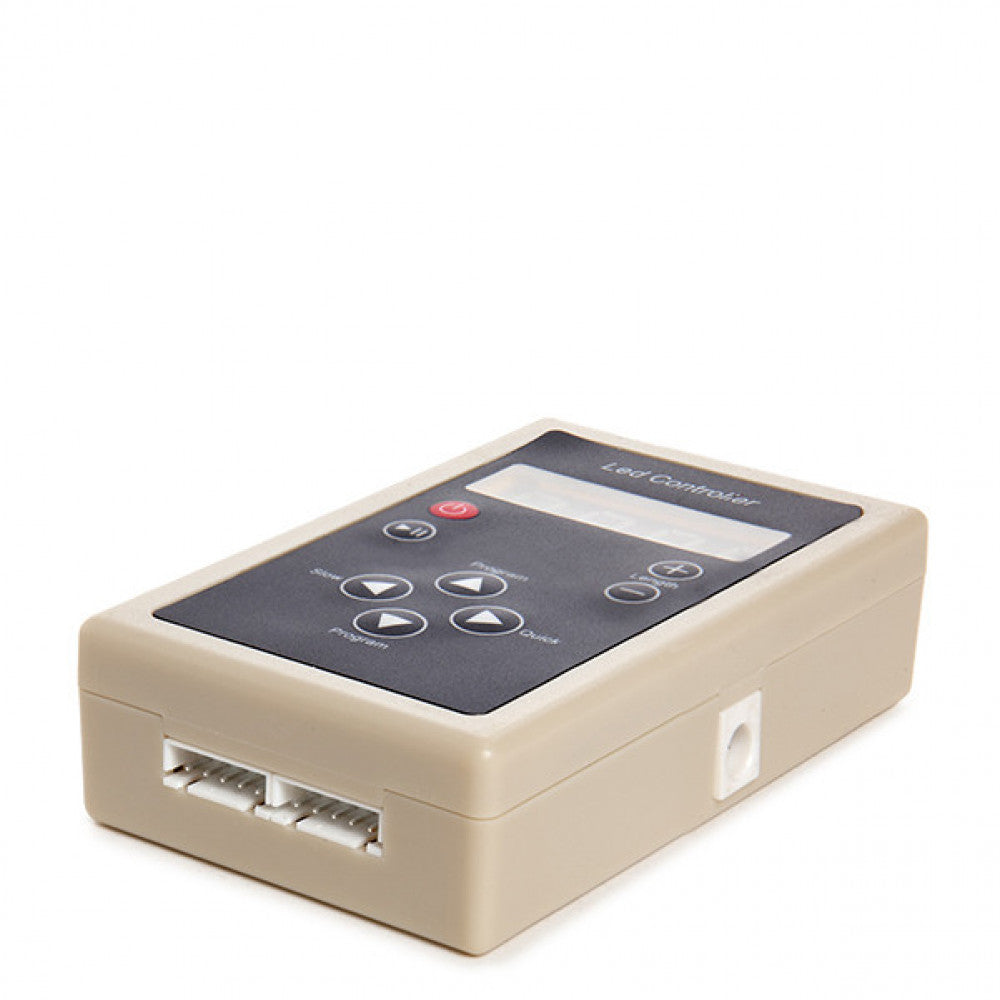

Controller Strip Digital 12VDC Remote Control

Controller Strip Digital 12VDC Remote Control

See questions and answers

For additional amounts the delivery period is 25 days As of the order date
  • Brand:GreenIce
  • SkuGR-CONDIG12MD
Warranty
  • Warranty 3 years
£4.56
£4.56 £4.56 %
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(GR-CONDIG12MD_padreImg_gr_condig12md_0.jpeg)
##
There are few
Free shipping
£4.56
£4.56 £4.56 %

Technical file

Product code
GR-CONDIG12MD
Construction
ABS
Facility
IP20
Strain
12VDC
Work frequency (Hz)
50/ 60
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +60
Weight (gr)
140
Additional information
Detailed instructions in "Documents" tab.
RM Pro remote control code
F-GR-CONDIG12M

Characteristics

Product code
GR-CONDIG12MD
Construction
ABS
Facility
IP20
Strain
12VDC
Work frequency (Hz)
50/ 60
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +60
Weight (gr)
140
Additional information
Detailed instructions in "Documents" tab.
RM Pro remote control code
F-GR-CONDIG12M

Description

The Controller for 12VDC Digital Strip allows the graduation and programming of the color range of the LED through a digital wireless technology. The RF remote control can control both the speed and the intensity of the lighting mode. color and change with dim light turning on/off in long control distance which enjoys high sensitivity and strong pulling ability to steady and reliable performance.

The controller allows, through a numerical IC protocol, the programming of the exact sequence of the color range for the digital strip. This controller can be specifically paired with adjustable digital LED strips, for total control of the strip.< /p>

Among the technical characteristics of the RGB controller, the following stand out:

  • Capacitance and digital wireless touch technology, without mechanical wear, thus overcoming the problems of shelf life caused by button s physical.
  • Automatic adaptation of 12VDC operating voltage and with input polarity protection function.
  • New flicker-free PWM control technology.
  • RF remote control distance greater than 50 meters.
  • Multi-level, multi-color, flexible control effects, multi-mode, with power input polarity protection.
  • Memory type functions multicolor, modes, speeds and brightness.
  • Sequential programming using IC numerical protocol.
  • 132 dynamic modes, 20 static colors, 10 levels of intensity control and 10 levels of speed control sequential.
  • 8 keys for dimmer-controller.
  • IC number sequence display panel.

Documents

Installation_manual

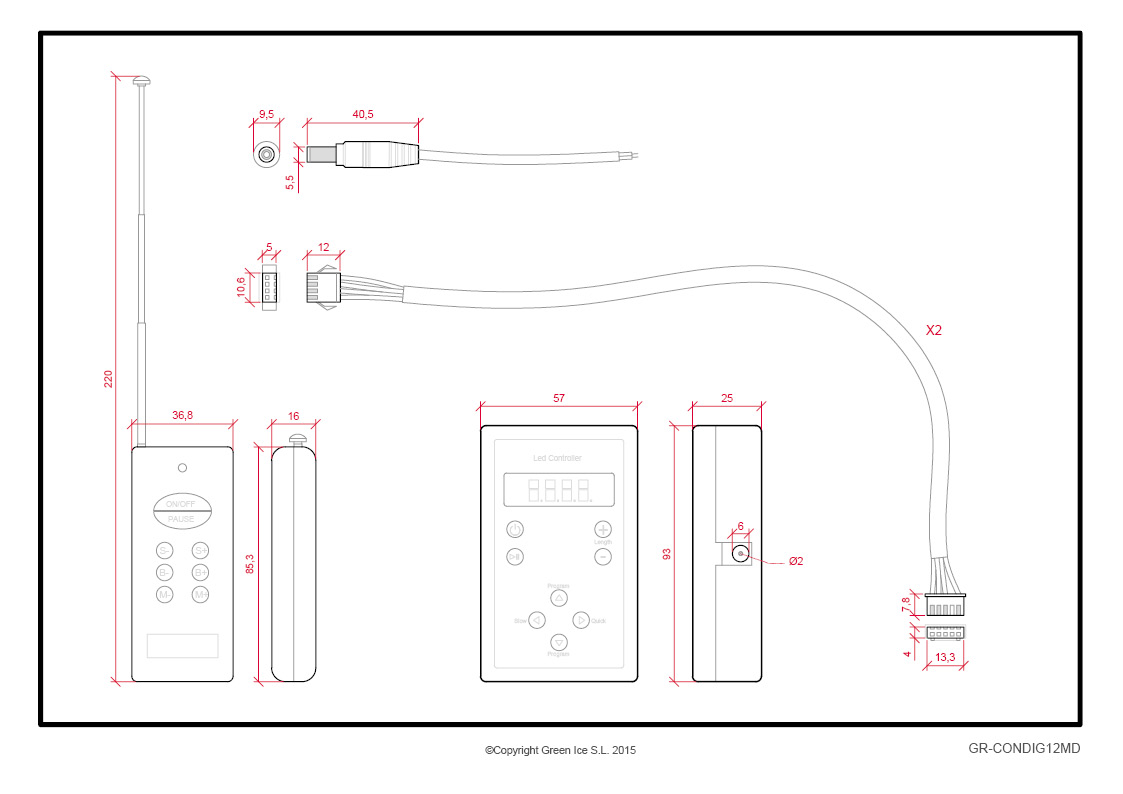

Technical_drawings
