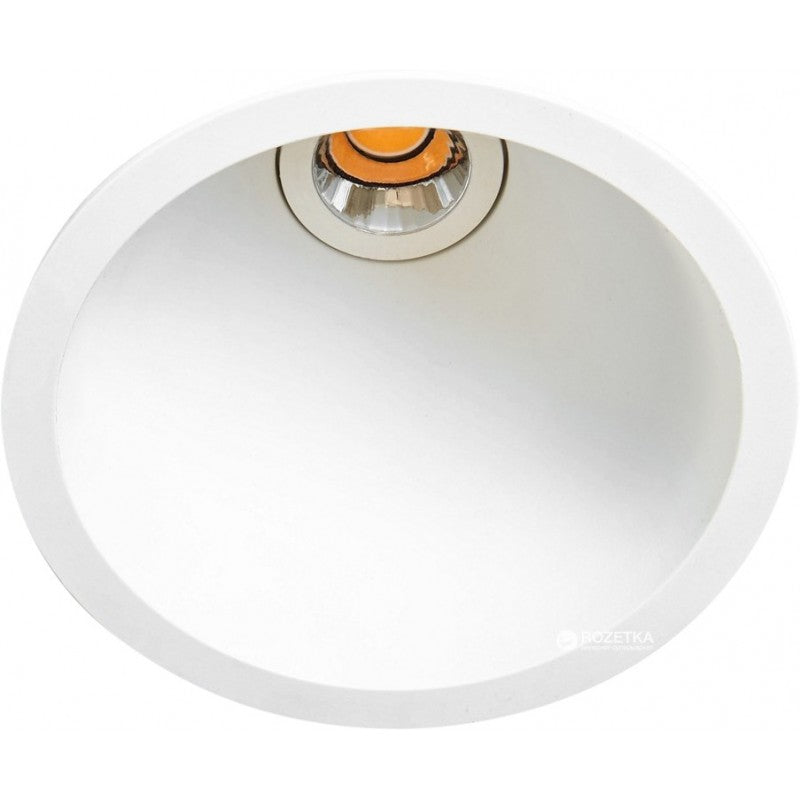

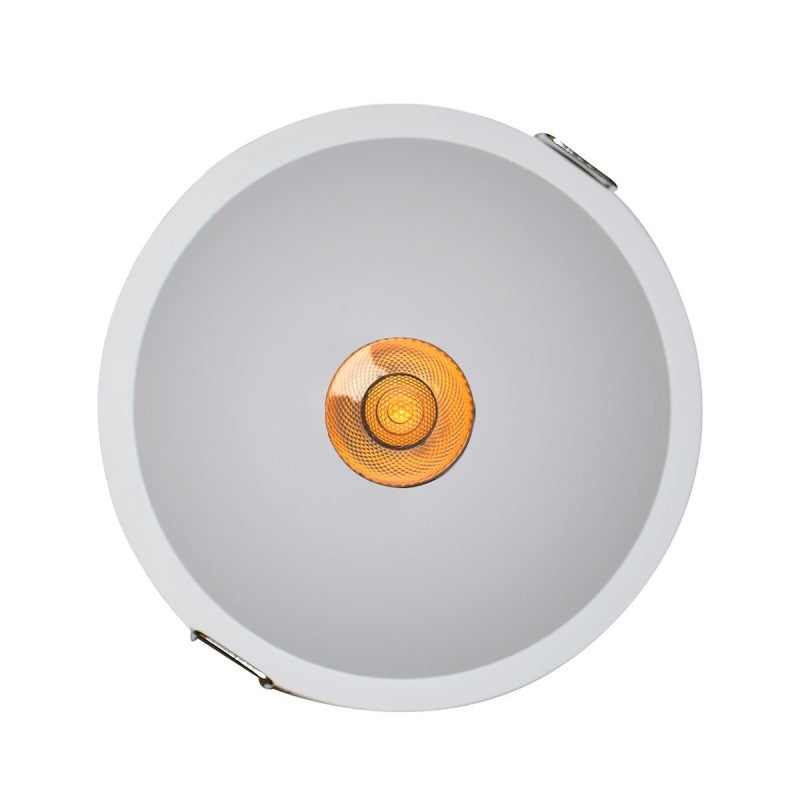

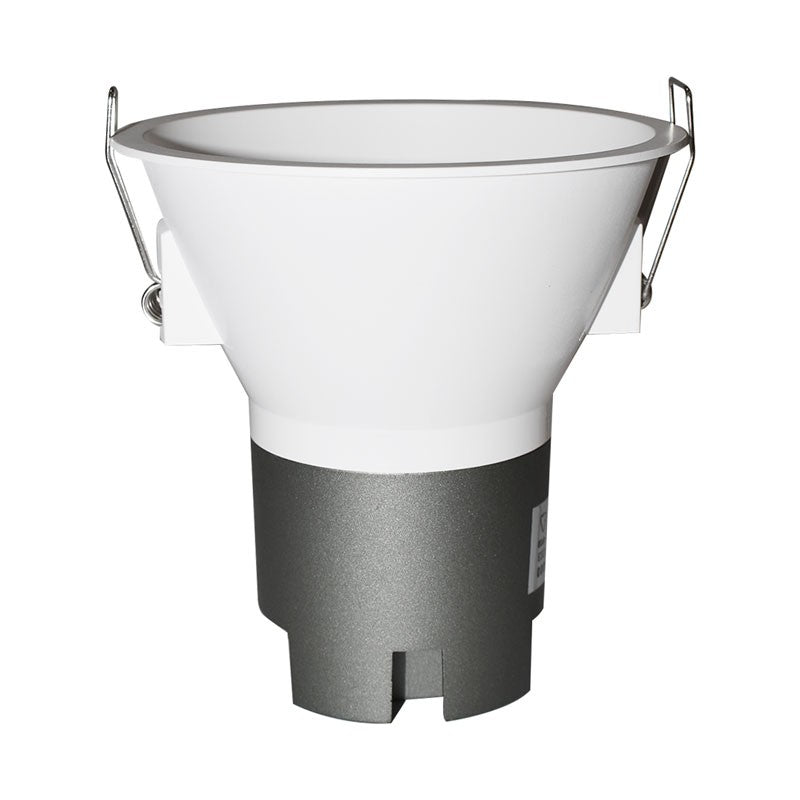

Downlight LED 30W 90Lm/W UGR<15 CRI>95 4000ºK Driver Lifud 50.000H

Downlight LED 30W 90Lm/W UGR<15 CRI>95 4000ºK Driver Lifud 50.000H

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:Kimera / Lifud Driver
  • SkuJW-DL30W-W
  • A 2021
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 36 º Opening
£33.00
£33.00 Infinity%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 36 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(JW-DL30W-W_padreImg_jw_dl30w_w_0.jpeg)
Blanco Natural
Available
Free shipping
£33.00
£33.00 Infinity%

Technical file

Product code
JW-DL30W-W
Light temperature
NW
Kelvin º
4000
Power (W)
30.0
Luminosity (LM)
2700
Luminous efficacy (LM/W)
90
LED efficacy
110
Type of LEDs
Bridgelux LED
Number of LEDs
1

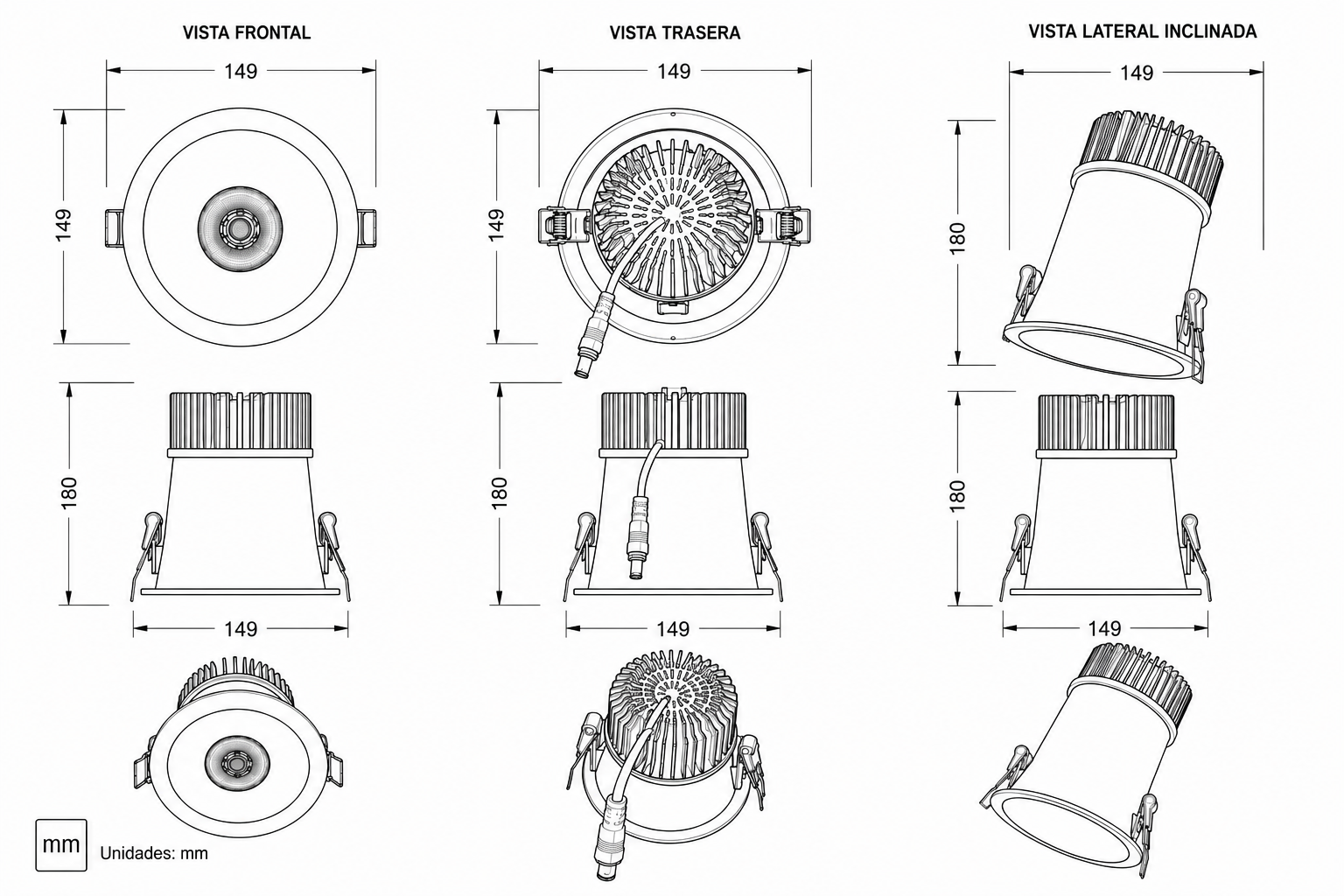

Measures (mm)
Ø149x180
Roof cut (mm)
Ø135
High
180.0
Diameter
Ø149
CRI
95
UGR
<15
Power factor (PF)
0.99
Construction
Alu/PC
Opening Angle (º)
36
Facility
IP20
IK Protection Index
IK08
Strain
85-265VAC
Estimated life (H)
50000
Equivalence (W)
90
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
30.0
Weight (gr)
1400
Flicker
0.8
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Single CCT
4000
INDEX R9
1
Minimum cri range
80
Maximum cri range
95

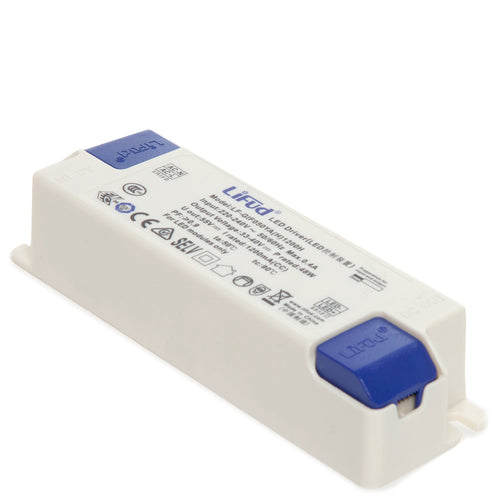

Driver
Lifud
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
JW-DL30W-W
Light temperature
NW
Kelvin º
4000
Power (W)
30.0
Luminosity (LM)
2700
Luminous efficacy (LM/W)
90
LED efficacy
110
Type of LEDs
Bridgelux LED
Number of LEDs
1
Measures (mm)
Ø149x180
Roof cut (mm)
Ø135
High
180.0
Diameter
Ø149
CRI
95
UGR
<15
Power factor (PF)
0.99
Construction
Alu/PC
Opening Angle (º)
36
Facility
IP20
IK Protection Index
IK08
Strain
85-265VAC
Estimated life (H)
50000
Equivalence (W)
90
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20+40
Lighting cycles
100000
Energy consumption (kWh/1000h)
30.0
Weight (gr)
1400
Flicker
0.8
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Single CCT
4000
INDEX R9
1
Minimum cri range
80
Maximum cri range
95
Driver
Lifud
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

El Downlight LED Empotrable <UGR15  cuenta con un diseño moderno y la más avanzada tecnología del mercado que permite una iluminación eficiente y de gran confort visual gracias a su bajo índice UGR y alto CRI.

Integrable a cualquier espacio interior donde se requiera una iluminación focal o de acento, tanto en proyectos domésticos como comerciales.

Cuenta con chip LED COB Bridgelux de elevada eficiencia y brillo, con 30W de potencia y un driver LIFUD de alta calidad.

Su alto índice de reproducción cromática, CRI>95, permite mostrar los colores de forma real, similar a la luz natural.

De fácil instalación, puede montarse en techos mediante un sencillo sistema de anclaje. No requiere mantenimiento posterior y permite un ahorro energético del 80% con respecto a las lámparas halógenas tradicionales.

Esta luminaria constituye una solución de máxima calidad, diseño y eficiencia para cualquier proyecto lumínico.

Documents

Installation_manual
