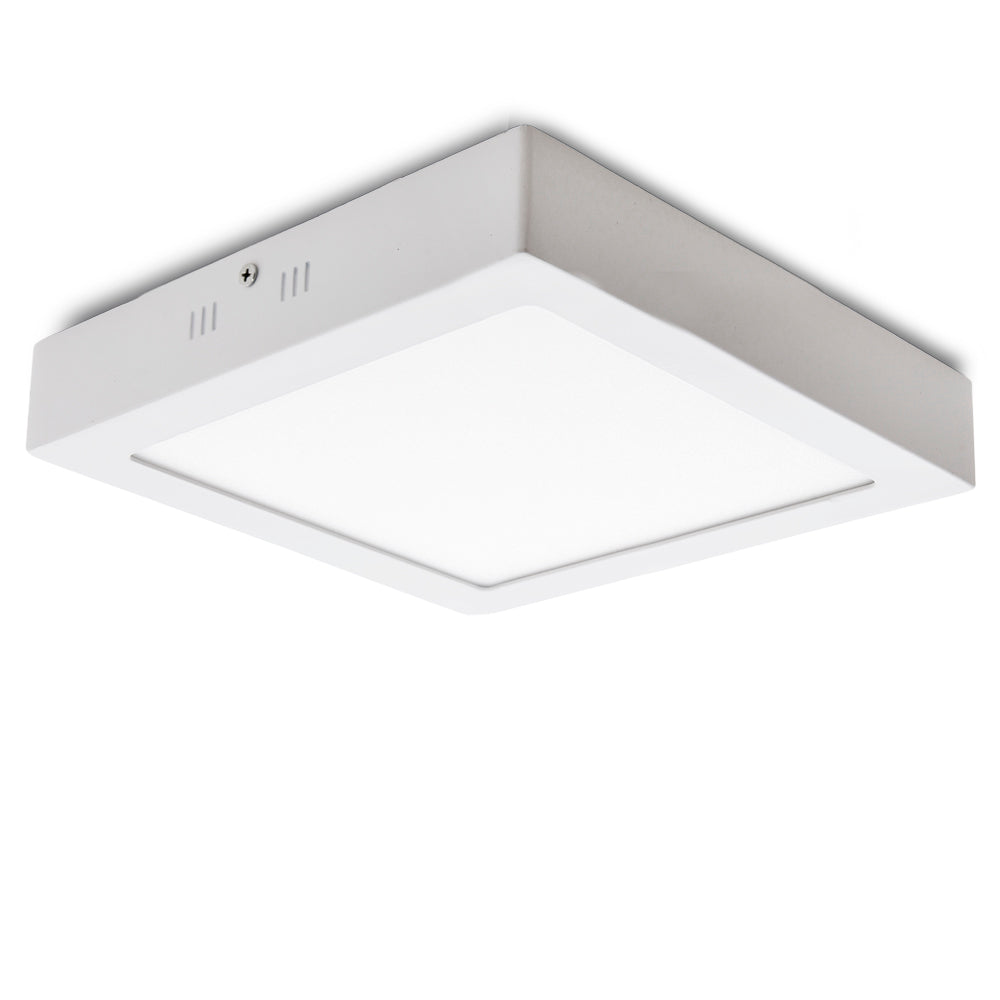

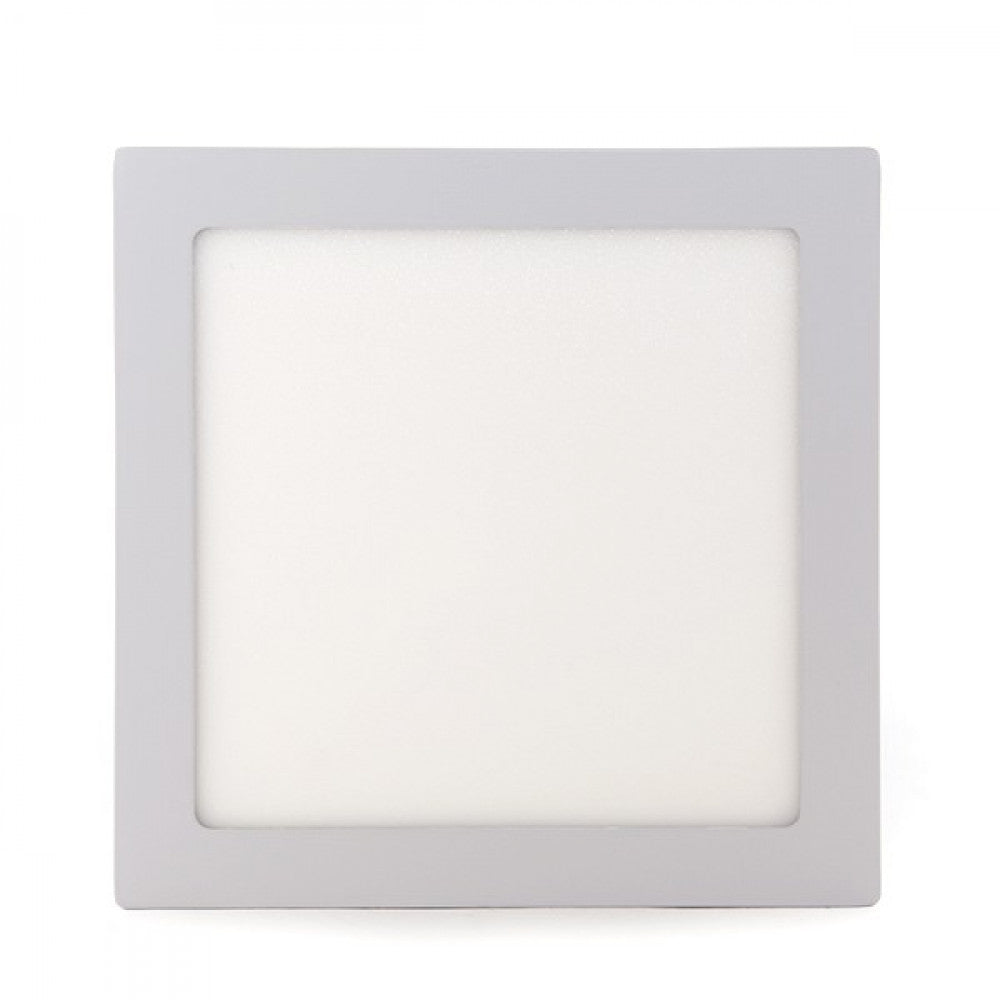

LED Ceiling Light 18W 1800Lm 6000ºK Square 40,000H [GR-MZMD02-18W-CW]

LED Ceiling Light 18W 1800Lm 6000ºK Square 40,000H [GR-MZMD02-18W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Osram Led
  • SkuGR-MZMD02-18W-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
£8.00
£11.00 £8.00 -27%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-27.27%(GR-MZMD02-18W-CW_padreImg_gr_mzmd02_18w_cw_0.jpeg)
Cool White
Available
Free shipping
£8.00
£11.00 £8.00 -27%

Accessories

  • (CPS-LF-AAT030-42_padreImg_cps_lf_aat030_42_0.jpeg)

    Driver LIFUD Adjustable Triac Dim 30W In: 220-240V Out: 9-42VDC Flicker Free

    Offer
    Lifud Driver

    Driver LIFUD Adjustable Triac Dim 30W In: 220-240V Out: 9-42VDC Flicker Free

    £25.00
    £33.00 £25.00 -24%
    Offer
  • (CPS-LF-AAA020B-42_padreImg_cps_lf_aaa020b_42_0.jpeg)

    Driver LIFUD Adjustable 0-10V 20W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Offer
    Lifud Driver

    Driver LIFUD Adjustable 0-10V 20W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    £16.00
    £22.00 £16.00 -27%
    Offer
  • (CPS-LF-AAD020-42_padreImg_cps_lf_aad020_42_0.jpeg)

    Driver Lifud Adjustable DALI 20W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Offer
    Lifud Driver

    Driver Lifud Adjustable DALI 20W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    £23.00
    £30.00 £23.00 -23%
    Offer

Technical file

Product code
GR-MZMD02-18W-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1800
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
90
Measures (mm)
210x210x28
High
210.0
Long
210.0
Broad
28.0
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
220-240VAC
Driver output
30-42 V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
18.0
Weight (gr)
557
Flicker
0.82
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
93
Maximum cri range
11
Chromaticity x
0.306
Chromaticity y
0.327
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Characteristics

Product code
GR-MZMD02-18W-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1800
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
Osram Led
Number of LEDs
90
Measures (mm)
210x210x28
High
210.0
Long
210.0
Broad
28.0
CRI
80
Diffuser
Opal
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
220-240VAC
Driver output
30-42 V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
18.0
Weight (gr)
557
Flicker
0.82
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
93
Maximum cri range
11
Chromaticity x
0.306
Chromaticity y
0.327
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Applicable standards
IEC 62321:2008;EN 55015:2006;EN 61000-3-2:2006;EN 61000-3-3:2008;EN 61547:2009;EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008

Description

The 225x225mm square LED ceiling light, 38mm thick, offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to the supplied power outlets by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficacy (52 Lm/W) consuming 18W through SMD2835 type LEDs and managing to provide a luminous flux of 932Lm uniformly distributed through an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 100W incandescent light bulb, its consumption represents a value of 18kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

This luminaire is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible e with the connection of the plate (46-65VDC, 280mA), additionally the necessary accessories for the installation of the luminaire are included. White finish built with aluminum.This surface ceiling light has an IP25 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

Ideal to replace the traditional halogen ones, reaching savings of up to 90% and conventional low consumption downlights, reaching savings of up to 60%, thus achieving high energy efficiency.

Easy installation, long life of the led luminaire, more than 30,000 hours and maintenance free.

The perfect solution to create an elegant environment, in new construction or rehabilitation, for replace the current spotlights, for the home, offices, receptions, museums, bars, etc.

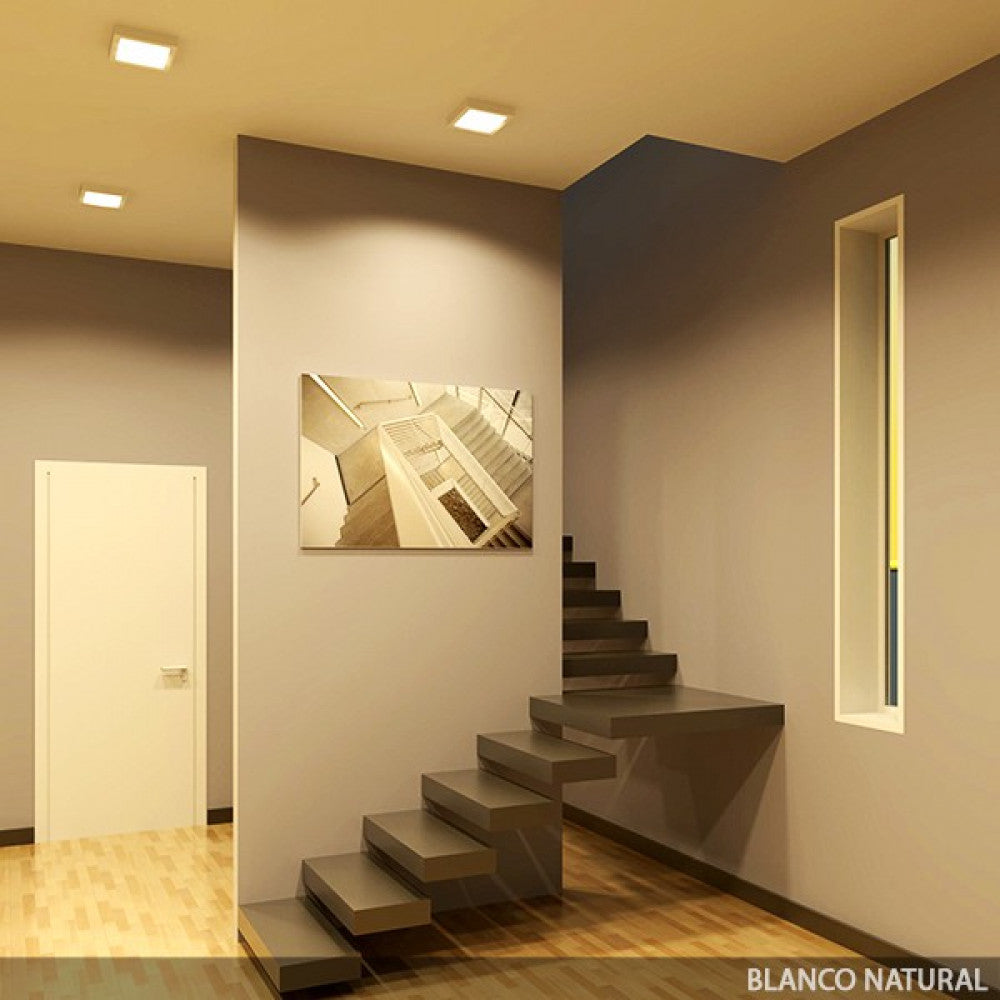

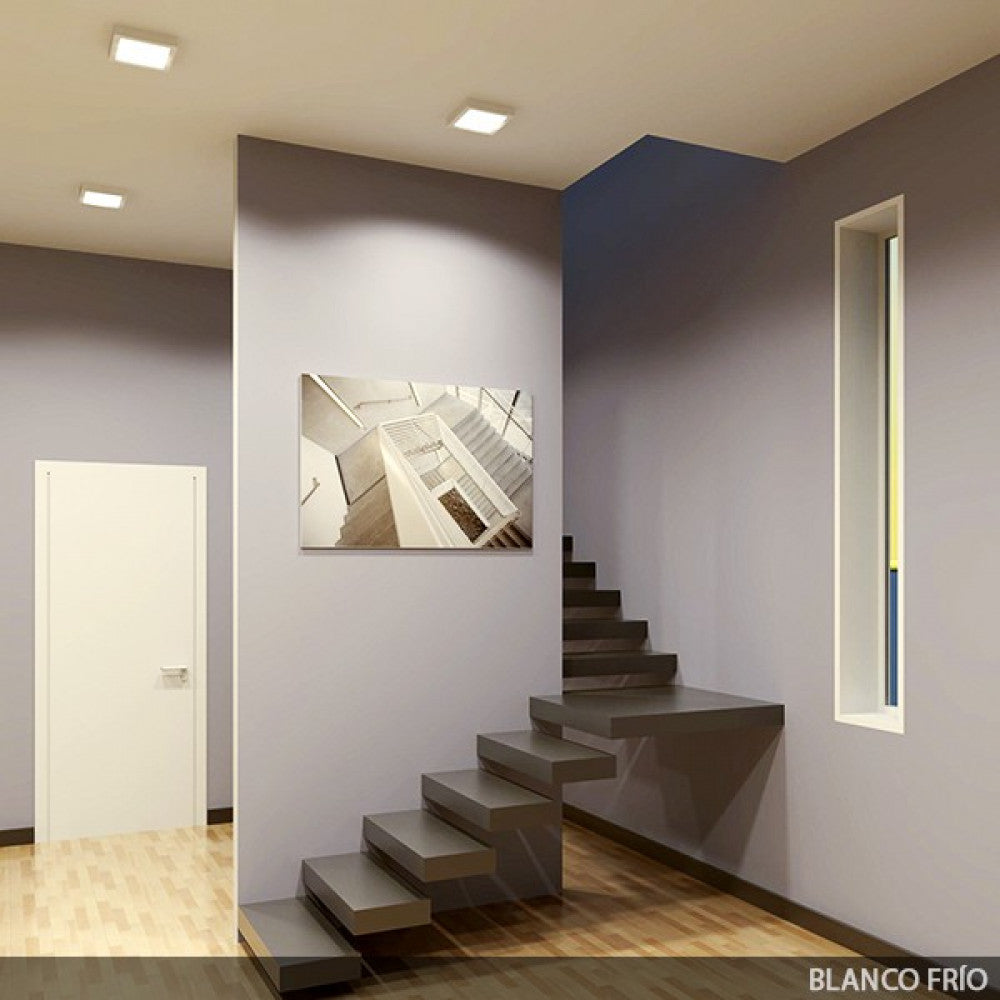

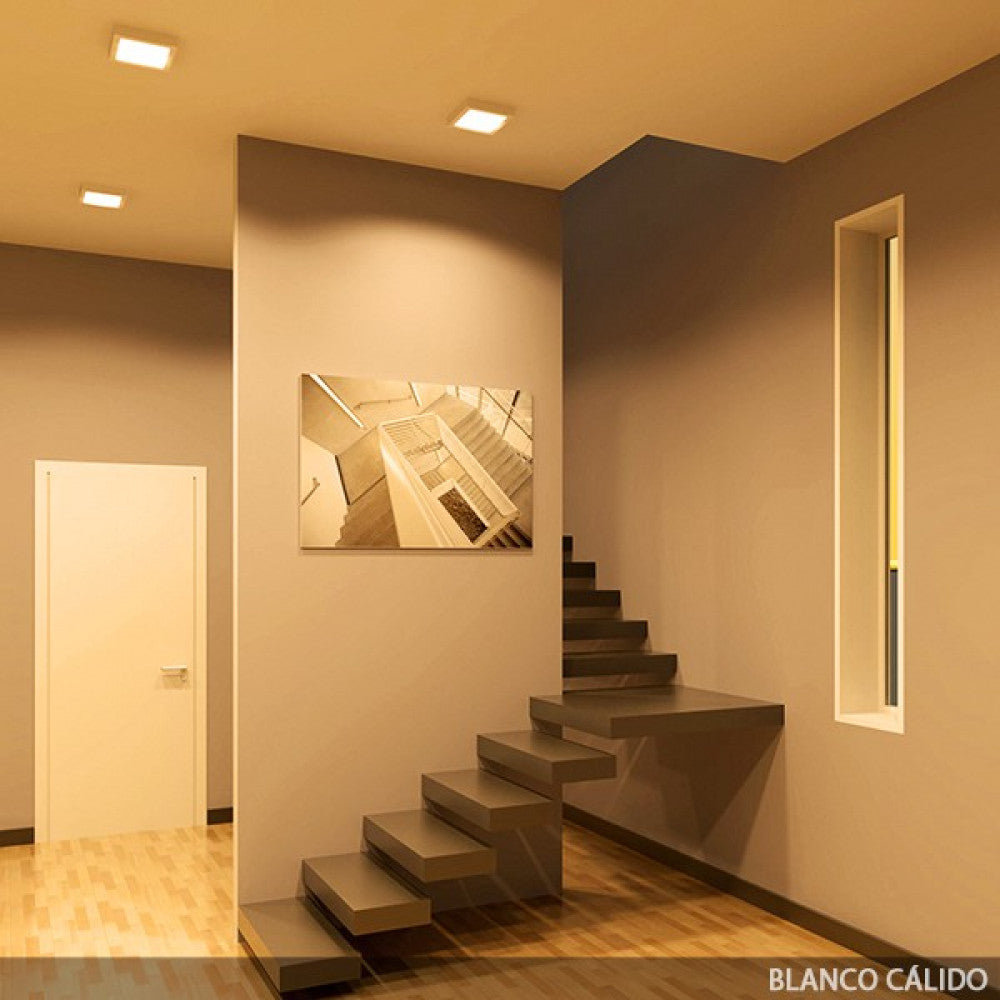

This luminaire is available in natural white (4200°K), cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance tance of 7%.

Documents

Installation_manual

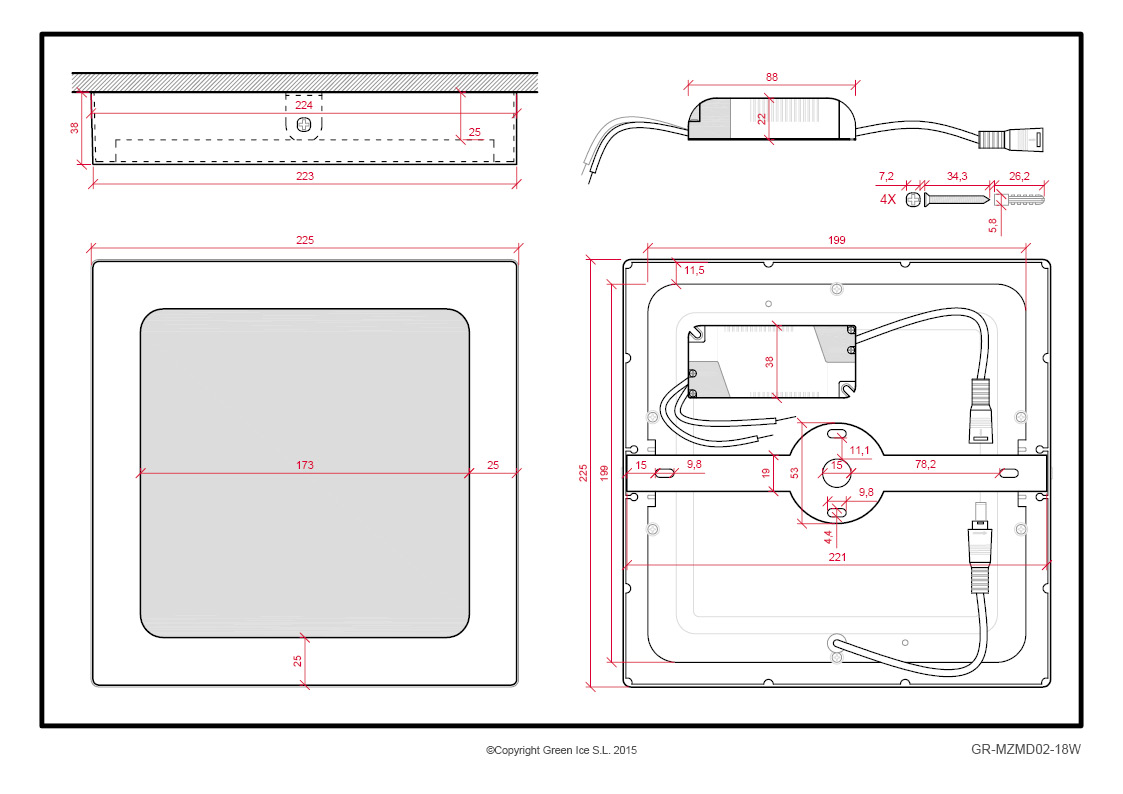

Technical_drawings
