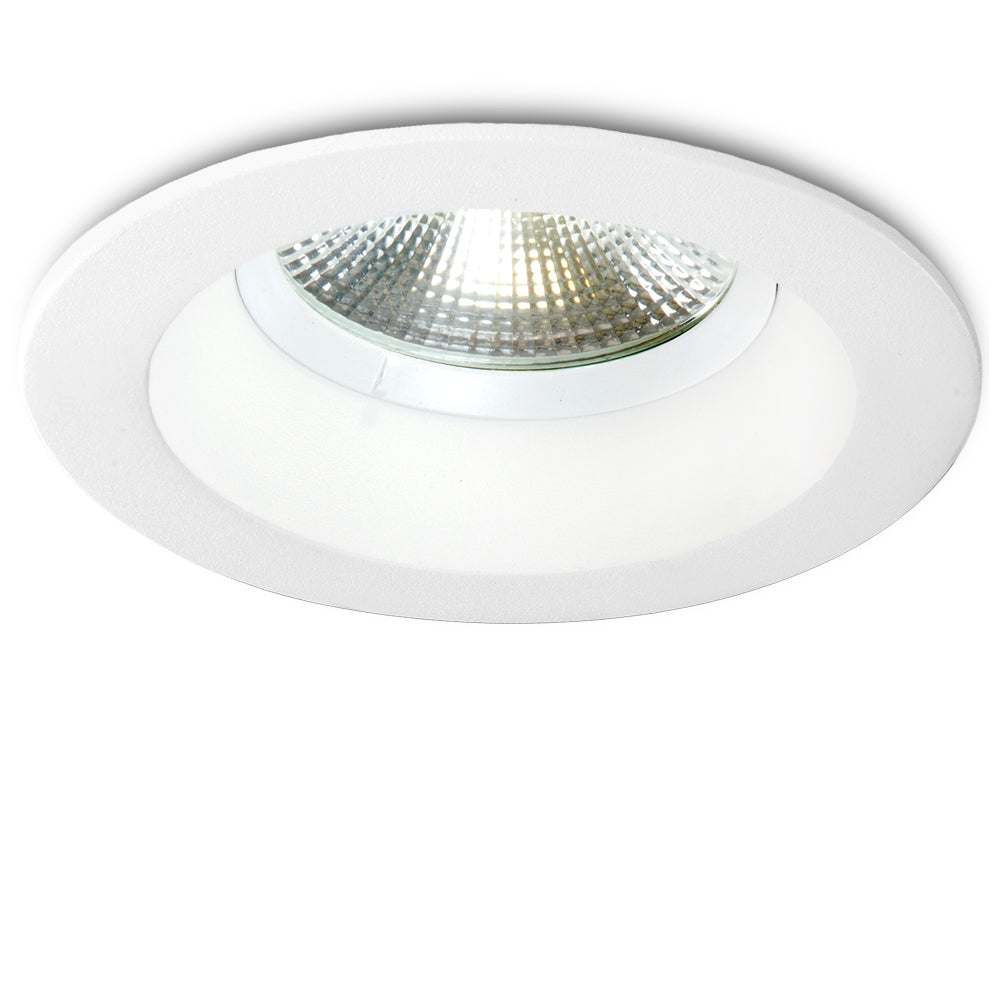

LED Circular Downlight Spotlight 9W 1260Lm 6000ºK Anti-Glare UGR19 40,000H [HO-DL-AD-COB-9W-CW]

LED Circular Downlight Spotlight 9W 1260Lm 6000ºK Anti-Glare UGR19 40,000H [HO-DL-AD-COB-9W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Lifud Driver
  • SkuHO-DL-AD-COB-9W-CW
  • AAA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
£8.00
£16.00 £8.00 -50%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-50.0%(HO-DL-AD-COB-9W-CW_padreImg_ho_dl_ad_cob_9w_cw_0.jpeg)
Cool White
Stock available
Free shipping
£8.00
£16.00 £8.00 -50%

Accessories

  • (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_0.jpeg) (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_1.jpeg)

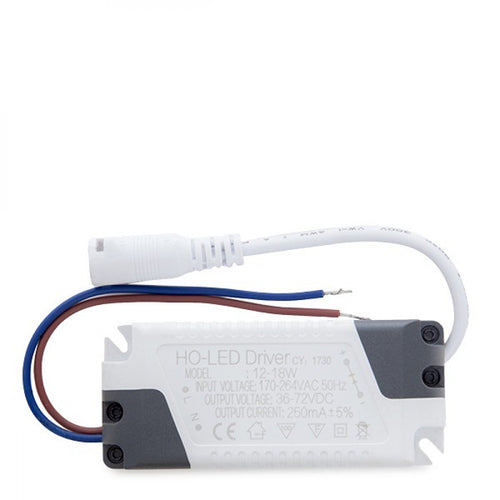

    Driver Non Dimmable Downlight LED 12W

    Offer
    GreenIce

    Driver Non Dimmable Downlight LED 12W

    £2.00
    £4.00 £2.00 -50%
    Offer
  • (GR-DRDIM-12W_padreImg_gr_drdim_12w_0.jpeg) (GR-DRDIM-12W_padreImg_gr_drdim_12w_1.jpeg)

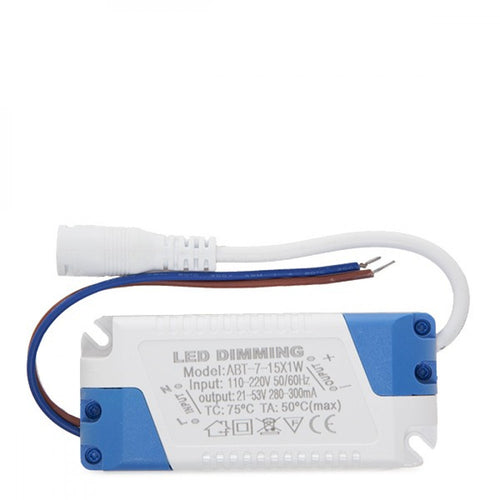

    Driver Dimmable Slimline Downlights 12W

    Offer
    GreenIce

    Driver Dimmable Slimline Downlights 12W

    £6.00
    £9.00 £6.00 -33%
    Offer
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    Offer
    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    £5.00
    £14.00 £5.00 -64%
    Offer
  • (OL-LCM-25_padreImg_ol_lcm_25_0.jpeg) (OL-LCM-25_padreImg_ol_lcm_25_1.jpeg)

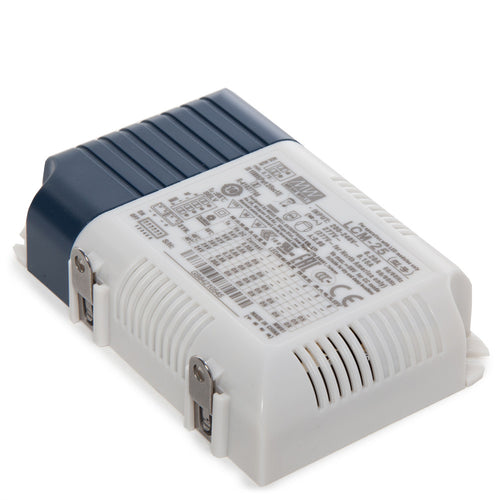

    Driver Meanwell Downlights 25W Smart Adjustable0-10V IP20

    MEANWELL

    Driver Meanwell Downlights 25W Smart Adjustable0-10V IP20

    £40.00
    £40.00 £40.00 %

Technical file

Product code
HO-DL-AD-COB-9W-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
9.0
Luminosity (LM)
1260
Luminous efficacy (LM/W)
140
LED efficacy
154
Type of LEDs
Philips Led
Measures (mm)
Ø118x60
Roof cut (mm)
Ø95
High
60.0
Diameter
118
CRI
80
UGR
◄19
Diffuser
Transparent
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
220-245VAC
Driver output
DC24-48V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
9.0
Weight (gr)
260
Flicker
0.87
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
29
Minimum cri range
95
Maximum cri range
1
Chromaticity x
0.323
Chromaticity y
0.352
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab

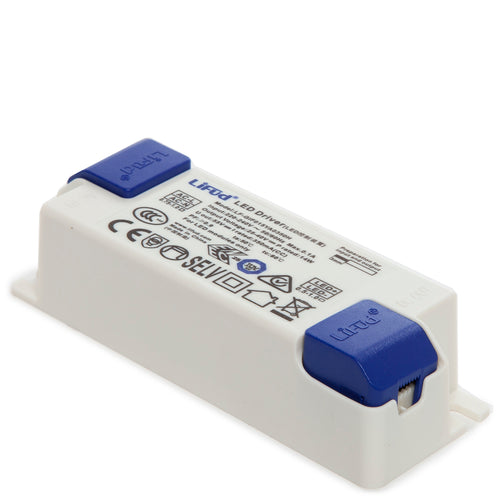

Driver
Lifud
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
HO-DL-AD-COB-9W-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
9.0
Luminosity (LM)
1260
Luminous efficacy (LM/W)
140
LED efficacy
154
Type of LEDs
Philips Led
Measures (mm)
Ø118x60
Roof cut (mm)
Ø95
High
60.0
Diameter
118
CRI
80
UGR
◄19
Diffuser
Transparent
Power factor (PF)
0.98
Construction
Aluminum/ PC
Opening Angle (º)
120
Facility
IP20
Strain
220-245VAC
Driver output
DC24-48V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
9.0
Weight (gr)
260
Flicker
0.87
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
29
Minimum cri range
95
Maximum cri range
1
Chromaticity x
0.323
Chromaticity y
0.352
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Driver
Lifud
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

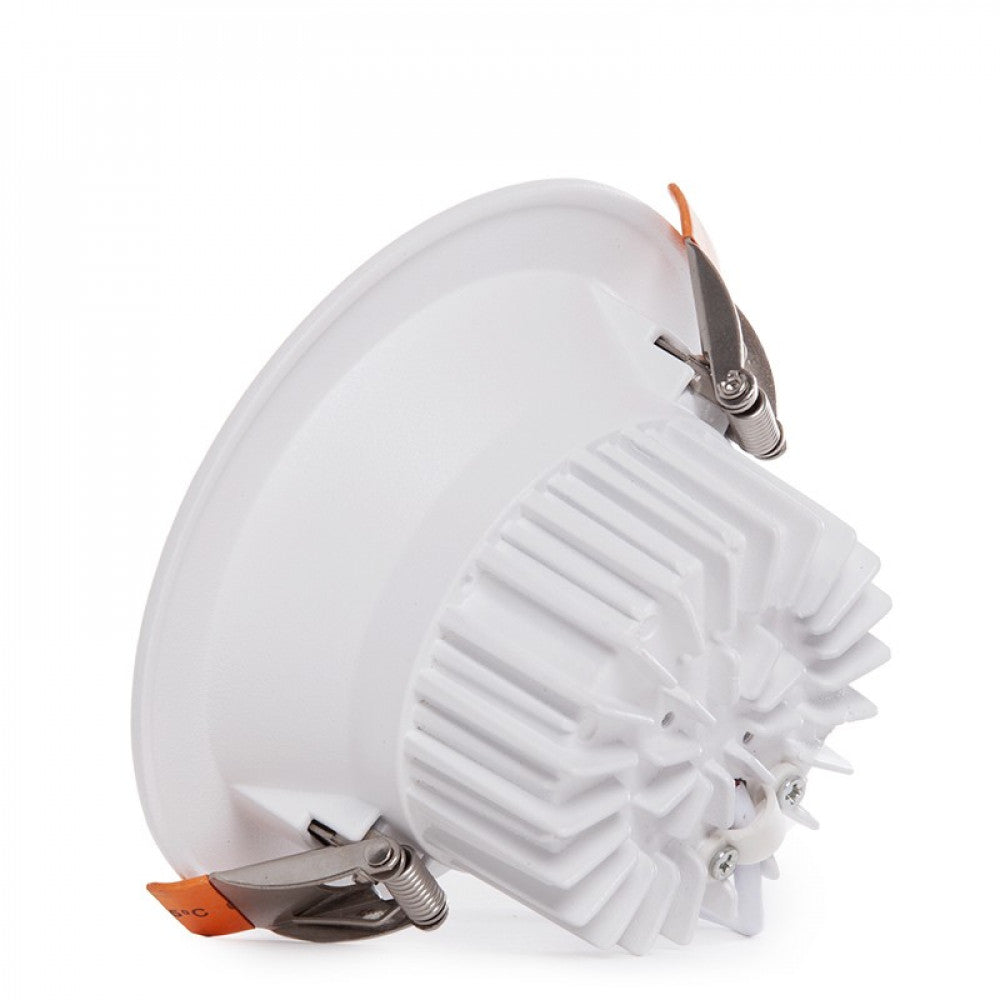

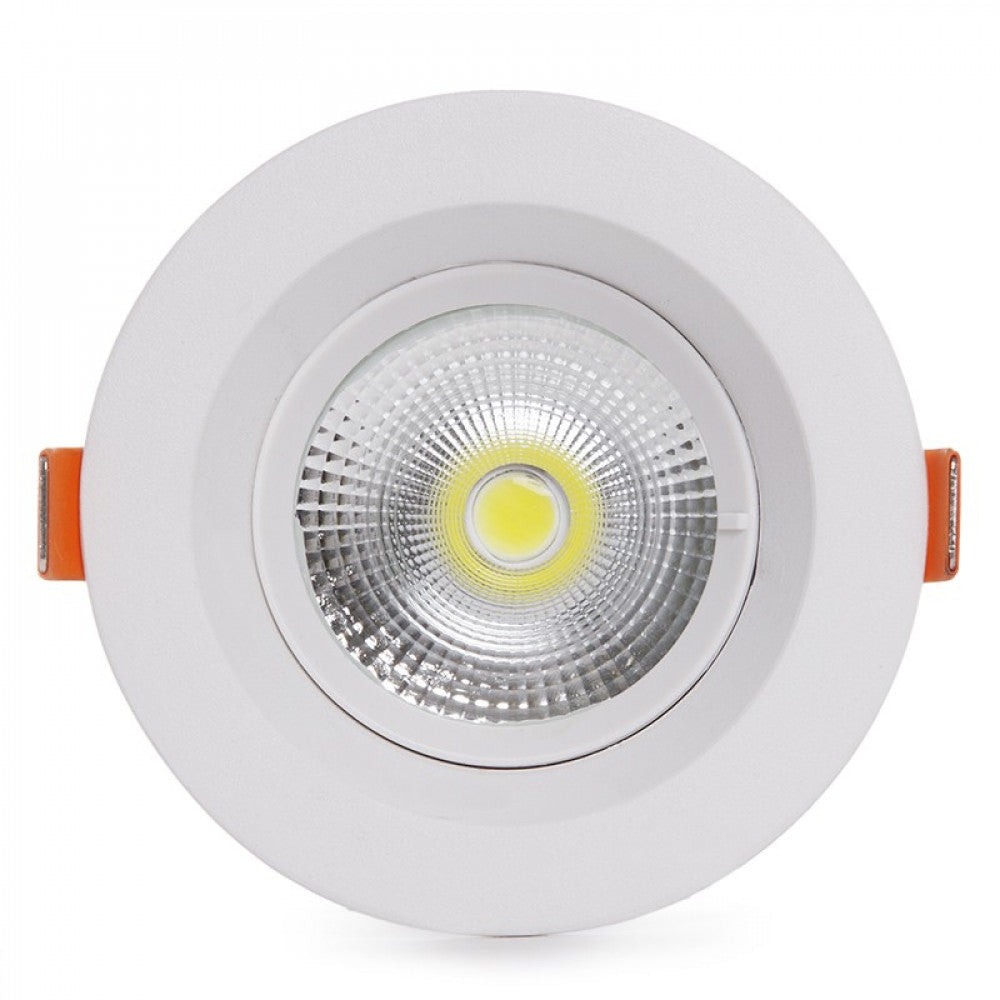

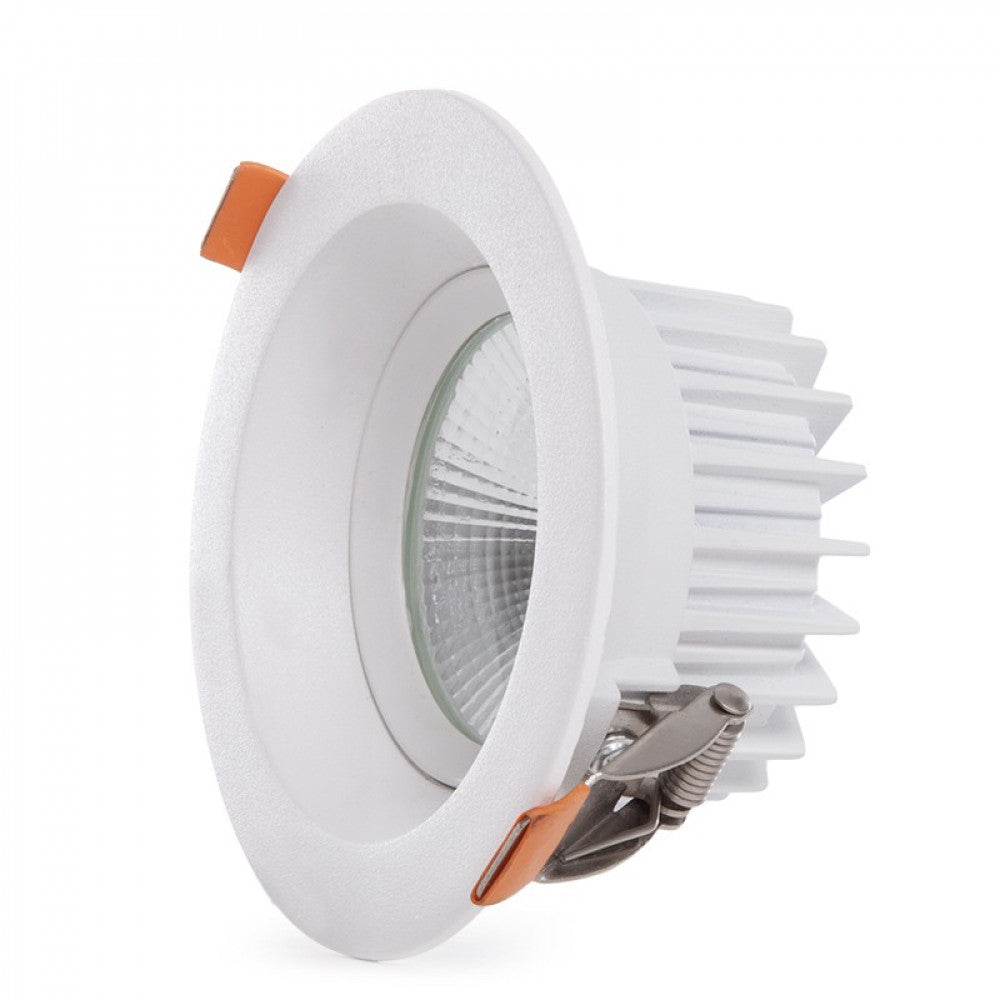

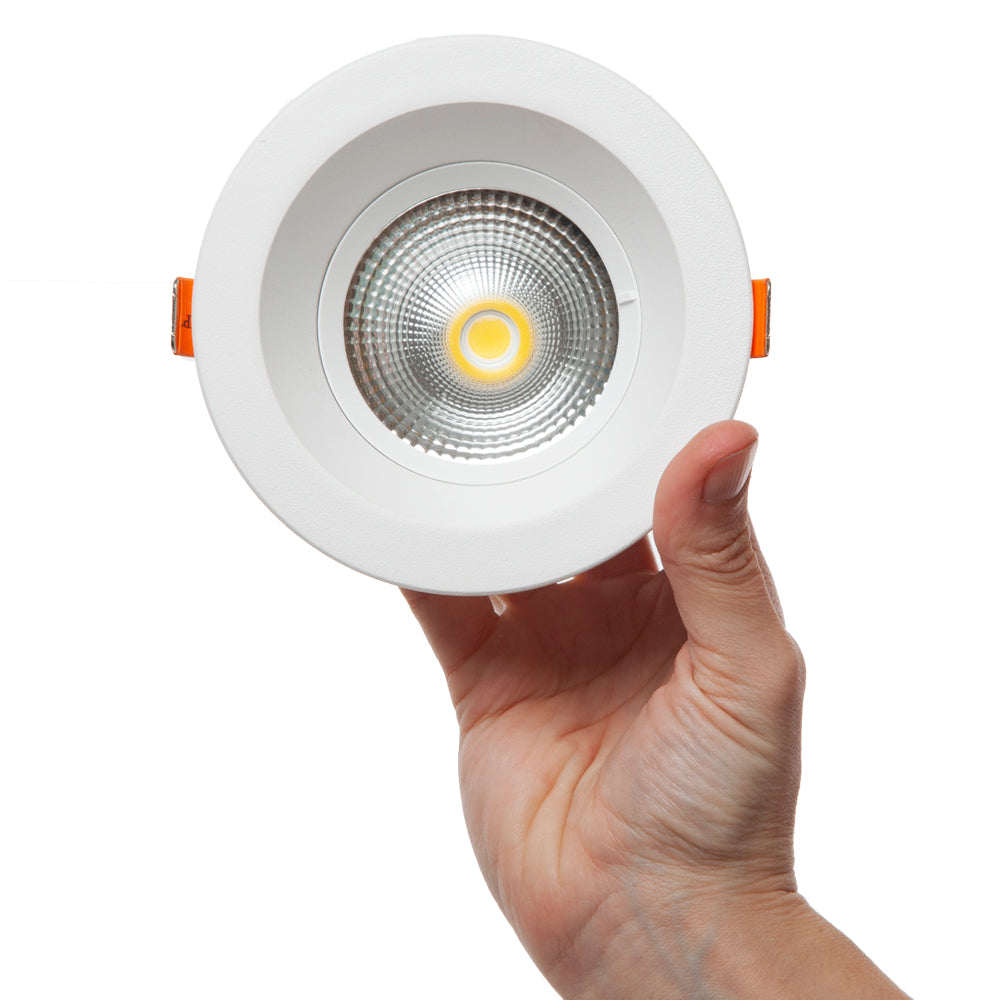

The 118mm diameter round LED Downlight with a thickness of (60mm),offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to sockets current supplied by the electrical network (86-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (140 Lm/W) consuming 9W through an SMD2835 type LED and managing to provide a luminous flux of 1260Lm uniformly distributed by an anti-glare opal diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 70W incandescent light bulb, its consumption represents a value of 9kWh /1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

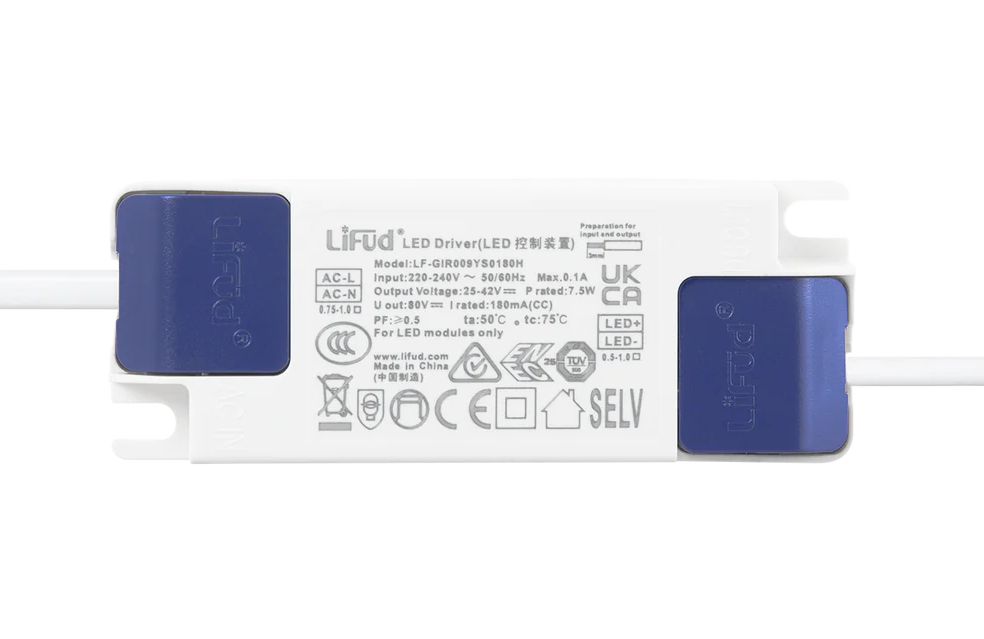

This downlight is powered by a non-dimmable driver included in the package that must be connected directly to the network, with a output connector c Compatible with the connection of the downlight (24-48VDC, 300mA), additionally the necessary accessories for the installation of the downlight are included. White finish built with aluminum and polycarbonate. The Downlight has an IP20 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

It is made of high-quality materials such as aluminium, which ensures the durability of the spotlight. It offers uniform lighting without annoying reflections. In addition, it has the CE and RoHS certificates, which are synonymous with quality and safety.

The Downlight spotlight has a high color rendering index (CRI 80) and, therefore, , ensures distortion-free color reproduction. This factor is key in commercial environments and spaces where products are displayed in general, such as supermarkets, shops, malls, museums, dealerships, restaurants, etc.

This Downlight It is available in natural white (4200°K), cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
