Technical file
Product code
HO-DLC-20W-2000LM-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
20.0
Luminosity (LM)
2000
Measures (mm)
Ø220x25
Roof cut (mm)
Ø200
High
25.0
Diameter
220
Number and type of LEDs
SMD2835
CRI
80
Power factor (PF)
0.9
Construction
Metal/Plastic
Opening Angle (º)
120º
Facility
IP20
Strain
22VAC
Estimated life (H)
40000
Isolation class
II
Work frequency (Hz)
50/60Hz
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
20.0
Weight (gr)
550
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Single CCT
6000
Driver output
DC54V-100V 300MA
Description

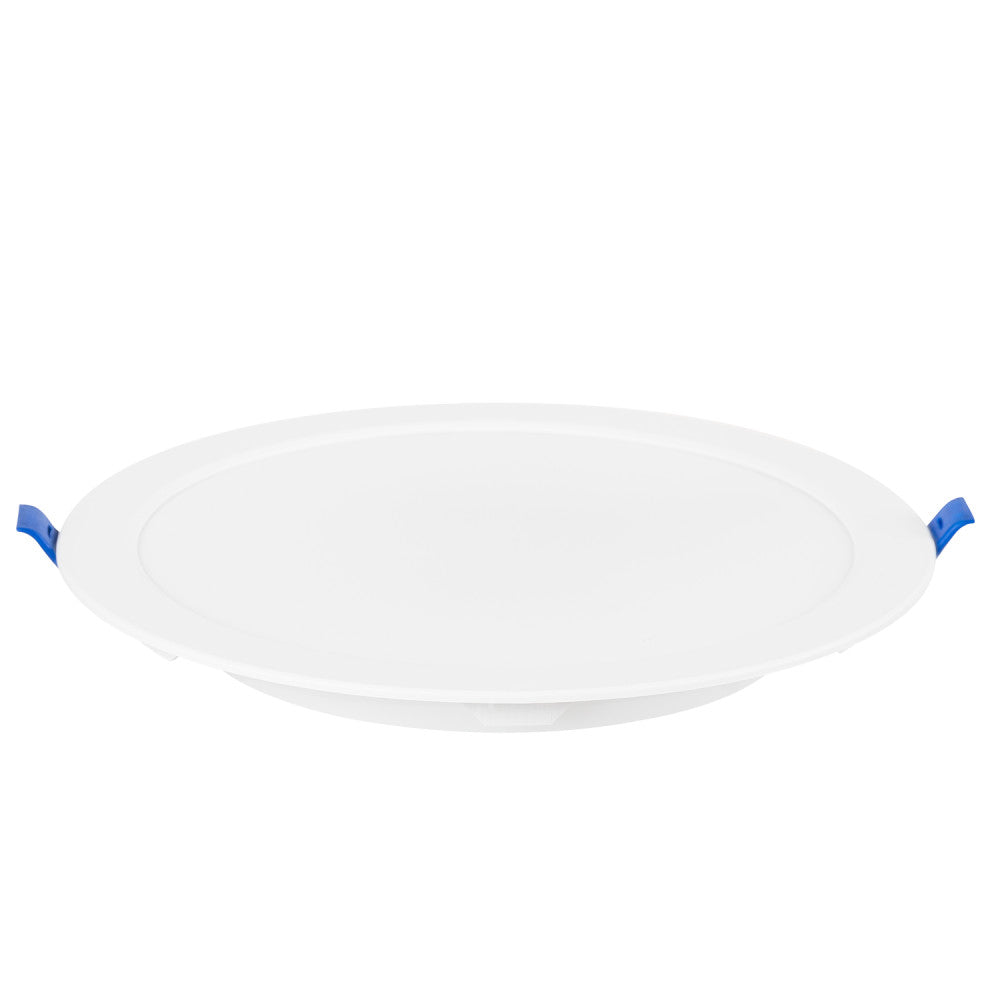

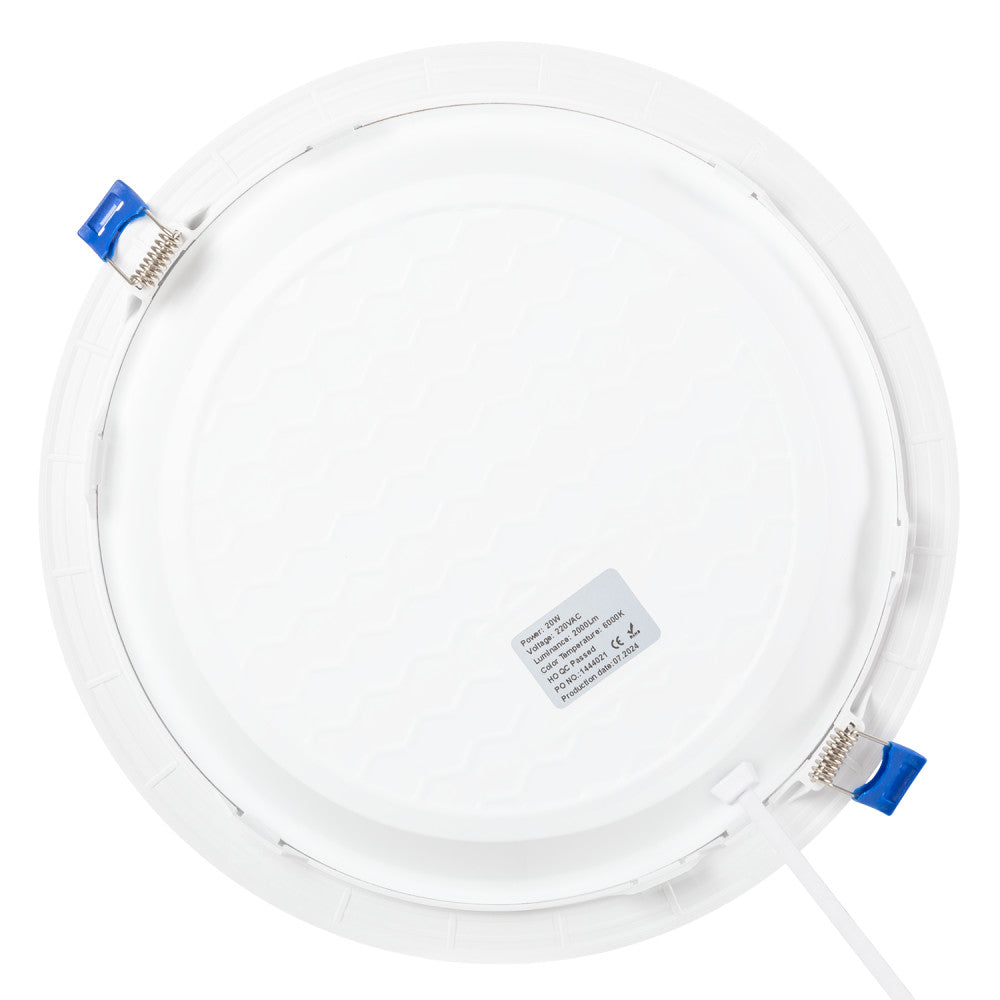

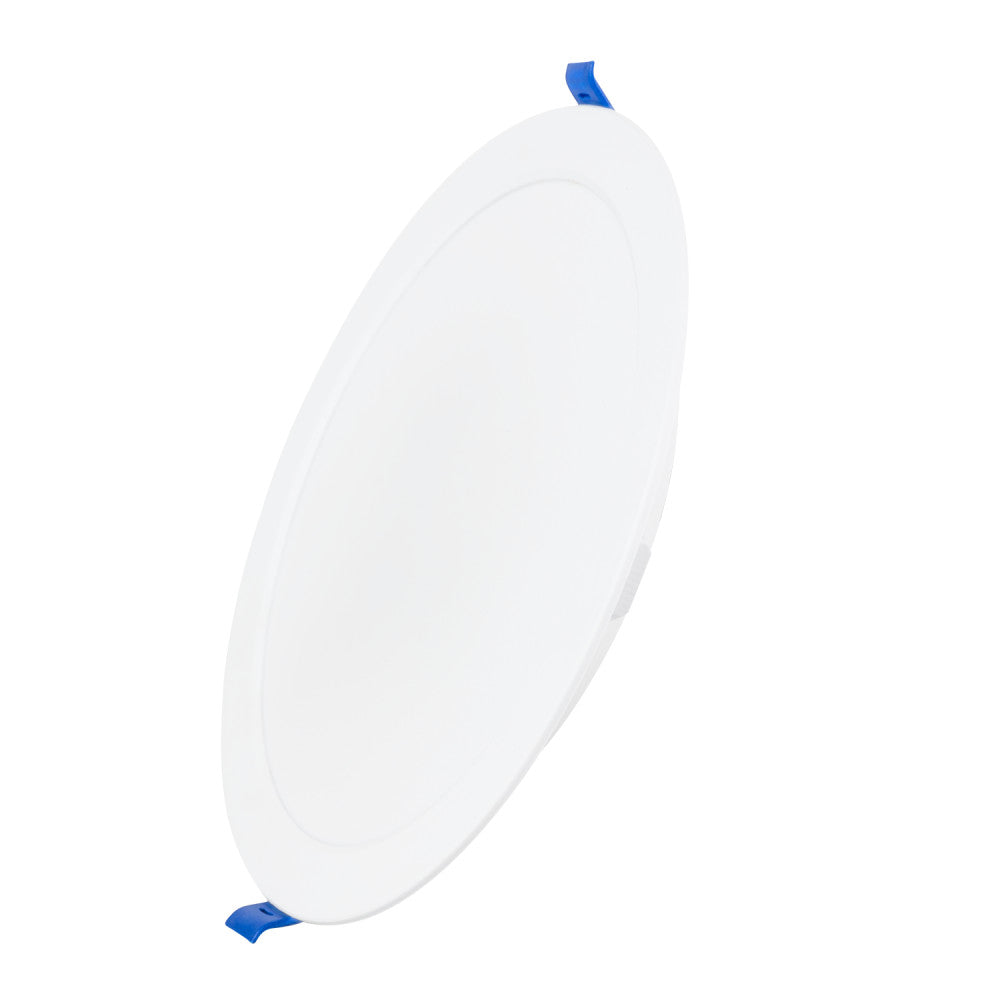

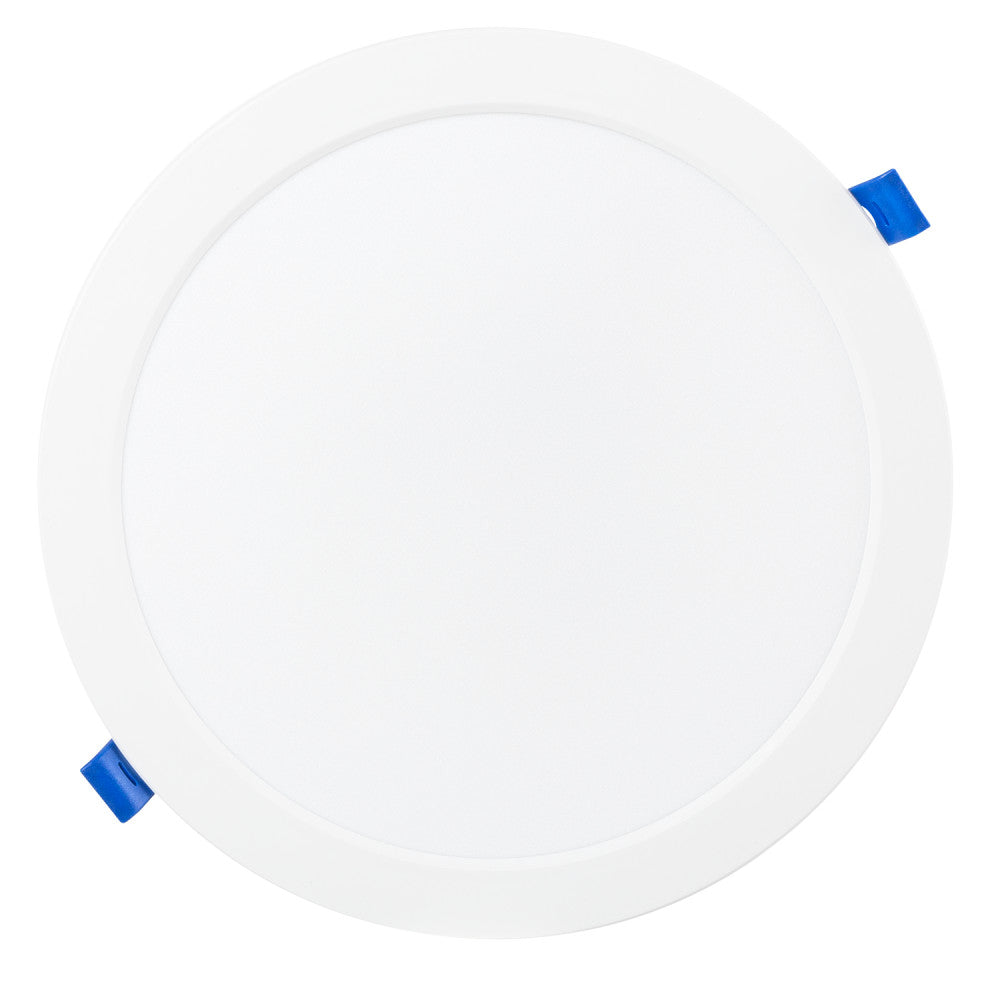

The LED Downlight Plate is presented as an exceptional choice for general lighting in various environments, whether commercial or residential.
Equipped with the SMD 2835 LED source, it offers efficient lighting. It works directly with a 220V AC power supply, eliminating the need for connection to the installation ground.
The body of the plate, made of aluminum, ensures efficient heat dissipation, despite its compact design. This allows it to operate effectively in a wide range of ambient temperatures, from -20º to 40ºC.
Finished in white color built with aluminum. The plate has an IP20 protection degree (valid for dust and humidity indoors), as well as being sufficiently robust for the required mechanical demands.
This plate is available in natural white (4000°K) and cold white (6000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
LED downlights are ideal for general lighting in spaces that require high performance and long periods of continuous lighting. That is why they include a high-quality aluminium heat sink, which contributes to the minimum heat emission of the LED luminaire. They are also very easy to install and, being so thin, can be placed in low false ceilings where more voluminous solutions could not be used.
The LED Downlight Plate is presented as an exceptional choice for general lighting in various environments, whether commercial or residential.
Equipped with the SMD 2835 LED source, it offers efficient lighting. It works directly with a 220V AC power supply, eliminating the need for connection to the installation ground.
The body of the plate, made of aluminum, ensures efficient heat dissipation, despite its compact design. This allows it to operate effectively in a wide range of ambient temperatures, from -20º to 40ºC.
Finished in white color built with aluminum. The plate has an IP20 protection degree (valid for dust and humidity indoors), as well as being sufficiently robust for the required mechanical demands.
This plate is available in natural white (4000°K) and cold white (6000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
LED downlights are ideal for general lighting in spaces that require high performance and long periods of continuous lighting. That is why they include a high-quality aluminium heat sink, which contributes to the minimum heat emission of the LED luminaire. They are also very easy to install and, being so thin, can be placed in low false ceilings where more voluminous solutions could not be used.
