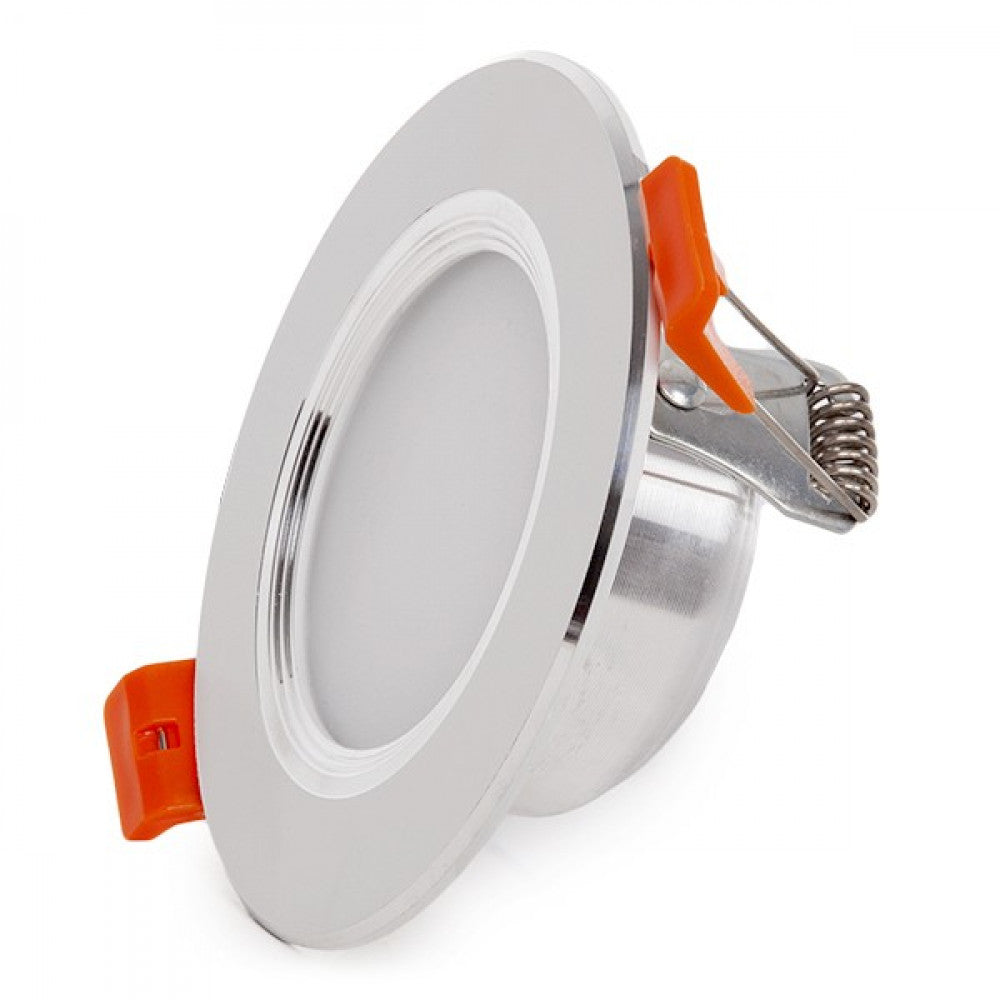

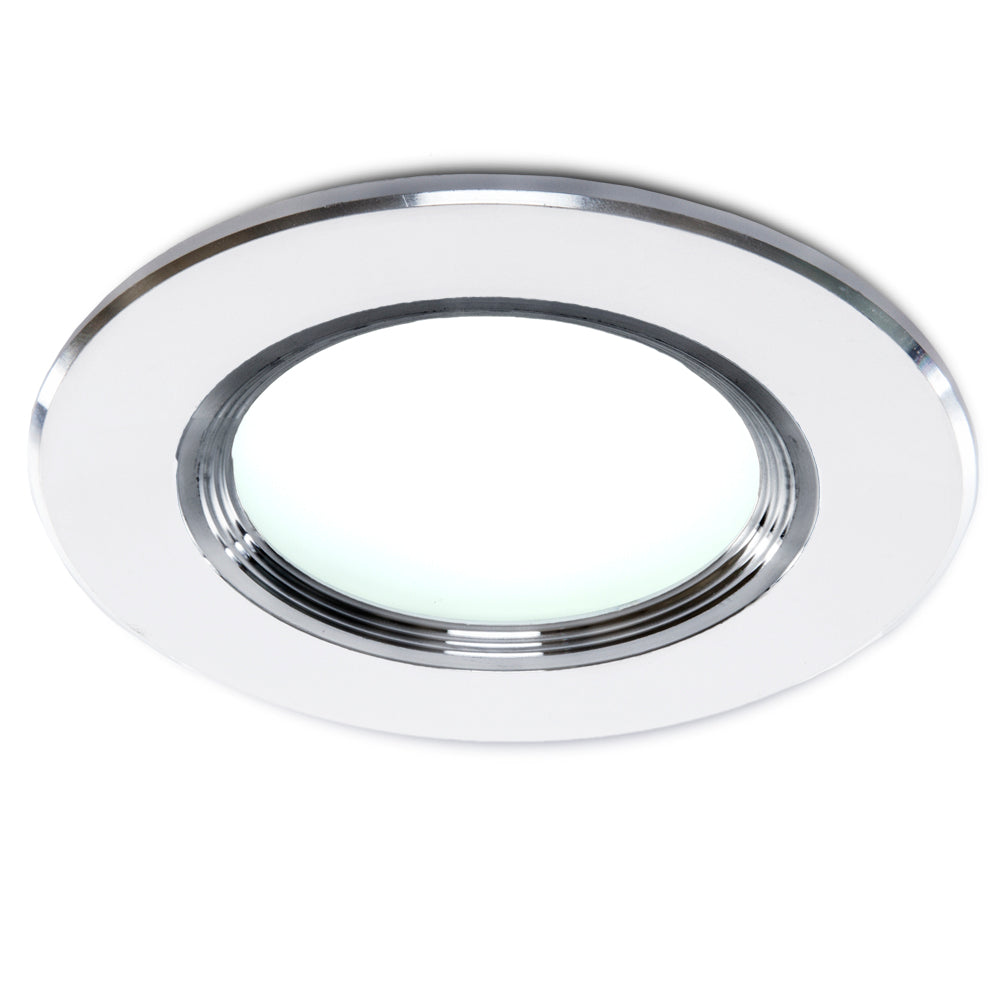

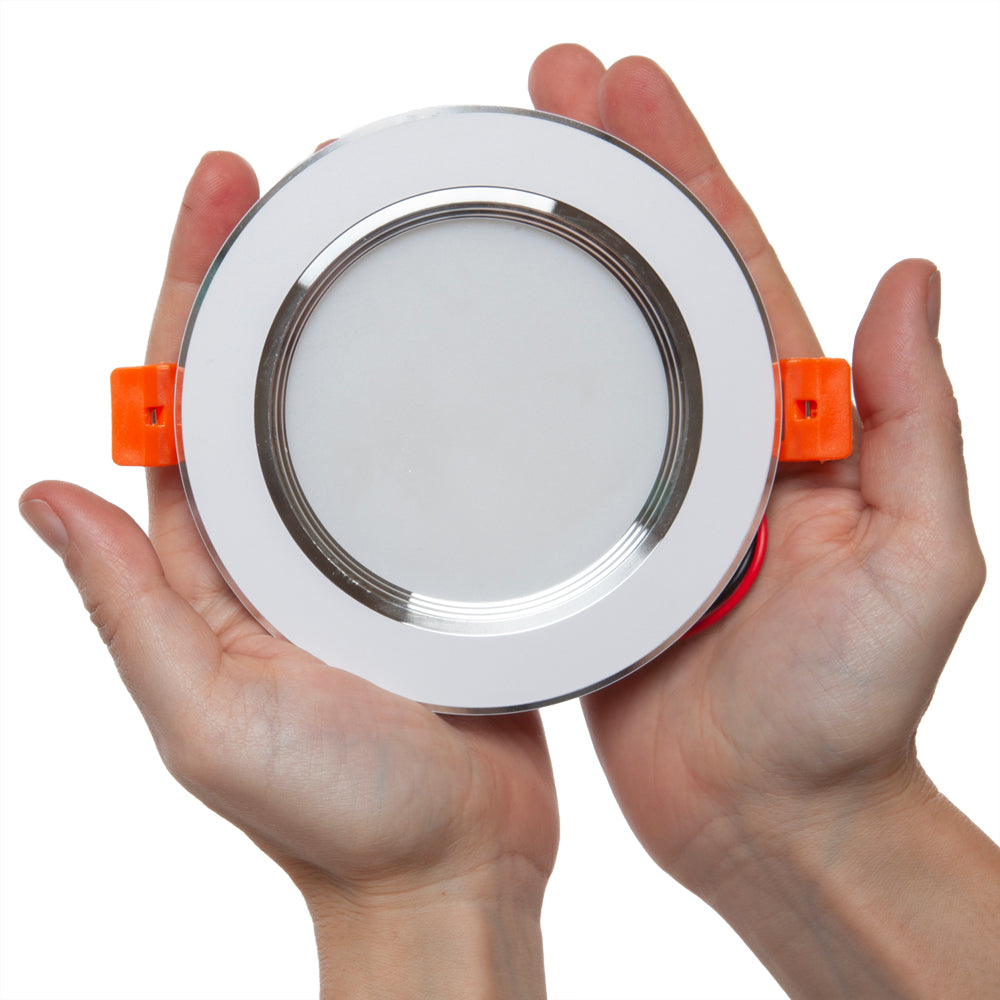

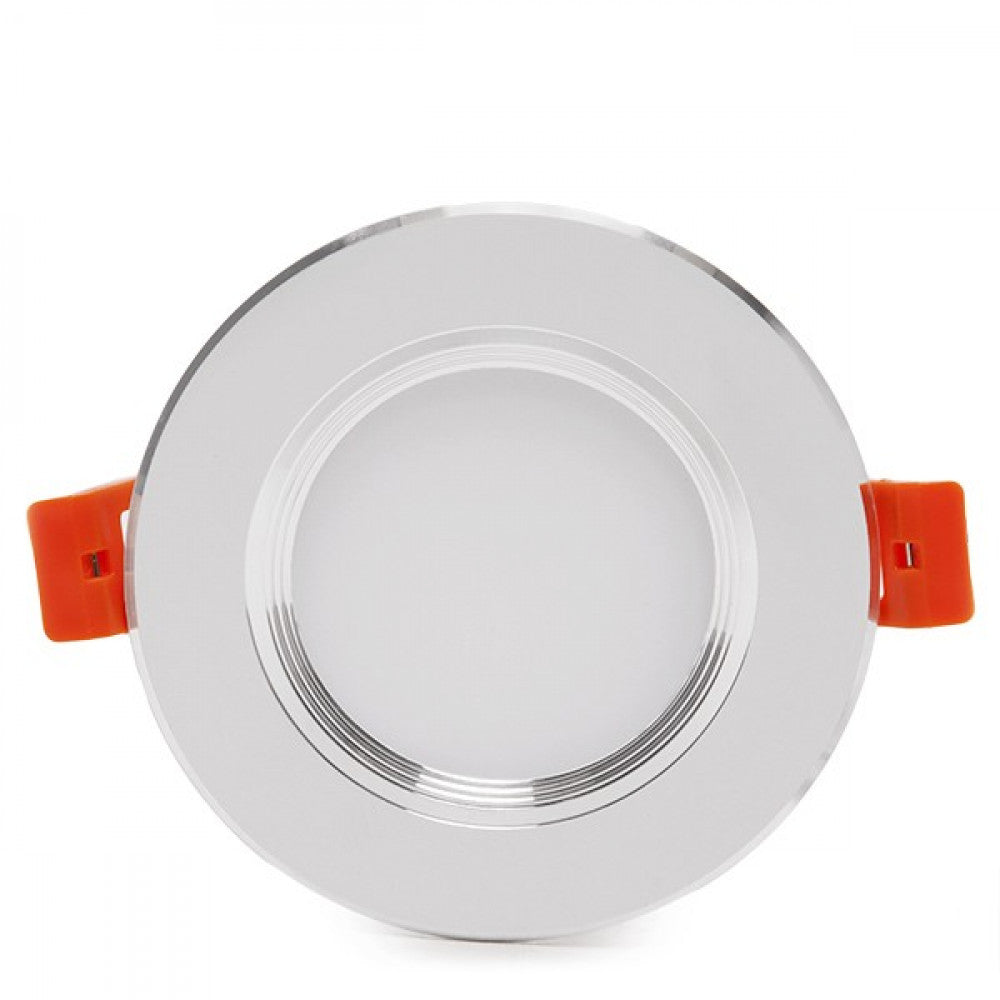

LED Downlight Spotlight 7W 560Lm 6000ºK 40,000H [PCE-DL7W-CW]

LED Downlight Spotlight 7W 560Lm 6000ºK 40,000H [PCE-DL7W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuPCE-DL7W-CW
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
£6.00
£9.00 £6.00 -33%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
¿Eres Cliente Profesional?

Hemos publicado una nueva web solo para Profesionales.

ir a Área Profesional
VENTAJAS DE COMPRAR EN GREENICE
  • Precio Mínimo Garantizado
  • Devoluciones Gratis hasta en 60 días
  • Envío Gratis desde 21,95€
  • Hasta 10 años de Garantía
-33.33%(PCE-DL7W-CW_padreImg_pce_dl7w_cw_0.jpeg)
Cool White
Stock available
Free shipping
£6.00
£9.00 £6.00 -33%

Accessories

  • (SB-BS039_padreImg_sb_bs039_0.jpeg) (SB-BS039_padreImg_sb_bs039_1.jpeg)

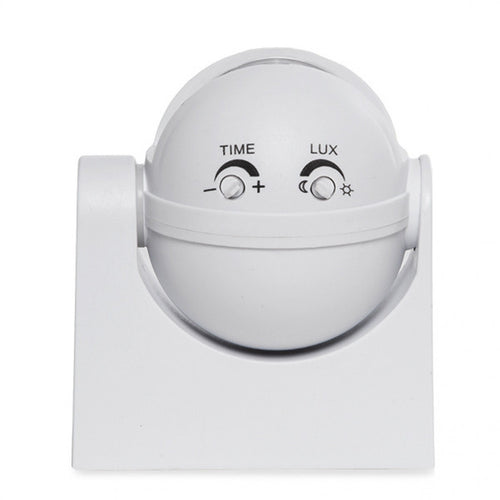

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    Offer
    GreenIce

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    £9.00
    £16.00 £9.00 -43%
    Offer
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    Offer
    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    £5.00
    £13.00 £5.00 -61%
    Offer

Technical file

Product code
PCE-DL7W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
7.0
Luminosity (LM)
560
Luminous efficacy (LM/W)
80
LED efficacy
88
Type of LEDs
Epistar Led
Measures (mm)
Ø115x33
Roof cut (mm)
Ø82
High
33.0
Diameter
115
CRI
80
Diffuser
Milky
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC

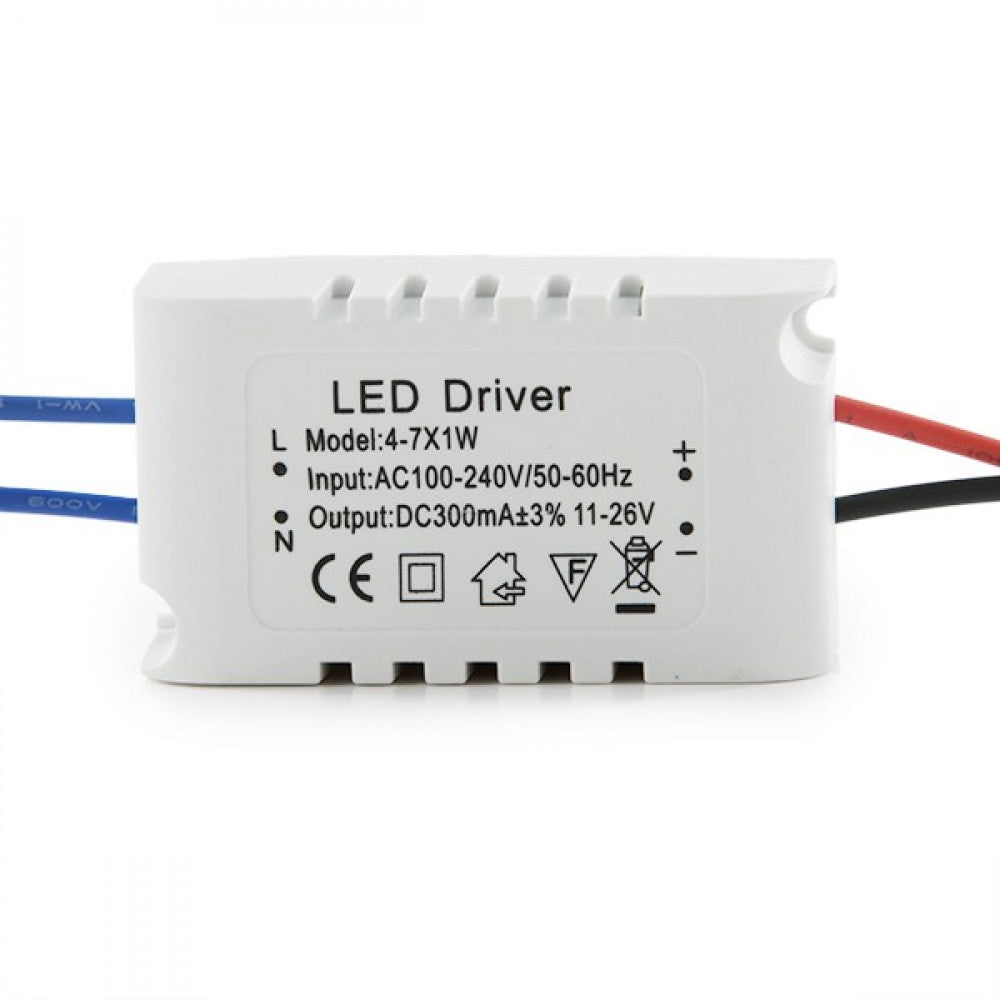

Driver output
DC12-24V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
60
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.3
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
80000
Energy consumption (kWh/1000h)
7.0
Weight (gr)
133
Flicker
0.76
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
29
Minimum cri range
97
Maximum cri range
20
Chromaticity x
0.432
Chromaticity y
0.403
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Características

Product code
PCE-DL7W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
7.0
Luminosity (LM)
560
Luminous efficacy (LM/W)
80
LED efficacy
88
Type of LEDs
Epistar Led
Measures (mm)
Ø115x33
Roof cut (mm)
Ø82
High
33.0
Diameter
115
CRI
80
Diffuser
Milky
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC12-24V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
60
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.3
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
80000
Energy consumption (kWh/1000h)
7.0
Weight (gr)
133
Flicker
0.76
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
29
Minimum cri range
97
Maximum cri range
20
Chromaticity x
0.432
Chromaticity y
0.403
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Descripción

The Downlight Spotlight is designed for general lighting applications, both commercial and domestic. It provides an intense light with a multitude of possibilities, ideal for replacing traditional halogen lamps, reaching savings of up to 90% and a downlight of low conventional consumption, reaching savings of up to 60% with which high energy efficiency is achieved.

It mounts LEDs -SMD that provide a width of the light beam of 120º. Designed to work at 85-265VAC and a frequency of 50-60Hz.

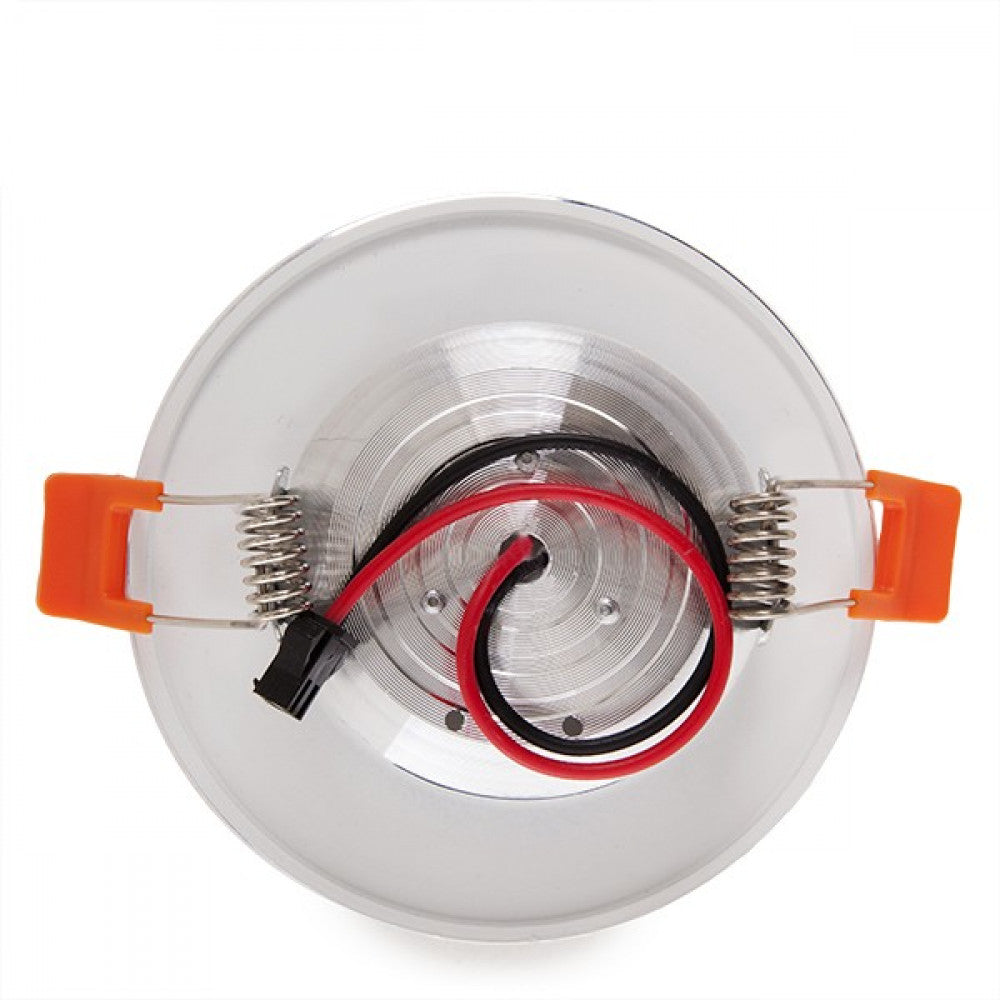

Equipped with an opal diffuser, it offers a semi-diffuse light ideal for use in both general applications and support lighting for downlights. greater luminosity.Includes high-quality aluminum heat sink and clamps for perfect fixing to the ceiling.

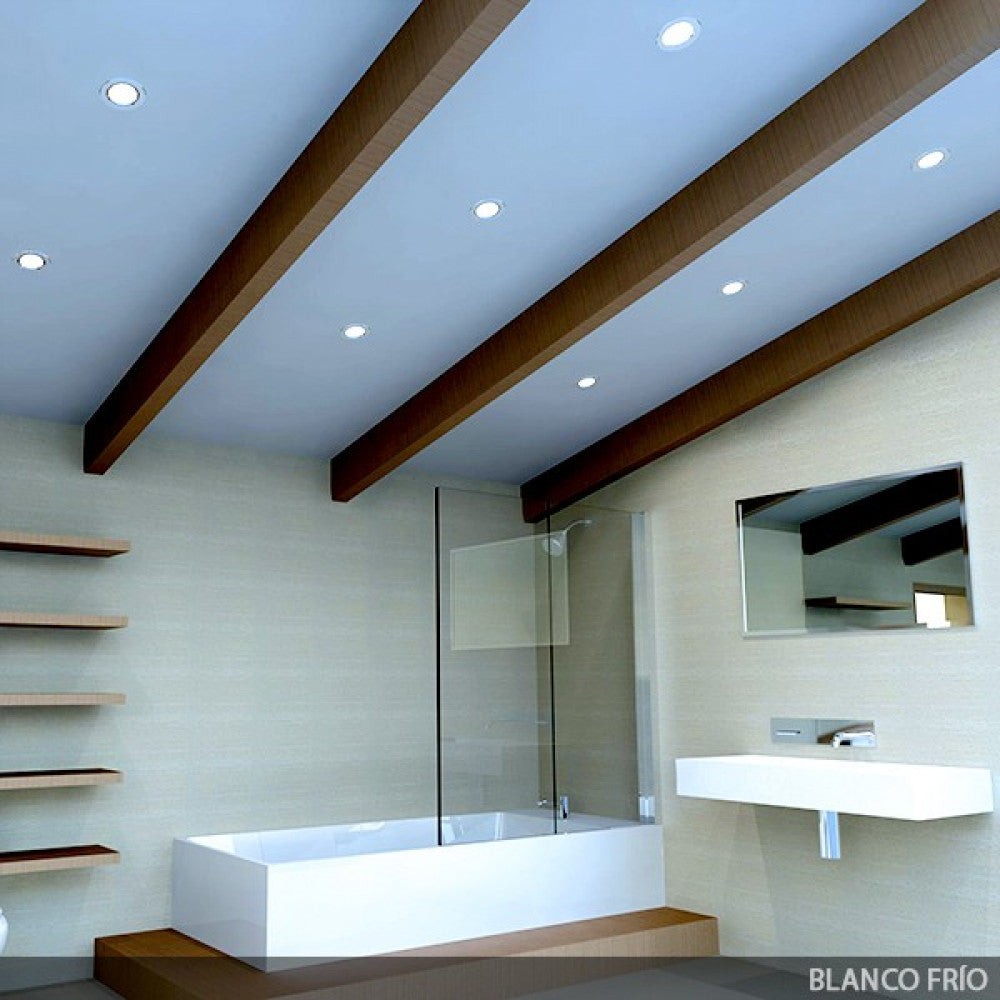

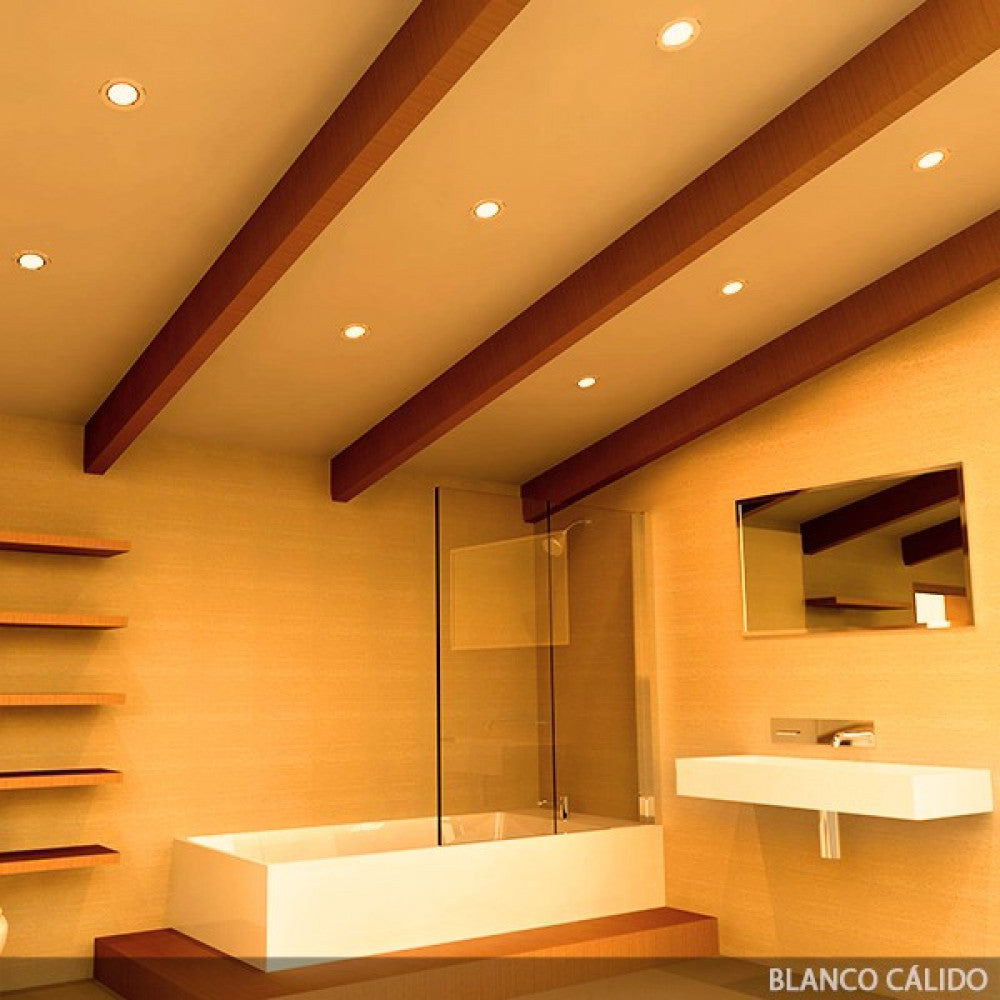

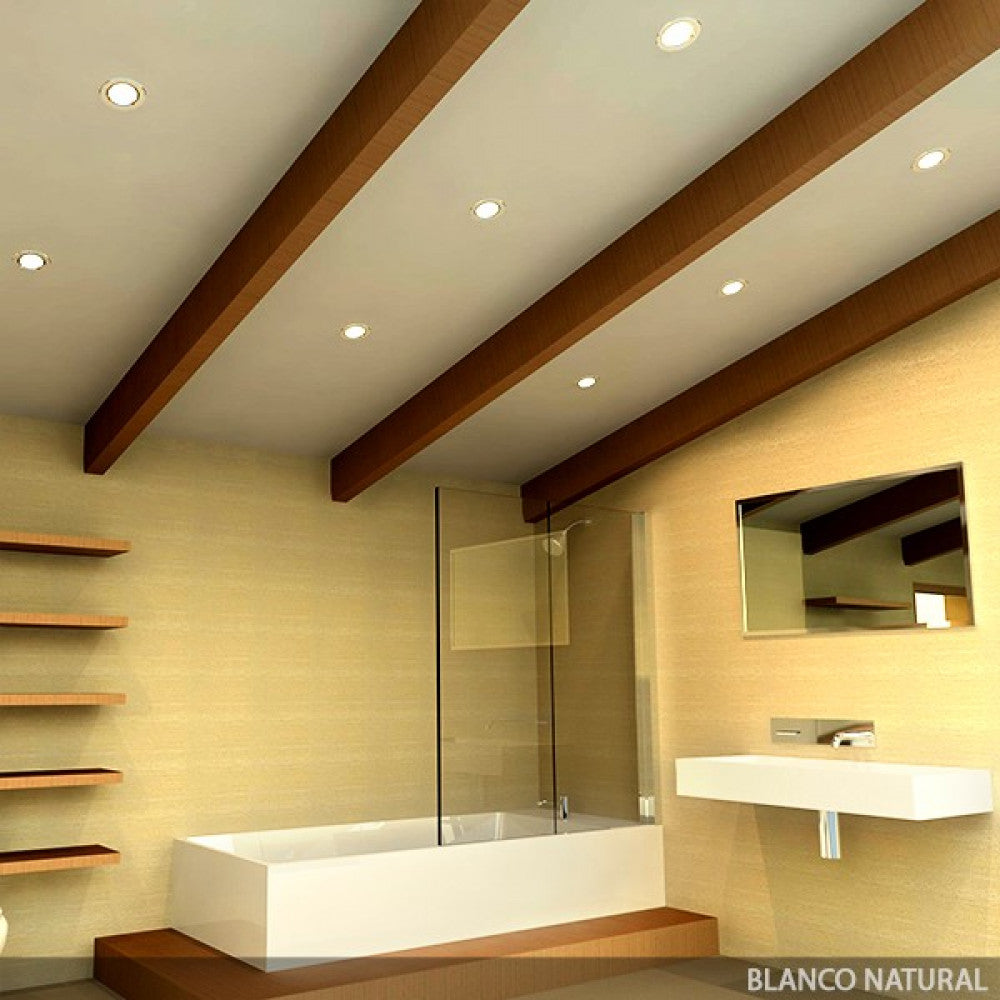

The features of this type of product make it suitable for many spaces, including outside the commercial field, whether in transit areas such as stairs, halls or corridors, and even in work environments such as offices.
