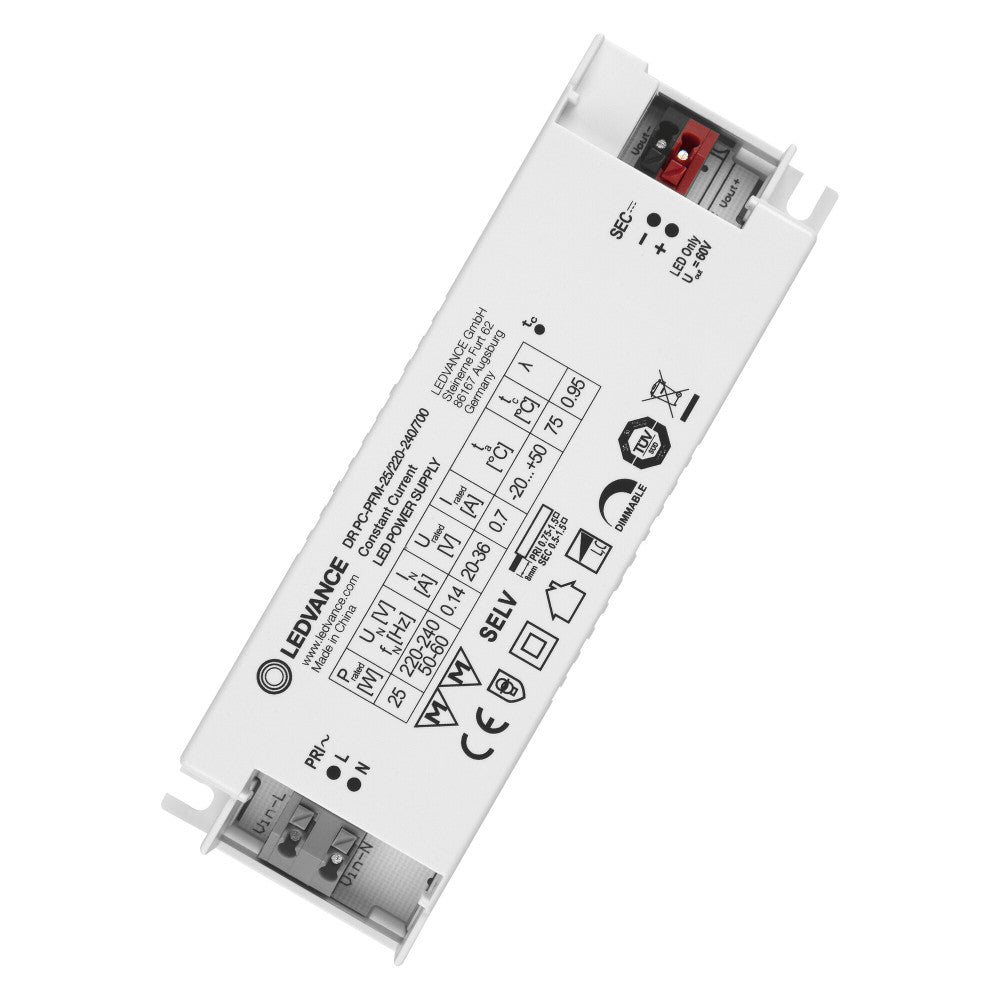

LED Driver Ledvance EC Performance DR PC-PFM-25/220-240/700
LED Driver Ledvance EC Performance DR PC-PFM-25/220-240/700
- Brand:Ledvance-Osram / Ledvance-Osram
- SkuLVE-4058075239852
Energy efficiency
Warranty
- Warranty 3 years
Documents
Usual price
£21.00
Usual price
£21.00
Offer price
£21.00
Discount
%
Unit price
/
by
Tax included.
The Shipping expenses They are calculated on the payment screen.
There are few
The retirement availability could not be loaded
Warranty
- Warranty 3 years
Documents

Are you a professional customer?
We have published a new website only for professionals.
Advantages of buying in Greenice
- Guaranteed minimum price
- Free returns up to 60 days
- Free shipping From € 21.95
- Until 10 years guarantee
Write an opinion
We care about your comments
Assessment:




##
There are few
Free shipping
Usual price
£21.00
Usual price
£21.00
Offer price
£21.00
Discount
%
Unit price
/
by
The retirement availability could not be loaded
Download PDF card
Choose how to download the product file. You can include your company and logo data
My contact data
Greenice contact
No contact data
Download PDF card
Choose how to download the product file. You can include your company and logo data
My contact data
Greenice contact
No contact data
Technical file
Product code
LVE-4058075239852

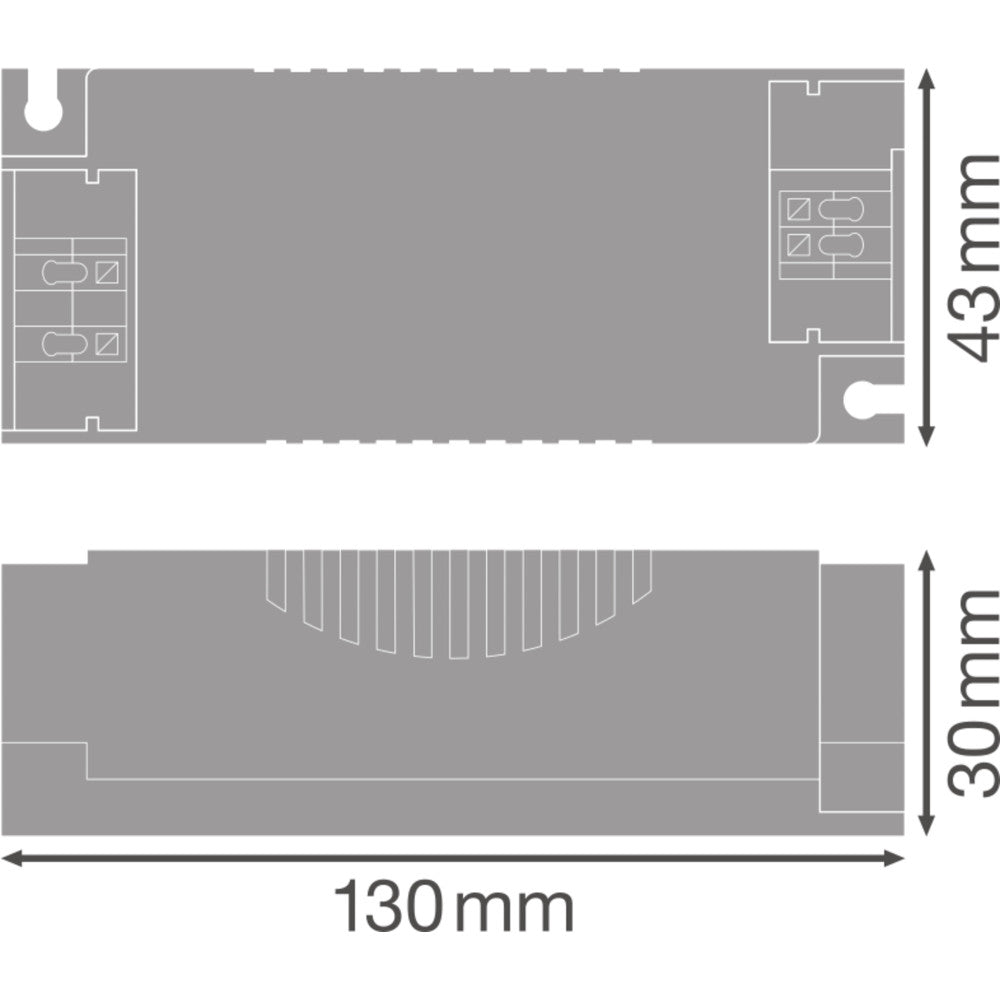

Measures (mm)
130x43x30
High
43.0
Long
130.0
Broad
30.0
Power factor (PF)
0.95
Facility
IP20
Strain
220-240VAC
Estimated life (H)
50000
Dimable
Yes
Weight (gr)
225
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Finish
White
Driver output
130 mA
Description
Constant current LED driver with phase cut regulation. Product Features: Available in 13 W, 18 W, 25 W and 35 W. Freestanding installation with optional cable tie kit. Dimmable on the leading edge and trailing edge. Adjustable from 10…100%. Durability: up to 50,000 h (at maximum tc temperature). Protection type: IP20. Dedicated, constant output current. Low ripple < 5%. Supply voltage: 220…240 V. Operating frequency: 50/60 Hz. Operation with less than 60 V: Safety Extra Low Voltage (SELV). Reversible overtemperature and overload, short circuit and open circuit protection. Product benefits: Allows installation with the most common phase beginning and end regulators. 5 years warranty. Thin housing for tight installations. High efficiency and reliability. Application areas: Suitable for LED luminaires and LED modules. Valid for luminaires with class I and II protection. For SELV indoor installations. Offices, shopping centers, hospitals, restaurants, hotels. Equipment / Accessories: Kit to hold cables and ensure adequate pressure relief.Documents
Opinions about this product
Be the first to leave a review about this product
Drop -down content
Characteristics
Characteristics
Product code
LVE-4058075239852
Measures (mm)
130x43x30
High
43.0
Long
130.0
Broad
30.0
Power factor (PF)
0.95
Facility
IP20
Strain
220-240VAC
Estimated life (H)
50000
Dimable
Yes
Weight (gr)
225
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Finish
White
Driver output
130 mA
Description
Description
Constant current LED driver with phase cut regulation. Product Features: Available in 13 W, 18 W, 25 W and 35 W. Freestanding installation with optional cable tie kit. Dimmable on the leading edge and trailing edge. Adjustable from 10…100%. Durability: up to 50,000 h (at maximum tc temperature). Protection type: IP20. Dedicated, constant output current. Low ripple < 5%. Supply voltage: 220…240 V. Operating frequency: 50/60 Hz. Operation with less than 60 V: Safety Extra Low Voltage (SELV). Reversible overtemperature and overload, short circuit and open circuit protection. Product benefits: Allows installation with the most common phase beginning and end regulators. 5 years warranty. Thin housing for tight installations. High efficiency and reliability. Application areas: Suitable for LED luminaires and LED modules. Valid for luminaires with class I and II protection. For SELV indoor installations. Offices, shopping centers, hospitals, restaurants, hotels. Equipment / Accessories: Kit to hold cables and ensure adequate pressure relief.
