LED high bay 100W 14,500Lm 6000ºK IP65 DALI 40,000H [NS-HB100W-UE-DALI-CW]

LED high bay 100W 14,500Lm 6000ºK IP65 DALI 40,000H [NS-HB100W-UE-DALI-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Philips Led
  • Sku1916NSHB100WUEDALICW
  • AAA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
£73.00
£74.00 £73.00 -1%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-1.35%(1916NSHB100WUEDALICW_padreImg_1916nshb100wuedalicw_0.jpeg)
Cool White
There are few
Free shipping
£73.00
£74.00 £73.00 -1%

Technical file

Product code
1916-NS-HB100W-UE-DALI-CW
Luminous efficacy (LM/W)
145
Light temperature
Cold White
Kelvin º
6000
Power (W)
100.0
Luminosity (LM)
14500
Measures (mm)
250x250x96.5
High
97.0
Long
250.0
Broad
250.0
Number and type of LEDs
Philips Led
CRI
80
Power factor (PF)
0.9
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK08
Strain
190-260VAC
Estimated life (H)
40000
Dimable
Yes
Isolation class
I
Work frequency (Hz)
50HZ
Start time (s)
0.2
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
- 35 +45
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
100.0
Weight (gr)
1700
Flicker
0.04
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
23
Minimum cri range
84
Maximum cri range
80
Chromaticity x
0.385
Chromaticity y
0.366
Applicable standards
EN 55015:2013; EN 61547:2009; EN 61000-3-2:2014; EN 61000-3-3:2013

Characteristics

Product code
1916-NS-HB100W-UE-DALI-CW
Luminous efficacy (LM/W)
145
Light temperature
Cold White
Kelvin º
6000
Power (W)
100.0
Luminosity (LM)
14500
Measures (mm)
250x250x96.5
High
97.0
Long
250.0
Broad
250.0
Number and type of LEDs
Philips Led
CRI
80
Power factor (PF)
0.9
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK08
Strain
190-260VAC
Estimated life (H)
40000
Dimable
Yes
Isolation class
I
Work frequency (Hz)
50HZ
Start time (s)
0.2
Energy class
D
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
- 35 +45
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
100.0
Weight (gr)
1700
Flicker
0.04
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
23
Minimum cri range
84
Maximum cri range
80
Chromaticity x
0.385
Chromaticity y
0.366
Applicable standards
EN 55015:2013; EN 61547:2009; EN 61000-3-2:2014; EN 61000-3-3:2013

Description

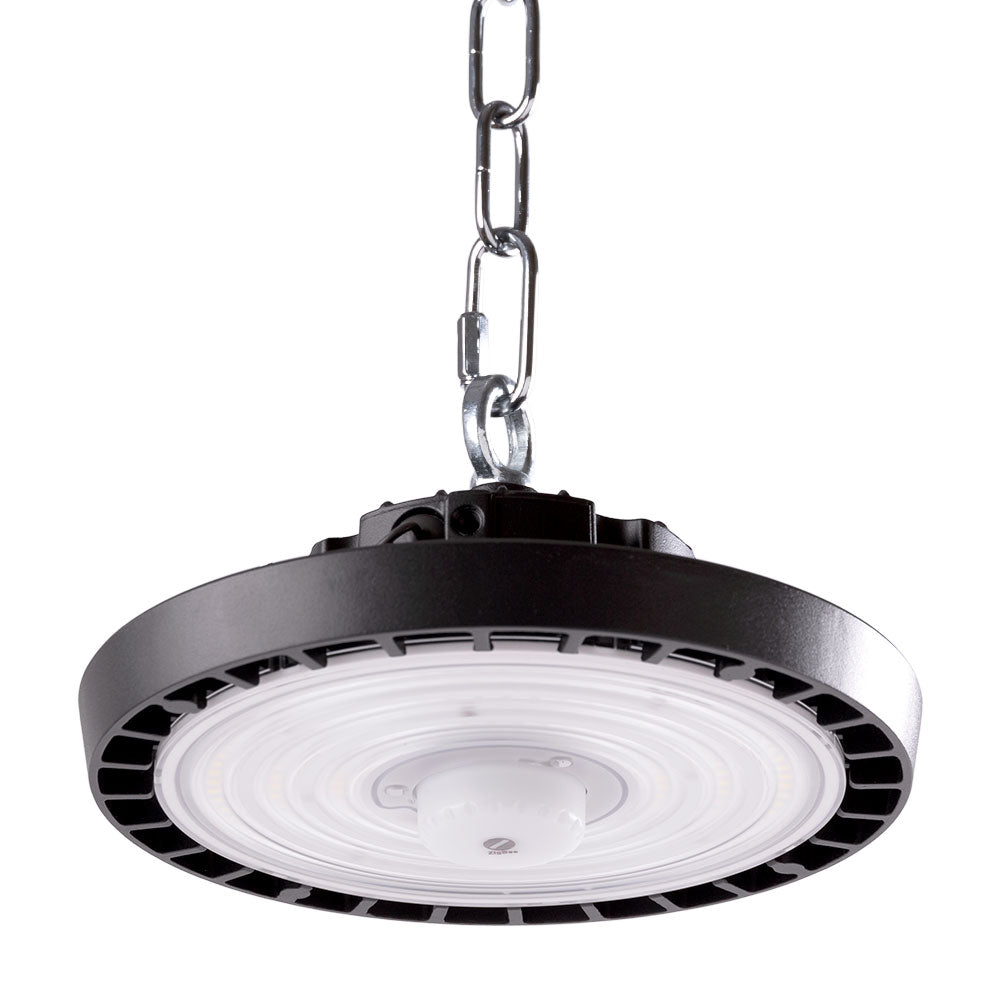

The IP65 DALI LED High Bay allows obtaining great power in a very small space, thanks to the latest generation advances that it incorporates. It has been possible to make one of the best LED high bays on the market, either due to energy savings, zero maintenance, long useful life or great reliability and flexibility.

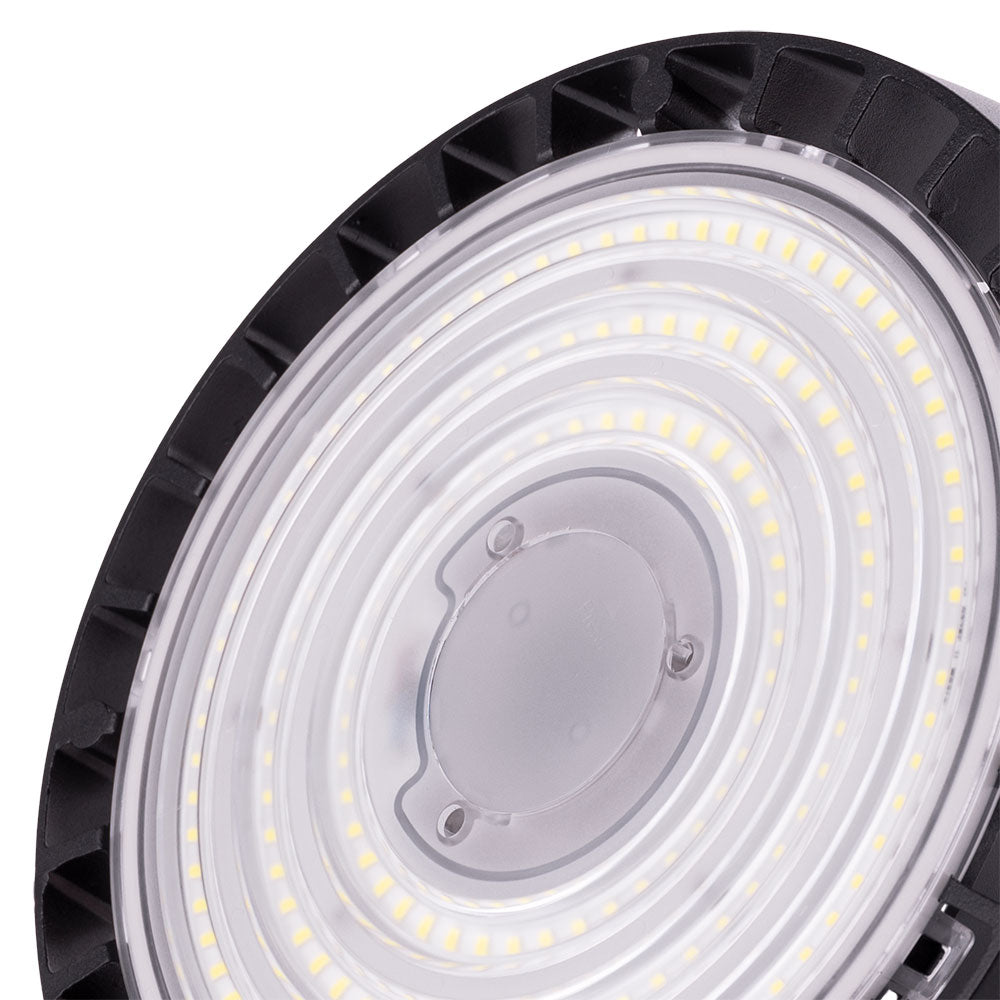

It has PHILIPS Lumileds SMD 2835 LEDs of high efficiency and energy performance, which together with the rest of the high-quality components that they incorporate, achieve an LED performance of up to 140 lm/W. Its innovative aluminum finish heatsink keeps the working temperature constant and optimally escapes the heat generated by the conversion of electrical energy to light energy.

The LIFUD Driver of this luminaire incorporates 4kV protection against overloads , short circuits, temperature, high input voltage and output voltage making it a very safe driver. It has high efficiency and a high protection factor. It includes protection against over temperature, greatly improving the stability of the product, preventing the LEDs from burning out.

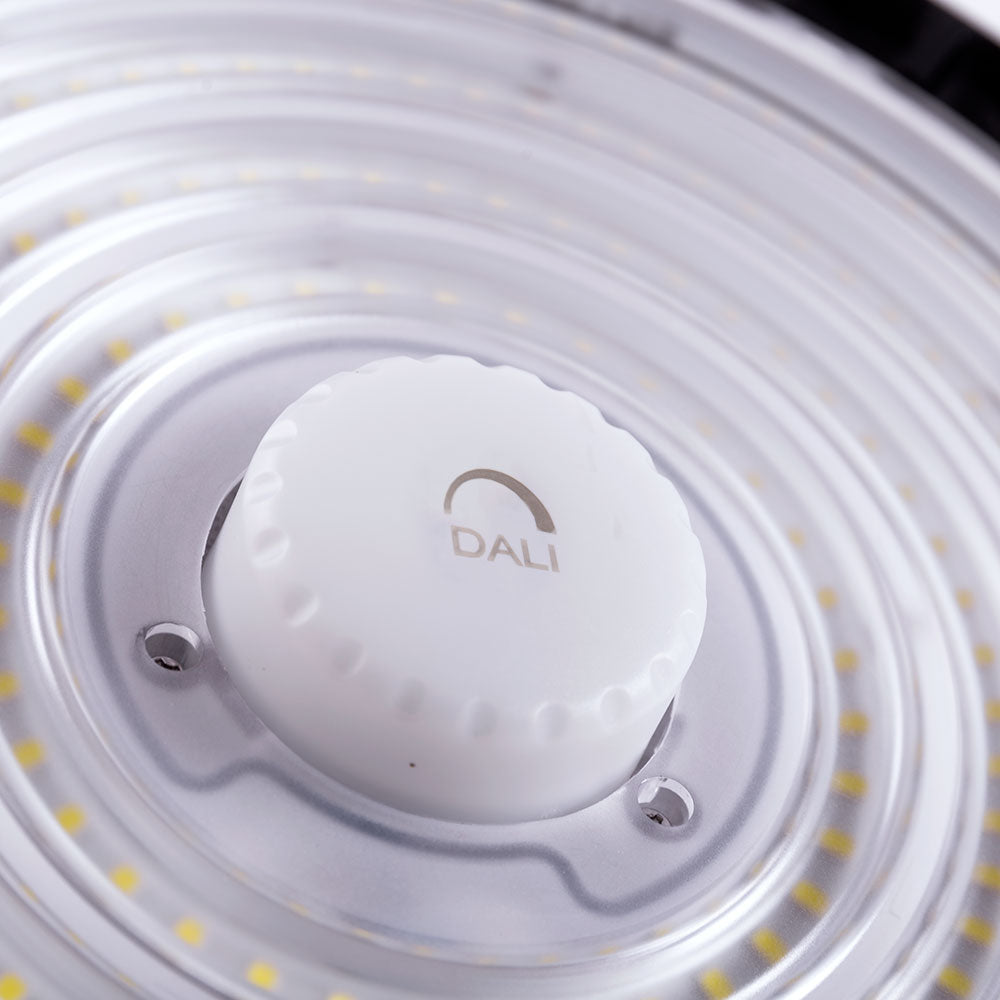

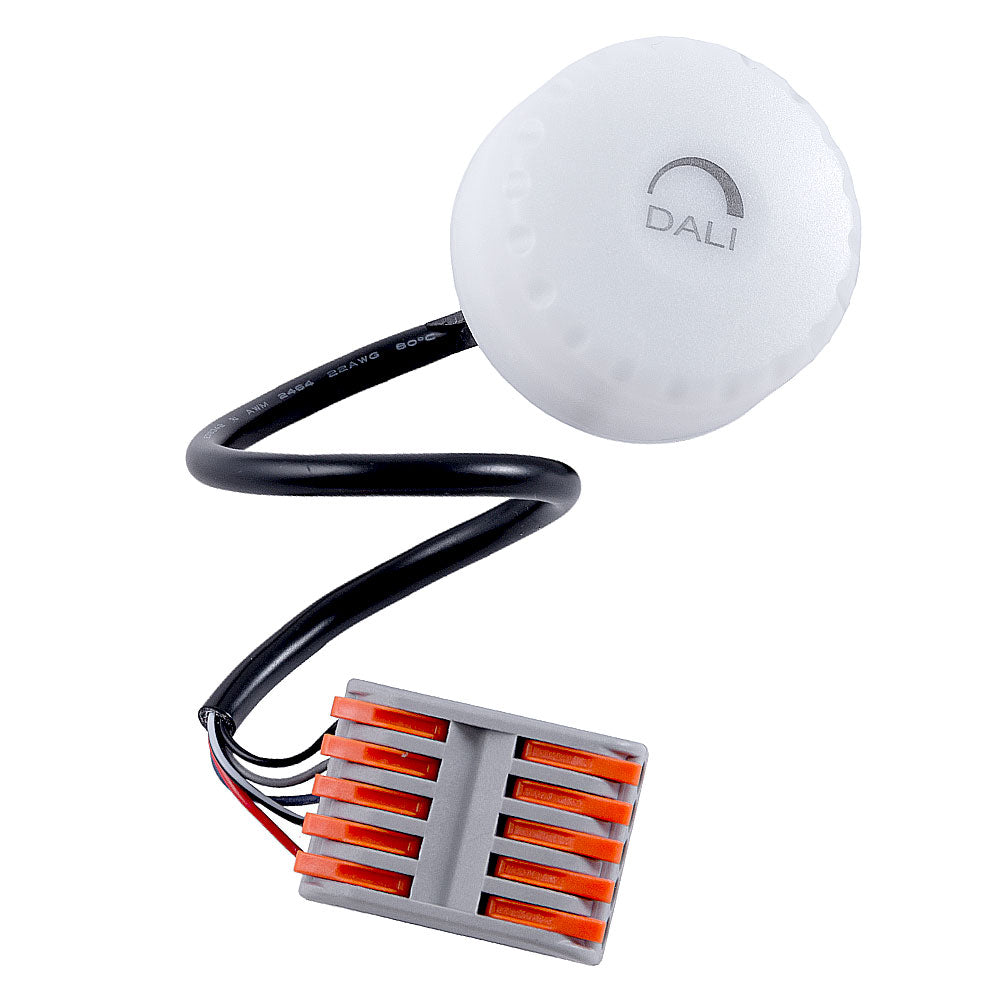

It incorporates a DALI regulation system, it is a perfect analog-digital converter to transform the analog signal of the 1-10V drivers into a digital signal Da+/Da-. In this way we can adapt any 1-10V luminaire so that it can be controlled by a DALI interface.

Industrial LED lighting is especially interesting in the professional field due to the savings it provides in terms of consumption and maintenance of the luminaries. It also stands out for the immediate and flicker-free start-up that allows you to instantly restore activity after, for example, a power cut

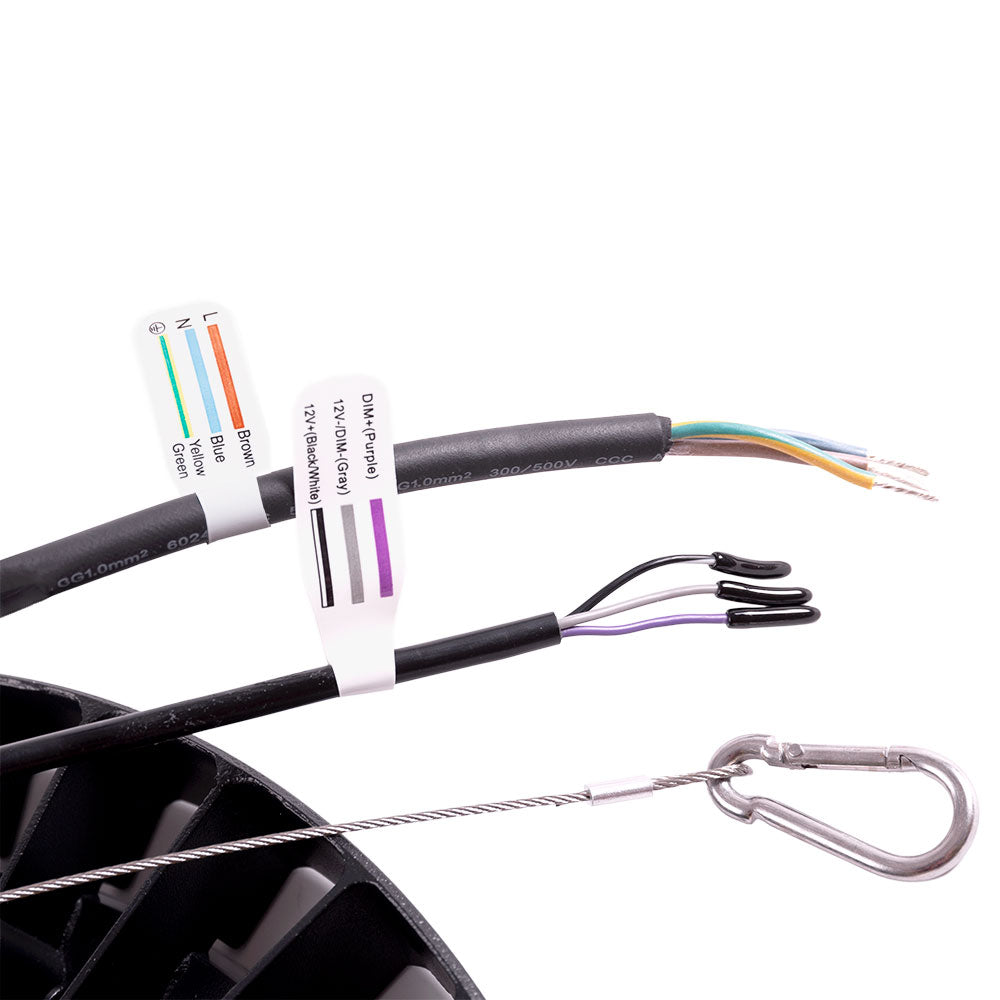

This hood has power, regulation and a 12V cable for connection of auxiliary services such as sensors, regulators, etc. In this way it is possible to synchronize and control it, adapting better to the needs of the installation area.

Documents

Installation_manual
