Technical file
Product code
1916-NS-HB100W-E-CW
Light temperature
CW
Kelvin º
6000
Power (W)
100.0
Luminosity (LM)
20000
Luminous efficacy (LM/W)
200
LED efficacy
220
Type of LEDs
SMD2835 Lumileds
Number of LEDs
450
Measures (mm)
Ø295x115
Broad
115.0
Diameter
295
CRI
80
Power factor (PF)
0.99
Construction
Alu.
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK08
Strain
100-277VAC
Estimated life (H)
100000
Dimable
1-10V
Equivalence (W)
535
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
A
Certificates
CE/ROHS/ENEC/ISO9001
Temperature range (ºC)
-20 +60
Lighting cycles
100000
Energy consumption (kWh/1000h)
100.0
Weight (gr)
2800
Flicker
0.3
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Single CCT
6000
INDEX R9
4
Minimum cri range
80
Maximum cri range
70
Chromaticity x
0.324
Chromaticity y
0.348
Driver
Lifud
Applicable standards
EN 55015:2013; EN 61547:2009; EN 61000-3-2:2014; EN 61000-3-3:2013
Description

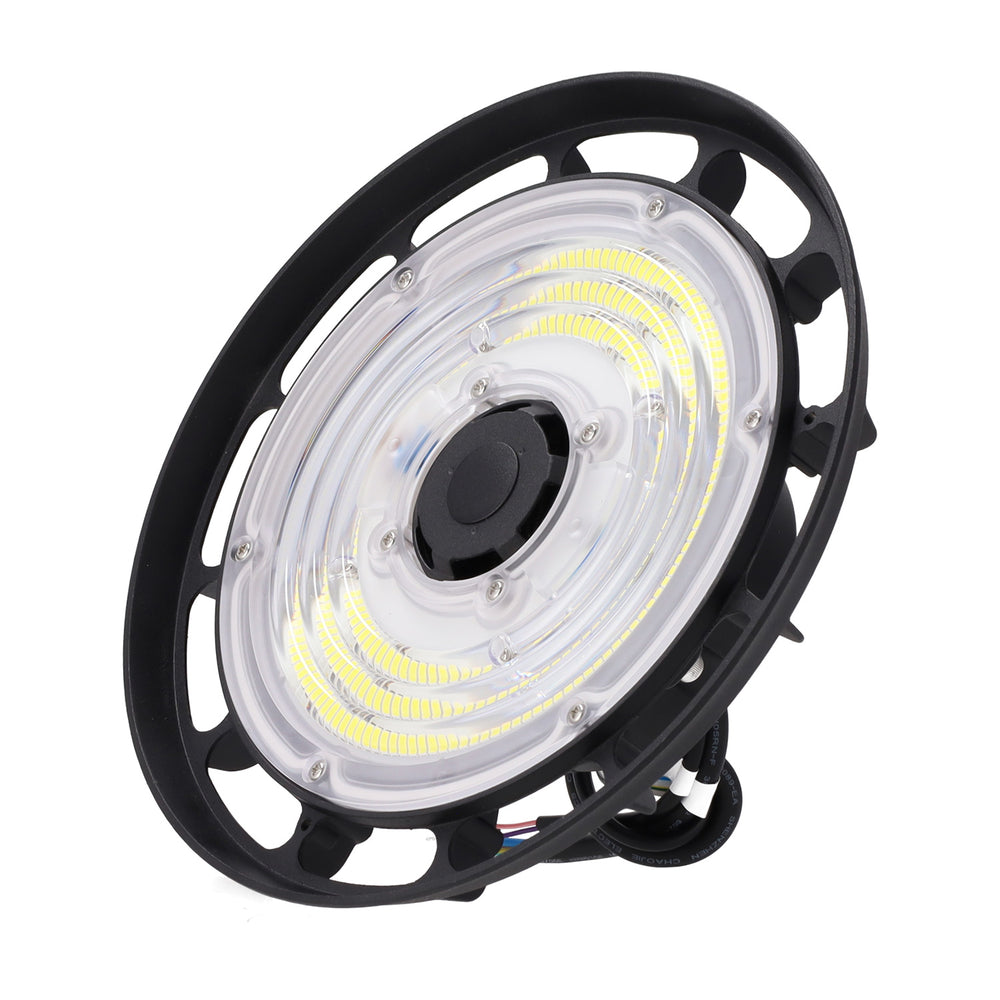

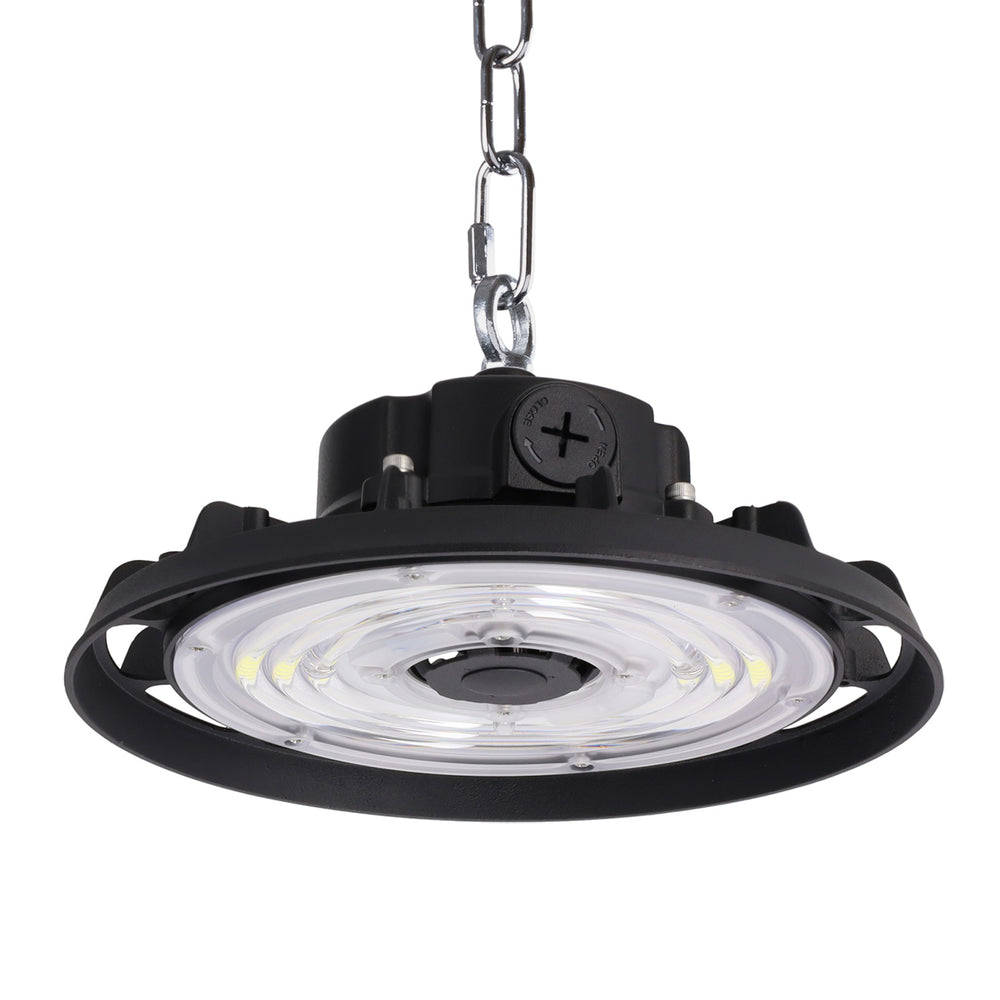

The 100W UFO High Bay with 1-10V dimming is an efficient and versatile lighting solution. With a luminous efficiency of 200 lm/W, this lamp provides an impressive amount of light for every watt of energy consumed. Its sleek and modern UFO design offers even light distribution, making it perfect for high ceilings and large spaces.
The 1-10V dimming allows for precise light intensity adjustment, making it ideal for different applications and environments. The 100W UFO High Bay with 1-10V dimming is a durable and reliable option for your lighting needs.
In addition to the features mentioned above, the 100W UFO High Bay with 1-10V dimming features a high-quality LUMILEDS SMD2835 light source, ensuring bright and consistent light throughout its lifespan. With a color rendering index (CRI) of 80, the high bay provides accurate color representation in its surroundings.
IP65 protection makes this high bay dust and water resistant, making it suitable for use in outdoor and humid environments. It also features a high-quality LIFUD driver, which provides a constant and stable power supply to the lamp.
Together, these features make the 100W UFO high bay a solid and reliable choice for any lighting project, both indoor and outdoor. With its combination of efficiency, durability, and light quality, this lamp is a long-term investment for your lighting needs.
EN 55015:2013; EN 61547:2009; EN 61000-3-2:2014; EN 61000-3-3:2013
Description
Description
The 100W UFO High Bay with 1-10V dimming is an efficient and versatile lighting solution. With a luminous efficiency of 200 lm/W, this lamp provides an impressive amount of light for every watt of energy consumed. Its sleek and modern UFO design offers even light distribution, making it perfect for high ceilings and large spaces.
The 1-10V dimming allows for precise light intensity adjustment, making it ideal for different applications and environments. The 100W UFO High Bay with 1-10V dimming is a durable and reliable option for your lighting needs.
In addition to the features mentioned above, the 100W UFO High Bay with 1-10V dimming features a high-quality LUMILEDS SMD2835 light source, ensuring bright and consistent light throughout its lifespan. With a color rendering index (CRI) of 80, the high bay provides accurate color representation in its surroundings.
IP65 protection makes this high bay dust and water resistant, making it suitable for use in outdoor and humid environments. It also features a high-quality LIFUD driver, which provides a constant and stable power supply to the lamp.
Together, these features make the 100W UFO high bay a solid and reliable choice for any lighting project, both indoor and outdoor. With its combination of efficiency, durability, and light quality, this lamp is a long-term investment for your lighting needs.
