Offer

LED High Bay 100W ( 72W-96W-120W ) 18000Lm Dimmable Lifud Driver 1-10V Philips CW Chip 6000ºK 90º [1916-NS-HB100W-S-CW]

LED High Bay 100W ( 72W-96W-120W ) 18000Lm Dimmable Lifud Driver 1-10V Philips CW Chip 6000ºK 90º [1916-NS-HB100W-S-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Lifud Driver
  • Sku1916-NS-HB100W-S-CW
  • AAA 2021
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 90º º Opening
£38.00
£84.00 £38.00 -54%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 90º º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-54.76%(1916-NS-HB100W-S-CW_padreImg_1916_ns_hb100w_s_cw_0.jpeg)
Cool White
Stock available
Free shipping
£38.00
£84.00 £38.00 -54%

Accessories

  • (HO-HY-EU110DM_padreImg_ho_hy_eu110dm_0.jpeg) (HO-HY-EU110DM_padreImg_ho_hy_eu110dm_1.jpeg)

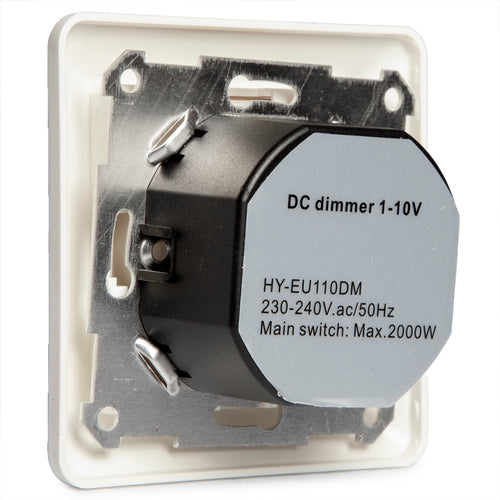

    Dimmer LED 1-10V 5-100%

    Offer
    GreenIce

    Dimmer LED 1-10V 5-100%

    £21.00
    £23.00 £21.00 -8%
    Offer

Technical file

Product code
NS-HB100W-S-CCT
Light temperature
Cool white
Kelvin º
6000
Power (W)
100.0
Luminosity (LM)
18000
Luminous efficacy (LM/W)
180
LED efficacy
198
Type of LEDs
Philips SMD 2835
Number of LEDs
175
Measures (mm)
Φ245x149
High
149.0
Diameter
245
CRI
80
Power factor (PF)
0.99
Construction
Aluminum
Opening Angle (º)
90º
Facility
IP65
IK Protection Index
IK08
Strain
220-240VAC
Estimated life (H)
100000
Equivalence (W)
535
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +60
Lighting cycles
100000
Energy consumption (kWh/1000h)
100.0
Weight (gr)
2800
Flicker
0.3
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Single CCT
6000
Driver
Lifud

Characteristics

Product code
NS-HB100W-S-CCT
Light temperature
Cool white
Kelvin º
6000
Power (W)
100.0
Luminosity (LM)
18000
Luminous efficacy (LM/W)
180
LED efficacy
198
Type of LEDs
Philips SMD 2835
Number of LEDs
175
Measures (mm)
Φ245x149
High
149.0
Diameter
245
CRI
80
Power factor (PF)
0.99
Construction
Aluminum
Opening Angle (º)
90º
Facility
IP65
IK Protection Index
IK08
Strain
220-240VAC
Estimated life (H)
100000
Equivalence (W)
535
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +60
Lighting cycles
100000
Energy consumption (kWh/1000h)
100.0
Weight (gr)
2800
Flicker
0.3
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Single CCT
6000
Driver
Lifud

Description

The 100W UFO High Bay with 1-10V Dimming is an efficient and versatile lighting solution. With a light efficiency of 180 lm/W, thislight provides an impressive amount of light for every watt of energy consumed. Its UFO design is sleek and modern, and offers an even distribution of light, making it perfect for high ceilings and large spaces.

The 1-10V dimming allows you to adjust the light intensity precisely, making it ideal for different applications and environments. The UFO High Bay with 1-10V Dimming is a durable and reliable choice for your lighting.

In addition to the features mentioned above, the UFO High Bay with 1-10V Dimming features a high-quality LUMILEDS SMD2835 light source, ensuring bright and consistent light throughout its lifespan. With a Color Rendering Index (CRI) of 80, the high bay provides an accurate representation of colors in your environment.

IP65 protection makes this high bay dust and water resistant, making it suitable for use in outdoor and humid environments. In addition, it features a high-quality LIFUD driver, which provides a constant and stable power supply to the lamp.

Together, these features make the UFO high bay a solid and reliable choice for any lighting project, both internal and external. With its combination of efficiency, durability and light quality, this lamp is a long-term investment for your lighting.

Documents

Installation_manual
Spanish_technical_data
Eu_certificates
