LED High Bay 150W 22.500Lm 6000ºK IP65 Dimmable 60,000H [1916-HVB150W-N2-CW]

LED High Bay 150W 22.500Lm 6000ºK IP65 Dimmable 60,000H [1916-HVB150W-N2-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • Sku1916-HVB150W-N2-CW
  • AAA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
£45.00
£82.00 £45.00 -45%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-45.12%(1916-HVB150W-N2-CW_padreImg_1916_hvb150w_n2_cw_0.jpeg)
Cool White
Stock available
Free shipping
£45.00
£82.00 £45.00 -45%

Accessories

  • (BL-KHD220V_padreImg_bl_khd220v_0.jpeg) (BL-KHD220V_padreImg_bl_khd220v_1.jpeg)

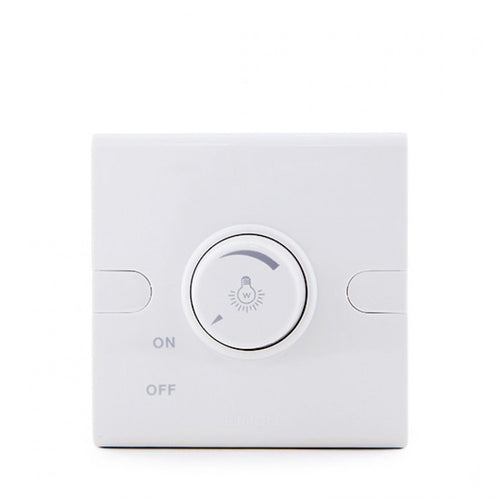

    Dimmer LED 200-250VAC 10-100% ► 630W

    GreenIce

    Dimmer LED 200-250VAC 10-100% ► 630W

    £23.00
    £23.00 £23.00 %
  • (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_0.jpeg) (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_1.jpeg)

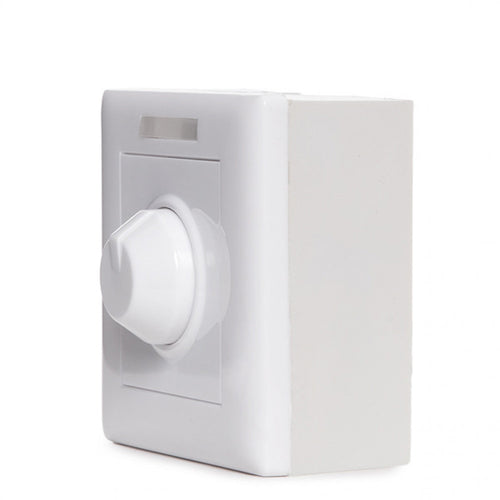

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    GreenIce

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    £28.00
    £28.00 £28.00 %

Technical file

Product code
1916-HVB150W-N2-CW
Luminous efficacy (LM/W)
150
Light temperature
Cold White
Kelvin º
6000
Power (W)
150.0
Luminosity (LM)
22500
Measures (mm)
Ø270x90
Broad
90.0
Diameter
270
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK08
Strain
190-260VAC
Estimated life (H)
60000
Dimable
Yes
Equivalence (W)
800
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
150.0
Weight (gr)
3000
Flicker
0.84
Half -year useful life (at 3 h/day)
54.79
Half -Year Useful Life (5 h/day)
32.87
Half -year useful life (at 8 h/day)
20.54
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
8
Minimum cri range
93
Maximum cri range
1
Chromaticity x
0.345
Chromaticity y
0.355
Applicable standards
EN 55015:2013; EN 61547:2009; EN 61000-3-2:2014; EN 61000-3-3:2013

Characteristics

Product code
1916-HVB150W-N2-CW
Luminous efficacy (LM/W)
150
Light temperature
Cold White
Kelvin º
6000
Power (W)
150.0
Luminosity (LM)
22500
Measures (mm)
Ø270x90
Broad
90.0
Diameter
270
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK08
Strain
190-260VAC
Estimated life (H)
60000
Dimable
Yes
Equivalence (W)
800
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
150.0
Weight (gr)
3000
Flicker
0.84
Half -year useful life (at 3 h/day)
54.79
Half -Year Useful Life (5 h/day)
32.87
Half -year useful life (at 8 h/day)
20.54
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
8
Minimum cri range
93
Maximum cri range
1
Chromaticity x
0.345
Chromaticity y
0.355
Applicable standards
EN 55015:2013; EN 61547:2009; EN 61000-3-2:2014; EN 61000-3-3:2013

Description

The DOB UFO LED High Bay 150W 150Lm/W IP65 60,000H allows you to obtain great power in a very small space, thanks to the latest generation advances that it incorporates.

It has high-efficiency LEDs from the company Epistar, which together with the rest of the high-quality components they incorporate, achieve an efficiency of up to 150 lm/W.

Its innovative heatsink Aluminum finish keeps the working temperature constant, eliminating heat very effectively in the most extreme conditions. In addition, it has a useful life of 60,000 hours of use.

This luminaire is perfect for all types of spaces, both indoors and outdoors, even in the most unfavorable situations. It is used in all types of industrial or work areas, such as industrial buildings, workshops, factories, warehouses or car parks.

Industrial LED lighting is especially interesting in the professional field due to the savings it provides in in terms of consumption and maintenance of the luminaires. It also stands out for its immediate and flicker-free start-up that allows you to instantly restore activity after, for example, a power cut.

Triac light intensity regulation 30%-100%
