Offer

LED high bay 200W 26.000Lm 6000ºK IP65 50,000H [HO-HB-200WK-CW]

LED high bay 200W 26.000Lm 6000ºK IP65 50,000H [HO-HB-200WK-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuHO-HB-200WK-CW
  • AAA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
£49.00
£88.00 £49.00 -44%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-44.32%(HO-HB-200WK-CW_padreImg_ho_hb_200wk_cw_0.jpeg)
Cool White
Stock available
Free shipping
£49.00
£88.00 £49.00 -44%

Accessories

  • (GH-90555514_padreImg_gh_90555514_0.jpeg)

    Button Luminous 10A 250V IP54 Gray

    GreenIce

    Button Luminous 10A 250V IP54 Gray

    £9.00
    £9.00 £9.00 %
  • (GH-90555501_padreImg_gh_90555501_0.jpeg)

    Switch 10A 250V IP54 Gray

    GreenIce

    Switch 10A 250V IP54 Gray

    £6.00
    £6.00 £6.00 %

Technical file

Product code
HO-HB-200WK-CW
Luminous efficacy (LM/W)
130
Light temperature
Cold White
Kelvin º
6000
Power (W)
200.0
Luminosity (LM)
26000
Measures (mm)
Ø400x194
High
194.0
Diameter
400
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK08
Strain
220-240VAC
Estimated life (H)
50000
Dimable
No
Equivalence (W)
1070
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
200.0
Weight (gr)
3200
Flicker
0.55
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
4
Minimum cri range
95
Maximum cri range
17
Chromaticity x
0.321
Chromaticity y
0.348
Applicable standards
EN 55015:2013; EN 61547:2009; EN 61000-3-2:2014; EN 61000-3-3:2013

Characteristics

Product code
HO-HB-200WK-CW
Luminous efficacy (LM/W)
130
Light temperature
Cold White
Kelvin º
6000
Power (W)
200.0
Luminosity (LM)
26000
Measures (mm)
Ø400x194
High
194.0
Diameter
400
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP65
IK Protection Index
IK08
Strain
220-240VAC
Estimated life (H)
50000
Dimable
No
Equivalence (W)
1070
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
200.0
Weight (gr)
3200
Flicker
0.55
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
4
Minimum cri range
95
Maximum cri range
17
Chromaticity x
0.321
Chromaticity y
0.348
Applicable standards
EN 55015:2013; EN 61547:2009; EN 61000-3-2:2014; EN 61000-3-3:2013

Description

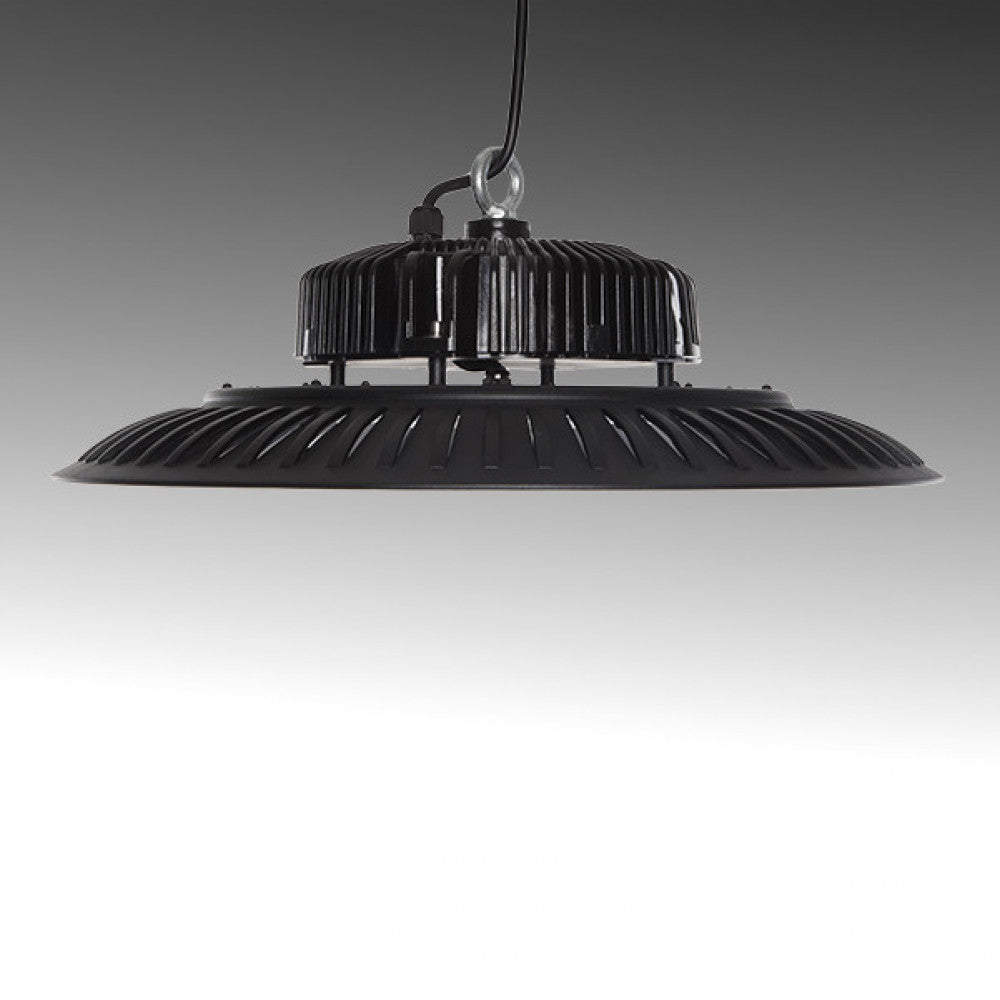

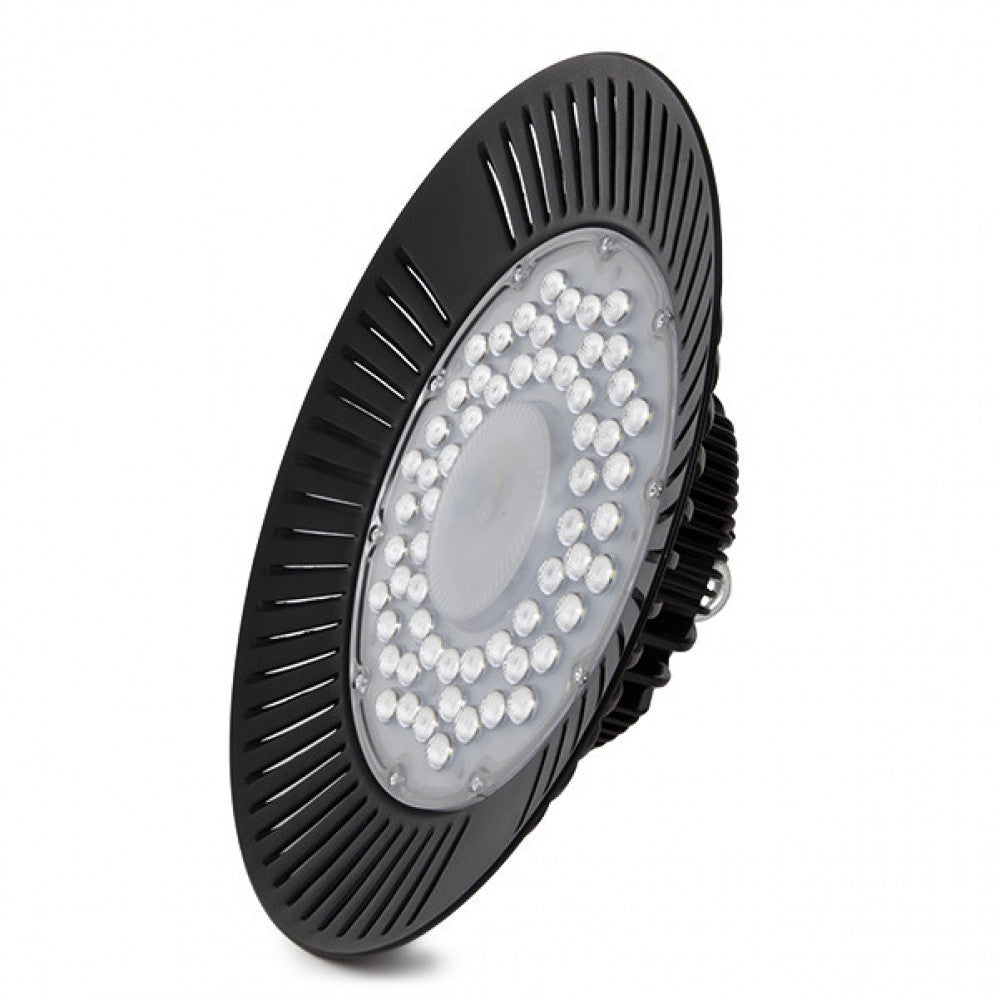

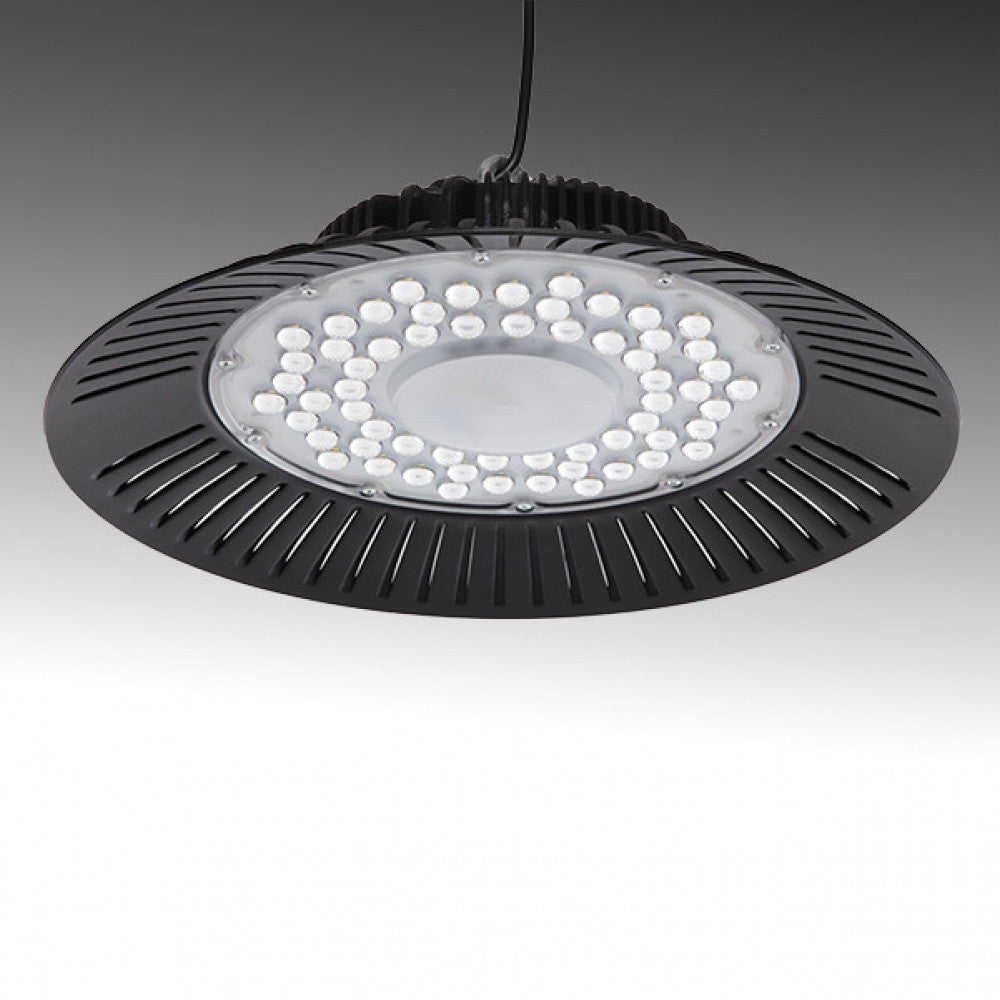

The LED high bay with a diameter of 400mm and a thickness of 194mm to be installed in almost any type of structure, offers solutions for outdoor and indoor environments for both industrial and residential use. It can be installed directly to outlets supplied by the electrical network (220-240VAC) with a service frequency of 50/60Hz.

It has a high efficacy (130 Lm/W) consuming 200W through SMD2835 type LEDs, managing to provide a luminous flux of 26000Lm evenly distributed throughout a transparent plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 1000W incandescent bulb, its consumption represents a value of 200kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

The hood has a degree of protection IP65 (valid for dust and humidity outdoors), as well as being robust enough for required mechanical demands.

This hood is available in cold white ( 6000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

Utilities:

This type of lighting is used in places such as workshops, factories, highway toll stations, gas stations, car parks, warehouses or industrial buildings. In general, work spaces with high ceilings where quality lighting is key to improving visual comfort and occupational safety. Thanks to its compact design and its IP65 protection factor, it is resistant to water and inclement weather, working perfectly both indoors, as well as in environments prone to humidity and outdoors.

Documents

Installation_manual
Spanish_technical_data
Eu_certificates
Technical_drawings
