Offer

LED High Power 10W 1.000Lm 6000ºK COB30 50.000H [CH-LED-10W-30MIL-CW]

LED High Power 10W 1.000Lm 6000ºK COB30 50.000H [CH-LED-10W-30MIL-CW]

For additional amounts the delivery period is 30 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuCH-LED-10W-30MIL-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
£3.00
£6.00 £3.00 -50%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-50.0%(CH-LED-10W-30MIL-CW_padreImg_ch_led_10w_30mil_cw_0.jpeg)
Cool White
Stock available
Free shipping
£3.00
£6.00 £3.00 -50%

Accessories

  • (DR-PR-ND-10W_padreImg_dr_pr_nd_10w_0.jpeg) (DR-PR-ND-10W_padreImg_dr_pr_nd_10w_1.jpeg)

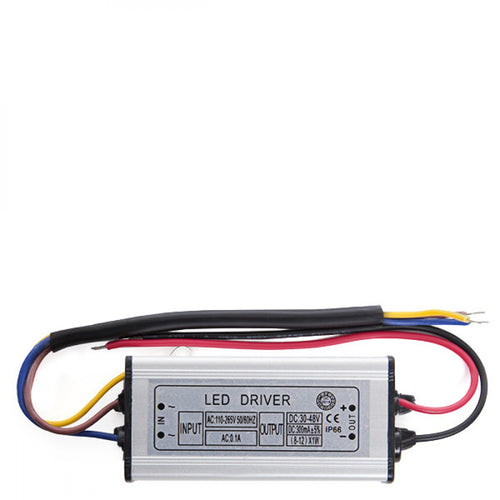

    Driver Non Dimmable LED Floodlight 10W

    Offer
    GreenIce

    Driver Non Dimmable LED Floodlight 10W

    £11.00
    £25.00 £11.00 -56%
    Offer

Technical file

Product code
CH-LED-10W-30MIL-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold
Kelvin º
6000
Power (W)
10.0
Luminosity (LM)
1000
Measures (mm)
20, 3x19, 5
Long
20.0
Broad
19.5
Number and type of LEDs
Epistar Led
CRI
80
Construction
Aluminum
Opening Angle (º)
120
Facility
IP20
Strain
30-34V 300mA
Estimated life (H)
50000
Dimable
Yes
Work frequency (Hz)
50/ 60
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Energy consumption (kWh/1000h)
10.0
Weight (gr)
10
Flicker
0.85
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
15
Minimum cri range
83
Maximum cri range
4
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN55015:2006;EN6147:2009;EN61000-3-2:2006;EN6100-3-3:2008

Characteristics

Product code
CH-LED-10W-30MIL-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold
Kelvin º
6000
Power (W)
10.0
Luminosity (LM)
1000
Measures (mm)
20, 3x19, 5
Long
20.0
Broad
19.5
Number and type of LEDs
Epistar Led
CRI
80
Construction
Aluminum
Opening Angle (º)
120
Facility
IP20
Strain
30-34V 300mA
Estimated life (H)
50000
Dimable
Yes
Work frequency (Hz)
50/ 60
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Energy consumption (kWh/1000h)
10.0
Weight (gr)
10
Flicker
0.85
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
15
Minimum cri range
83
Maximum cri range
4
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN55015:2006;EN6147:2009;EN61000-3-2:2006;EN6100-3-3:2008

Description

High Power LEDs are usually used to replace all types of lamps and projectors.

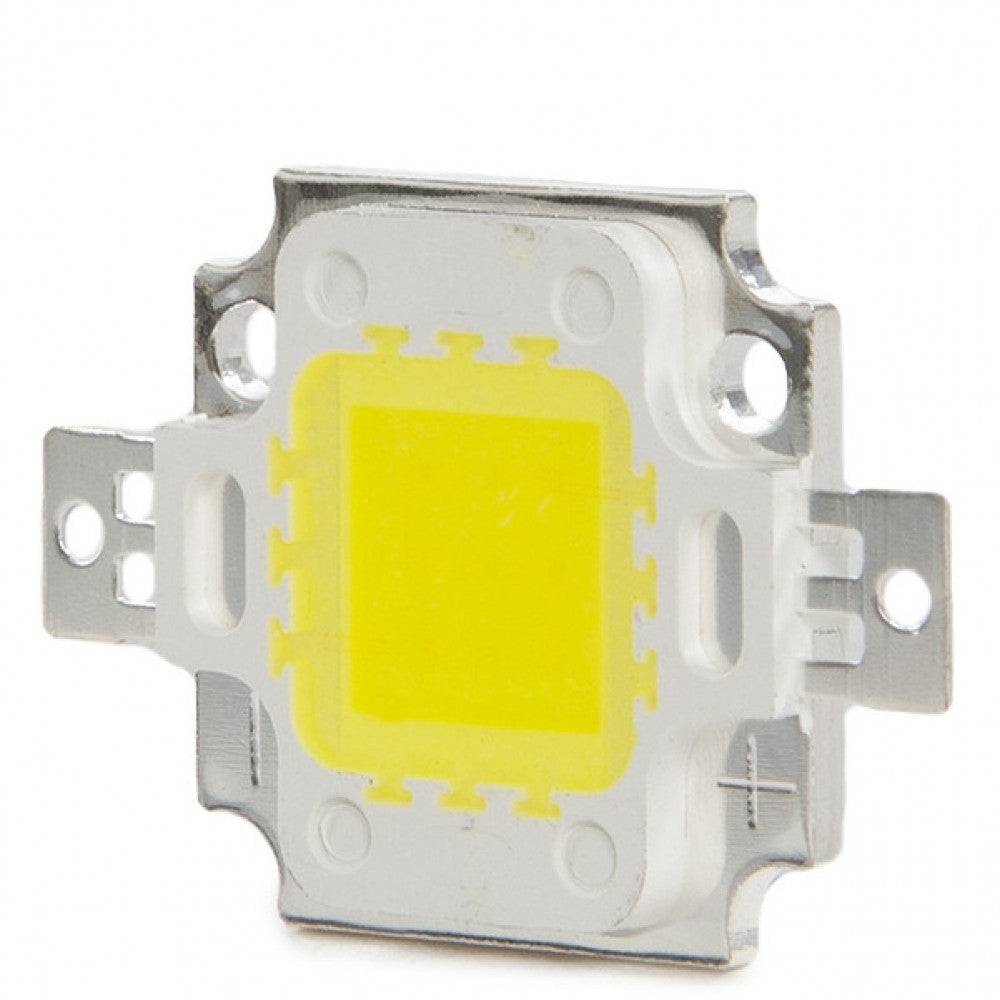

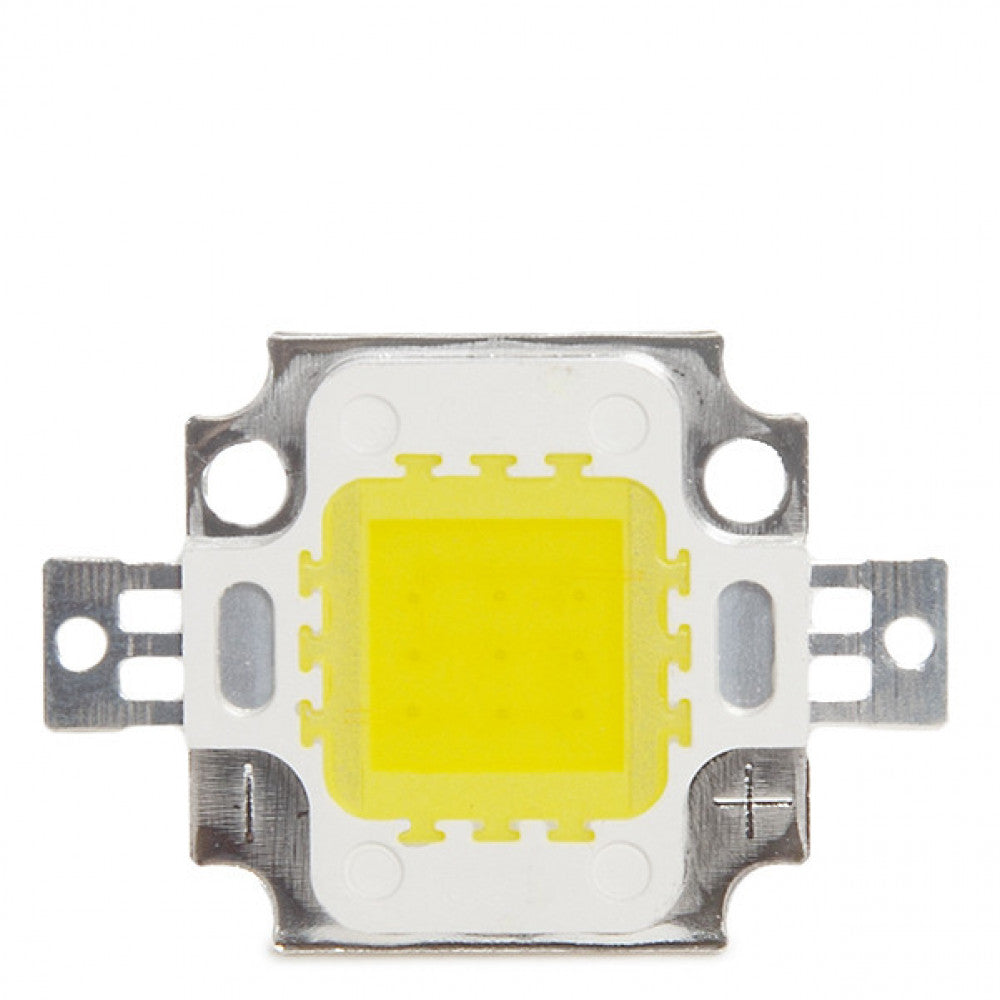

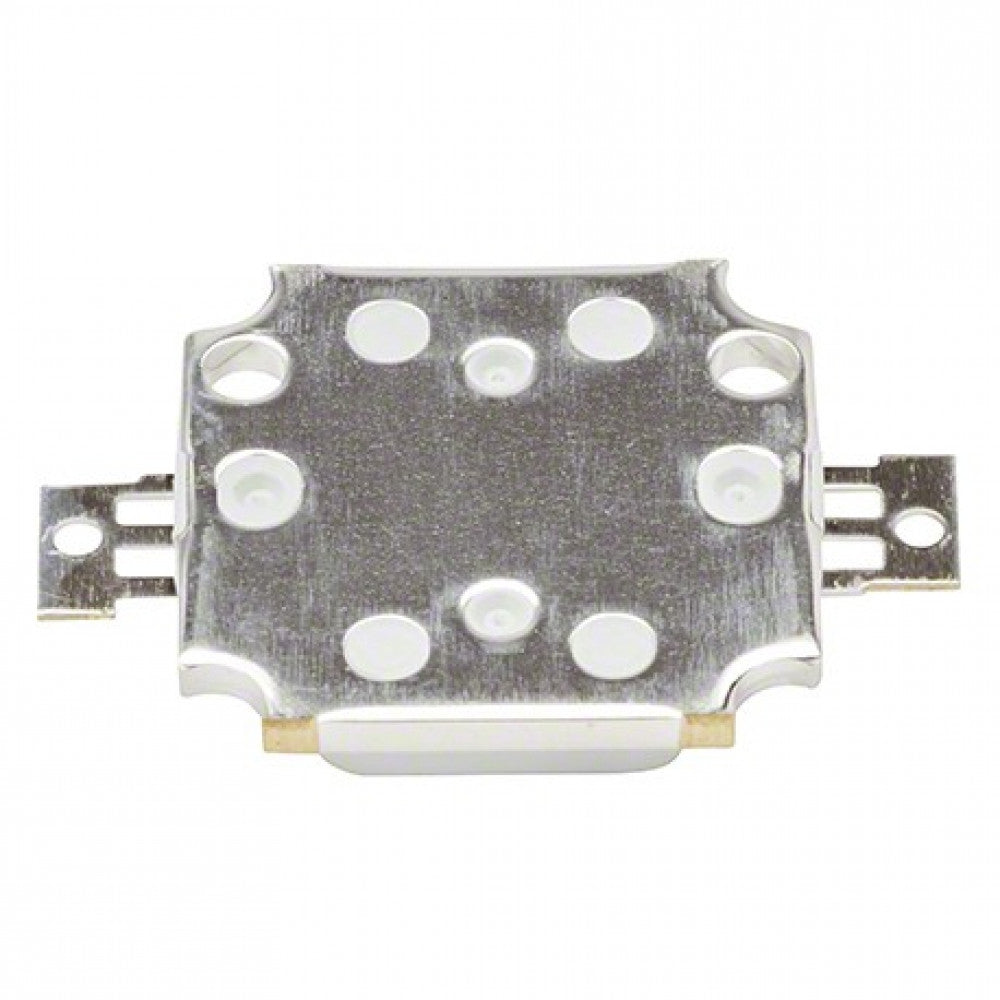

These LEDs are covered by a kind of silicone surrounded by white plastic, supported on a metal base that acts as a pre-dissipating plate. The metal plate has four holes at its ends in order to screw them to the wall or surface where they are to be displayed. Through the plus ( ) and minus ( -) the part that corresponds to the positive and negative polarity, respectively, is indicated.

Due to their metal base, they must be mounted on another dissipating surface to avoid high temperatures.

The High Power COB LEDs have four connectors, 2 with positive and 2 negative polarity, from which it is possible to connect them by soldering them using a tin point.

Utilities:

  • Individual: powering the LED directly from the power supply by means of a power supply. nte regulated or with the use of resistors or regulators. The desired voltage must be supplied to the LED within the working values.
  • Parallel configuration: power supply of a group of LEDs connecting all the anodes together and all the cathodes together,using the required voltage regulated by a single resistor in series.
  • Series configuration:supplying a group of LEDs connected sequentially. The number of LEDs to use per series will be limited by the voltage delivered by the power supply.
  • Polarization: the positive pole of the power supply must be connected to the anode (or to the beginning of the series) , while the negative pole must be connected to the cathode (or to the closure of the series).
