LED High Power 1W 120Lm 6000ºK 35X35 Heatsink 50.000H [CH-LED-1W-35MIL-D-CW]

LED High Power 1W 120Lm 6000ºK 35X35 Heatsink 50.000H [CH-LED-1W-35MIL-D-CW]

For additional amounts the delivery period is 30 days As of the order date
  • Brand:GreenIce
  • SkuCH-LED-1W-35MIL-D-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
£1.00
£2.00 £1.00 -50%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-50.0%(CH-LED-1W-35MIL-D-CW_padreImg_ch_led_1w_35mil_d_cw_0.jpeg)
Cool White
Stock available
Free shipping
£1.00
£2.00 £1.00 -50%

Accessories

  • (CH-DRIVER112_padreImg_ch_driver112_0.jpeg) (CH-DRIVER112_padreImg_ch_driver112_1.jpeg)

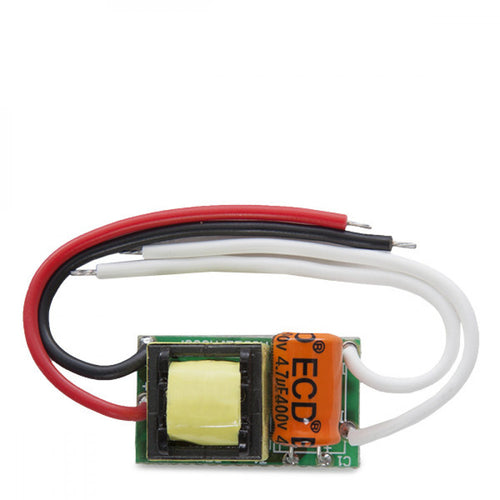

    LED Driver Integrated 4-5W 12-16V 280-300Ma

    Offer
    GreenIce

    LED Driver Integrated 4-5W 12-16V 280-300Ma

    £4.00
    £5.00 £4.00 -20%
    Offer
  • (CH-DRIVER111_padreImg_ch_driver111_0.jpeg) (CH-DRIVER111_padreImg_ch_driver111_1.jpeg)

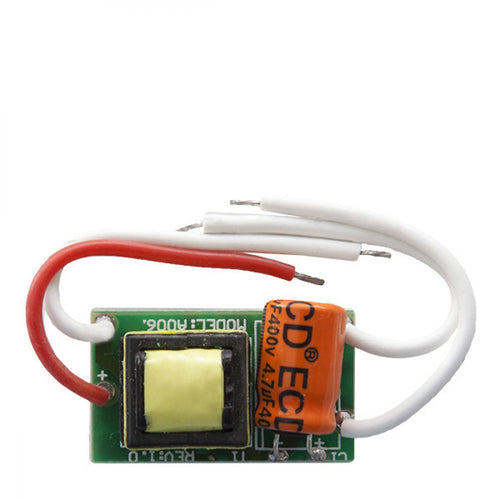

    LED Driver Integrated 2-3W 3,3-10,5V 280-300Ma

    Offer
    GreenIce

    LED Driver Integrated 2-3W 3,3-10,5V 280-300Ma

    £3.00
    £5.00 £3.00 -40%
    Offer
  • (CH-DRIVER117_padreImg_ch_driver117_0.jpeg) (CH-DRIVER117_padreImg_ch_driver117_1.jpeg)

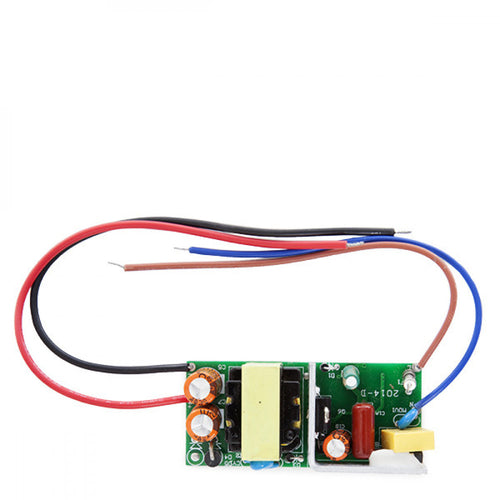

    LED Driver Integrated 25-36W 75-130V 280-300Ma

    Offer
    GreenIce

    LED Driver Integrated 25-36W 75-130V 280-300Ma

    £16.00
    £22.00 £16.00 -27%
    Offer
  • (CH-DRIVER114_padreImg_ch_driver114_0.jpeg) (CH-DRIVER114_padreImg_ch_driver114_1.jpeg)

    LED Driver Integrated 8-12W 24-36V 280-300Ma

    Offer
    GreenIce

    LED Driver Integrated 8-12W 24-36V 280-300Ma

    £4.00
    £5.00 £4.00 -20%
    Offer
  • (CH-DRIVER113_padreImg_ch_driver113_0.jpeg) (CH-DRIVER113_padreImg_ch_driver113_1.jpeg)

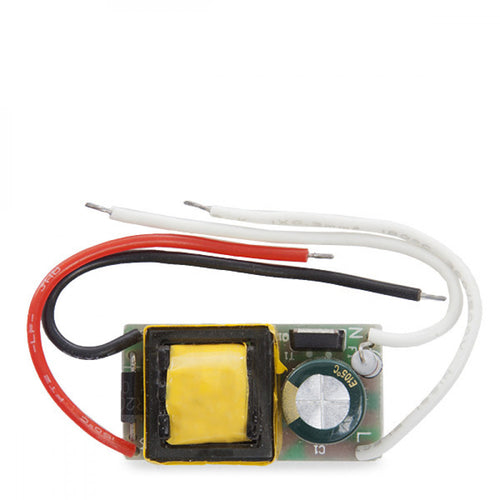

    LED Driver Integrated 6-10W 18-32V 280-300Ma

    Offer
    GreenIce

    LED Driver Integrated 6-10W 18-32V 280-300Ma

    £6.00
    £8.00 £6.00 -25%
    Offer

Technical file

Product code
CH-LED-1W-35MIL-D-CW
Luminous efficacy (LM/W)
120
Light temperature
Cold
Kelvin º
6000
Power (W)
1.0
Luminosity (LM)
120
Measures (mm)
19, 8x21, 1
Long
20.0
Broad
21.0
Number and type of LEDs
COB
CRI
80
Construction
Aluminum
Opening Angle (º)
120
Facility
IP20
Strain
2.8-3.6V
Estimated life (H)
50000
Dimable
Yes
Work frequency (Hz)
50/ 60
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Energy consumption (kWh/1000h)
1.0
Weight (gr)
10
Flicker
0.85
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
15
Minimum cri range
83
Maximum cri range
4
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN55015:2006;EN6147:2009;EN61000-3-2:2006;EN6100-3-3:2008

Characteristics

Product code
CH-LED-1W-35MIL-D-CW
Luminous efficacy (LM/W)
120
Light temperature
Cold
Kelvin º
6000
Power (W)
1.0
Luminosity (LM)
120
Measures (mm)
19, 8x21, 1
Long
20.0
Broad
21.0
Number and type of LEDs
COB
CRI
80
Construction
Aluminum
Opening Angle (º)
120
Facility
IP20
Strain
2.8-3.6V
Estimated life (H)
50000
Dimable
Yes
Work frequency (Hz)
50/ 60
Energy class
E
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Energy consumption (kWh/1000h)
1.0
Weight (gr)
10
Flicker
0.85
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
15
Minimum cri range
83
Maximum cri range
4
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN55015:2006;EN6147:2009;EN61000-3-2:2006;EN6100-3-3:2008

Description

High Power LEDs are usually used for spot lighting with a light flux of light.

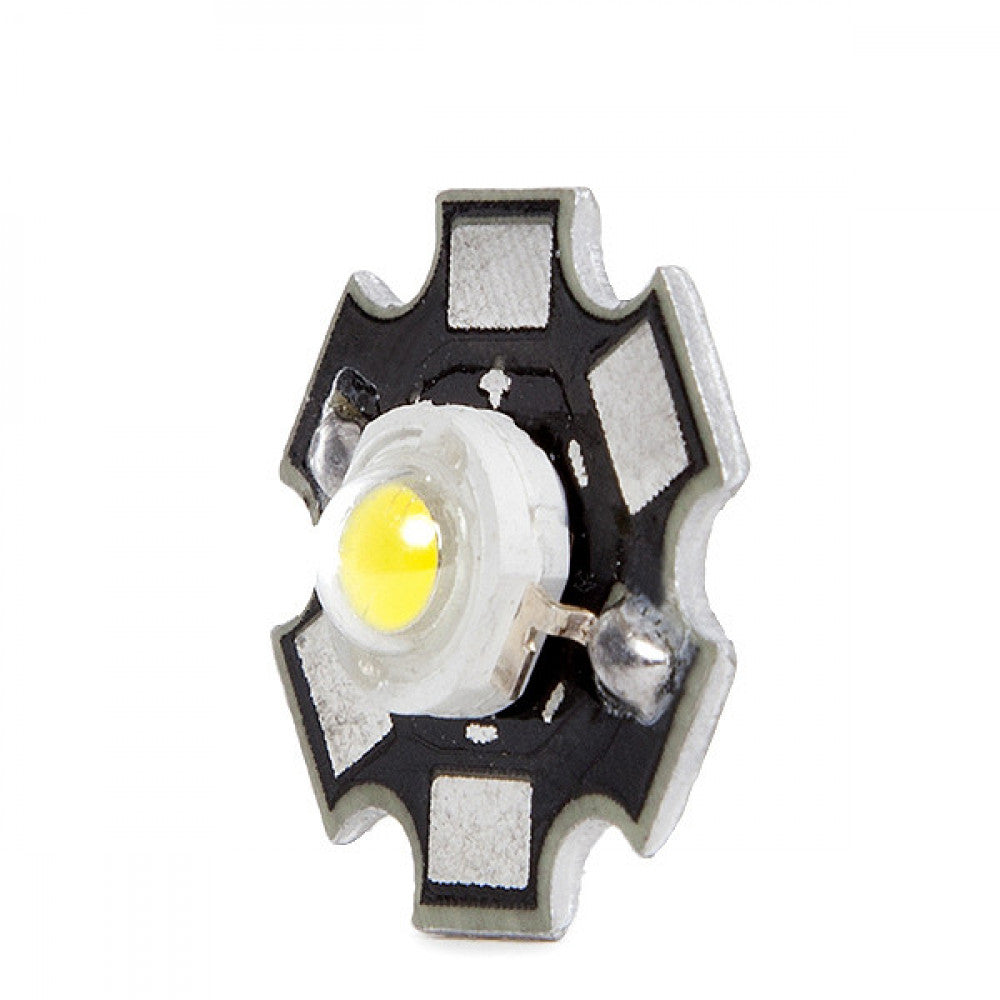

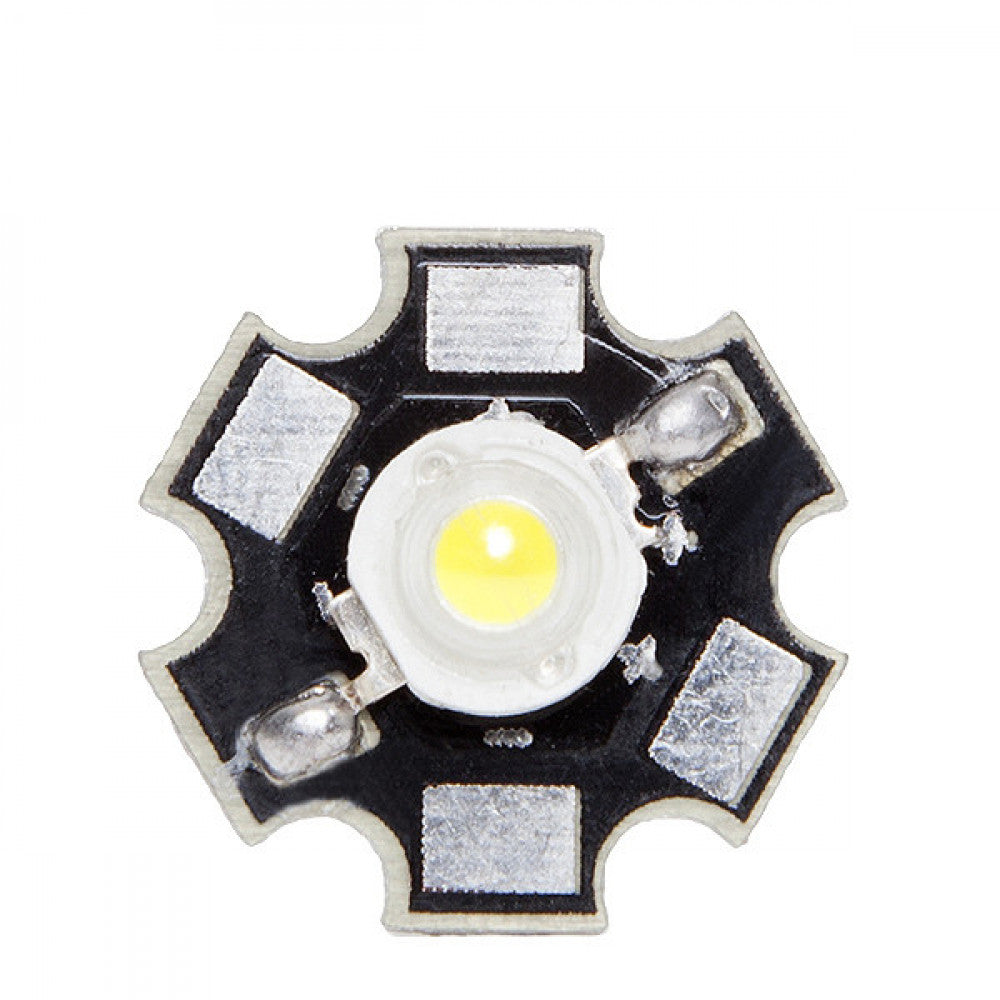

These LEDs are presented in a star format, which acts as a pre-dissipating plate. the center is the chip, covered with a small dome of transparent colored resin. The dome remains attached to the plate by means of two tin points. They are usually connected in series and, due to their metal base, they must be mounted on another dissipating surface to avoid high temperatures. In order to concentrate the light beam of these LEDs, it is possible to adapt lenses.

The High Power LEDs have four connectors, 2 with positive and 2 negative polarity, from which it is possible to connect them by soldering them using a tin point.

Utilities:

  • Individual: powering the LED directly from the power supply through a regulated source or with the use of resistors or regulators. r to the LED the desired voltage within the working values.
  • Parallel configuration:supplying a group of LEDs connecting all the anodes together and all the cathodes together,using the required voltage regulated by a single resistor in series.
  • Series configuration:supply of a group of LEDs connected sequentially. The number of LEDs to use per series will be limited by the voltage delivered by the power supply.
  • Polarization: the positive pole of the power supply must be connected to the anode (or to the beginning of the series) , while the negative pole must be connected to the cathode (or to the closure of the series).
