LED High Power 7W 700Lm 6000ºK COB 40.000H [CH-COB-7W-CW]

LED High Power 7W 700Lm 6000ºK COB 40.000H [CH-COB-7W-CW]

See questions and answers

For additional amounts the delivery period is 30 days As of the order date
  • Brand:GreenIce
  • SkuCH-COB-7W-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
£2.00
£3.00 £2.00 -33%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
¿Eres Cliente Profesional?

Hemos publicado una nueva web solo para Profesionales.

ir a Área Profesional
VENTAJAS DE COMPRAR EN GREENICE
  • Precio Mínimo Garantizado
  • Devoluciones Gratis hasta en 60 días
  • Envío Gratis desde 21,95€
  • Hasta 10 años de Garantía
-33.33%(CH-COB-7W-CW_padreImg_ch_cob_7w_cw_0.jpeg)
Cool White
Stock available
Free shipping
£2.00
£3.00 £2.00 -33%

Accessories

  • (DR-PR-ND-10W_padreImg_dr_pr_nd_10w_0.jpeg) (DR-PR-ND-10W_padreImg_dr_pr_nd_10w_1.jpeg)

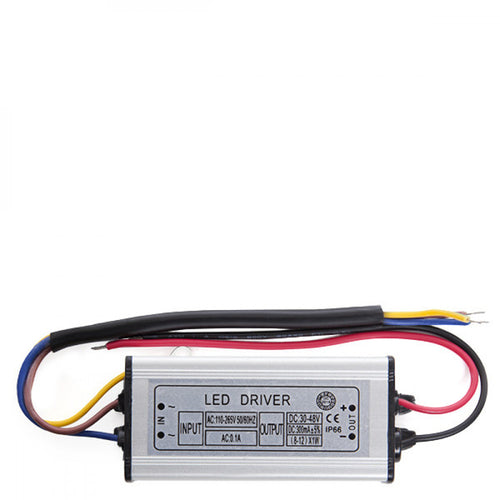

    Driver Non Dimmable LED Floodlight 10W

    Offer
    GreenIce

    Driver Non Dimmable LED Floodlight 10W

    £5.00
    £11.00 £5.00 -54%
    Offer
  • (DR-PR-ND-20W_padreImg_dr_pr_nd_20w_0.jpeg) (DR-PR-ND-20W_padreImg_dr_pr_nd_20w_1.jpeg)

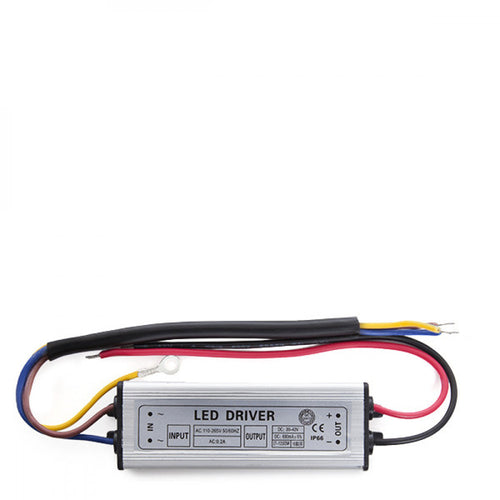

    Driver Non Dimmable LED Floodlight 20W

    Offer
    GreenIce

    Driver Non Dimmable LED Floodlight 20W

    £9.00
    £19.00 £9.00 -52%
    Offer

Technical file

Product code
CH-COB-7W-CW
Light temperature
Cold
Kelvin º
6000
Power (W)
7.0
Luminosity (LM)
700
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
COB
Measures (mm)
13x13
Long
13.0
Broad
13.0
CRI
80
Construction
Aluminum
Opening Angle (º)
120
Facility
IP20
Strain
22-25V
Estimated life (H)
50000
Dimable
Yes
Work frequency (Hz)
50/ 60
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Energy consumption (kWh/1000h)
7.0
Weight (gr)
10
Flicker
0.85
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
15
Minimum cri range
83
Maximum cri range
4
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN55015:2006;EN6147:2009;EN61000-3-2:2006;EN6100-3-3:2008

Características

Product code
CH-COB-7W-CW
Light temperature
Cold
Kelvin º
6000
Power (W)
7.0
Luminosity (LM)
700
Luminous efficacy (LM/W)
100
LED efficacy
110
Type of LEDs
COB
Measures (mm)
13x13
Long
13.0
Broad
13.0
CRI
80
Construction
Aluminum
Opening Angle (º)
120
Facility
IP20
Strain
22-25V
Estimated life (H)
50000
Dimable
Yes
Work frequency (Hz)
50/ 60
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Energy consumption (kWh/1000h)
7.0
Weight (gr)
10
Flicker
0.85
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
15
Minimum cri range
83
Maximum cri range
4
Chromaticity x
0.304
Chromaticity y
0.312
Applicable standards
EN55015:2006;EN6147:2009;EN61000-3-2:2006;EN6100-3-3:2008

Descripción

The High Power COB LEDs are usually used to replace all types of lamps.

These LEDs are covered by a kind of silicone surrounded by a white plastic, supported on a metal base that acts as a pre-dissipating plate. Due to their metal base, they must be mounted on another dissipating surface to avoid high temperatures.

High Power COB LEDs have four connectors, 2 with positive polarity and 2 negative, from which it is possible to connect them by soldering them using a tin point.

Utilities:

  • Individual: direct LED power supply from the power supply through a regulated source or with the use of resistors or regulators. The desired voltage must be supplied to the LED within the working values.
  • Parallel configuration: power supply of a group of LEDs connecting all anodes together and all cathodes together, using the required voltage. It is regulated by a single resistor in series.
  • Series configuration: power supply for a group of LEDs connected sequentially. The number of LEDs to use per series will be limited by the voltage delivered by the power supply.
  • Polarization: the positive pole of the power supply must be connected to the anode (or to the beginning of the series) , while the negative pole must be connected to the cathode (or to the closure of the series).
