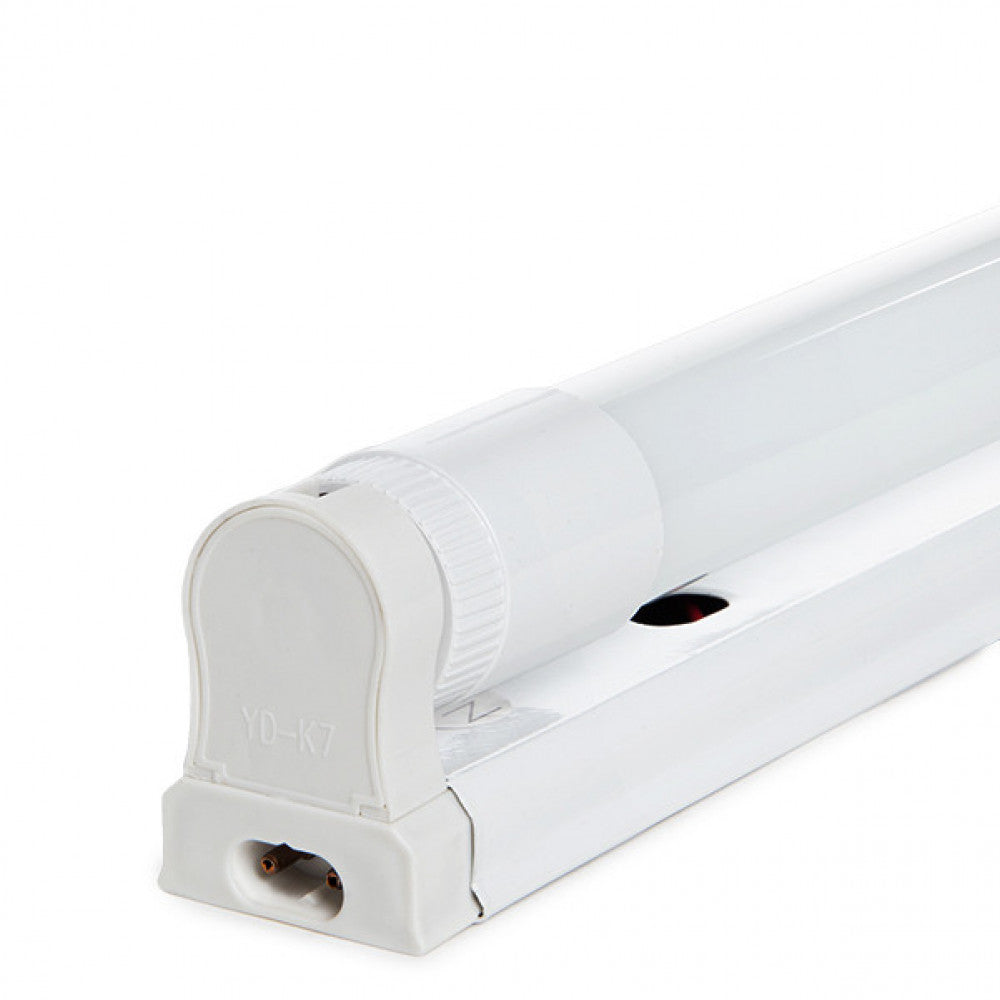

LED Luminaire 20W 1,800Lm 6000ºK T8 Crystal LED Tube 120Cm 25,000H [RL-T8DG20W-CW]

LED Luminaire 20W 1,800Lm 6000ºK T8 Crystal LED Tube 120Cm 25,000H [RL-T8DG20W-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuRL-T8DG20W-CW
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Documents
£6.00
£7.00 £6.00 -14%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Documents
¿Eres Cliente Profesional?

Hemos publicado una nueva web solo para Profesionales.

ir a Área Profesional
VENTAJAS DE COMPRAR EN GREENICE
  • Precio Mínimo Garantizado
  • Devoluciones Gratis hasta en 60 días
  • Envío Gratis desde 21,95€
  • Hasta 10 años de Garantía
-14.29%(RL-T8DG20W-CW_padreImg_rl_t8dg20w_cw_0.jpeg)
Cold white
Stock available
Free shipping
£6.00
£7.00 £6.00 -14%

Accessories

  • (GH-90963602_padreImg_gh_90963602_0.jpeg) (GH-90963602_padreImg_gh_90963602_1.jpeg)

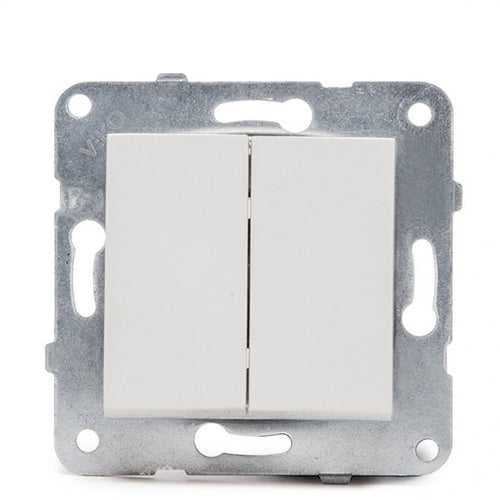

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    Offer
    PANASONIC

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £4.00
    £7.00 £4.00 -42%
    Offer
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

    Motion Sensor Recessed 360º ►1200/300W

    Offer
    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    £12.00
    £14.00 £12.00 -14%
    Offer
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £5.00
    £5.00 £5.00 %
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    Offer
    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    £5.00
    £13.00 £5.00 -61%
    Offer

Technical file

Product code
RL-T8DG20W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
20.0
Luminosity (LM)
1800
Luminous efficacy (LM/W)
90
LED efficacy
99
Type of LEDs
SMD2835
Number of LEDs
120
Measures (mm)
T8 1200
Long
1200.0
CRI
80
Diffuser
Milky
Power factor (PF)
0.9
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC36-80V
Estimated life (H)
25000
Dimable
No
Equivalence (W)
135
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
T8
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
20.0
Weight (gr)
200
Flicker
0.85
Half -year useful life (at 3 h/day)
22.83
Half -Year Useful Life (5 h/day)
13.69
Half -year useful life (at 8 h/day)
8.56
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
25
Minimum cri range
89
Maximum cri range
6
Chromaticity x
0.319
Chromaticity y
0.338
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Características

Product code
RL-T8DG20W-CW
Light temperature
Cold white
Kelvin º
6000
Power (W)
20.0
Luminosity (LM)
1800
Luminous efficacy (LM/W)
90
LED efficacy
99
Type of LEDs
SMD2835
Number of LEDs
120
Measures (mm)
T8 1200
Long
1200.0
CRI
80
Diffuser
Milky
Power factor (PF)
0.9
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC36-80V
Estimated life (H)
25000
Dimable
No
Equivalence (W)
135
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
T8
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
20.0
Weight (gr)
200
Flicker
0.85
Half -year useful life (at 3 h/day)
22.83
Half -Year Useful Life (5 h/day)
13.69
Half -year useful life (at 8 h/day)
8.56
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
25
Minimum cri range
89
Maximum cri range
6
Chromaticity x
0.319
Chromaticity y
0.338
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Descripción

The T5 120Cm T8 LED strip, to be installed on the ceiling or wall, offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to sockets current supplied by the electrical network (85-256VAC) with a service frequency of 50/60Hz, by means of a connector cable that can be plugged into either one end of the strip.

It has a high efficacy (90 Lm/W) consuming 18W by means of SMD2835 type LEDs, managing to provide a luminous flux of 1800Lm uniformly distributed by an opal plastic diffuser from which an index is obtained. color rendering of 80. Its consumption represents a value of 18kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

The strip has an IP25 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

Ideal for replacing traditional strips and mounting in a wide variety of facilities such as factories, warehouses, car parks, tunnels, etc.

This strip is available in cold white (6000° K).The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
