Offer

LED Panel 48W 4800Lm 6000ºK 60x60Cm Luminous Frame 40,000H [HO-LPF-6060-48W-CW]

LED Panel 48W 4800Lm 6000ºK 60x60Cm Luminous Frame 40,000H [HO-LPF-6060-48W-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuHO-LPF-6060-48W-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
£23.00
£35.00 £23.00 -34%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-34.29%(HO-LPF-6060-48W-CW_padreImg_ho_lpf_6060_48w_cw_0.jpeg)
Cool White
Stock available
Free shipping
£23.00
£35.00 £23.00 -34%

Accessories

  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

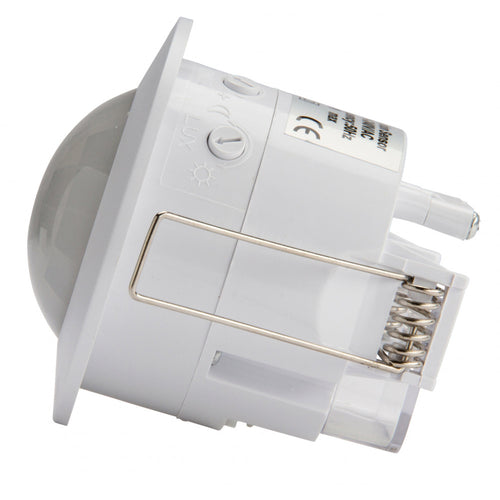

    Motion Sensor Recessed 360º ►1200/300W

    Offer
    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    £11.00
    £13.00 £11.00 -15%
    Offer

Technical file

Product code
HO-LPF-6060-48W-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
48.0
Luminosity (LM)
4800
Measures (mm)
595x595
Long
595.0
Broad
595.0
Number and type of LEDs
Epistar Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-245VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
260
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
48.0
Weight (gr)
500
Flicker
0.9
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
14
Minimum cri range
92
Maximum cri range
1
Chromaticity x
0.323
Chromaticity y
0.353
Driver output
30-42 V
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HO-LPF-6060-48W-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
48.0
Luminosity (LM)
4800
Measures (mm)
595x595
Long
595.0
Broad
595.0
Number and type of LEDs
Epistar Led
CRI
80
UGR
◄19
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-245VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
260
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
48.0
Weight (gr)
500
Flicker
0.9
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
14
Minimum cri range
92
Maximum cri range
1
Chromaticity x
0.323
Chromaticity y
0.353
Driver output
30-42 V
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

The LED Panel with Light Frame 60x60Cm 48W 4320lm has a completely innovative design. It is mounted on false ceiling plates (Armstrong), the panel rests on the metal structure, then we place the removable plate and rests on the aluminum structure together with the panel. In this way you can preserve the 60x60 cm pieces of your ceiling. Inside its thin aluminum frame is its SMD LED light source. White finish and opal diffuser.

Its LED lighting system emits a brightness of 4320 lumens and a luminous efficacy of 90Lm/W. Immediate start-up, without noise and without flickering , this LED Panel is perfect for places where you want to efficiently illuminate a space.

This LED panel is the ideal choice if you are looking for a panel with good features and an innovative design. Given its versatility, it adapts to all types of spaces such as offices, shopping centers, warehouses, restaurants, supermarkets, museums, etc., as well as in homes and residences.

This panel is available in cold white (6000°K) and natural white (4000ºK). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
