LED Panel 50W 5000Lm 6000ºK 120X30Cm 40,000H Driver Lifud UGR17 [HOPBD30120LIUGR17-CW]

LED Panel 50W 5000Lm 6000ºK 120X30Cm 40,000H Driver Lifud UGR17 [HOPBD30120LIUGR17-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce  / Lifud Driver
  • SkuHOPBD30120LIUGR17-CW
  • AA 2021
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
£26.00
£26.00 £26.00 %
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(HOPBD30120LIUGR17-CW_padreImg_hopbd30120liugr17_cw_0.jpeg)
Cool White
Stock available
Free shipping
£26.00
£26.00 £26.00 %

Accessories

  • (HZ-KITUSPENSION_padreImg_hz_kituspension_0.jpeg)

    Suspension Kit 970Mm LED Panels

    Offer
    GreenIce

    Suspension Kit 970Mm LED Panels

    £4.00
    £5.00 £4.00 -20%
    Offer
  • (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_0.jpeg) (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_1.jpeg)

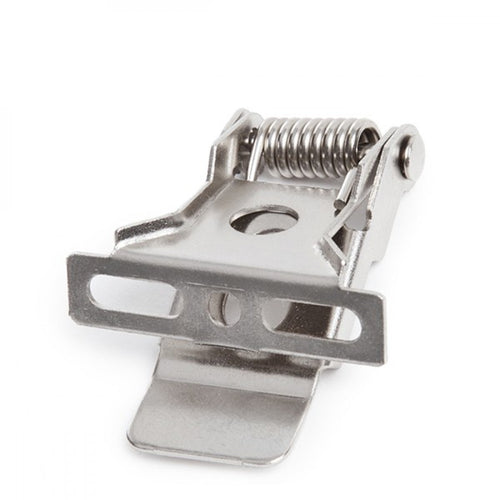

    Set of 4 Clips for LED Panel Mounting

    GreenIce

    Set of 4 Clips for LED Panel Mounting

    £2.00
    £2.00 £2.00 %
  • (NE-M-P-1200300_padreImg_ne_m_p_1200300_0.jpeg) (NE-M-P-1200300_padreImg_ne_m_p_1200300_1.jpeg)

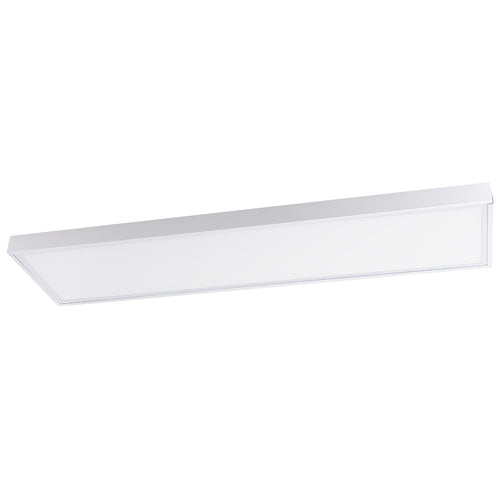

    Mounting Frame Surface Mounted LED Panel 120x30Cm

    Offer
    GreenIce

    Mounting Frame Surface Mounted LED Panel 120x30Cm

    £14.00
    £20.00 £14.00 -30%
    Offer
  • (HO-AF-1200x300_padreImg_ho_af_1200x300_0.jpeg) (HO-AF-1200x300_padreImg_ho_af_1200x300_1.jpeg)

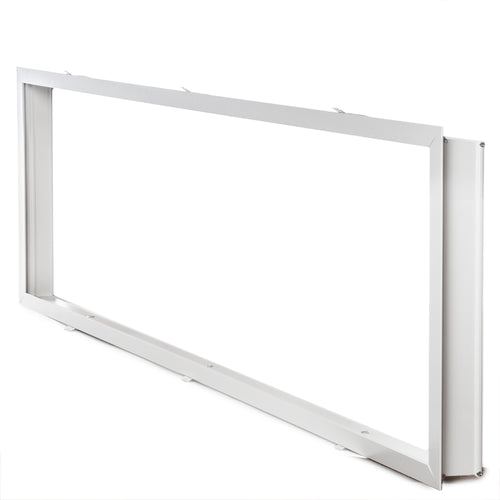

    Frame Aluminum LED Panel 120x30Cm

    Offer
    GreenIce

    Frame Aluminum LED Panel 120x30Cm

    £12.00
    £17.00 £12.00 -29%
    Offer

Technical file

Product code
HOPBD30120LIUGR17-CW
Luminous efficacy (LM/W)
100
Light temperature
CW
Kelvin º
6000
Power (W)
50.0
Luminosity (LM)
5000
LED efficacy
110
Measures (mm)
295x1195x35
High
35.0
Long
1195.0
Broad
295.0
Number and type of LEDs
Sanmsung Led
CRI
90
UGR
◄17
Power factor (PF)
0.99
Construction
Alu./PC
Opening Angle (º)
120
Facility
IP40
Strain
165-265VAC
Estimated life (H)
40000
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +40
Lighting cycles
10000
Diffuser
Micro
Energy consumption (kWh/1000h)
50.0
Weight (gr)
2700
Flicker
0.88
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Single CCT
6000
INDEX R9
36
Driver output
30-42V 1050mA
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
HOPBD30120LIUGR17-CW
Luminous efficacy (LM/W)
100
Light temperature
CW
Kelvin º
6000
Power (W)
50.0
Luminosity (LM)
5000
LED efficacy
110
Measures (mm)
295x1195x35
High
35.0
Long
1195.0
Broad
295.0
Number and type of LEDs
Sanmsung Led
CRI
90
UGR
◄17
Power factor (PF)
0.99
Construction
Alu./PC
Opening Angle (º)
120
Facility
IP40
Strain
165-265VAC
Estimated life (H)
40000
Isolation class
II
Work frequency (Hz)
50/60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +40
Lighting cycles
10000
Diffuser
Micro
Energy consumption (kWh/1000h)
50.0
Weight (gr)
2700
Flicker
0.88
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Single CCT
6000
INDEX R9
36
Driver output
30-42V 1050mA
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

The 120x30 UGR17 LED Panel with a flicker-free LIFUD driver and white frame combines a very modern design with excellent efficiency and light quality. This panel is especially suitable for offices and work areas due to its low glare factor. The LED panel's light source has a brightness of 5,000 lumens, equivalent to that of a conventional 280W luminaire. This provides significant savings compared to traditional low-consumption luminaires. Suitable for lighting offices thanks to its low glare. Glare caused by lighting can negatively affect people, as a comfortable lighting environment is needed to assist us in our tasks. A low UGR17 level increases workers' sense of well-being, which indirectly contributes to productivity. Low glare levels are recommended in all areas where people spend long periods of time exposed to artificial light, especially in offices, educational centers, work areas, etc. White finish made of aluminum. The panel has an IP40 protection rating (valid for indoor dust and humidity), and is robust enough to withstand the required mechanical demands. These extra-flat LED screens consume up to 55% less energy and require no maintenance, avoiding the need to replace starters or ballasts. They also have the advantage of being a much lighter and more manageable product. The LED panel can be used supported on an Armstrong false ceiling, on plasterboard using the LED panel mounting clips, which allow the panel to be embedded in the ceiling, or with the LED panel suspension kits. These kits consist of four tensioners, one in each corner, allowing us to achieve the desired height or angle to perfectly complement our decor. This panel is available in cool white (6000K). The indicated color temperature may vary within a tolerance of 7%.

Documents

Installation_manual
Technical_drawings
Ldt_ies
