Technical file
Product code
JL-GP-LZ-1
Light temperature
CCT
Power (W)
6.0
Luminosity (LM)
600
Luminous efficacy (LM/W)
100
LED efficacy
115
Type of LEDs
Osram Led
Number of LEDs
30
Measures (mm)
Ø115x17
Roof cut (mm)
Ø103
High
17.0
Diameter
115
CRI
80
UGR
17
Power factor (PF)
0.98
Construction
Alu/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Driver output
DC12-21V
Estimated life (H)
40000
Equivalence (W)
50
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
6.0
Weight (gr)
150
Flicker
0.88
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
INDEX R9
28
Minimum cri range
80
Maximum cri range
28
Chromaticity x
0.317
Chromaticity y
0.336
Minimum CCT range
2700
Maximum cri range
6000
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001
Description
Ultra-thin 6W circular LED ceiling light with dimmable CCT (Correlated Color Temperature) technology, allowing you to select the light tone between warm, neutral, or cool.
Designed for recessed or surface-mounted installation in interior ceilings, it offers uniform, glare-free lighting (UGR <17), with high visual comfort and excellent energy efficiency. Ideal for residential, commercial, and office spaces.
Technical Specifications
• Luminaire type: Circular LED panel (recessed / surface-mounted)
• Nominal power: 6 W
• Total luminous flux: 600 lm (±10%)
• Luminous efficiency: 100 lm/W
• Color temperature (CCT): Dimmable – 3000 K / 4000 K / 6000 K
• Color rendering index (CRI): ≥80
• Beam angle: 120°
• Glare index: UGR < 17 (high visual comfort)
• LED type: High-efficiency SMD (Surface Mounted Device)
• Supply voltage: 220–240 V AC, 50/60 Hz
• Power factor (PF): ≥0.9
• THD (Total Harmonic Distortion): ≤15%
• Driver efficiency: ≥85%
• Instant-on: <0.2 s
• Technology: Flicker-free (no perceptible flicker)
Construction Features
• Shape: Circular
• Outer diameter: ~120 mm
• Cut-out diameter (embedded): ~105 mm
• Total height: ~25 mm
• Body material: Die-cast aluminum with opal polycarbonate diffuser
• Finish color: Matte white (RAL 9003 or equivalent)
• Mounting system: Recessed via spring clamps / surface-mount option (depending on accessory)
• Approximate weight: 0.25–0.35 kg
• Protection rating: IP20 (indoor use)
• Electrical class: Class II (double insulation)
• Thermal management: Passive dissipation via metal body
Performance and Durability
• Nominal lifespan (L70/B50): ≥40,000 hours
• On/off cycles: >100,000
• Operating temperature: –20°C to +40°C
• Storage temperature: –25°C to +60°C
• Lumen maintenance: ≥80% at 70% of lifespan
Additional Features

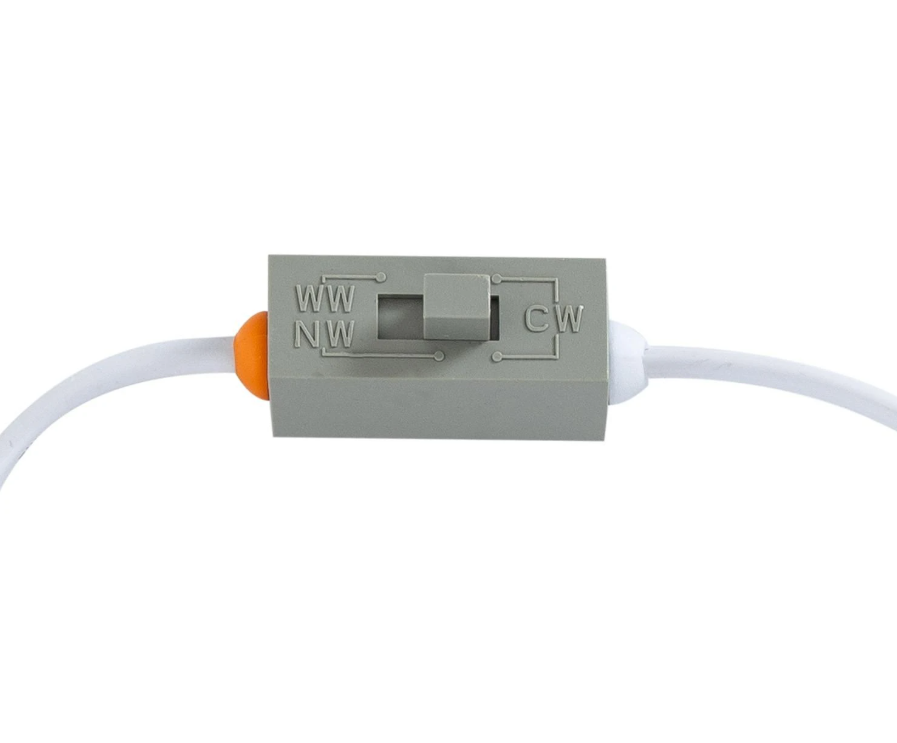

• Dimmable CCT: Integrated selector or switch control, with three shades:
o 3000K – Warm White
o 4000K – Neutral White
o 6000K – Cool White
• Instant on, flicker-free.
• Free of mercury and UV/IR radiation.
• Suitable for continuous operation (24/7).
Recommended Applications
• General lighting in homes, offices, shops, hotels, hallways, bathrooms, and common areas.
• Efficient replacement of recessed luminaires with CFL lamps up to 13W.
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001
Description
Description
Ultra-thin 6W circular LED ceiling light with dimmable CCT (Correlated Color Temperature) technology, allowing you to select the light tone between warm, neutral, or cool.
Designed for recessed or surface-mounted installation in interior ceilings, it offers uniform, glare-free lighting (UGR <17), with high visual comfort and excellent energy efficiency. Ideal for residential, commercial, and office spaces.
Technical Specifications
• Luminaire type: Circular LED panel (recessed / surface-mounted)
• Nominal power: 6 W
• Total luminous flux: 600 lm (±10%)
• Luminous efficiency: 100 lm/W
• Color temperature (CCT): Dimmable – 3000 K / 4000 K / 6000 K
• Color rendering index (CRI): ≥80
• Beam angle: 120°
• Glare index: UGR < 17 (high visual comfort)
• LED type: High-efficiency SMD (Surface Mounted Device)
• Supply voltage: 220–240 V AC, 50/60 Hz
• Power factor (PF): ≥0.9
• THD (Total Harmonic Distortion): ≤15%
• Driver efficiency: ≥85%
• Instant-on: <0.2 s
• Technology: Flicker-free (no perceptible flicker)
Construction Features
• Shape: Circular
• Outer diameter: ~120 mm
• Cut-out diameter (embedded): ~105 mm
• Total height: ~25 mm
• Body material: Die-cast aluminum with opal polycarbonate diffuser
• Finish color: Matte white (RAL 9003 or equivalent)
• Mounting system: Recessed via spring clamps / surface-mount option (depending on accessory)
• Approximate weight: 0.25–0.35 kg
• Protection rating: IP20 (indoor use)
• Electrical class: Class II (double insulation)
• Thermal management: Passive dissipation via metal body
Performance and Durability
• Nominal lifespan (L70/B50): ≥40,000 hours
• On/off cycles: >100,000
• Operating temperature: –20°C to +40°C
• Storage temperature: –25°C to +60°C
• Lumen maintenance: ≥80% at 70% of lifespan
Additional Features
• Dimmable CCT: Integrated selector or switch control, with three shades:
o 3000K – Warm White
o 4000K – Neutral White
o 6000K – Cool White
• Instant on, flicker-free.
• Free of mercury and UV/IR radiation.
• Suitable for continuous operation (24/7).
Recommended Applications
• General lighting in homes, offices, shops, hotels, hallways, bathrooms, and common areas.
• Efficient replacement of recessed luminaires with CFL lamps up to 13W.
