1 7
Offer

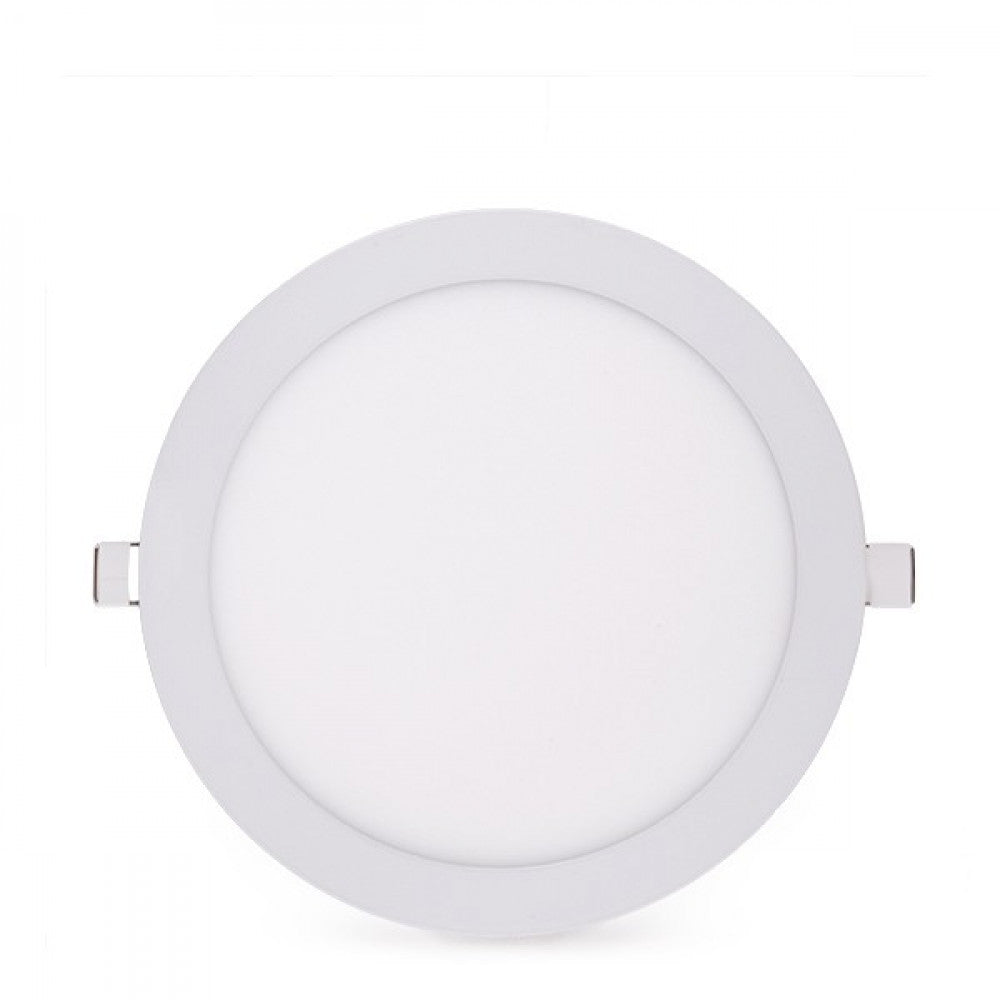

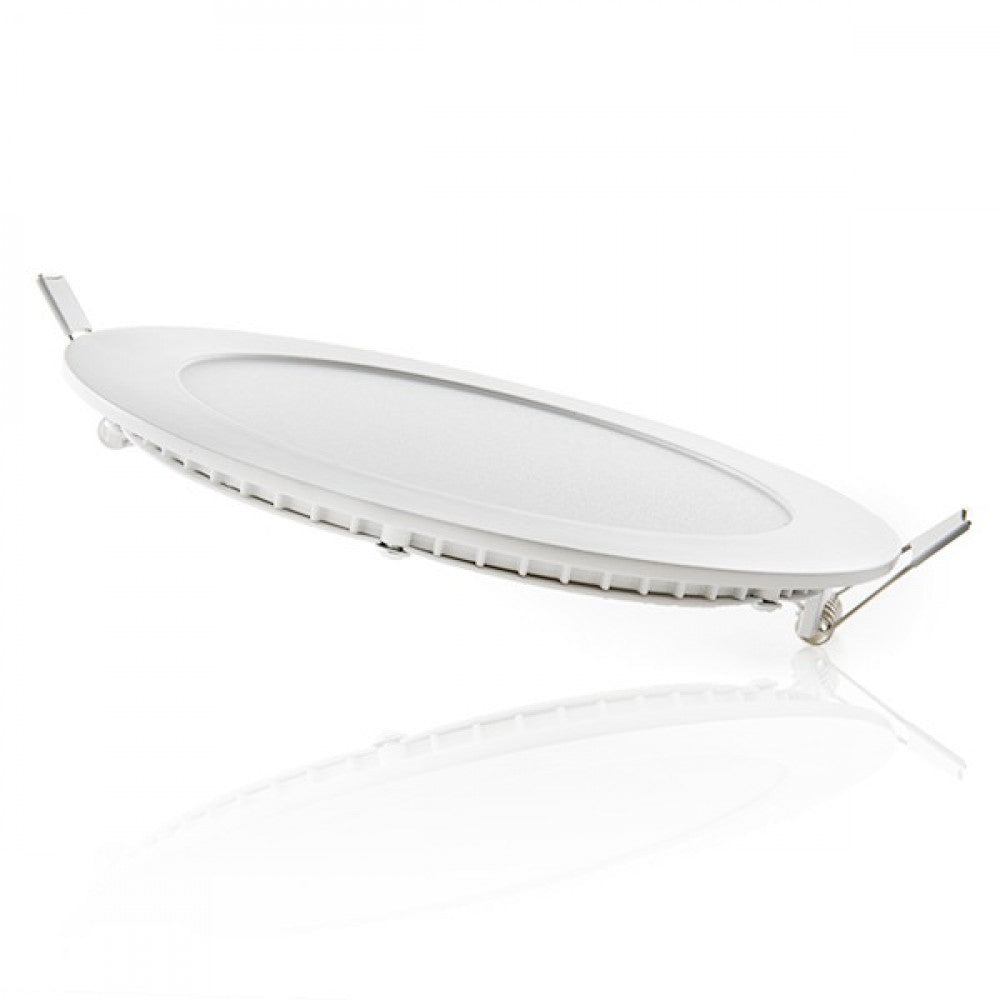

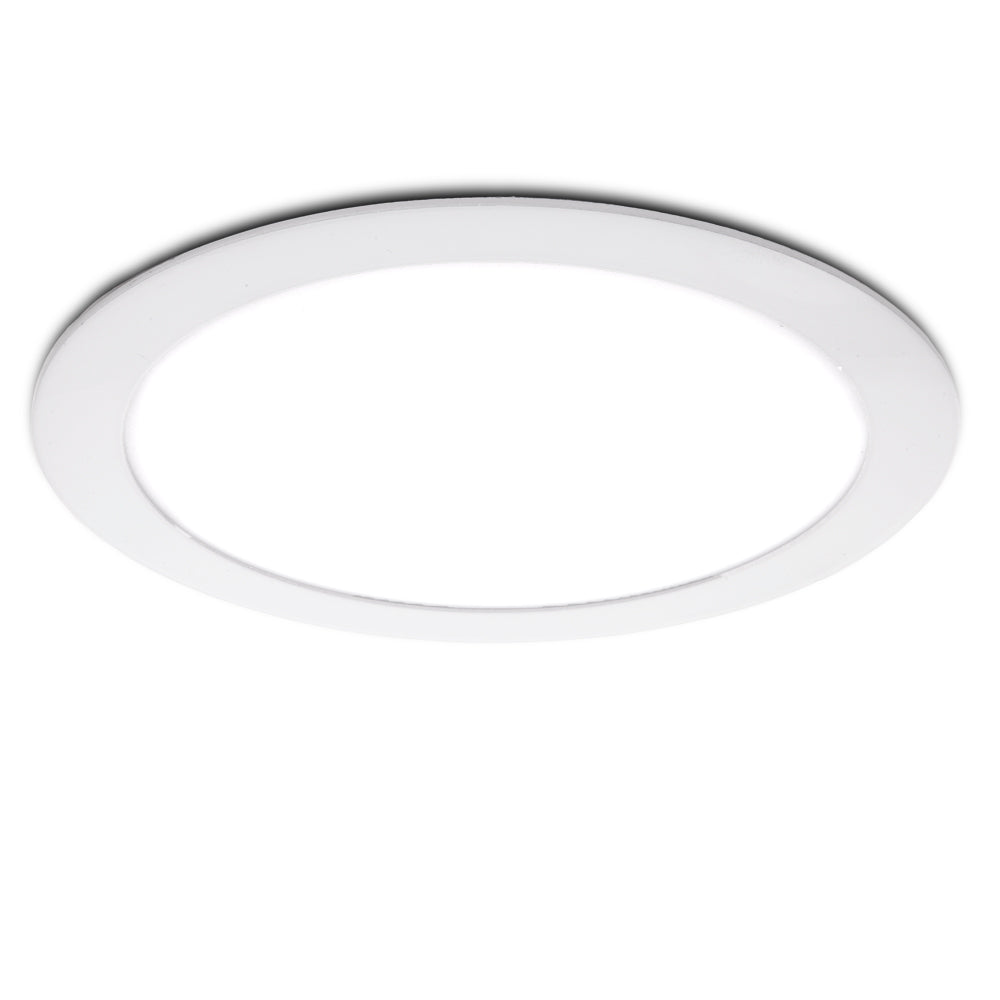

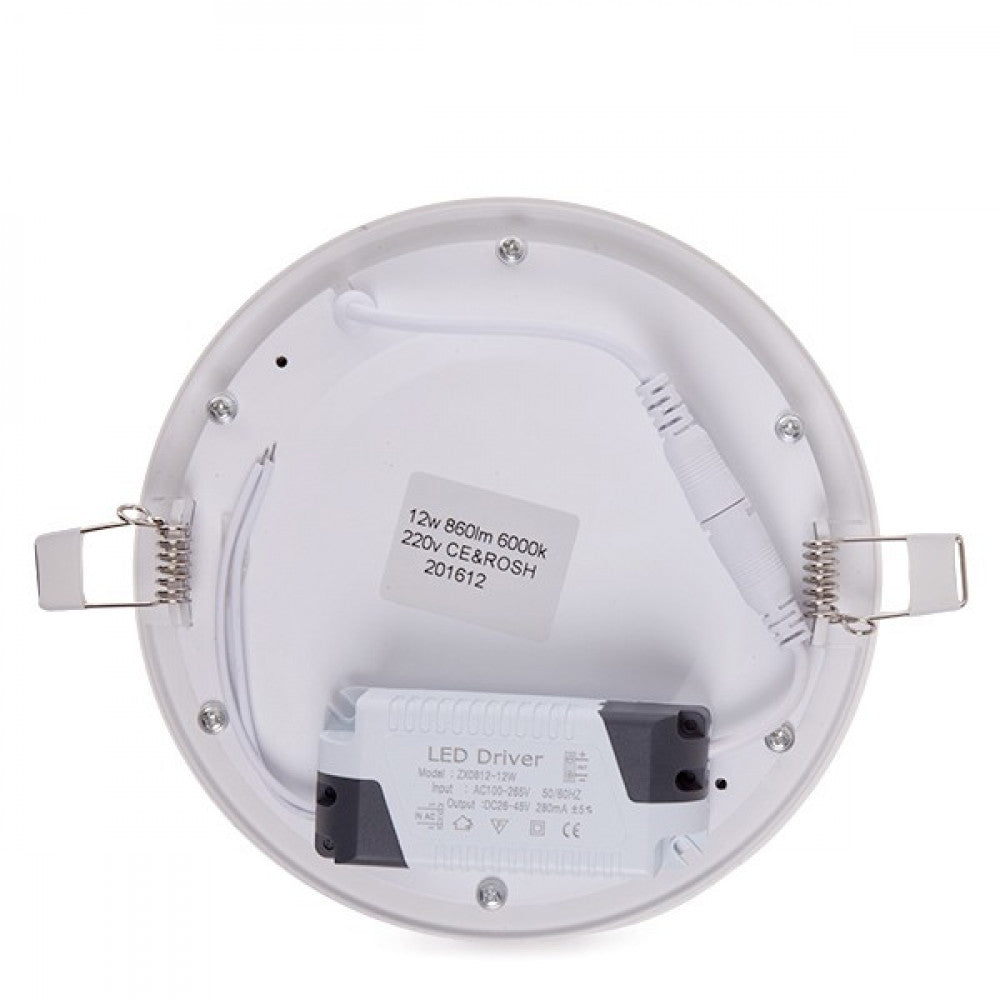

LED Plate 12W 1200Lm 4200ºK Circular 40,000H [GR-RDP09-12W-W]

LED Plate 12W 1200Lm 4200ºK Circular 40,000H [GR-RDP09-12W-W]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuGR-RDP09-12W-W
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
£4.00
£5.00 £4.00 -20%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-20.0%(JL-GP-LZ-2_padreImg_jl_gp_lz_2_0.jpeg)
Daylight
Stock available
Free shipping
£4.00
£5.00 £4.00 -20%

Accessories

  • (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_0.jpeg) (DR-FD-ND-12W_padreImg_dr_fd_nd_12w_1.jpeg)

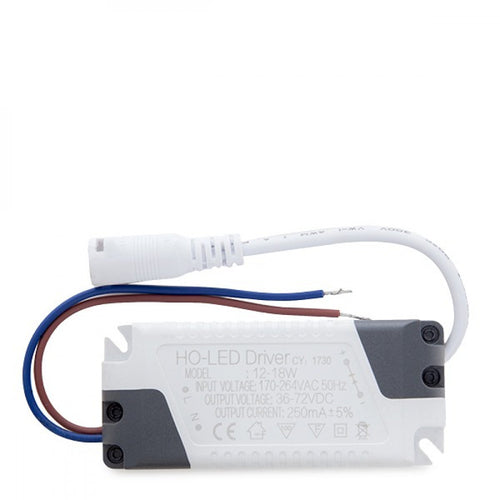

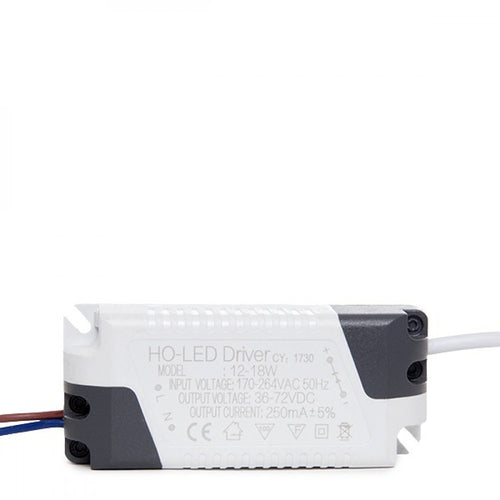

    Driver Non Dimmable Downlight LED 12W

    Offer
    GreenIce

    Driver Non Dimmable Downlight LED 12W

    £3.00
    £5.00 £3.00 -40%
    Offer
  • (GR-DRDIM-12W_padreImg_gr_drdim_12w_0.jpeg) (GR-DRDIM-12W_padreImg_gr_drdim_12w_1.jpeg)

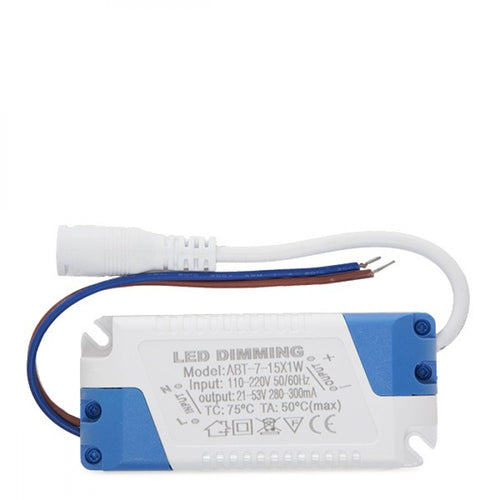

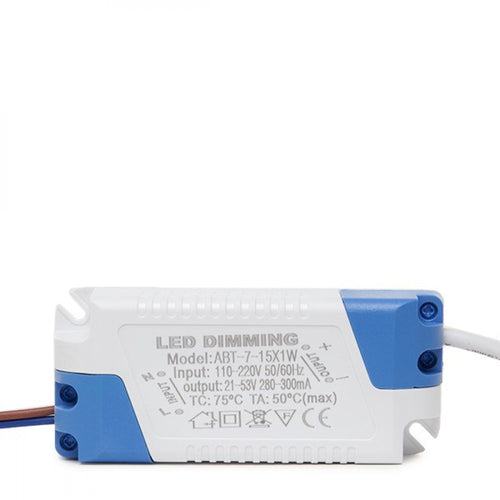

    Driver Dimmable Slimline Downlights 12W

    Offer
    GreenIce

    Driver Dimmable Slimline Downlights 12W

    £7.00
    £10.00 £7.00 -30%
    Offer
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

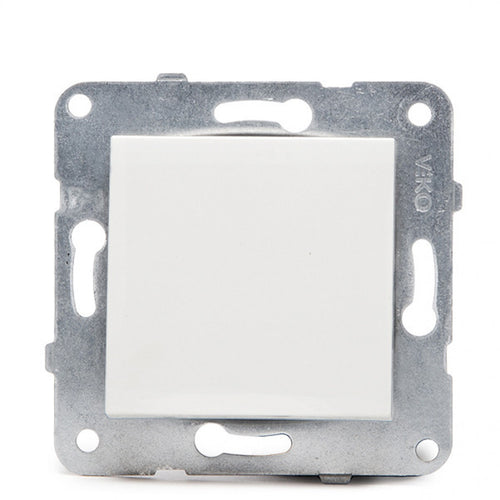

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £5.00
    £5.00 £5.00 %
  • (HO-HP-ND-12W_padreImg_ho_hp_nd_12w_0.jpeg) (HO-HP-ND-12W_padreImg_ho_hp_nd_12w_1.jpeg)

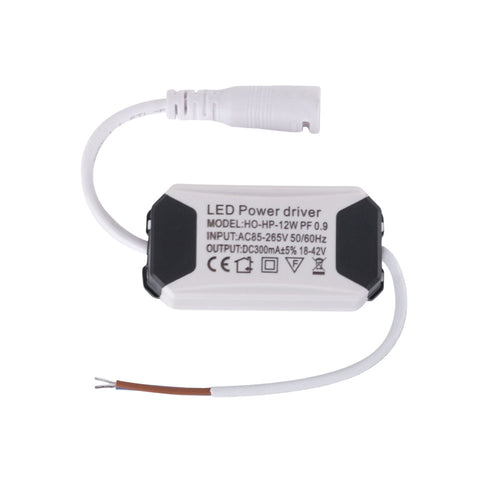

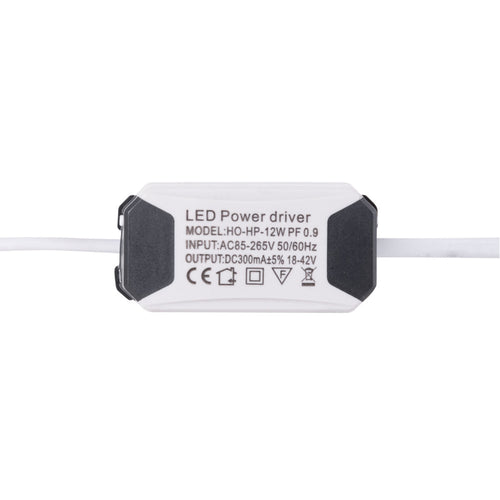

    Driver Non Dimmable 0.95 F.P. 50.000H Downlights LED 12W

    GreenIce

    Driver Non Dimmable 0.95 F.P. 50.000H Downlights LED 12W

    £3.00
    £3.00 £3.00 %
  • (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_0.jpeg) (KD-LEDDIM-CREM_padreImg_kd_leddim_crem_1.jpeg)

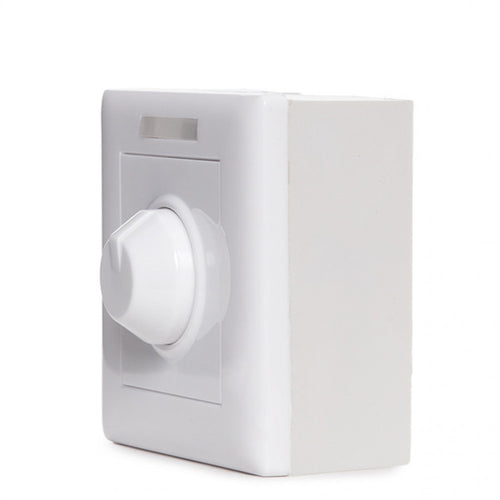

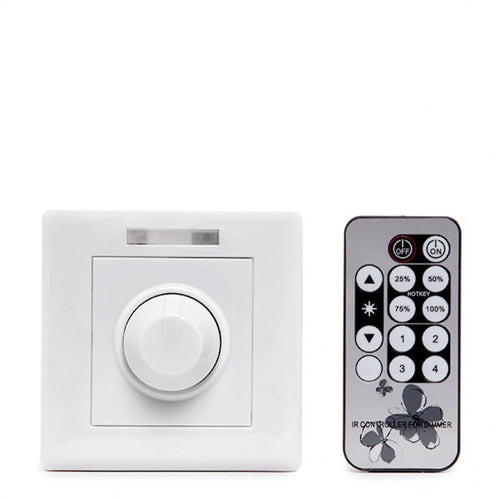

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    GreenIce

    Dimmer LEDs 90-240VAC 0-100% 200W Remote Control

    £28.00
    £28.00 £28.00 %
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    Offer
    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    £5.00
    £13.00 £5.00 -61%
    Offer
  • (OL-LCM-25_padreImg_ol_lcm_25_0.jpeg) (OL-LCM-25_padreImg_ol_lcm_25_1.jpeg)

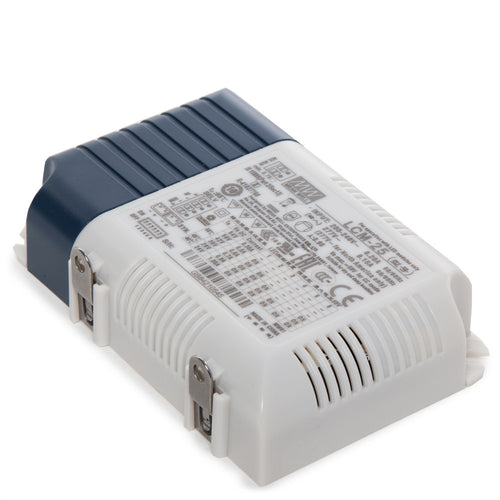

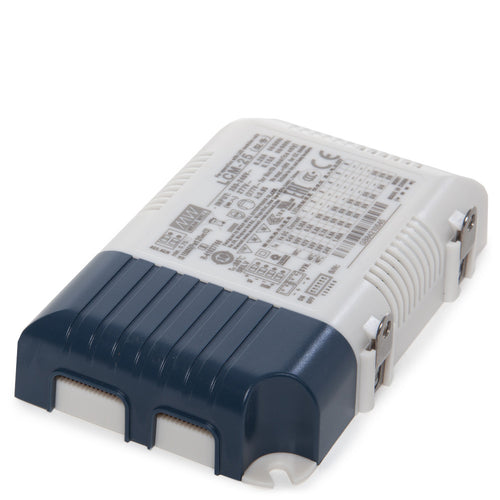

    Driver Meanwell Downlights 25W Smart Adjustable0-10V IP20

    MEANWELL

    Driver Meanwell Downlights 25W Smart Adjustable0-10V IP20

    £39.00
    £39.00 £39.00 %
  • (GR-DRDIM0-10V-12W_padreImg_gr_drdim0_10v_12w_0.jpeg) (GR-DRDIM0-10V-12W_padreImg_gr_drdim0_10v_12w_1.jpeg)

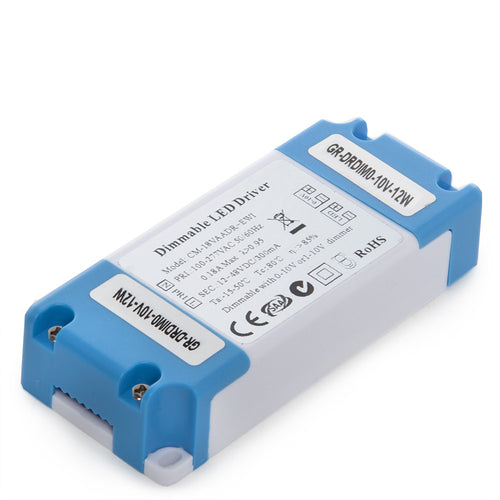

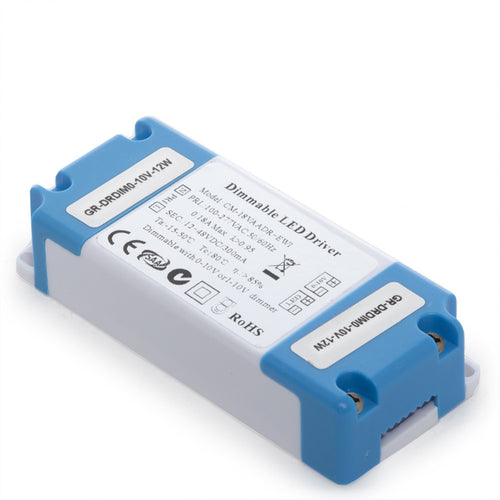

    Driver Adjustable 0-10V Ceiling Light / Placa /Downlight LED 12W

    GreenIce

    Driver Adjustable 0-10V Ceiling Light / Placa /Downlight LED 12W

    £11.00
    £11.00 £11.00 %

Technical file

Product code
GR-RDP09-12W-W
Luminous efficacy (LM/W)
100
Light temperature
Natural White
Kelvin º
4200
Power (W)
12.0
Luminosity (LM)
1200
Measures (mm)
Ø170x17
Roof cut (mm)
Ø150
High
17.0
Diameter
170
Number and type of LEDs
SMD2835
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
12.0
Weight (gr)
246
Flicker
0.9
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
1
Minimum cri range
98
Maximum cri range
1
Chromaticity x
0.445
Chromaticity y
0.405
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Driver output
DC24-48V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
GR-RDP09-12W-W
Luminous efficacy (LM/W)
100
Light temperature
Natural White
Kelvin º
4200
Power (W)
12.0
Luminosity (LM)
1200
Measures (mm)
Ø170x17
Roof cut (mm)
Ø150
High
17.0
Diameter
170
Number and type of LEDs
SMD2835
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
12.0
Weight (gr)
246
Flicker
0.9
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
1
Minimum cri range
98
Maximum cri range
1
Chromaticity x
0.445
Chromaticity y
0.405
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Driver output
DC24-48V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

LED Plate 12W 860Lm 6000ºK Circular 40,000H [JL-GP-LZ-2]

Documents

Installation_manual
Spanish_technical_data
Eu_certificates
