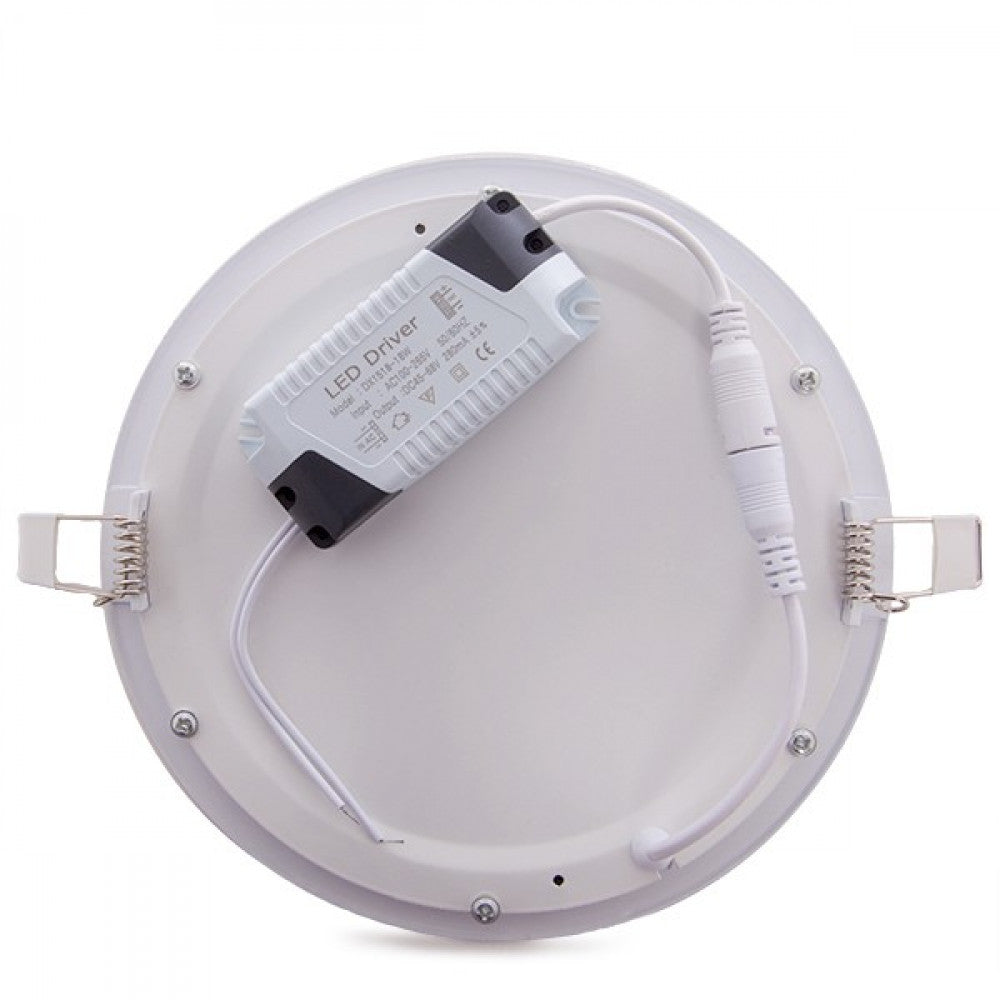

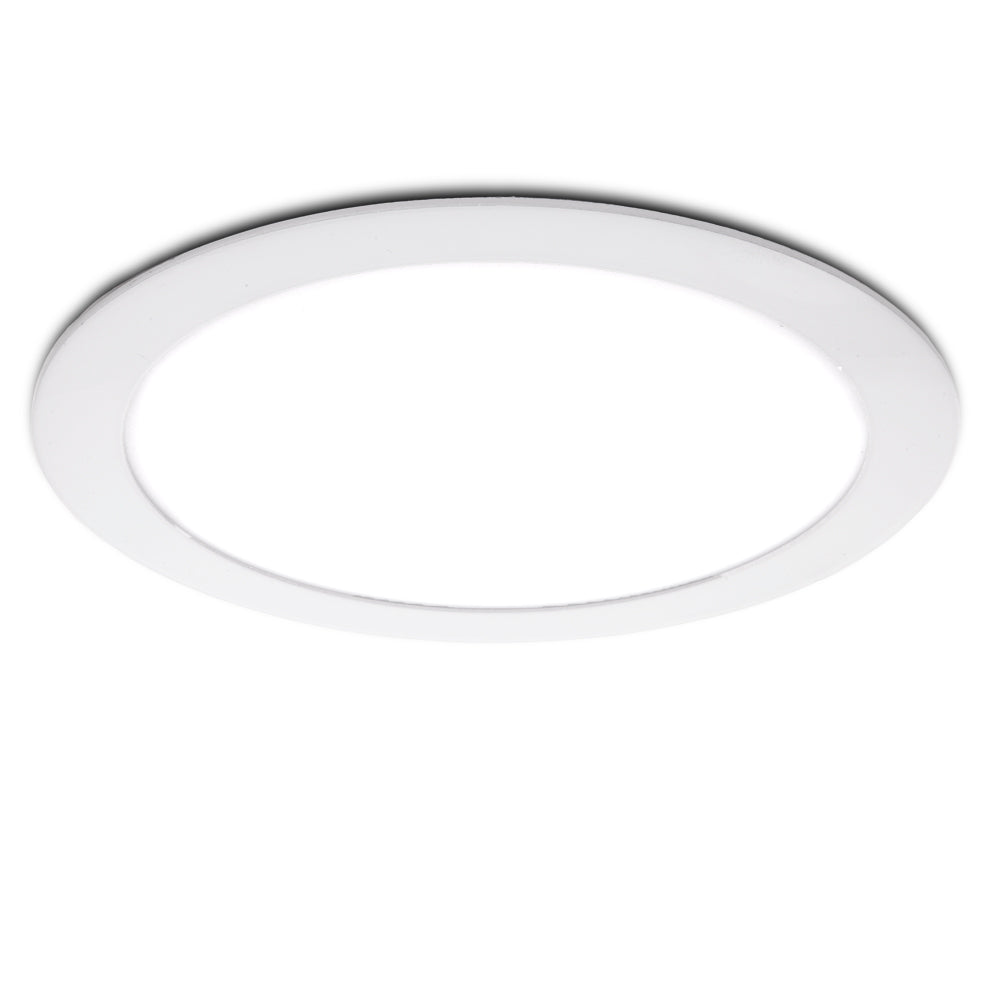

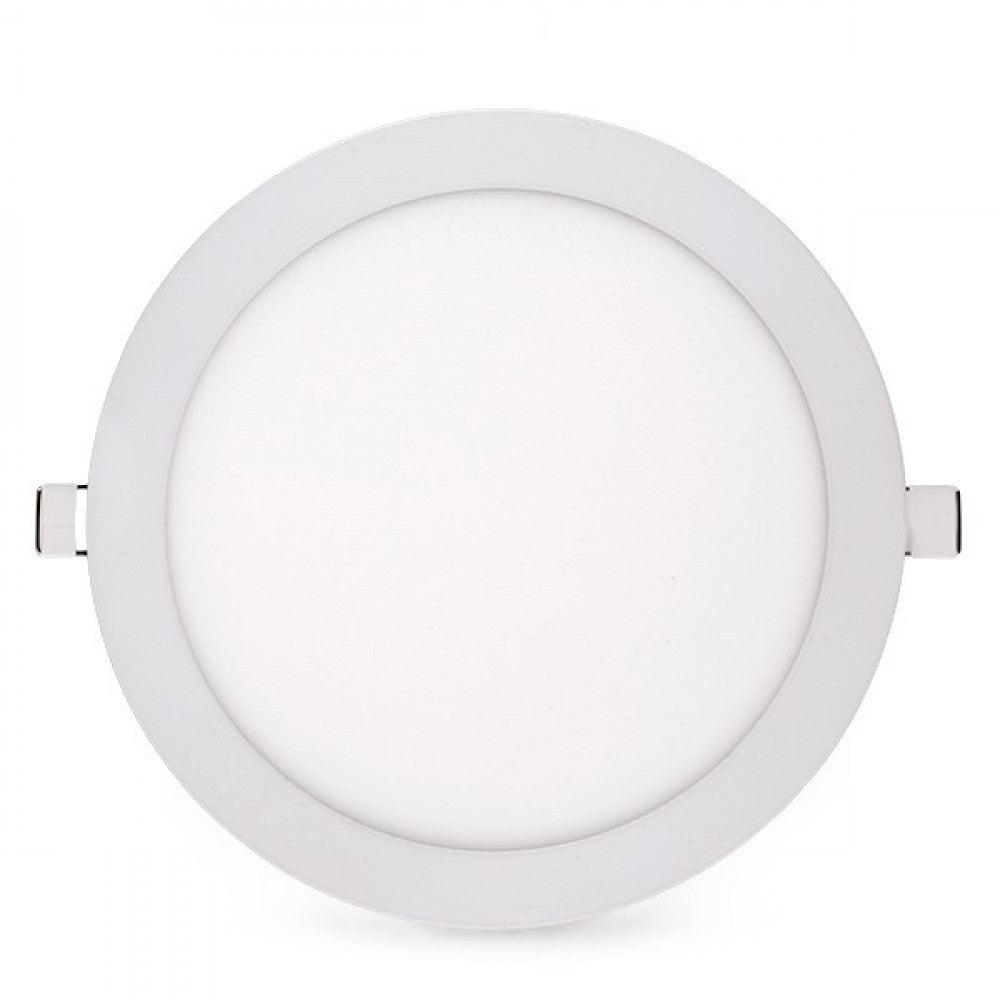

LED Plate 18W 1200Lm 6000ºK Circular 12VDC 40,000H [JL-GP-LZ-3-12V-CW]

LED Plate 18W 1200Lm 6000ºK Circular 12VDC 40,000H [JL-GP-LZ-3-12V-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Epistar Led
  • SkuJL-GP-LZ-3-12V-CW
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
£11.00
£15.00 £11.00 -26%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-26.67%(JL-GP-LZ-3-12V-CW_padreImg_jl_gp_lz_3_12v_cw_0.jpeg)
Cool White
Available
Free shipping
£11.00
£15.00 £11.00 -26%

Accessories

  • (GH-90963602_padreImg_gh_90963602_0.jpeg) (GH-90963602_padreImg_gh_90963602_1.jpeg)

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    Offer
    PANASONIC

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £4.00
    £7.00 £4.00 -42%
    Offer
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

    Motion Sensor Recessed 360º ►1200/300W

    Offer
    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    £10.00
    £12.00 £10.00 -16%
    Offer
  • (SB-BS039_padreImg_sb_bs039_0.jpeg) (SB-BS039_padreImg_sb_bs039_1.jpeg)

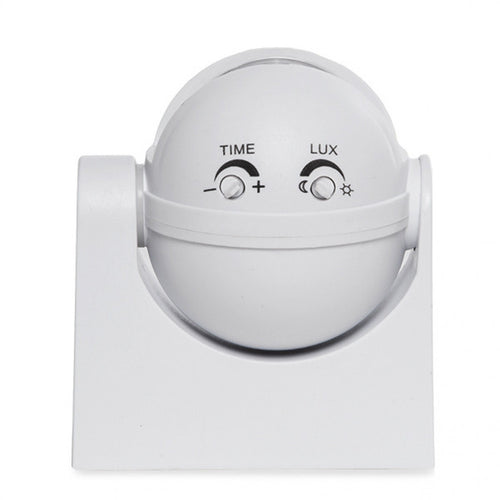

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    Offer
    GreenIce

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    £8.00
    £15.00 £8.00 -46%
    Offer
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £5.00
    £5.00 £5.00 %
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    Offer
    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    £5.00
    £13.00 £5.00 -61%
    Offer
  • (GH-90963604_padreImg_gh_90963604_0.jpeg) (GH-90963604_padreImg_gh_90963604_1.jpeg)

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £6.00
    £6.00 £6.00 %

Technical file

Product code
JL-GP-LZ-3-12V-CW
Luminous efficacy (LM/W)
66
Light temperature
Cold white
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1200
Measures (mm)
Ø225x17
Roof cut (mm)
Ø205
High
17.0
Diameter
225
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.8
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
12VDC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Isolation class
III
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
18.0
Weight (gr)
420
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
1
Minimum cri range
85
Maximum cri range
10
Chromaticity x
0.304
Chromaticity y
0.312
Driver output
DC12-21V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
JL-GP-LZ-3-12V-CW
Luminous efficacy (LM/W)
66
Light temperature
Cold white
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1200
Measures (mm)
Ø225x17
Roof cut (mm)
Ø205
High
17.0
Diameter
225
Number and type of LEDs
Epistar Led
CRI
80
Power factor (PF)
0.8
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
12VDC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Isolation class
III
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
18.0
Weight (gr)
420
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
1
Minimum cri range
85
Maximum cri range
10
Chromaticity x
0.304
Chromaticity y
0.312
Driver output
DC12-21V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

LED Plate 18W 1,409Lm 6000ºK Circular 12VDC 40,000H [JL-GP-LZ-3-12V-CW]
