LED Plate 20W 2,000Lm 6000ºK Circular 40,000H [IDI-PL-225-20W-CW]

LED Plate 20W 2,000Lm 6000ºK Circular 40,000H [IDI-PL-225-20W-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce / Osram Led
  • SkuHO-PL-225-20W-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
£6.00
£9.00 £6.00 -33%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-33.33%(HO-PL-225-20W-CW_padreImg_ho_pl_225_20w_cw_0.jpeg)
Cool White
Available
Free shipping
£6.00
£9.00 £6.00 -33%

Accessories

  • (CPS-LF-AAA020_padreImg_cps_lf_aaa020_0.jpeg)

    Driver LIFUD Adjustable 0-10V 20W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Offer
    Lifud Driver

    Driver LIFUD Adjustable 0-10V 20W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    £16.00
    £21.00 £16.00 -23%
    Offer
  • (CPS-LF-GDE020YG_padreImg_cps_lf_gde020yg_0.jpeg)

    Driver LIFUD Adjustable Triac Dim 16-22W In: 220-240V Out: 25-40VDC Flicker Free

    Offer
    Lifud Driver

    Driver LIFUD Adjustable Triac Dim 16-22W In: 220-240V Out: 25-40VDC Flicker Free

    £22.00
    £29.00 £22.00 -24%
    Offer
  • (CPS-LF-AAD020_padreImg_cps_lf_aad020_0.jpeg)

    Driver Lifud Adjustable DALI 20W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    Offer
    Lifud Driver

    Driver Lifud Adjustable DALI 20W In: 220-240V Out: 9-42VDC Flicker Free DIP Switch

    £22.00
    £29.00 £22.00 -24%
    Offer

Technical file

Product code
HO-PL-225-20W-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
20.0
Luminosity (LM)
2000
Measures (mm)
17xØ220
Roof cut (mm)
Ø200
High
17.0
Diameter
Ø220
Number and type of LEDs
Osram Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-240VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
135
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
20.0
Weight (gr)
450
Flicker
0.86
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
25
Minimum cri range
98
Maximum cri range
1
Chromaticity x
0.378
Chromaticity y
0.378
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Driver output
30-42 V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
HO-PL-225-20W-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
20.0
Luminosity (LM)
2000
Measures (mm)
17xØ220
Roof cut (mm)
Ø200
High
17.0
Diameter
Ø220
Number and type of LEDs
Osram Led
CRI
80
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
220-240VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
135
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
20.0
Weight (gr)
450
Flicker
0.86
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
25
Minimum cri range
98
Maximum cri range
1
Chromaticity x
0.378
Chromaticity y
0.378
Additional information
Possibility of dimming by purchasing a dimmable controller in the Accessories tab
Driver output
30-42 V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

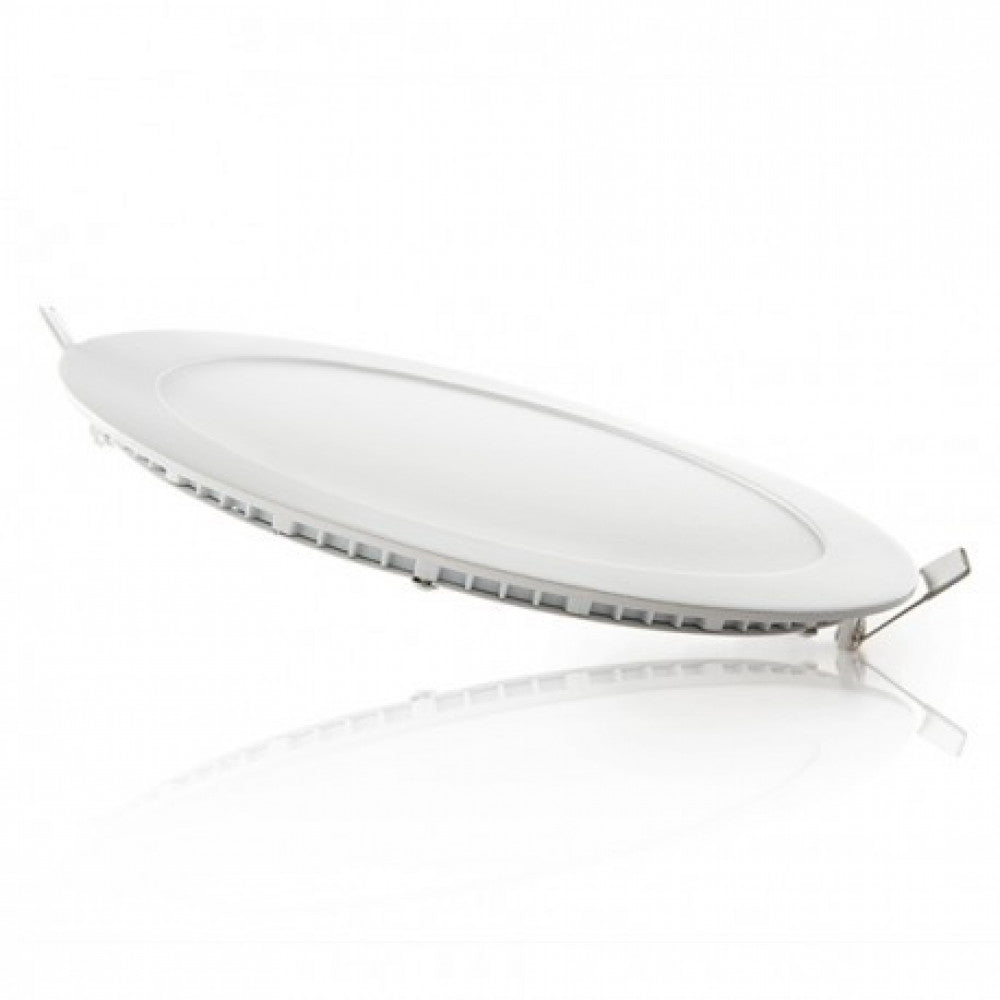

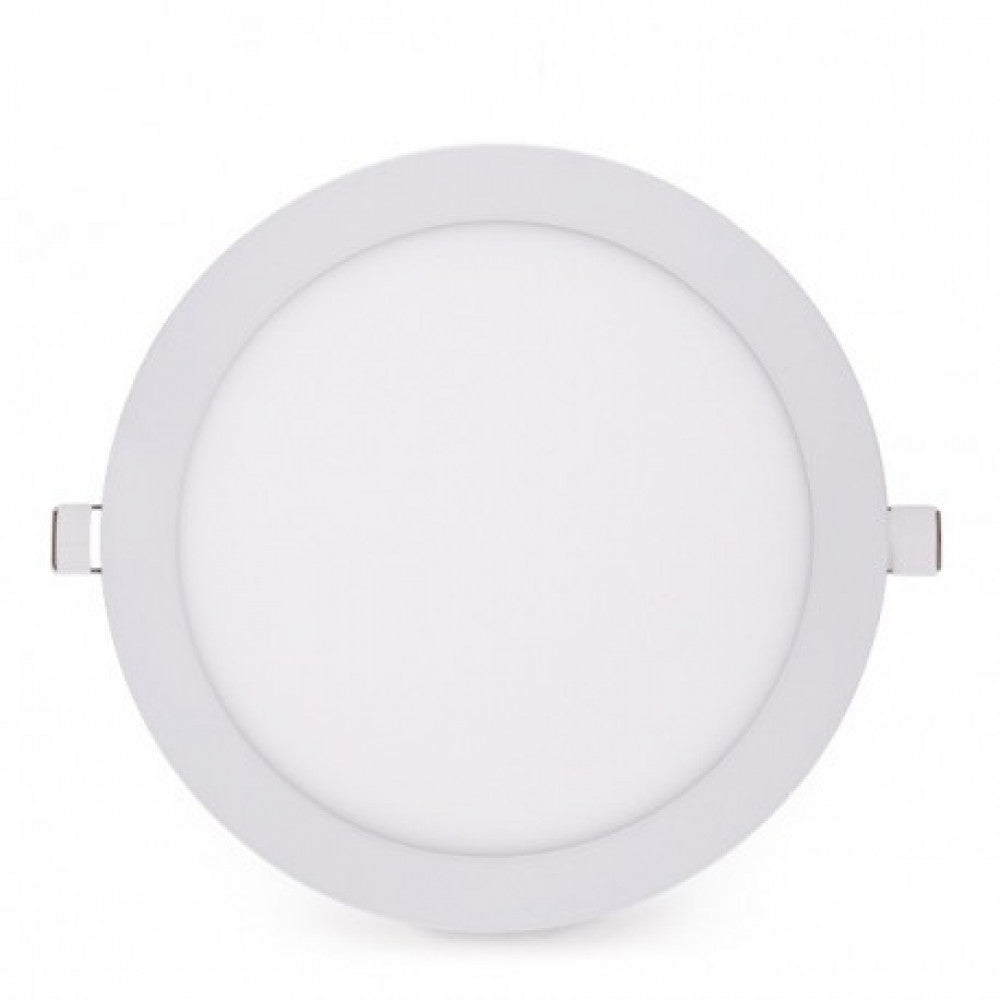

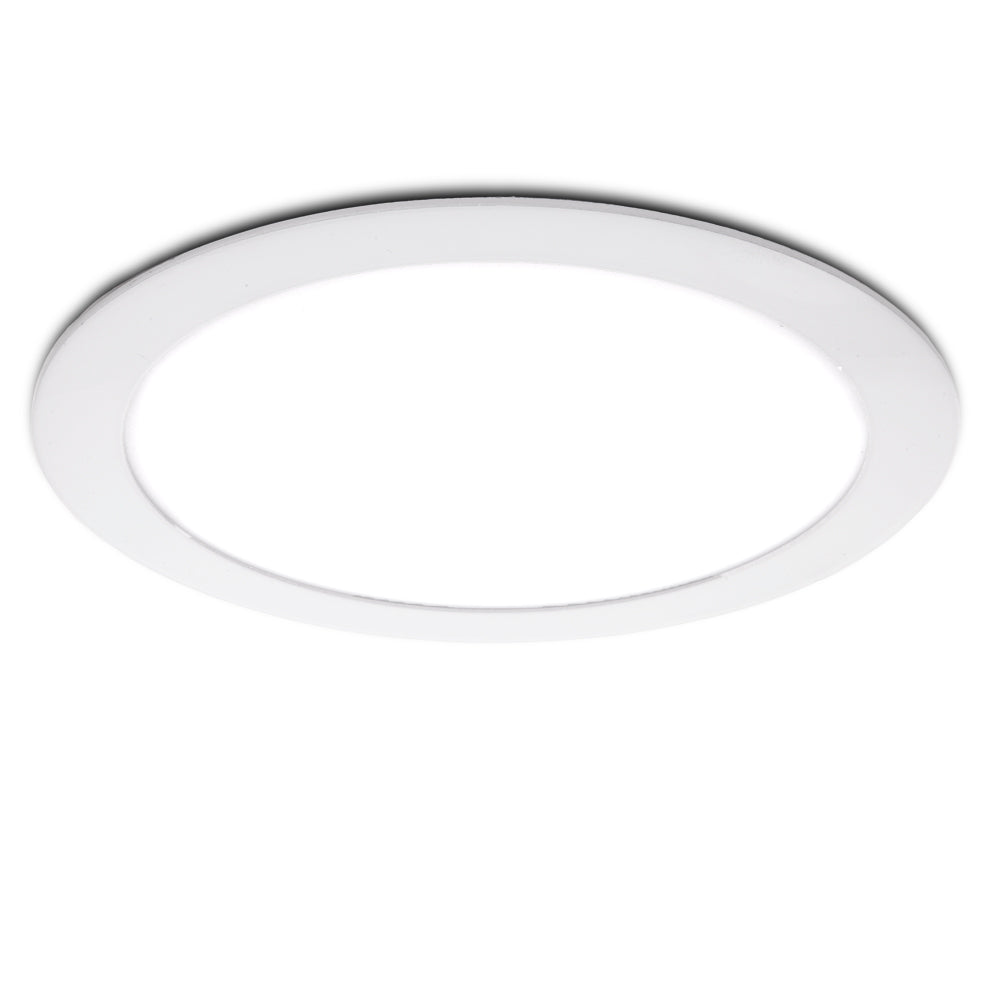

The 225mm diameter circular LED plate with ultra-thin dimensions (20mm), offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to outlets supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (100 Lm/W) consuming 20W through SMD2835 type LEDs and managing to provide a luminous flux of 2000Lm uniformly distributed through an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 120W incandescent bulb, its consumption represents a value of 20kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

This plate is powered by a Non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible with the connection of the plate (25-150VDC, 300mA), additionally the necessary accessories for the installation of the plate are included.< /p>

White finish made of aluminium. The plate has a IP25 degree of protection (valid for dust and humidity indoors),in addition to being robust enough for the required mechanical demands.

This plate is available in cold white 6000ºK and natural white 4000ºK. The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

LED downlights are ideal for lighting General lighting in spaces that require high performance and long periods of continuous lighting. And that is why they include a high-quality aluminum heat sink, which contributes to minimal heat emission from the LED luminaire. They are also very easy to install and being so thin they can be placed in false ceilings with little height where more voluminous solutions could not be used.
