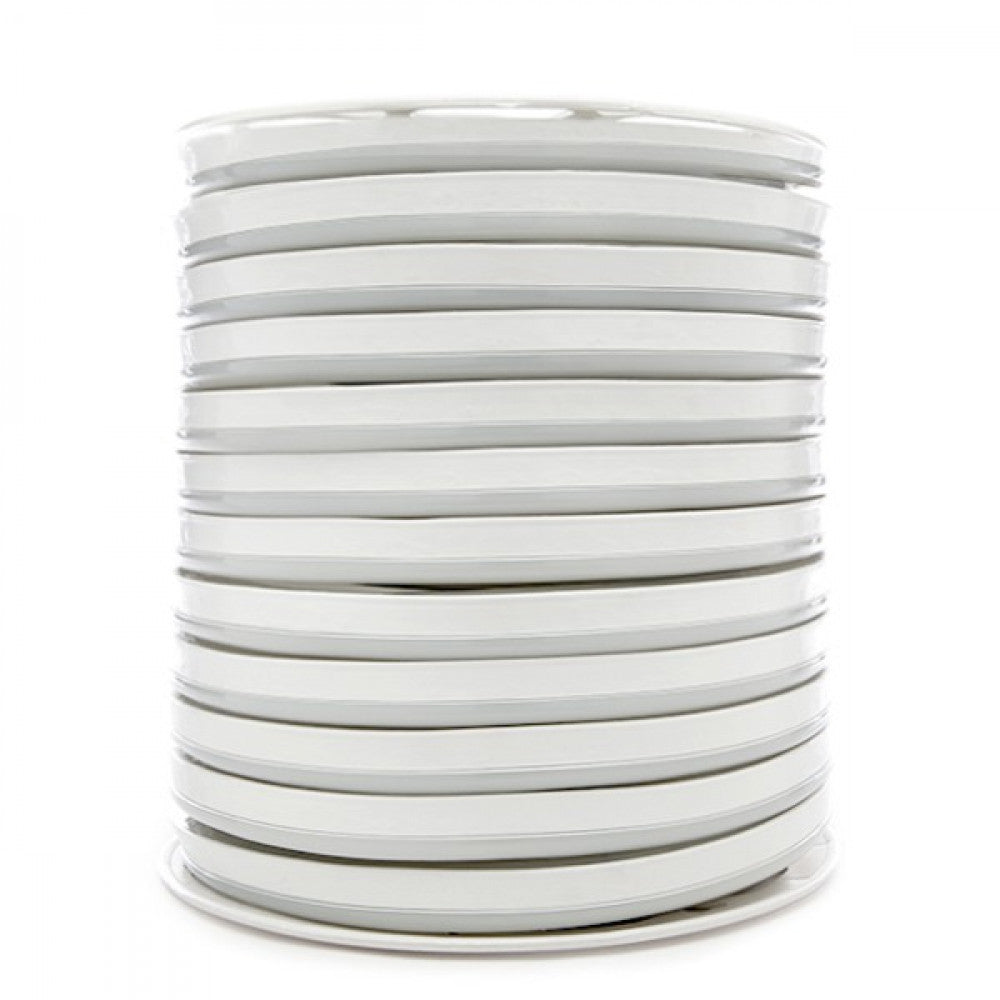

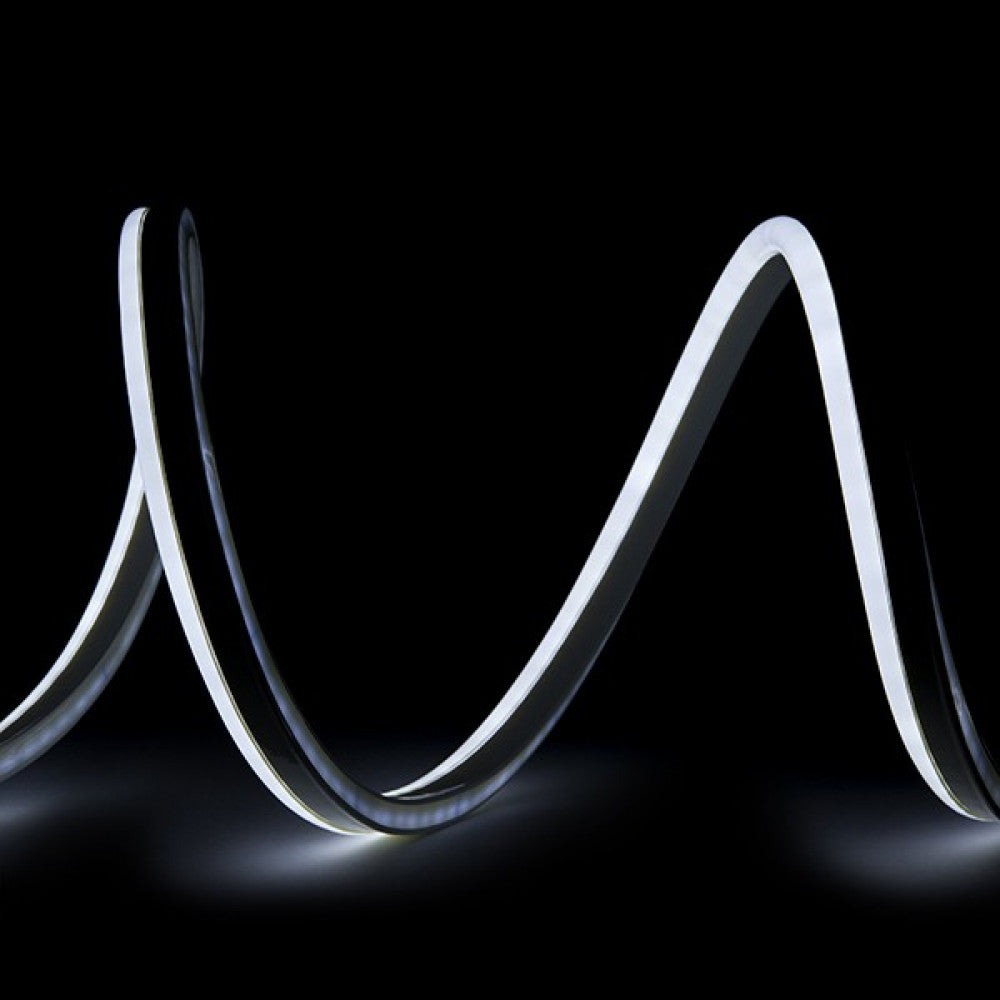

LED Strip Hose "Neon Flex" 8W 170Lm 4200ºK 80LEDs/M 8W/M 24VDC IP66 x1M 40,000H [CR-NEON80-24-W

LED Strip Hose "Neon Flex" 8W 170Lm 4200ºK 80LEDs/M 8W/M 24VDC IP66 x1M 40,000H [CR-NEON80-24-W

For additional amounts the delivery period is 25 days As of the order date
  • Brand:GreenIce
  • SkuCR-NEON80-24-W
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
£7.00
£19.00 £7.00 -63%
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-63.16%(CR-NEON80-24-W_padreImg_cr_neon80_24_w_0.jpeg)
Cool White
There are few
Free shipping
£7.00
£19.00 £7.00 -63%

Accessories

  • (CR-CONECTOR-L_padreImg_cr_conector_l_0.jpeg) (CR-CONECTOR-L_padreImg_cr_conector_l_1.jpeg)

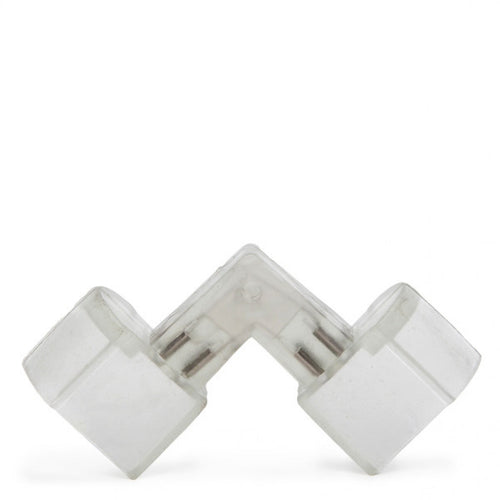

    Connector L Neon Flex 80

    Offer
    GreenIce

    Connector L Neon Flex 80

    £4.00
    £5.00 £4.00 -20%
    Offer
  • (CR-ENCHUFE-24_padreImg_cr_enchufe_24_0.jpeg) (CR-ENCHUFE-24_padreImg_cr_enchufe_24_1.jpeg)

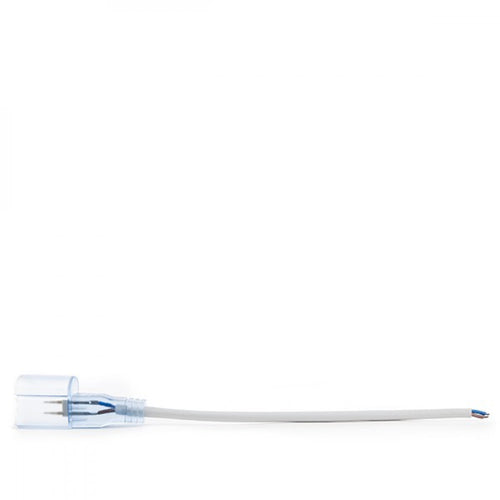

    Connector Neon Flex 24VDC

    GreenIce

    Connector Neon Flex 24VDC

    £4.00
    £4.00 £4.00 %
  • (CR-PINCHO_padreImg_cr_pincho_0.jpeg)

    Connector Neon Flex 80

    GreenIce

    Connector Neon Flex 80

    £1.00
    £1.00 £1.00 %
  • (CR-CONECTOR_padreImg_cr_conector_0.jpeg) (CR-CONECTOR_padreImg_cr_conector_1.jpeg)

    Straight Connector Neon Flex 80

    GreenIce

    Straight Connector Neon Flex 80

    £2.00
    £2.00 £2.00 %
  • (HO-TR-IP67-30W-24V_padreImg_ho_tr_ip67_30w_24v_0.jpeg) (HO-TR-IP67-30W-24V_padreImg_ho_tr_ip67_30w_24v_1.jpeg)

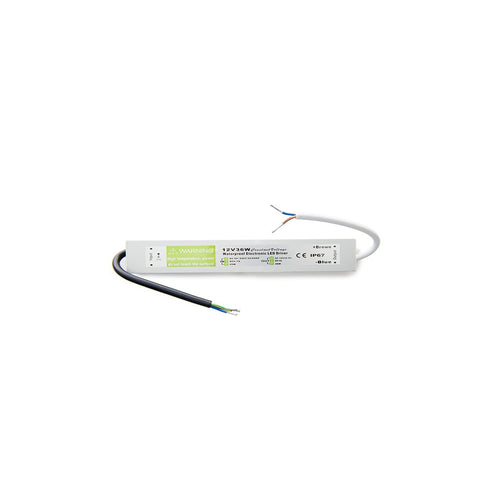

    Transformer LED 24VDC 30W/1,25A IP67

    Offer
    GreenIce

    Transformer LED 24VDC 30W/1,25A IP67

    £8.00
    £9.00 £8.00 -11%
    Offer
  • (CR-TAPON_padreImg_cr_tapon_0.jpeg)

    End Cap Neon Flex 80

    GreenIce

    End Cap Neon Flex 80

    £1.00
    £1.00 £1.00 %
  • (CR-CLIPPVC_padreImg_cr_clippvc_0.jpeg) (CR-CLIPPVC_padreImg_cr_clippvc_1.jpeg)

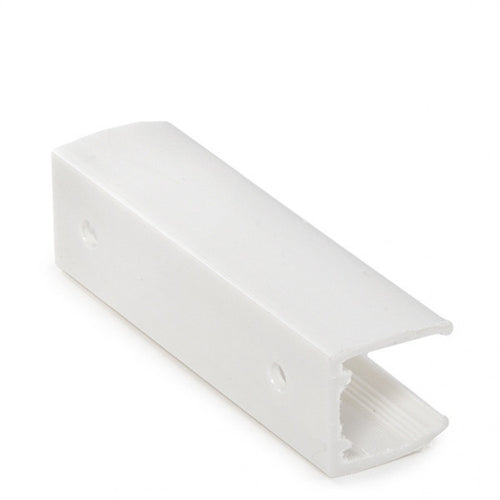

    Fixing Clip PVC Neon Flex 80

    GreenIce

    Fixing Clip PVC Neon Flex 80

    £1.00
    £1.00 £1.00 %
  • (HZ-MPS-25W24V_padreImg_hz_mps_25w24v_0.jpeg) (HZ-MPS-25W24V_padreImg_hz_mps_25w24v_1.jpeg)

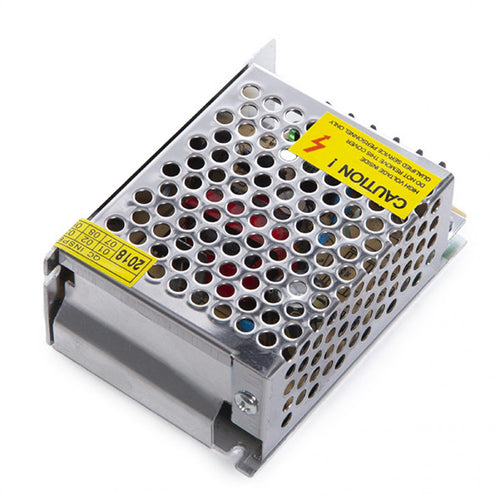

    LED transformer 25W 24VDC 1.1A IP20

    Offer
    GreenIce

    LED transformer 25W 24VDC 1.1A IP20

    £5.00
    £6.00 £5.00 -16%
    Offer
  • (CR-CONECTOR-T_padreImg_cr_conector_t_0.jpeg)

    Connector Neon Flex 80

    GreenIce

    Connector Neon Flex 80

    £3.00
    £3.00 £3.00 %

Technical file

Product code
CR-NEON80-24-W
Luminous efficacy (LM/W)
21
Light temperature
Natural White
Kelvin º
4200
Power (W)
8.0
Luminosity (LM)
170
Measures (mm)
15x25
High
25.0
Broad
15.0
Number and type of LEDs
High Power
CRI
80
Power factor (PF)
0.8
Construction
PVC/ ABS
Opening Angle (º)
120
Facility
IP66
Strain
24VDC
Estimated life (H)
40000
Dimable
Yes
Equivalence (W)
70
Isolation class
III
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
8.0
Weight (gr)
440
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
16
Minimum cri range
85
Maximum cri range
5
Chromaticity x
0.304
Chromaticity y
0.312
Additional information
Supplied in multiples of 1m width / Supplied without accessories / See "Accessories" tab
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; EPA 3050B:1996; EN 1122B:2001; EPA 3052:1996; EPA 3060A:1996; EPA 7196A:1992; EPA 3540C:1996; EPA 8270D:2007; IEC 62321:2008

Characteristics

Product code
CR-NEON80-24-W
Luminous efficacy (LM/W)
21
Light temperature
Natural White
Kelvin º
4200
Power (W)
8.0
Luminosity (LM)
170
Measures (mm)
15x25
High
25.0
Broad
15.0
Number and type of LEDs
High Power
CRI
80
Power factor (PF)
0.8
Construction
PVC/ ABS
Opening Angle (º)
120
Facility
IP66
Strain
24VDC
Estimated life (H)
40000
Dimable
Yes
Equivalence (W)
70
Isolation class
III
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
8.0
Weight (gr)
440
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
4200
INDEX R9
16
Minimum cri range
85
Maximum cri range
5
Chromaticity x
0.304
Chromaticity y
0.312
Additional information
Supplied in multiples of 1m width / Supplied without accessories / See "Accessories" tab
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; EPA 3050B:1996; EN 1122B:2001; EPA 3052:1996; EPA 3060A:1996; EPA 7196A:1992; EPA 3540C:1996; EPA 8270D:2007; IEC 62321:2008

Description

The Neon Flex LED Hose replaces traditional glass neon lights with resounding success, offering multiple advantages.The outer cover made of two layers of PVC improves the optical effect, producing greater efficiency of the light. It maintains color stability over time, offering low light depreciation, which reduces maintenance and reduces chromatic errors.

Installation and molding is very simple, being able to create corners, curves, letters, logos and any other application where glass neon tubes stood out, but unlike this one, installation requires no special skills or tools. You only have to cut along your cutting marks, fix the fastening guides, place the terminals and that's it.

With a double layer of PVC that gives it extra protection , including vibrations, blows, traffic and other mistreatment. with UV inhibitors that protect it from the most adverse environmental conditions. 24VDC connection and sections of up to 80 meters with a single power supply and an average consumption of 8W per meter.

Ideal for:

  • Highlight the lines of the structures of any building, pavilions, restaurants, etc.
  • For interior or exterior use< li>Structure lighting
  • Signage
  • Creation of illuminated signs
  • Decoration and interior design

With each strip, as a minimum it is necessary to add a transformer, connector, spike and an end cap. Other accessories according to customer needs.

Documents

Installation_manual
Technical_drawings
