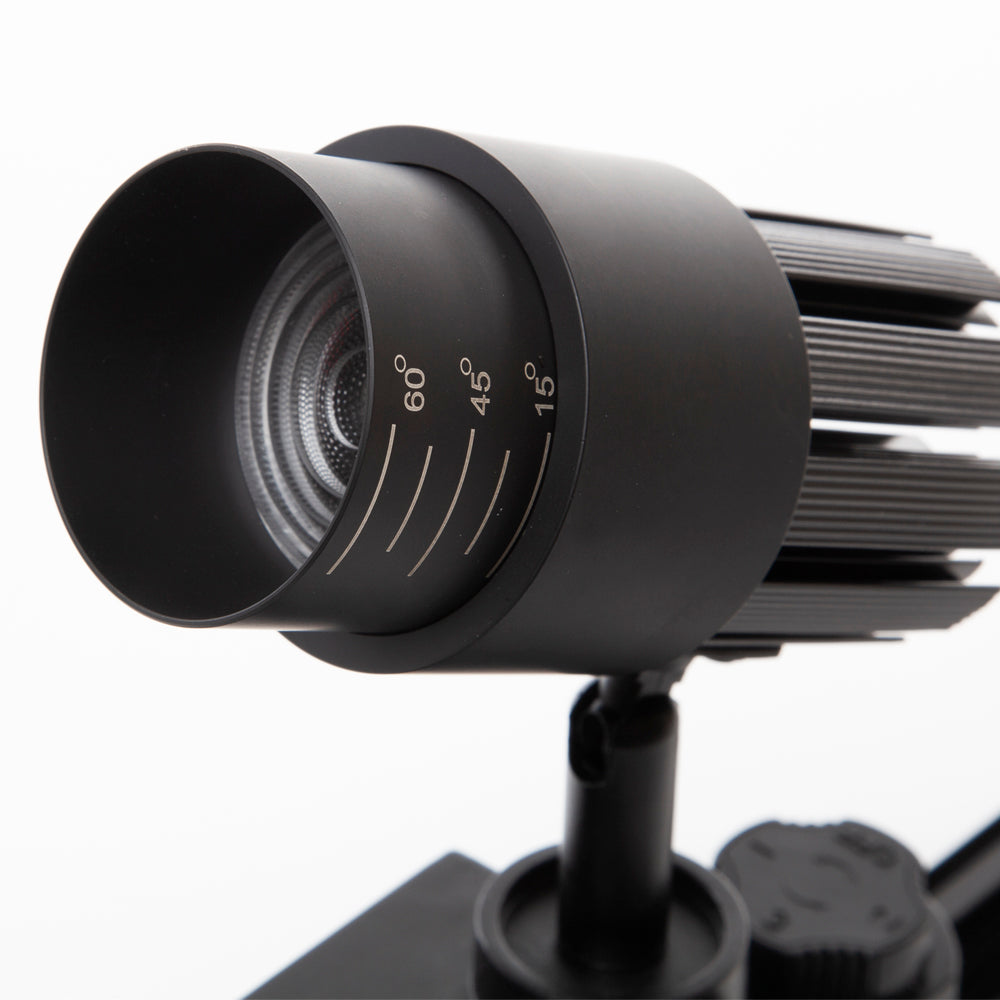

LED Track Light 9W 810Lm CRI90 6000ºK Three-phase Norah 40,000H [J-TR9W-T-CW]

LED Track Light 9W 810Lm CRI90 6000ºK Three-phase Norah 40,000H [J-TR9W-T-CW]

See questions and answers

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuJL-TR9W-T-CW
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 38 º Opening
£8.26
£8.26 £8.26 %
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 38 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(JL-TR9W-T-CW_padreImg_jl_tr9w_t_cw_0.jpeg)
Cool White
There are few
Free shipping
£8.26
£8.26 £8.26 %

Accessories

  • (JL-CON-L-T-B_padreImg_jl_con_l_t_b_0.jpeg) (JL-CON-L-T-B_padreImg_jl_con_l_t_b_1.jpeg)

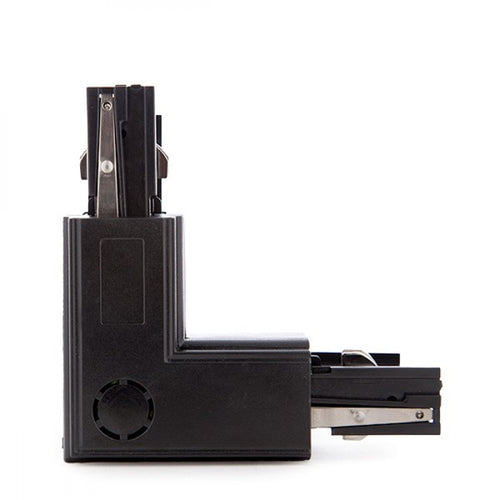

    L Connector 3-Phase Track Black

    Offer
    Stock Explosion
    GreenIce

    L Connector 3-Phase Track Black

    £2.12
    £3.53 £2.12 -39%
    Offer
  • (JL-CON-+-T-B_padreImg_jl_con_t_b_0.jpeg) (JL-CON-+-T-B_padreImg_jl_con_t_b_1.jpeg)

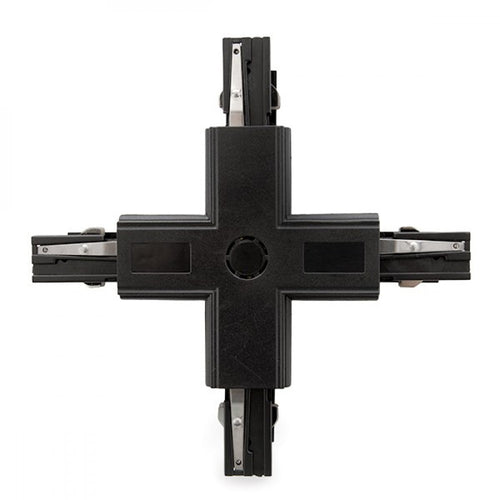

    + Connector 3-Phase Track Black

    Offer
    Stock Explosion
    GreenIce

    + Connector 3-Phase Track Black

    £3.85
    £7.03 £3.85 -45%
    Offer
  • (JL-CON---T-B_padreImg_jl_con_t_b_0.jpeg) (JL-CON---T-B_padreImg_jl_con_t_b_1.jpeg)

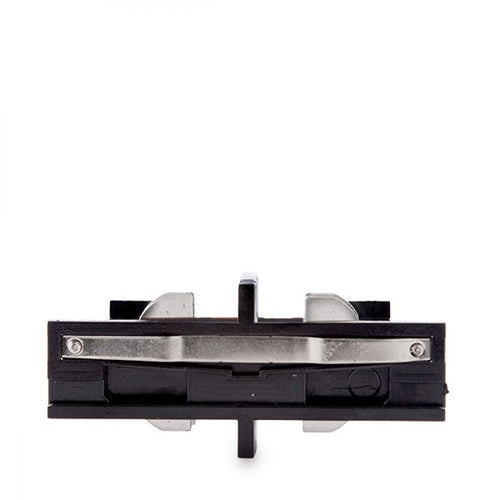

    Straight Connector 3-Phase Track Black

    Offer
    GreenIce

    Straight Connector 3-Phase Track Black

    £3.23
    £3.77 £3.23 -14%
    Offer
  • (JL-CON-T-T-B_padreImg_jl_con_t_t_b_0.jpeg) (JL-CON-T-T-B_padreImg_jl_con_t_t_b_1.jpeg)

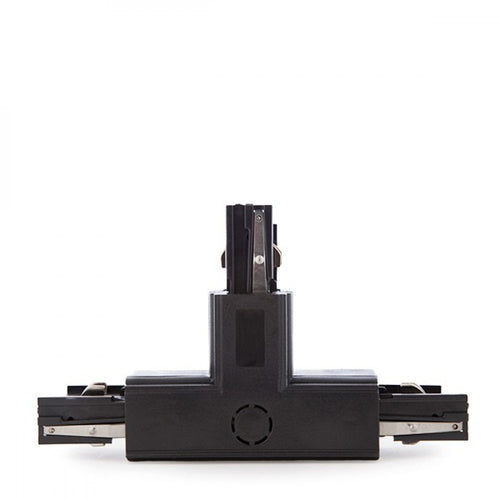

    Connector 3-Phase Track Black

    Offer
    Stock Explosion
    GreenIce

    Connector 3-Phase Track Black

    £2.36
    £4.31 £2.36 -45%
    Offer
  • (JL-CARRIL-T-B_padreImg_jl_carril_t_b_0.jpeg) (JL-CARRIL-T-B_padreImg_jl_carril_t_b_1.jpeg)

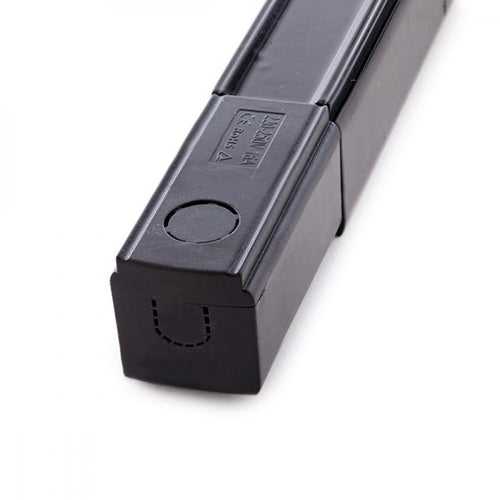

    3-Phase Track 1M Black

    Offer
    GreenIce

    3-Phase Track 1M Black

    £16.62
    £20.76 £16.62 -19%
    Offer
  • (HO-LM3220_padreImg_ho_lm3220_0.jpeg) (HO-LM3220_padreImg_ho_lm3220_1.jpeg)

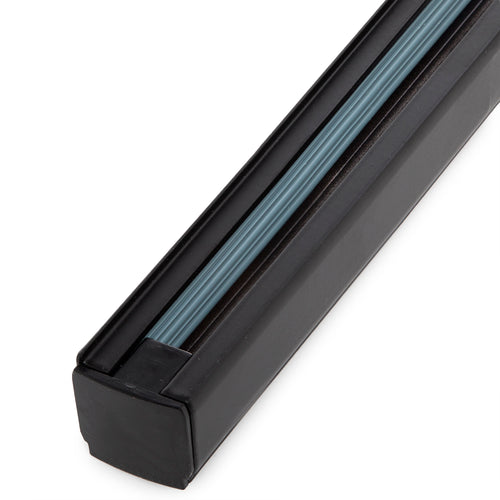

    3-Phase Track LED Spotlights Black 2M

    Offer
    GreenIce

    3-Phase Track LED Spotlights Black 2M

    £29.57
    £49.29 £29.57 -40%
    Offer

Technical file

Product code
J-TR9W-T-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
9.0
Luminosity (LM)
810
Luminous efficacy (LM/W)
90
LED efficacy
99
Type of LEDs
COB
Number of LEDs
1
Measures (mm)
Ø55x200
High
200.0
Diameter
55
CRI
90
Diffuser
Opal
Power factor (PF)
0.95
Construction
Aluminum/ PC
Opening Angle (º)
38
Facility
IP20
Strain
85-265VAC
Driver output
DC18-35V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
9.0
Weight (gr)
260
Flicker
0.96
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
29
Minimum cri range
95
Maximum cri range
2
Chromaticity x
0.323
Chromaticity y
0.352
Número unidades caja exterior
20.0
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN61000-3-3:2008; EN 60598-2-1:1989; EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008; EN 62471:2008; EN 62493:2010

Characteristics

Product code
J-TR9W-T-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
9.0
Luminosity (LM)
810
Luminous efficacy (LM/W)
90
LED efficacy
99
Type of LEDs
COB
Number of LEDs
1
Measures (mm)
Ø55x200
High
200.0
Diameter
55
CRI
90
Diffuser
Opal
Power factor (PF)
0.95
Construction
Aluminum/ PC
Opening Angle (º)
38
Facility
IP20
Strain
85-265VAC
Driver output
DC18-35V
Estimated life (H)
40000
Dimable
No
Equivalence (W)
80
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
9.0
Weight (gr)
260
Flicker
0.96
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
29
Minimum cri range
95
Maximum cri range
2
Chromaticity x
0.323
Chromaticity y
0.352
Número unidades caja exterior
20.0
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN61000-3-3:2008; EN 60598-2-1:1989; EN 60598-1:2008; EN 61347-1:2008; EN 61347-2-13:2006; EN 62031:2008; EN 62471:2008; EN 62493:2010

Description

The 55mm diameter and 200mm long three-phase LED track light, with a black finish, offers solutions for businesses.It provides versatile lighting that is perfect for ever-changing spaces, where you need to highlight decorative elements or exposed products.

It has a high efficiency (90Lm/m), consuming 9W through 1 COB, managing to provide a luminous flux of 810Lm passing through a transparent diffuser, it has a color rendering index of 90. Its consumption represents a value of 9kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.Includes connector for three-phase rail (four wires) The spotlight has a base designed to support its total weight, has an IP25 degree of protection (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

It is It is made of quality materials such as aluminum and incorporates high-performance components. It has a long useful life of 30,000 hours, ten times longer than that of a conventional spotlight.

Its installation on the three-phase track is very simple and allows the luminaire to be moved on the lane. This allows having a very flexible lighting system that adapts to any situation.

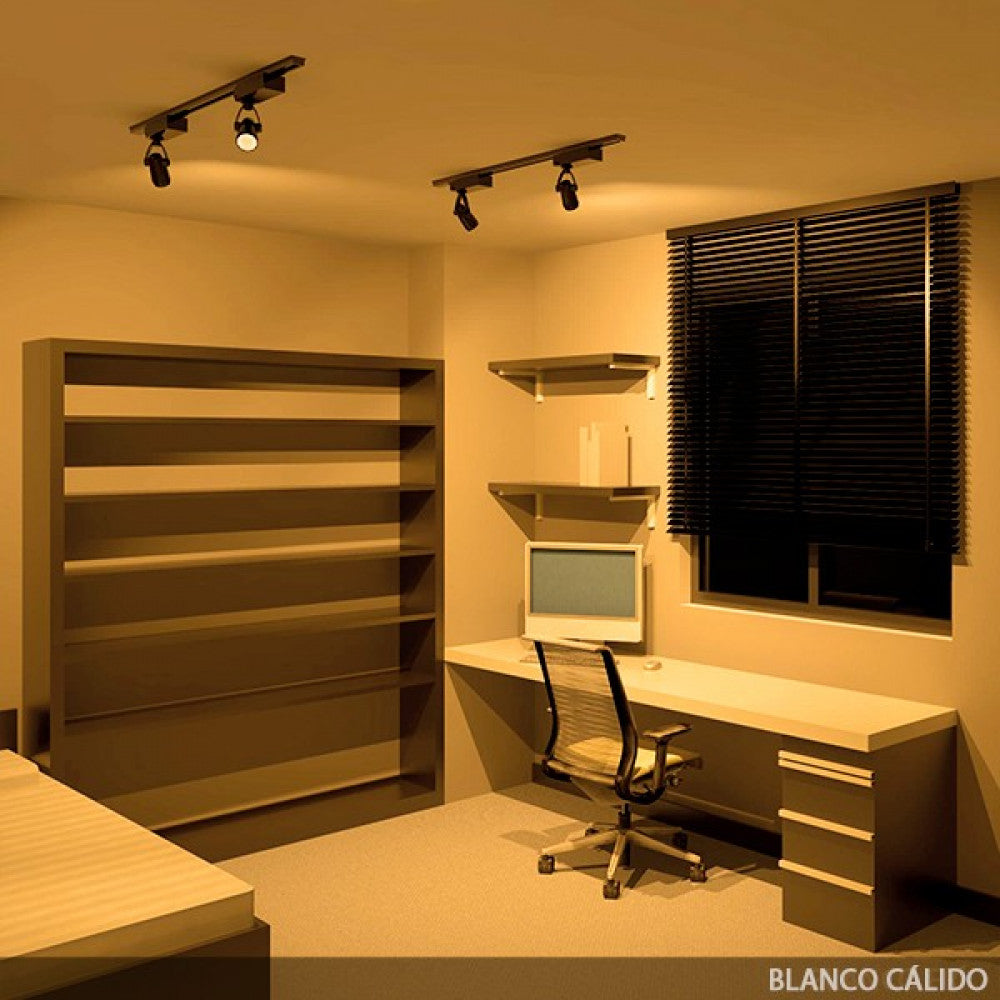

Its use is mainly in the tertiary sector in spaces such as shops, exhibition halls, commercial galleries, hotels, etc. etc. Places that require a versatile accent light that adapts to the layout of the products on display.

This spotlight emits a cool white color tone (6500°K) and in warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

Documents

Installation_manual

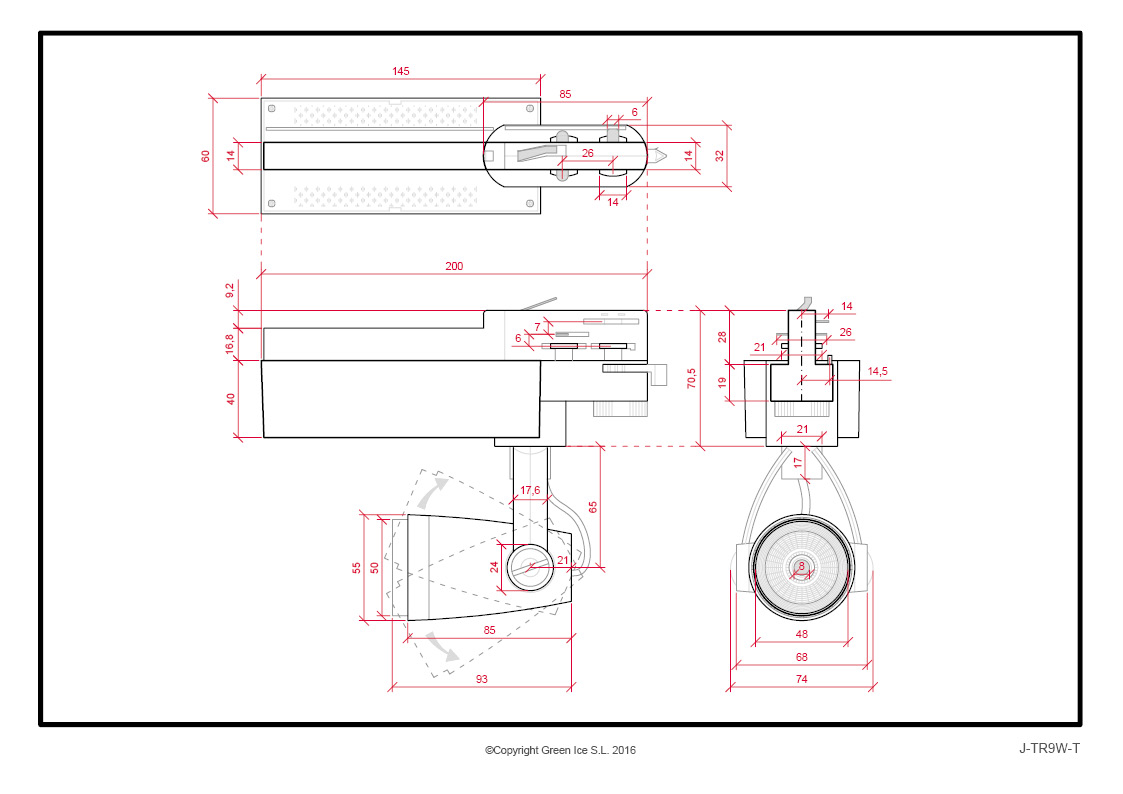

Technical_drawings
