LIFUD FLICKER FREE LED Panel 40W 4000Lm 4200ºK 60x60Cm UGR17 40,000H [IDI-PL-595-40-UGR17-W]

LIFUD FLICKER FREE LED Panel 40W 4000Lm 4200ºK 60x60Cm UGR17 40,000H [IDI-PL-595-40-UGR17-W]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuIDI-PL-595-40-UGR17W
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
£21.00
£24.00 £21.00 -12%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-12.5%(IDI-PL595-40-UGR17CW_padreImg_idi_pl595_40_ugr17cw_0.png)
Daylight
Stock available
Free shipping
£21.00
£24.00 £21.00 -12%

Accessories

  • (HO-AF-600x600_padreImg_ho_af_600x600_0.jpeg) (HO-AF-600x600_padreImg_ho_af_600x600_1.jpeg)

    Frame Aluminum LED Panel 60x60Cm

    Offer
    GreenIce

    Frame Aluminum LED Panel 60x60Cm

    £10.00
    £14.00 £10.00 -28%
    Offer
  • (HZ-KITUSPENSION_padreImg_hz_kituspension_0.jpeg)

    Suspension Kit 970Mm LED Panels

    Offer
    GreenIce

    Suspension Kit 970Mm LED Panels

    £4.00
    £5.00 £4.00 -20%
    Offer
  • (OL-LCM-40_padreImg_ol_lcm_40_0.jpeg) (OL-LCM-40_padreImg_ol_lcm_40_1.jpeg)

    Driver Meanwell Downlights 40W Smart Adjustable0-10V IP20

    MEANWELL

    Driver Meanwell Downlights 40W Smart Adjustable0-10V IP20

    £47.00
    £47.00 £47.00 %
  • (HO-PCTMBW0P0_padreImg_ho_pctmbw0p0_0.jpeg) (HO-PCTMBW0P0_padreImg_ho_pctmbw0p0_1.jpeg)

    Driver Emergency LED Panel ► 120Min

    Offer
    GreenIce

    Driver Emergency LED Panel ► 120Min

    £22.00
    £43.00 £22.00 -48%
    Offer
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

    Motion Sensor Recessed 360º ►1200/300W

    Offer
    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    £11.00
    £13.00 £11.00 -15%
    Offer
  • (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_0.jpeg) (HO-CLIP-PAN-4_padreImg_ho_clip_pan_4_1.jpeg)

    Set of 4 Clips for LED Panel Mounting

    GreenIce

    Set of 4 Clips for LED Panel Mounting

    £2.00
    £2.00 £2.00 %
  • (HO-HP-ND-42W_padreImg_ho_hp_nd_42w_0.jpeg) (HO-HP-ND-42W_padreImg_ho_hp_nd_42w_1.jpeg)

    Driver Non Dimmable 0.95 F.P. 50.000H LED Panel 42W

    GreenIce

    Driver Non Dimmable 0.95 F.P. 50.000H LED Panel 42W

    £14.00
    £14.00 £14.00 %
  • (GR-DALI-40W_padreImg_gr_dali_40w_0.jpeg) (GR-DALI-40W_padreImg_gr_dali_40w_1.jpeg)

    Driver Adjustable DALI 40W

    Offer
    GreenIce

    Driver Adjustable DALI 40W

    £40.00
    £41.00 £40.00 -2%
    Offer
  • (GR-DRDIM0-10V-40W_padreImg_gr_drdim0_10v_40w_0.jpeg) (GR-DRDIM0-10V-40W_padreImg_gr_drdim0_10v_40w_1.jpeg)

    Driver Adjustable 0-10V LED Panel 40W

    GreenIce

    Driver Adjustable 0-10V LED Panel 40W

    £15.00
    £15.00 £15.00 %
  • (GR-DRDIM-SE-36W_padreImg_gr_drdim_se_36w_0.jpeg) (GR-DRDIM-SE-36W_padreImg_gr_drdim_se_36w_1.jpeg)

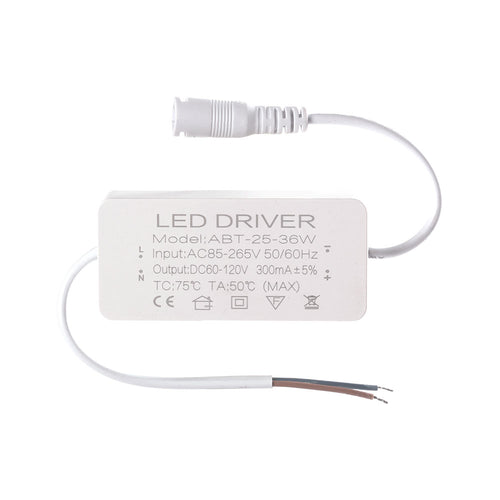

    Driver Dimmable LED Panel Super Ecoline 36W

    Offer
    GreenIce

    Driver Dimmable LED Panel Super Ecoline 36W

    £10.00
    £16.00 £10.00 -37%
    Offer

Technical file

Product code
IDI-PL-595-40-UGR17-W
Luminous efficacy (LM/W)
100
Light temperature
Natural White
Kelvin º
4200
Power (W)
40.0
Luminosity (LM)
4000
Measures (mm)
595x595x10
High
10.0
Long
595.0
Broad
595.0
Number and type of LEDs
Samsung Led
CRI
80
UGR
◄17
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
215
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
40.0
Weight (gr)
2500
Flicker
0.82
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single CCT
4200
INDEX R9
4
Minimum cri range
92
Maximum cri range
3
Chromaticity x
0.376
Chromaticity y
0.376
Additional information
Possibility of dimming by purchasing an adjustable controller in the Accessories tab. Does not include suspension accessories
Driver output
DC55-86V
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Characteristics

Product code
IDI-PL-595-40-UGR17-W
Luminous efficacy (LM/W)
100
Light temperature
Natural White
Kelvin º
4200
Power (W)
40.0
Luminosity (LM)
4000
Measures (mm)
595x595x10
High
10.0
Long
595.0
Broad
595.0
Number and type of LEDs
Samsung Led
CRI
80
UGR
◄17
Power factor (PF)
0.99
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
215
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Microprismatic
Energy consumption (kWh/1000h)
40.0
Weight (gr)
2500
Flicker
0.82
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single CCT
4200
INDEX R9
4
Minimum cri range
92
Maximum cri range
3
Chromaticity x
0.376
Chromaticity y
0.376
Additional information
Possibility of dimming by purchasing an adjustable controller in the Accessories tab. Does not include suspension accessories
Driver output
DC55-86V
Applicable standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012

Description

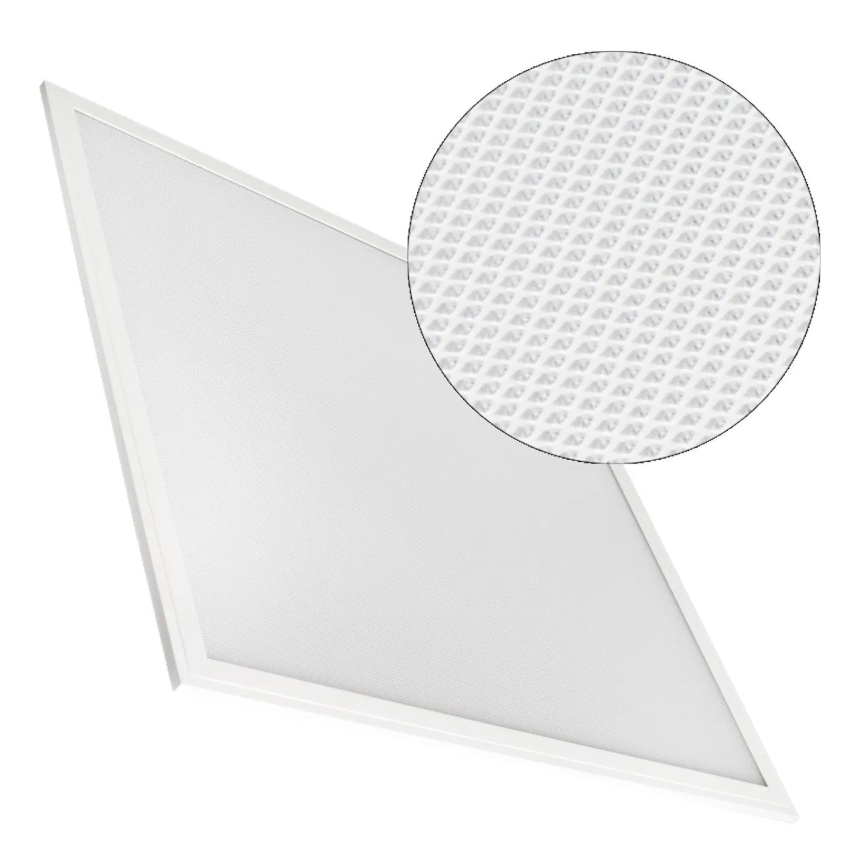

The 40W Slim 60x60Cm LED panel with white frame has an ultra-thin, modern and minimalist design.

Its light source with Epistar-SMD LEDs emits a brightness of 4000 lumens. Its opening angle of 120º makes it a perfect element for general lighting in all types of spaces.

>It is equipped with a special opal diffuser that ensures a glare factor UGR&lt17 (not dazzling). The glare caused by lighting can negatively influence people, since a comfortable lighting environment is needed to help us in our tasks, a low level of UGR increases the feeling of well-being of the workers, which indirectly contributes to the level of productivity.

Low levels of UGR are recommended glare in all places where long periods of time are spent exposed to artificial light, if This is very important in offices, educational centers, work areas, etc.

These flat led screens consume up to 55% less and do not require any type of maintenance, thus avoiding replacements of primers or reactances. And having the advantage of being a much lighter and more manageable product.

The led panel can be used supported on Armstrong false ceiling, on plasterboard with the help of the fastening clips for led panels, with which we can embed said panel in the ceiling, or with suspension kits for led panels. These kits are made up of four tensors, one in each corner, allowing us to achieve the desired height or inclination to give the perfect touch to our decoration.

This panel is available in cool white (6000°K ) and natural white (4000ºK). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.

"
