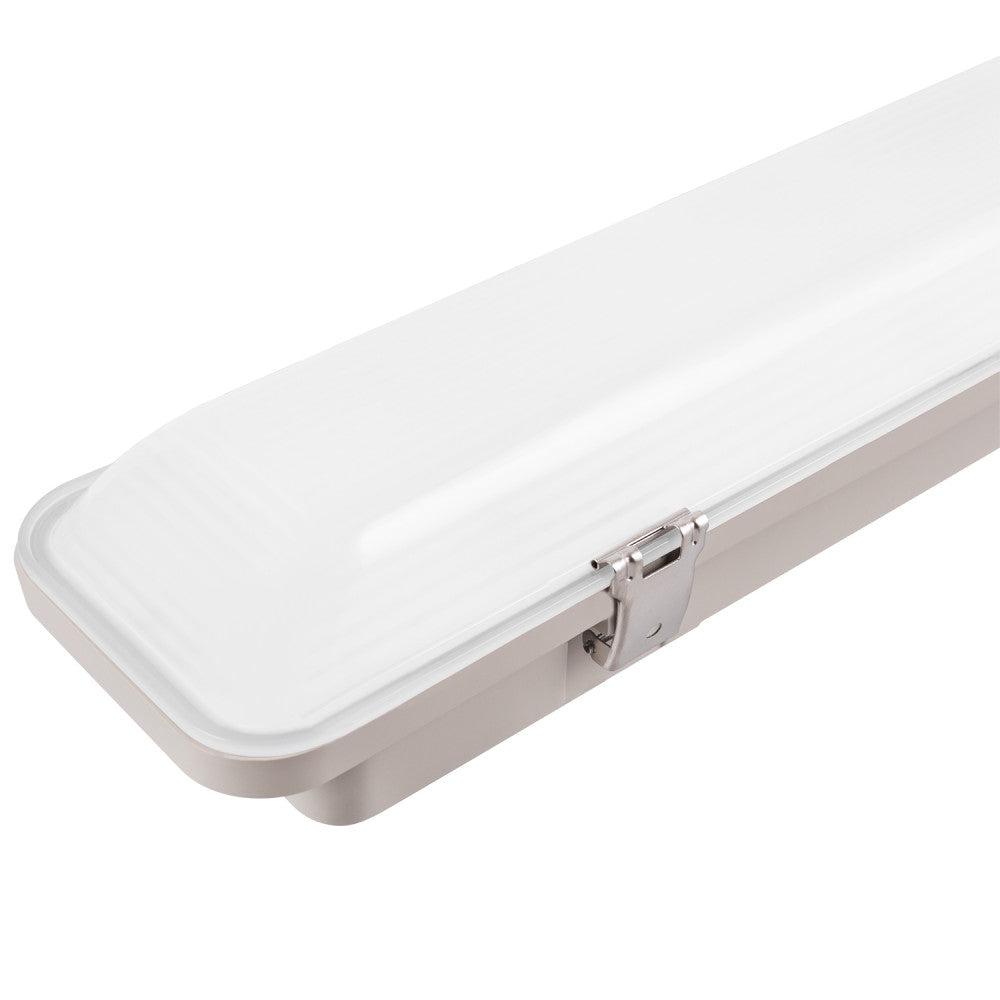

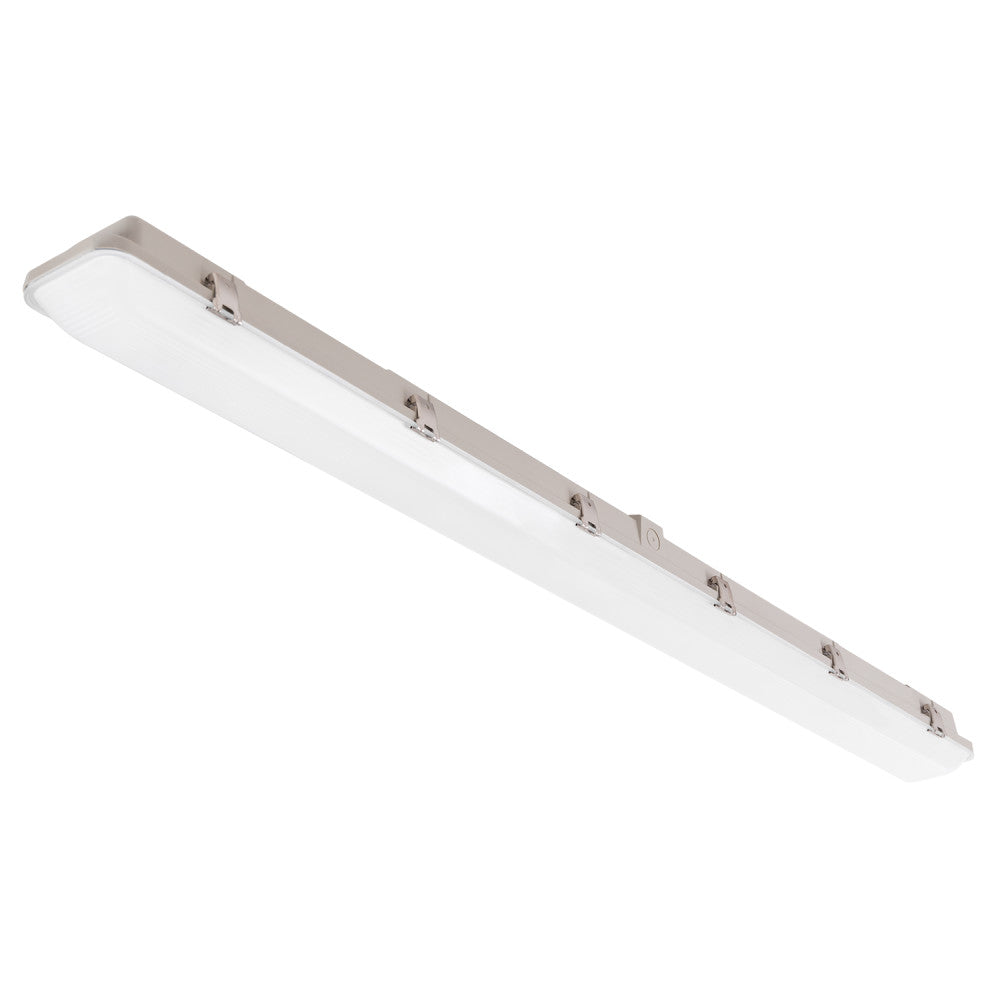

Linkable Waterproof LED Emergency Kit 40W 4800Lm IP65 CCT (Dimmable Color Temperature) 3000-6500K 110º Dimmable Tridonic Flicker

Linkable Waterproof LED Emergency Kit 40W 4800Lm IP65 CCT (Dimmable Color Temperature) 3000-6500K 110º Dimmable Tridonic Flicker

See questions and answers

For additional amounts the delivery period is 90 days As of the order date
  • Brand:GreenIce / TRIDONIC
  • SkuSE-STF171-40W-CCT-KE
  • E
Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 110º º Opening
£55.68
£55.68 £55.68 %
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 5 years
  • Eye Care Eye Care
  • Tüv Süd TUV SUD
  • 110º º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(SE-STF171-40W-CCT-KE_padreImg_se_stf171_40w_cct_ke_0.jpeg)
CCT
Available
Free shipping
£55.68
£55.68 £55.68 %

Technical file

Product code
SE-STF171-40W-CCT-KE
Light temperature
CCT
Power (W)
40.0
Luminosity (LM)
4800
Luminous efficacy (LM/W)
120
LED efficacy
110
Type of LEDs
SMD2835 Lumileds
Measures (mm)
1200x100x75
High
100.0
Long
1200.0
Broad
75.0
CRI
80
Power factor (PF)
0.99

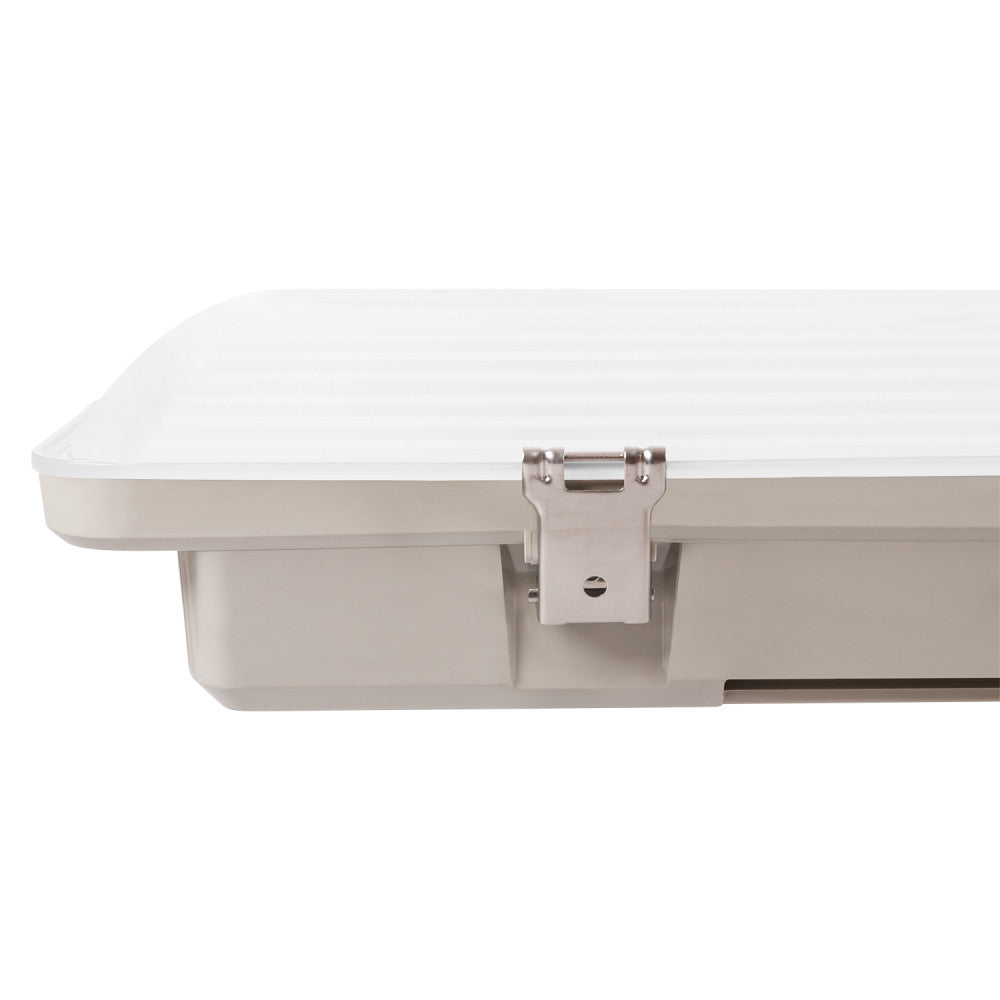

Construction
PC/Stainless Steel Clips
Opening Angle (º)
110º
Facility
IP65
IK Protection Index
IK08
Strain
220-240VAC
Estimated life (H)
100000
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ENEC/ISO9001
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
40.0
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Minimum cri range
75
Maximum cri range
80
Minimum CCT range
3000
Maximum cri range
6500
Driver
TRIDONIC
Número unidades caja exterior
20.0

Opiniones

Characteristics

Product code
SE-STF171-40W-CCT-KE
Light temperature
CCT
Power (W)
40.0
Luminosity (LM)
4800
Luminous efficacy (LM/W)
120
LED efficacy
110
Type of LEDs
SMD2835 Lumileds
Measures (mm)
1200x100x75
High
100.0
Long
1200.0
Broad
75.0
CRI
80
Power factor (PF)
0.99
Construction
PC/Stainless Steel Clips
Opening Angle (º)
110º
Facility
IP65
IK Protection Index
IK08
Strain
220-240VAC
Estimated life (H)
100000
Isolation class
I
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
E
Certificates
CE/ROHS/ENEC/ISO9001
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
40.0
Half -year useful life (at 3 h/day)
91.32
Half -Year Useful Life (5 h/day)
54.79
Half -year useful life (at 8 h/day)
34.24
Minimum cri range
75
Maximum cri range
80
Minimum CCT range
3000
Maximum cri range
6500
Driver
TRIDONIC
Número unidades caja exterior
20.0

Description

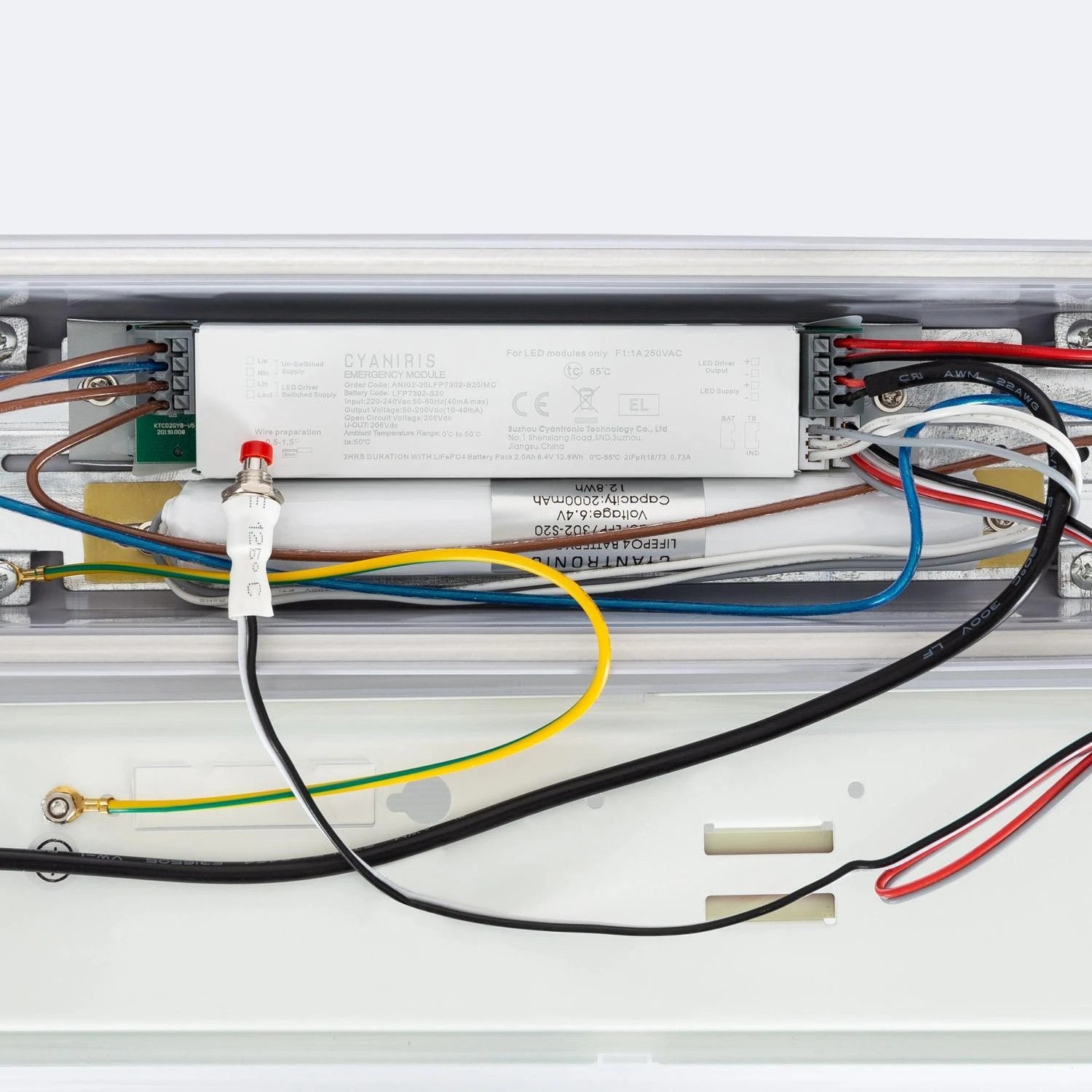

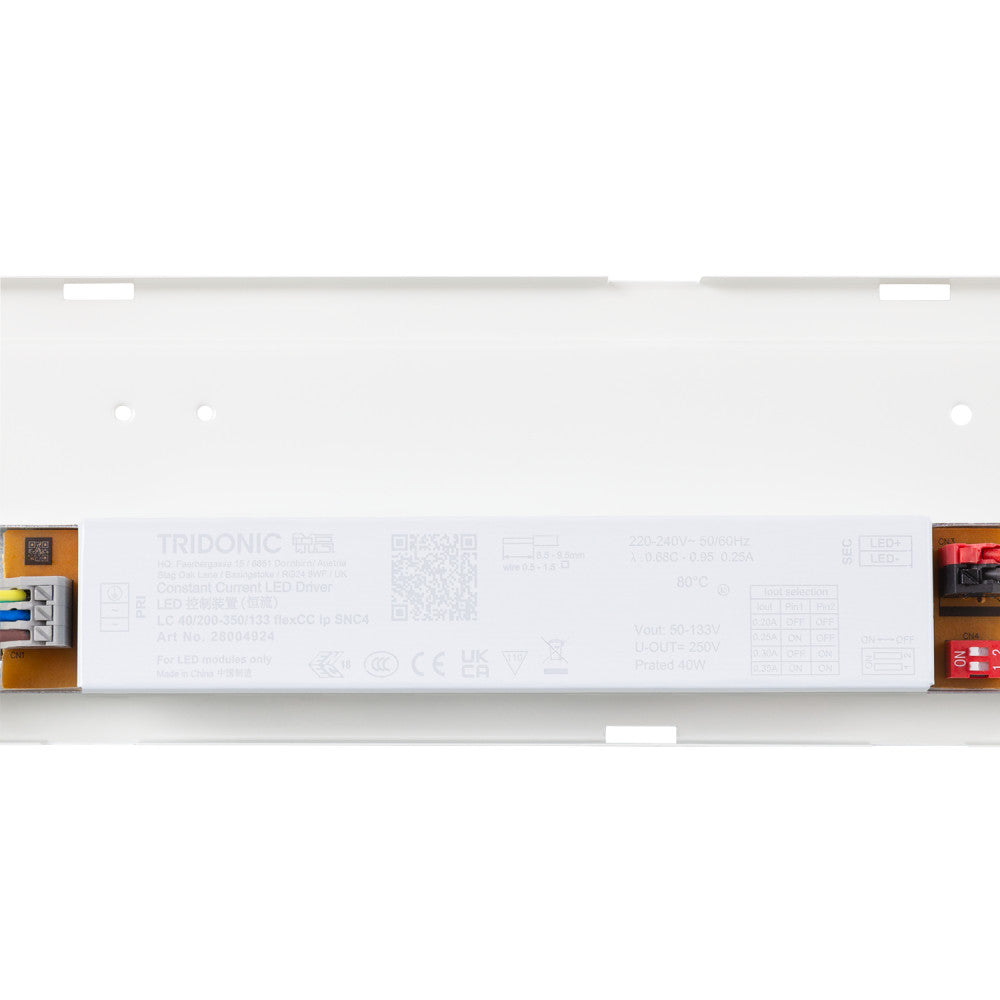

High-performance, weatherproof LED luminaire designed for industrial applications and demanding environments such as parking garages, warehouses, industrial buildings, and wet areas. Its robust, sealed construction ensures optimal protection against external elements. Equipped with a 40W power output and a luminous flux of 4,800 lumens, it offers efficient and uniform lighting. It incorporates dimmable CCT technology (3000K–6500K), allowing you to select the color temperature according to the needs of the space. It features a wide 110º beam angle, providing excellent light distribution across large areas. It integrates a dimmable Tridonic driver, renowned for its high quality, stability, and long lifespan, allowing you to adjust the light intensity to optimize energy consumption. One of the major advantages of this luminaire is its integrated emergency lighting function. In the event of a power failure, the luminaire automatically remains illuminated for 3 hours at 3.5W, providing sufficient safety light for evacuations or basic tasks. No additional emergency installations are required. Its IP65 protection rating ensures complete resistance to dust and water jets, making it suitable for humid environments or those with particulate matter. The linkable system allows for the continuous connection of multiple luminaires, facilitating seamless linear installations. Main features: Power: 40W Luminous flux: 4,800 lm Color temperature: CCT 3000K–6500K Beam angle: 110º Protection: IP65 Dimming: Dimmable Tridonic driver Emergency: Integrated emergency kit System: Linkable Installation: Surface or suspended Use: Industrial / Professional High efficiency and long lifespan
