Offer

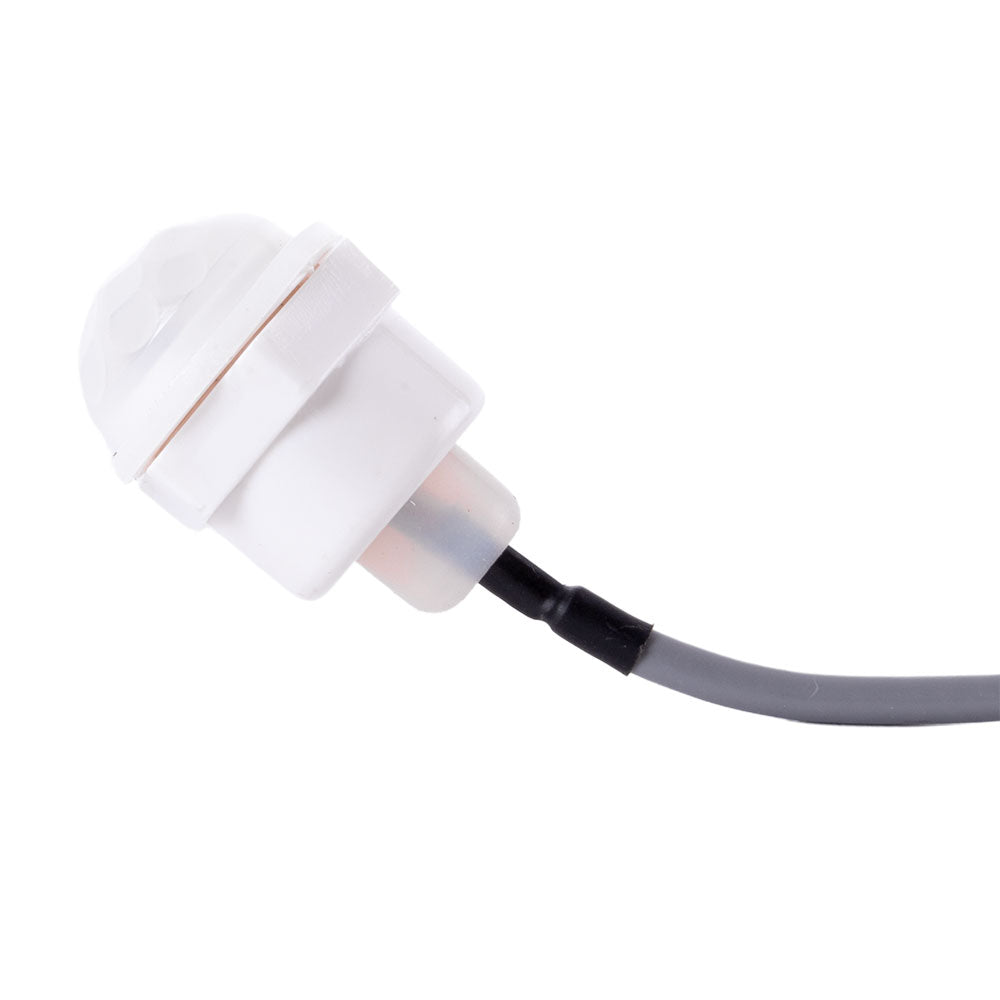

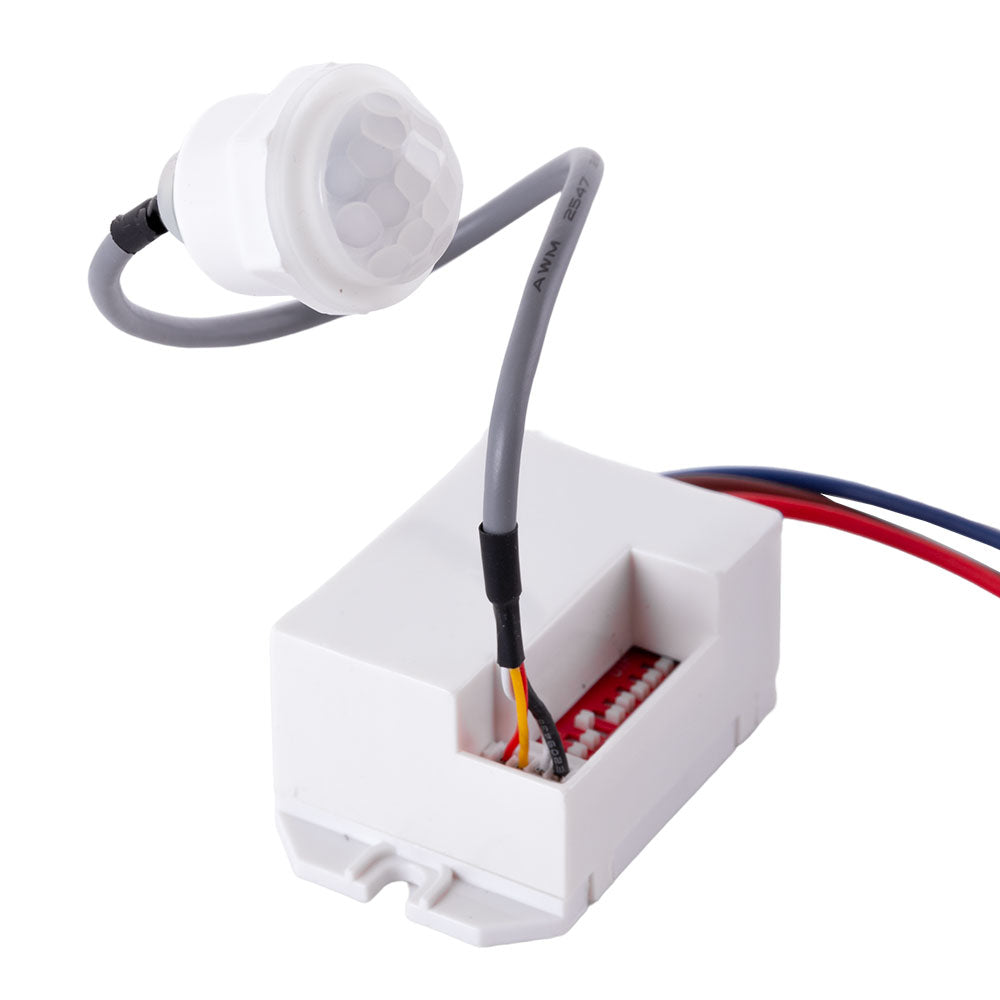

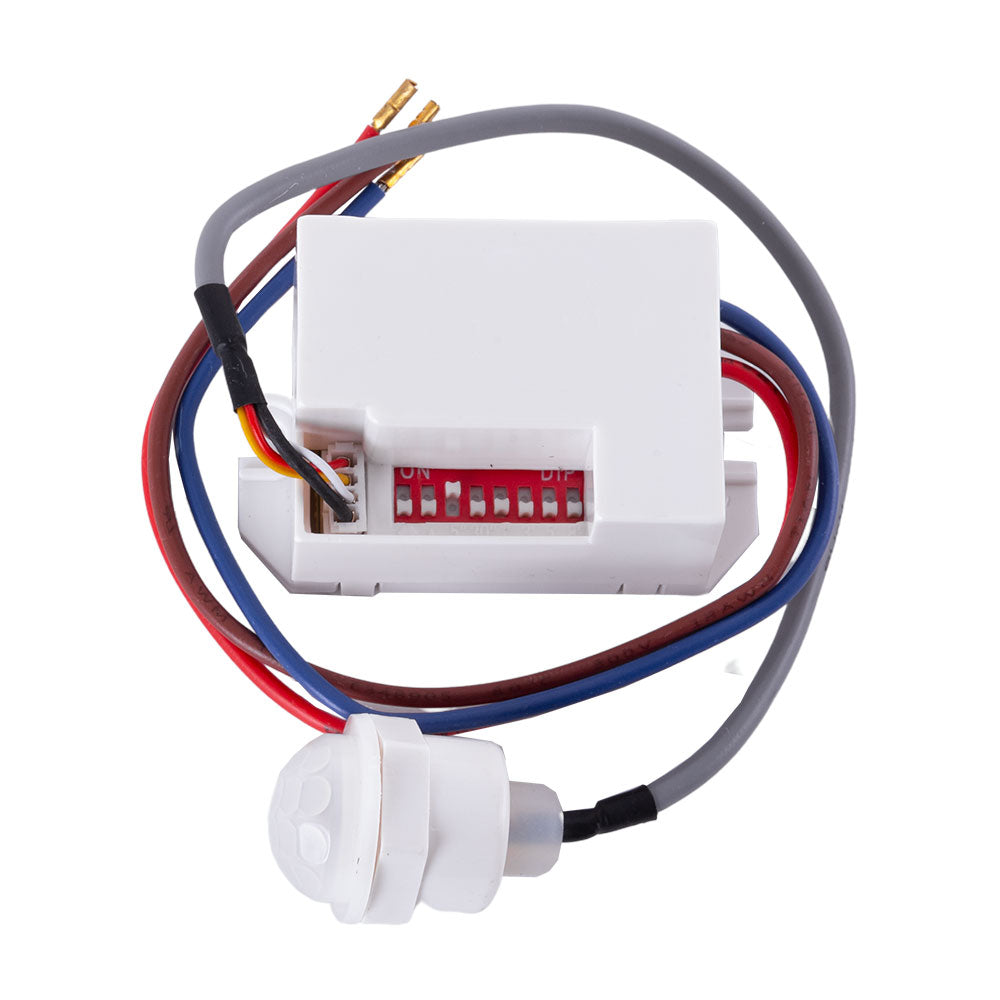

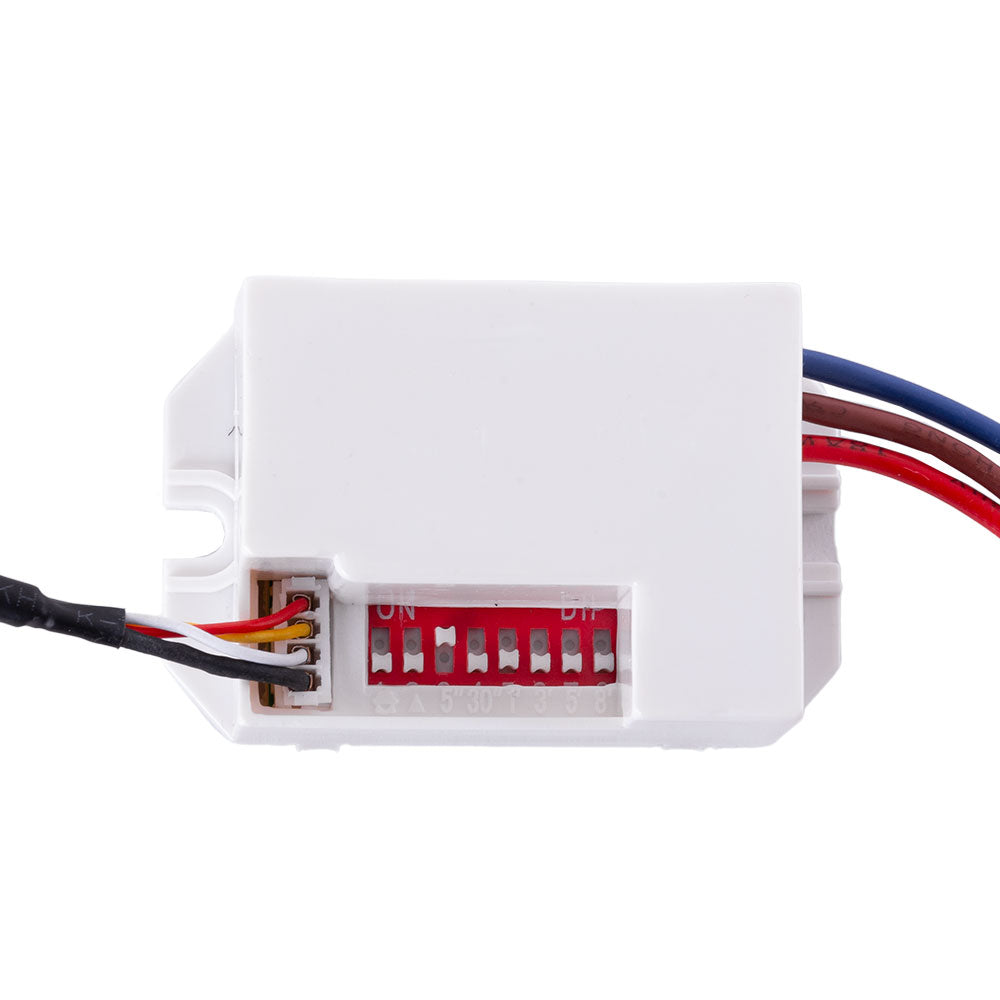

Motion Sensor Recessed Mini 140º ►300W

Motion Sensor Recessed Mini 140º ►300W

For additional amounts the delivery period is 40 days As of the order date
  • Brand:GreenIce
  • SkuSB-BS022
Warranty
  • Warranty 3 years
£9.00
£11.00 £9.00 -18%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-18.18%(SB-BS022_padreImg_sb_bs022_0.jpeg)
##
Stock available
Free shipping
£9.00
£11.00 £9.00 -18%

Technical file

Product code
SB-BS022
Measures (mm)
43x58x13
Roof cut (mm)
18
High
43.0
Long
58.0
Broad
13.0
Construction
ABS
Facility
IP20
Strain
230-240VAC
Work frequency (Hz)
50/ 60
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +40
Weight (gr)
42
Additional information
Detailed instructions in "Documents" tab.

Characteristics

Product code
SB-BS022
Measures (mm)
43x58x13
Roof cut (mm)
18
High
43.0
Long
58.0
Broad
13.0
Construction
ABS
Facility
IP20
Strain
230-240VAC
Work frequency (Hz)
50/ 60
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +40
Weight (gr)
42
Additional information
Detailed instructions in "Documents" tab.

Description

Using the MINI recessed motion sensor for both low-consumption and LED luminaires, it is possible to control its on and off by varying parameters such as range or detection time. Your installation It is very useful in transit areas, emergency stairs, parking lots, etc. due to the adjustment that can be made in its functionality.

It has an infrared detection method . Valid for all weather of LED luminaires that work directly from the electrical network (220V~240VAC)

Among the technical characteristics of this sensor, the following stand out:

  • Input polarity protection function.
  • Control up to 1200W for incandescence and up to 300W in the case of LED or low consumption luminaires. li>
  • One electrical mains input channel and one channel for output to the light source.
  • Opening angle of 140°.
  • Self-adjustable in time of 5 seconds to 8 minutes.
  • Range between 7 meters and 10 meters maximum.
