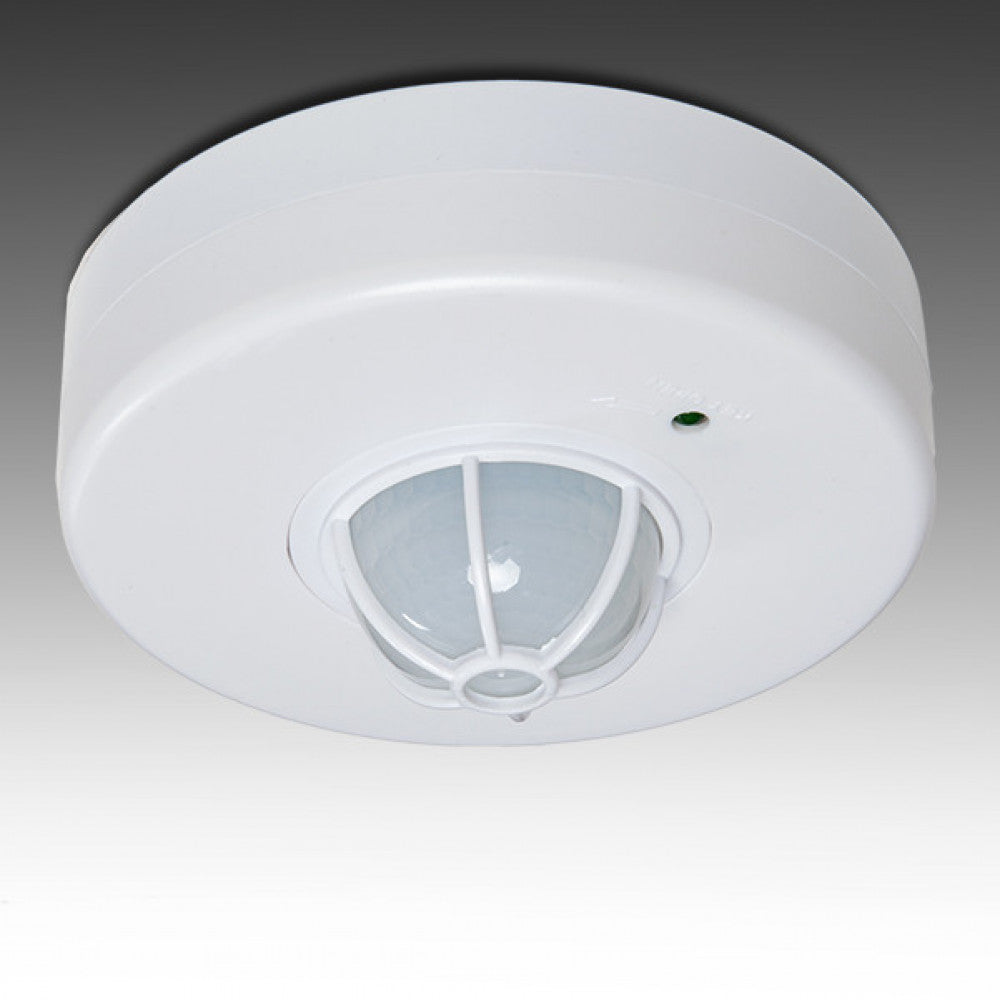

Motion Sensor Surface Mounted 360º ►1200/300W

Motion Sensor Surface Mounted 360º ►1200/300W

See questions and answers

For additional amounts the delivery period is 40 days As of the order date
  • Brand:GreenIce
  • SkuSB-BS036B
Warranty
  • Warranty 3 years
£8.00
£8.00 £8.00 %
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(SB-BS036B_padreImg_sb_bs036b_0.jpeg)
##
Stock available
Free shipping
£8.00
£8.00 £8.00 %

Technical file

Product code
SB-BS036B
Construction
ABS
Facility
IP20
Strain
220-240VAC
Work frequency (Hz)
50/ 60
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +40
Additional information
Detailed instructions in "Documents" tab.

Characteristics

Product code
SB-BS036B
Construction
ABS
Facility
IP20
Strain
220-240VAC
Work frequency (Hz)
50/ 60
Certificates
CE/ROHS/ISO9001
Temperature range (ºC)
-20 +40
Additional information
Detailed instructions in "Documents" tab.

Description

Using the 360° surface motion sensor up to 1200/300W for incandescent, low consumption or LED luminaires, it is possible to control their switching on and off by varying parameters such as range, brightness or detection time. Its installation is very useful in transit areas, emergency stairs, car parks, etc. due to the adjustment that can be made in its functionality.

It has an infrared detection method. Valid for all weather of LED luminaires that work directly to electrical network (220V~240VAC)

Among the technical characteristics of this sensor, the following stand out:

  • Input polarity protection function.< /li>
  • Control up to 1200W for incandescence and up to 300W in the case of LED or low consumption luminaires.
  • One mains input channel and one channel for output to the light source.
  • 360° opening angle.
  • Self-adjusting in time from 10 seconds to 7 minutes.< li>
Range between 3 meters up to 12 meters maximum.

Documents

Installation_manual
Technical_drawings
