Strip of 60 LEDs 72W 4,000Lm CRI85 6000ºK SMD5050 12VDC IP68 Submersible x5M 40,000H [CA-5050-12V-IP68-CW]-Cold White

Strip of 60 LEDs 72W 4,000Lm CRI85 6000ºK SMD5050 12VDC IP68 Submersible x5M 40,000H [CA-5050-12V-IP68-CW]-Cold White

See questions and answers

For additional amounts the delivery period is 25 days As of the order date
  • Brand:GreenIce
  • SkuCA-5050-12V-IP68-CW
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
£38.60
£70.19 £38.60 -45%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 3 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-45.01%(CA-5050-12V-IP68-CW_padreImg_ca_5050_12v_ip68_cw_0.jpeg)
Cool White
Available
Free shipping
£38.60
£70.19 £38.60 -45%

Accessories

  • (TB-TOUCH-MB01_padreImg_tb_touch_mb01_0.jpeg) (TB-TOUCH-MB01_padreImg_tb_touch_mb01_1.jpeg)

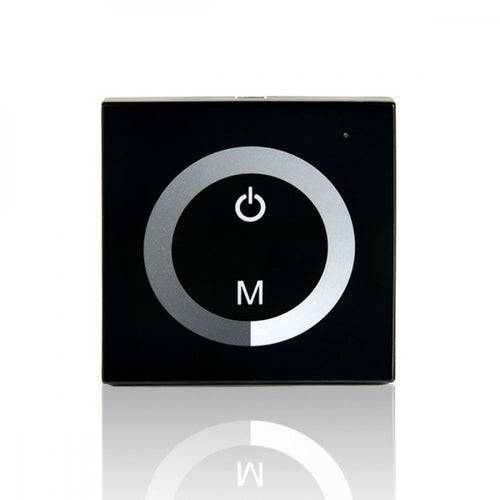

    Dimmer Recessed Touch LED Strip Single Colour 12-24VDC ► 144/288W

    Offer
    GreenIce

    Dimmer Recessed Touch LED Strip Single Colour 12-24VDC ► 144/288W

    £18.53
    £27.90 £18.53 -33%
    Offer
  • (LL-38-0611-20_padreImg_ll_38_0611_20_0.png) (LL-38-0611-20_padreImg_ll_38_0611_20_1.png)

    KIMERA-"ARRE" Black Anodized Aluminum Profile with Opal Diffuser, End Caps and Mounting Clips 2.02M

    KIMERA

    KIMERA-"ARRE" Black Anodized Aluminum Profile with Opal Diffuser, End Caps and Mounting Clips 2.02M

    £6.79
    £6.79 £6.79 %
  • (SU-A1707_B_padreImg_su_a1707_b_0.jpeg) (SU-A1707_B_padreImg_su_a1707_b_1.jpeg)

    Black Aluminum Profile for LED Strip - Opal Diffuser

    GreenIce

    Black Aluminum Profile for LED Strip - Opal Diffuser

    £6.87
    £6.87 £6.87 %
  • (LL-38-0640-20_padreImg_ll_38_0640_20_0.png) (LL-38-0640-20_padreImg_ll_38_0640_20_1.png)

    KIMERA-"ARRE" Silver Anodized Aluminum Profile with Opal Diffuser, End Caps and Mounting Clips 2.02M

    KIMERA

    KIMERA-"ARRE" Silver Anodized Aluminum Profile with Opal Diffuser, End Caps and Mounting Clips 2.02M

    £6.50
    £6.50 £6.50 %
  • (LL-38-0150-20_padreImg_ll_38_0150_20_0.jpeg) (LL-38-0150-20_padreImg_ll_38_0150_20_1.jpeg)

    KIMERA-SELDE Anodized Silver Aluminum Profile with Opal Diffuser and End Caps 2.02M

    KIMERA

    KIMERA-SELDE Anodized Silver Aluminum Profile with Opal Diffuser and End Caps 2.02M

    £6.46
    £6.46 £6.46 %

Technical file

Product code
CA-5050-12V-IP68-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
72.0
Luminosity (LM)
4000
Luminous efficacy (LM/W)
55
LED efficacy
60
Type of LEDs
SMD 5050
Measures (mm)
5000x6x13
High
6.0
Long
5000.0
Broad
13.0
CRI
85
Diffuser
Transparent
Power factor (PF)
0.8
Construction
Epoxy
Opening Angle (º)
120
Facility
IP68
Strain
12VDC
Estimated life (H)
40000
Dimable
Yeah
Equivalence (W)
385
Isolation class
III
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Energy consumption (kWh/1000h)
72.0
Weight (gr)
450
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
5
Minimum cri range
85
Maximum cri range
2
Chromaticity x
0.304
Chromaticity y
0.312
Additional information
DC connector on both ends / Transformer required in the "Accessories" tab
Número unidades caja exterior
10.0
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; EPA 3050B:1996; EN 1122B:2001; EPA 3052:1996; EPA 3060A:1996; EPA 7196A:1992; EPA 3540C:1996; EPA 8270D:2007; IEC 62321:2008

Characteristics

Product code
CA-5050-12V-IP68-CW
Light temperature
Cold White
Kelvin º
6000
Power (W)
72.0
Luminosity (LM)
4000
Luminous efficacy (LM/W)
55
LED efficacy
60
Type of LEDs
SMD 5050
Measures (mm)
5000x6x13
High
6.0
Long
5000.0
Broad
13.0
CRI
85
Diffuser
Transparent
Power factor (PF)
0.8
Construction
Epoxy
Opening Angle (º)
120
Facility
IP68
Strain
12VDC
Estimated life (H)
40000
Dimable
Yeah
Equivalence (W)
385
Isolation class
III
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal Block
Temperature range (ºC)
-20 +65
Lighting cycles
100000
Energy consumption (kWh/1000h)
72.0
Weight (gr)
450
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
5
Minimum cri range
85
Maximum cri range
2
Chromaticity x
0.304
Chromaticity y
0.312
Additional information
DC connector on both ends / Transformer required in the "Accessories" tab
Número unidades caja exterior
10.0
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; EPA 3050B:1996; EN 1122B:2001; EPA 3052:1996; EPA 3060A:1996; EPA 7196A:1992; EPA 3540C:1996; EPA 8270D:2007; IEC 62321:2008

Description

The LED strip is flexible and extra-flat and can be adapted to any surface. It cannot be cut or joined as the strip loses its IP68 degree of protection with its consequent failure when in contact with water strong>.The cables and connector cannot be in contact with water as they are not watertight.

SMD 5050 flexible strips are high power and bright. They are also known as triple core strips (because of the three different areas that can be identified by looking closely at the LED). CIt should be noted that the SMD 5050 LED strip can offer a light intensity 3 times higher than that of the SMD 3528 strip, so the SMD 5050 LED strip is more suitable for areas that require higher levels of ambient light.

For the installation of a Led Strip, a controller is required, a power supply either indoors (for closed spaces) or outdoors. It can be submerged up to a maximum of 3 meters.

This strip is designed for decorative lighting of fountains and swimming pools.
