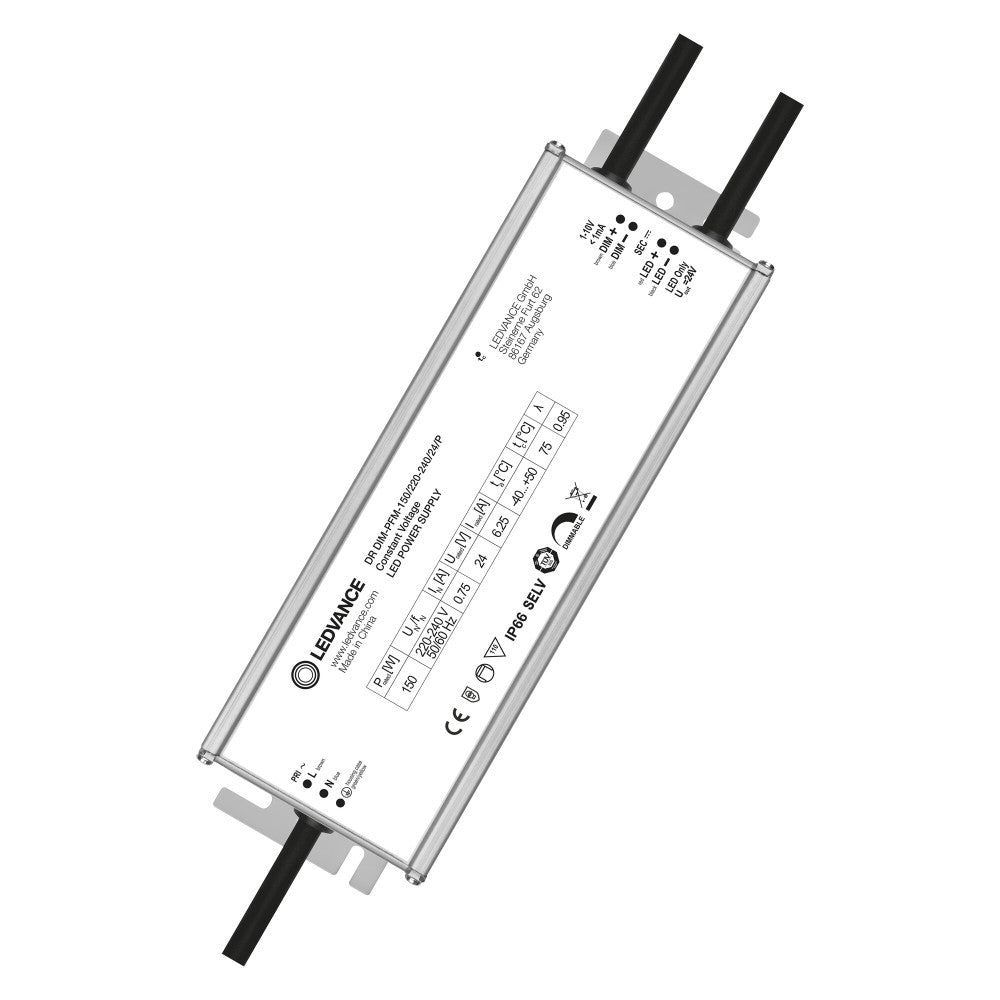

LED Driver Ledvance EC Performance DR DIM-PFM-150/220-240/24/P

LED Driver Ledvance EC Performance DR DIM-PFM-150/220-240/24/P

See questions and answers

For additional amounts the delivery period is 3 days As of the order date
  • Brand:Ledvance-Osram / Ledvance-Osram
  • SkuLVE-4058075240117
Warranty
  • Warranty 3 years
Documents
£99.00
£99.00 £99.00 %
Tax included. The Shipping expenses They are calculated on the payment screen.

There are few

Warranty
  • Warranty 3 years
Documents
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
(LVE-4058075240117_padreImg_lve_4058075240117_0.jpeg)
##
There are few
Free shipping
£99.00
£99.00 £99.00 %

Technical file

Product code
LVE-4058075240117

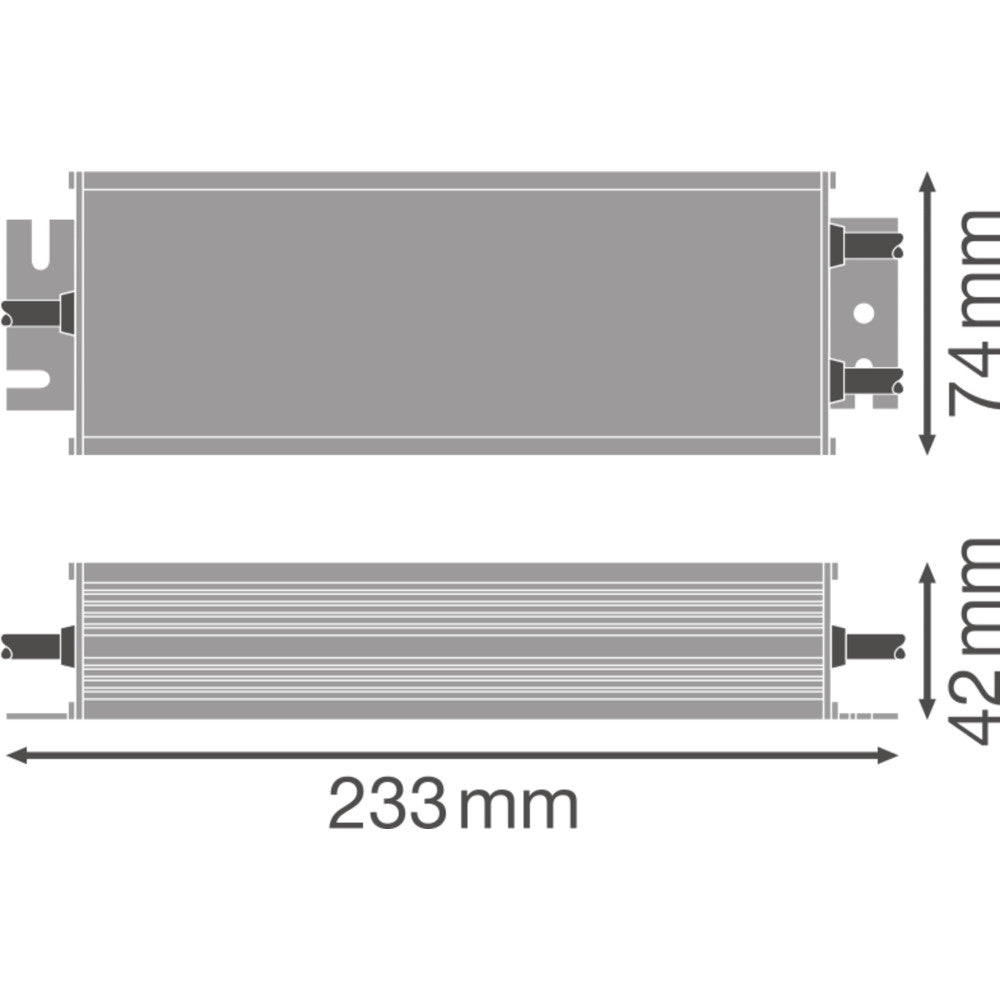

Measures (mm)
233x74x42
High
74.0
Long
233.0
Broad
42.0
Power factor (PF)
0.95
Facility
IP66
Strain
220-240VAC
Driver output
744 mA
Estimated life (H)
50000
Dimable
Yes
Weight (gr)
225
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Finish
Aluminum

Characteristics

Product code
LVE-4058075240117
Measures (mm)
233x74x42
High
74.0
Long
233.0
Broad
42.0
Power factor (PF)
0.95
Facility
IP66
Strain
220-240VAC
Driver output
744 mA
Estimated life (H)
50000
Dimable
Yes
Weight (gr)
225
Half -year useful life (at 3 h/day)
45.66
Half -Year Useful Life (5 h/day)
27.39
Half -year useful life (at 8 h/day)
17.12
Finish
Aluminum

Description

Constant voltage LED driver for outdoors with 1-10 V regulation. Product features: Available in 20 W, 40 W, 60 W, 100 W, 150 W and 250 W. Dimmable via 1…10 V. Dimmable from 10…100%. Durability: up to 50,000 h (at maximum tc temperature). Protection type: IP66. Operating temperature range between: -40ºC…50ºC. Supply voltage: 220…240 V. Operating frequency: 50/60 Hz. Surge protection: up to 6kV (LN), 6 kV (LN) (L/N-PE). Short circuit and overload protection. Product benefits: Perfectly adapted to flexible 24 V LED strips. 5 year warranty. Very stable power output. Quick and easy installation thanks to pre-wiring. High efficiency and reliability. Installation in very cold and hot environments. Application areas: Suitable for indoor and outdoor installations. Lighting of facades and buildings. Ideal for illuminating public spaces. Bathrooms, kitchens and outdoor areas. Offices, shopping centers, hospitals, restaurants, hotels.
