LED luminaire 10W 850Lm 6000ºK T5 60Cm 40,000H [GR-T5DG10W-CW]

LED luminaire 10W 850Lm 6000ºK T5 60Cm 40,000H [GR-T5DG10W-CW]

For additional amounts the delivery period is 60 days As of the order date
  • Brand:GreenIce
  • SkuGR-T5DG10W-CW
  • A 2021
Eprel file
Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
£5.00
£7.00 £5.00 -28%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • Eye Care Eye Care
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-28.57%(GR-T5DG10W-CW_padreImg_gr_t5dg10w_cw_0.jpeg)
Cool White
Stock available
Free shipping
£5.00
£7.00 £5.00 -28%

Accessories

  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    Offer
    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    £4.00
    £6.00 £4.00 -33%
    Offer
  • (GH-90963602_padreImg_gh_90963602_0.jpeg) (GH-90963602_padreImg_gh_90963602_1.jpeg)

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £4.00
    £4.00 £4.00 %
  • (SB-BS041_padreImg_sb_bs041_0.jpeg) (SB-BS041_padreImg_sb_bs041_1.jpeg)

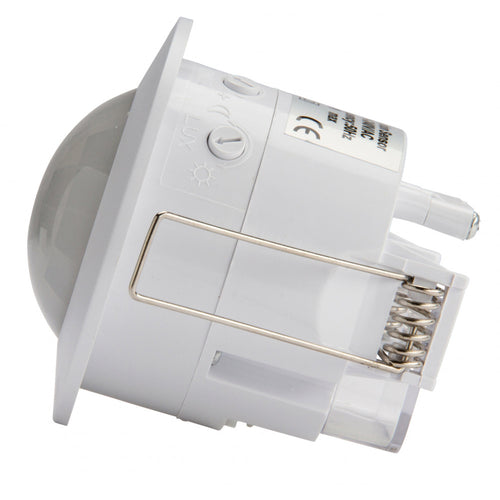

    Motion Sensor Recessed 360º ►1200/300W

    Offer
    GreenIce

    Motion Sensor Recessed 360º ►1200/300W

    £11.00
    £13.00 £11.00 -15%
    Offer
  • (SB-BS039_padreImg_sb_bs039_0.jpeg) (SB-BS039_padreImg_sb_bs039_1.jpeg)

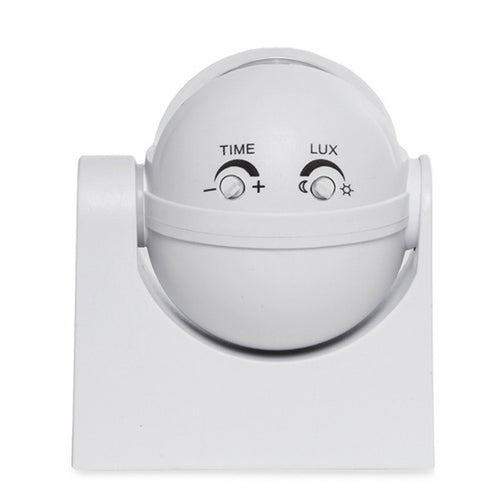

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    Offer
    GreenIce

    Motion Sensor Surface Mounted 180º IP44 ►1200/300W [SB-BS039]

    £8.00
    £14.00 £8.00 -42%
    Offer
  • (WR-CON-T5-20CM_padreImg_wr_con_t5_20cm_0.jpeg) (WR-CON-T5-20CM_padreImg_wr_con_t5_20cm_1.jpeg)

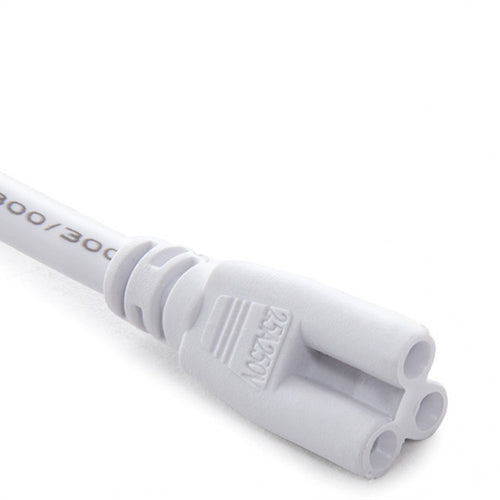

    Connector Luminaires T5 200Mm

    GreenIce

    Connector Luminaires T5 200Mm

    £2.00
    £2.00 £2.00 %
  • (SB-BS036B_padreImg_sb_bs036b_0.jpeg) (SB-BS036B_padreImg_sb_bs036b_1.jpeg)

    Motion Sensor Surface Mounted 360º ►1200/300W

    GreenIce

    Motion Sensor Surface Mounted 360º ►1200/300W

    £8.00
    £8.00 £8.00 %
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £5.00
    £5.00 £5.00 %

Technical file

Product code
GR-T5DG10W-CW
Luminous efficacy (LM/W)
85
Light temperature
Cold White
Kelvin º
6000
Power (W)
10.0
Luminosity (LM)
850
Measures (mm)
22x600
Long
600.0
Diameter
22
Number and type of LEDs
SMD2835
CRI
80
Power factor (PF)
0.9
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
90
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
T5
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
10.0
Weight (gr)
100
Flicker
0.86
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
96
Maximum cri range
7
Chromaticity x
0.392
Chromaticity y
0.379
Driver output
DC36-80V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
GR-T5DG10W-CW
Luminous efficacy (LM/W)
85
Light temperature
Cold White
Kelvin º
6000
Power (W)
10.0
Luminosity (LM)
850
Measures (mm)
22x600
Long
600.0
Diameter
22
Number and type of LEDs
SMD2835
CRI
80
Power factor (PF)
0.9
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
90
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.1
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
T5
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Diffuser
Milky
Energy consumption (kWh/1000h)
10.0
Weight (gr)
100
Flicker
0.86
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
28
Minimum cri range
96
Maximum cri range
7
Chromaticity x
0.392
Chromaticity y
0.379
Driver output
DC36-80V
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The 60Cm T8 LED T5 Batten, to be installed on the ceiling or wall, offers solutions for offices, factories, supermarkets, shops and for residential use. It can be installed directly to sockets current supplied by the electrical network (85-265VAC) with a service frequency of 50/60Hz, through a connector cable that can be plugged into either end of the strip.

It has a high efficacy (85 Lm/W) consuming 10W through SMD2835 type LEDs, managing to provide a luminous flux of 850Lm uniformly distributed through an opalized plastic diffuser from which a color rendering index of 80 is obtained . Its consumption represents a value of 10kWh/1000h, reducing the amount of energy invoiced and the emissions of polluting gases into the atmosphere. This strip contains a driver located internally. White finish in the part where the opal plastic diffuser is located and the other part a heat sink made of gray aluminum.

The strip has a degree of protection IP25 (valid for dust and humidity indoors), as well as being robust enough for the required mechanical demands.

It offers very homogeneous lighting thanks to the 120º opening angle of the light beam. The opal finish of the luminaire reduces glare. It has an aluminum housing and a PC (polycarbonate) cover, materials resistant to water, dust and corrosion. It has a connector cable to power the strip. Its driver is integrated inside the strip.

Ideal for replacing traditional strips and mounting in a wide variety of facilities such as factories, warehouses, car parks, tunnels, etc. .

This strip is available in cool white (6000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
