LED Plate 18W 1350Lm 6000ºK Square Custom Case 40,000H [JL-GP-LZ-6-CW-EP01]

LED Plate 18W 1350Lm 6000ºK Square Custom Case 40,000H [JL-GP-LZ-6-CW-EP01]

See questions and answers

For additional amounts the delivery period is 8 days As of the order date
  • Brand:GreenIce
  • SkuJL-GP-LZ-6-CW-EP01
  • A 2021
Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
£7.00
£8.00 £7.00 -12%
Tax included. The Shipping expenses They are calculated on the payment screen.

Available

Warranty
  • Warranty 3 years
  • 120 º Opening
Documents
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-12.5%(JL-GP-LZ-6-CW-EP01_padreImg_jl_gp_lz_6_cw_ep01_0.jpeg)
Cool White
Available
Free shipping
£7.00
£8.00 £7.00 -12%

Accessories

  • (GH-90963602_padreImg_gh_90963602_0.jpeg) (GH-90963602_padreImg_gh_90963602_1.jpeg)

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    Offer
    PANASONIC

    Switch Double Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £4.00
    £7.00 £4.00 -42%
    Offer
  • (DR-FD-ND-18W_padreImg_dr_fd_nd_18w_0.jpeg) (DR-FD-ND-18W_padreImg_dr_fd_nd_18w_1.jpeg)

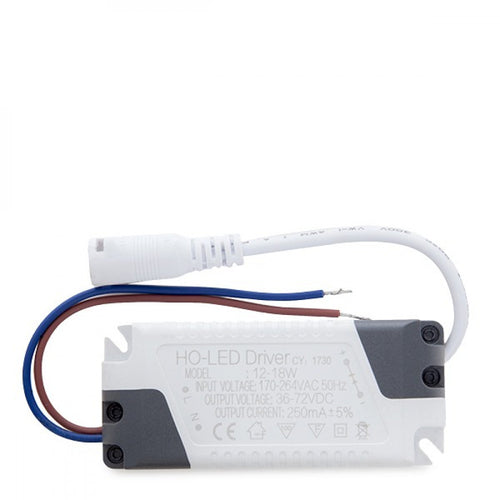

    Driver Non Dimmable Downlight LED 18W

    Offer
    GreenIce

    Driver Non Dimmable Downlight LED 18W

    £2.00
    £4.00 £2.00 -50%
    Offer
  • (SB-BS036B_padreImg_sb_bs036b_0.jpeg) (SB-BS036B_padreImg_sb_bs036b_1.jpeg)

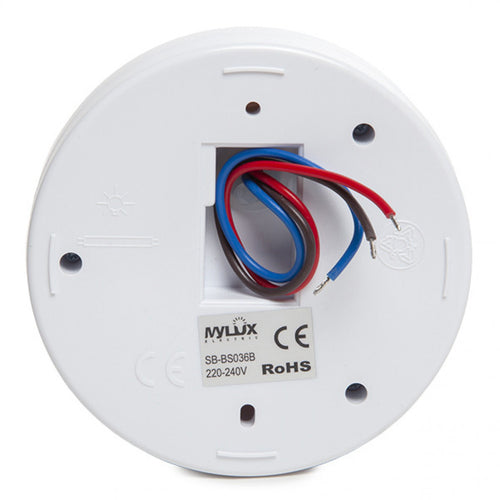

    Motion Sensor Surface Mounted 360º ►1200/300W

    GreenIce

    Motion Sensor Surface Mounted 360º ►1200/300W

    £8.00
    £8.00 £8.00 %
  • (GH-90963601_padreImg_gh_90963601_0.jpeg) (GH-90963601_padreImg_gh_90963601_1.jpeg)

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Switch Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £5.00
    £5.00 £5.00 %
  • (GR-DRDIM-18W_padreImg_gr_drdim_18w_0.jpeg) (GR-DRDIM-18W_padreImg_gr_drdim_18w_1.jpeg)

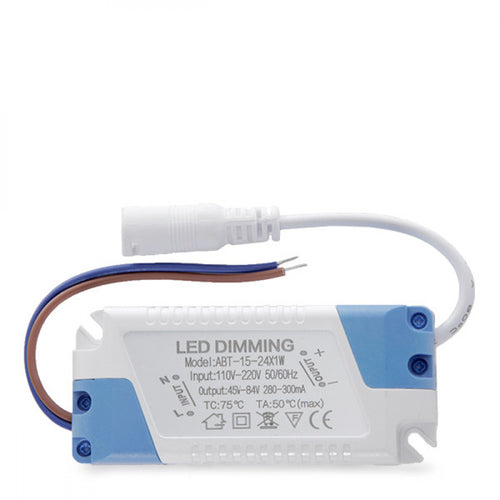

    Driver Dimmable Slimline Downlights 18W

    Offer
    GreenIce

    Driver Dimmable Slimline Downlights 18W

    £7.00
    £11.00 £7.00 -36%
    Offer
  • (SB-BS031B_padreImg_sb_bs031b_0.jpeg) (SB-BS031B_padreImg_sb_bs031b_1.jpeg)

    Motion Sensor Recessed 160º ►600W/200W

    Offer
    GreenIce

    Motion Sensor Recessed 160º ►600W/200W

    £5.00
    £13.00 £5.00 -61%
    Offer
  • (GH-90963604_padreImg_gh_90963604_0.jpeg) (GH-90963604_padreImg_gh_90963604_1.jpeg)

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    PANASONIC

    Commutator Panasonic Karre 10A 250V/Metal Frame With Claws/Key White

    £6.00
    £6.00 £6.00 %

Technical file

Product code
JL-GP-LZ-6-CW-EP01
Light temperature
Cold white
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1350
Luminous efficacy (LM/W)
75
LED efficacy
82
Type of LEDs
Osram Led
Measures (mm)
220x220
Roof cut (mm)
200x200
Long
220.0
Broad
220.0
CRI
80
Diffuser
Milky
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
18.0
Weight (gr)
473
Flicker
0.75
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
88
Maximum cri range
28
Chromaticity x
0.313
Chromaticity y
0.337
Additional information
Possibility of dimming by purchasing a dimmable controller in the accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Characteristics

Product code
JL-GP-LZ-6-CW-EP01
Light temperature
Cold white
Kelvin º
6000
Power (W)
18.0
Luminosity (LM)
1350
Luminous efficacy (LM/W)
75
LED efficacy
82
Type of LEDs
Osram Led
Measures (mm)
220x220
Roof cut (mm)
200x200
Long
220.0
Broad
220.0
CRI
80
Diffuser
Milky
Power factor (PF)
0.98
Construction
Aluminum/PC
Opening Angle (º)
120
Facility
IP20
Strain
85-265VAC
Estimated life (H)
40000
Dimable
No
Equivalence (W)
120
Isolation class
II
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
G
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
100000
Energy consumption (kWh/1000h)
18.0
Weight (gr)
473
Flicker
0.75
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
26
Minimum cri range
88
Maximum cri range
28
Chromaticity x
0.313
Chromaticity y
0.337
Additional information
Possibility of dimming by purchasing a dimmable controller in the accessories tab
Applicable standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001

Description

The 225x225mm square LED plate, with ultra-thin dimensions (19mm), offers solutions for offices, factories, supermarkets, shops and residential use.It can be installed directly to the supplied power sockets by the electrical network (85-265VAC) with a service frequency of 50/60Hz.

It has a high efficiency (75 Lm/W) consuming 18W through SMD2835 type LEDs and managing to provide a luminous flux of 1350Lm uniformly distributed by an opal plastic diffuser from which a color rendering index of 80 is obtained. It provides lighting equivalent to a 100W incandescent bulb, its consumption represents a value of 18kWh/1000h, reducing the amount of energy billed and the emissions of polluting gases into the atmosphere.

This board is powered by a non-dimmable driver included in the package that must be connected directly to the network, with an output connector compatible it with the connection of the plate (46-65VDC, 280mA), additionally the necessary accessories for the installation of the plate are included. White finish built with aluminum.

The plate has an IP25 degree of protection (valid for dust and humidity indoors), in addition to being robust enough for the required mechanical demands .

LED downlights are ideal for general lighting in spaces that require high performance and long periods of continuous lighting. And that is why they include a high-quality aluminum heat sink, which contributes to minimal heat emission from the LED luminaire. They are also very easy to install and being so thin they can be placed in false ceilings with little height where more voluminous solutions could not be used.

This plate is available in natural white (4200°K ), cold white (6000°K) and warm white (3000°K). The indicated color temperature may suffer fluctuations corresponding to a tolerance of 7%.
