Strip of 320 LEDs/M 50W 5,000Lm CRI90 6000ºK COB 12VDC IP20 8mm Width x5M 40,000H [CA-COB-320-12DC-CW]-Cold White

Strip of 320 LEDs/M 50W 5,000Lm CRI90 6000ºK COB 12VDC IP20 8mm Width x5M 40,000H [CA-COB-320-12DC-CW]-Cold White

For additional amounts the delivery period is 25 days As of the order date
  • Brand:GreenIce
  • SkuCA-COB-320-12DC-CW
  • AA 2021
Eprel file
Warranty
  • Warranty 3 years
  • 120 º Opening
£15.00
£19.00 £15.00 -21%
Tax included. The Shipping expenses They are calculated on the payment screen.

Stock available

Warranty
  • Warranty 3 years
  • 120 º Opening
Are you a professional customer?

We have published a new website only for professionals.

Go to Professional Area
Advantages of buying in Greenice
  • Guaranteed minimum price
  • Free returns up to 60 days
  • Free shipping From € 21.95
  • Until 10 years guarantee
-21.05%(CA-COB-320-12DC-CW_padreImg_ca_cob_320_12dc_cw_0.jpeg)
Cool White
Stock available
Free shipping
£15.00
£19.00 £15.00 -21%

Accessories

  • (KD-TRIP25120W10A_padreImg_kd_trip25120w10a_0.jpeg)

    LED transformer 12VDC 120W/10A IP20 [KD-TRIP25120W10A]

    Offer
    GreenIce

    LED transformer 12VDC 120W/10A IP20 [KD-TRIP25120W10A]

    £10.00
    £13.00 £10.00 -23%
    Offer
  • (KD-TRIP25400W33A_padreImg_kd_trip25400w33a_0.jpeg) (KD-TRIP25400W33A_padreImg_kd_trip25400w33a_1.jpeg)

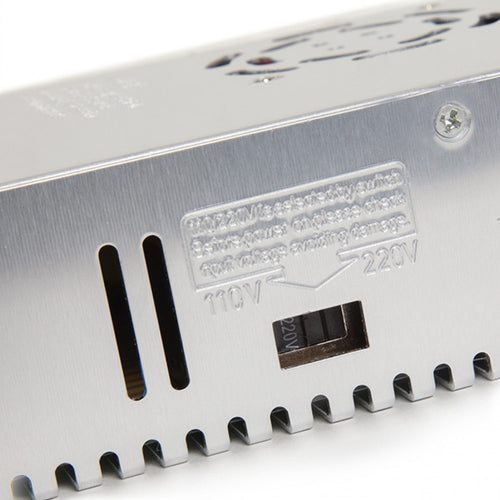

    LED transformer 12VDC 400W/33A IP20 [KD-TRIP25400W33A]

    Offer
    GreenIce

    LED transformer 12VDC 400W/33A IP20 [KD-TRIP25400W33A]

    £28.00
    £34.00 £28.00 -17%
    Offer
  • (KD-TRIP2560W5A_padreImg_kd_trip2560w5a_0.jpeg)

    LED transformer 12VDC 60W/5A IP20 [KD-TRIP2560W5A]

    Offer
    GreenIce

    LED transformer 12VDC 60W/5A IP20 [KD-TRIP2560W5A]

    £7.00
    £9.00 £7.00 -22%
    Offer

Technical file

Product code
CA-COB-320-12DC-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
50.0
Luminosity (LM)
5000
Measures (mm)
8x5000
Long
5000.0
Broad
8.0
Number and type of LEDs
COB
CRI
90
Construction
PCB/ 3M Tape
Opening Angle (º)
120
Facility
IP20
Strain
12VDC
Estimated life (H)
40000
Dimable
Yes
Equivalence (W)
270
Isolation class
III
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
80000
Diffuser
Transparent
Energy consumption (kWh/1000h)
50.0
Weight (gr)
100
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
10
Minimum cri range
92
Maximum cri range
6
Chromaticity x
0.304
Chromaticity y
0.312
Additional information
Detailed instructions in the "Documents" tab
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; EPA 3050B:1996; EN 1122B:2001; EPA 3052:1996; EPA 3060A:1996; EPA 7196A:1992; EPA 3540C:1996; EPA 8270D:2007; IEC 62321:2008

Characteristics

Product code
CA-COB-320-12DC-CW
Luminous efficacy (LM/W)
100
Light temperature
Cold White
Kelvin º
6000
Power (W)
50.0
Luminosity (LM)
5000
Measures (mm)
8x5000
Long
5000.0
Broad
8.0
Number and type of LEDs
COB
CRI
90
Construction
PCB/ 3M Tape
Opening Angle (º)
120
Facility
IP20
Strain
12VDC
Estimated life (H)
40000
Dimable
Yes
Equivalence (W)
270
Isolation class
III
Work frequency (Hz)
50/ 60
Start time (s)
0.2
Energy class
F
Certificates
CE/ROHS/ISO9001
Bush
Terminal
Temperature range (ºC)
-20 +40
Lighting cycles
80000
Diffuser
Transparent
Energy consumption (kWh/1000h)
50.0
Weight (gr)
100
Half -year useful life (at 3 h/day)
36.52
Half -Year Useful Life (5 h/day)
21.91
Half -year useful life (at 8 h/day)
13.69
Directional
Non-Directional
Single/range CCT
Only
Single CCT
6000
INDEX R9
10
Minimum cri range
92
Maximum cri range
6
Chromaticity x
0.304
Chromaticity y
0.312
Additional information
Detailed instructions in the "Documents" tab
Applicable standards
EN 55015:2006; EN 61547:2009; EN 61000-3-2:2006; EN 61000-3-3:2008; EPA 3050B:1996; EN 1122B:2001; EPA 3052:1996; EPA 3060A:1996; EPA 7196A:1992; EPA 3540C:1996; EPA 8270D:2007; IEC 62321:2008

Description

The COB LED strip integrates with the minimum visual impact in all types of projects, achieving effect lighting. Its extra-flat line and its easy installation makes it ideal for corridors, showcases, shelves.

Installation:

Flexible LED strip has on the back a powerful 3M adhesive for a very simple installation on any surface (previously cleaned so that it sticks well). The strip is extremely flexible and can be used around tight bends. The power supply can be soldered to the LED strip directly.

To install an LED strip you will need: A controller, a power supply either inside or outside. In addition, it has accessories to connect and splice LED strips, in case you want to join more than 8 meters of LED strip you will need an amplifier.

It is recommended not to exceed 8 meters length of LED strip if only one power supply is available, as it loses intensity. In the event that more length is necessary, an amplifier and a power supply will be needed every 8 meters to prevent the the installation loses intensity.

Ideal for:

  • Under shelf lighting
  • Highlight contours of objects, walls, ceilings , etc.
  • Provide indirect light in closed spaces.
  • Outline circular and square spaces.
  • Lighting showcases, shelves, corridors and shop windows

Documents

Installation_manual
Spanish_technical_data
Eu_certificates
Technical_drawings
